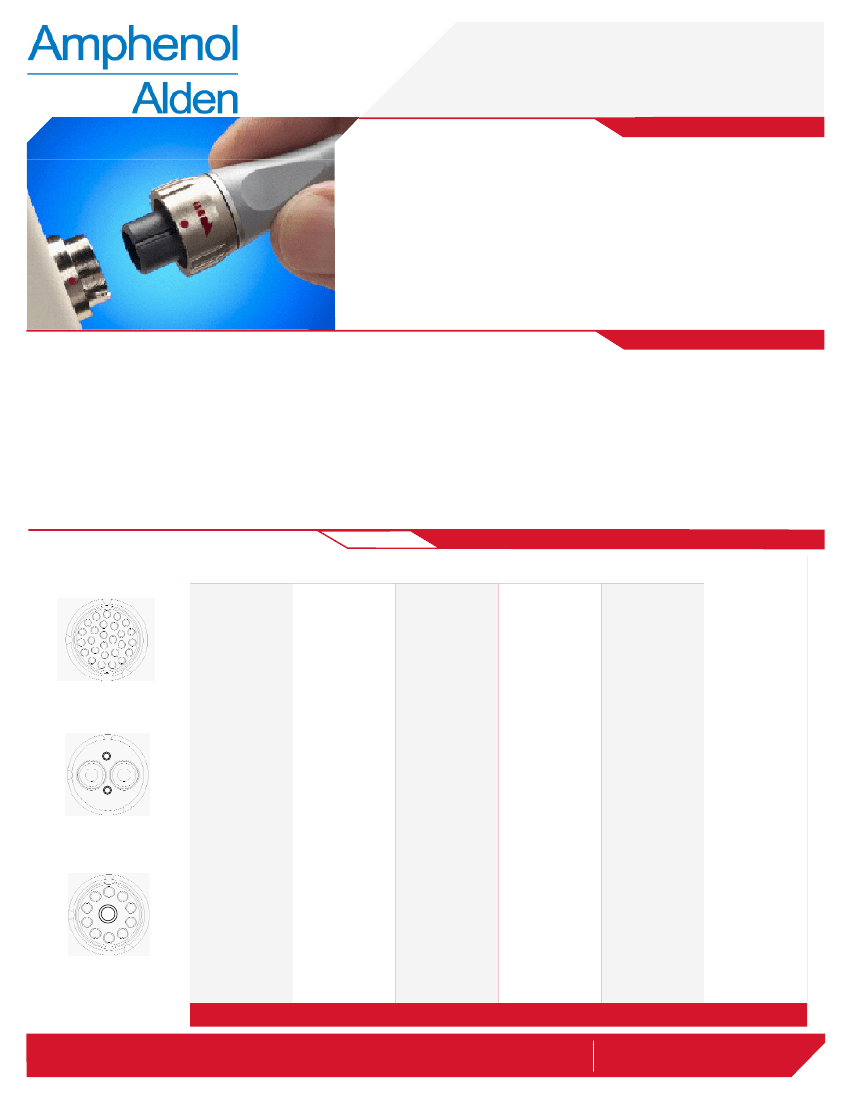

PL-700SM-B SERIES
Metal Shell Auto-Coupling Connectors
27 pole
capacity circular shell connectors
Compact and configurable, the PL-700
Series connector is Alden’s most versa-
tile offering in a sub .700” diameter pack-
age. PL-700 Series connectors attach to
a cable with a Press & Seal ™ backshell
that provides the refined look and
perfomance of an overmolded product.
Packaging (intuitive, compact, configu-
rable)
• Pulse-Lok® auto-latch / mating
confirmation
• Up to 27 contact positions
PL-700SM-B FEATURES
• 14 standard color combinations
• Available as an overmolded
cable assembly
• Custom configurations available
Performance (for harsh
environments)
• Press & Seal™ self-sealing
contacts & backshell
• Water Proof
• Sterilizable
• Chemical resistant housing
• High mating cycle capability
• Rugged metal shell
Electrical (See Table A)
Mating Life: 5,000 cycles min.
Contact Resistance: < 10 milliohms*
Material
Connector Housing: Nickel Plated Brass
Flex Reliefs: Thermoplastic Rubber
Contacts: Pins = Brass, Sockets = Bronze Alloy
Gold Plate per MIL-G-45204C
30 - 45µ” Gold over 50 – 200µ” Nickel strike
SPECIFICATIONS
Mechanical
Mating Cycles: 20K cycles max
Retention Force (axial):
• Mated Connectors: 75 lbs. Minimum
• Cable to Connector: to 50 lbs. typical
• Backshell to Connector: 50 lbs.
Minimum

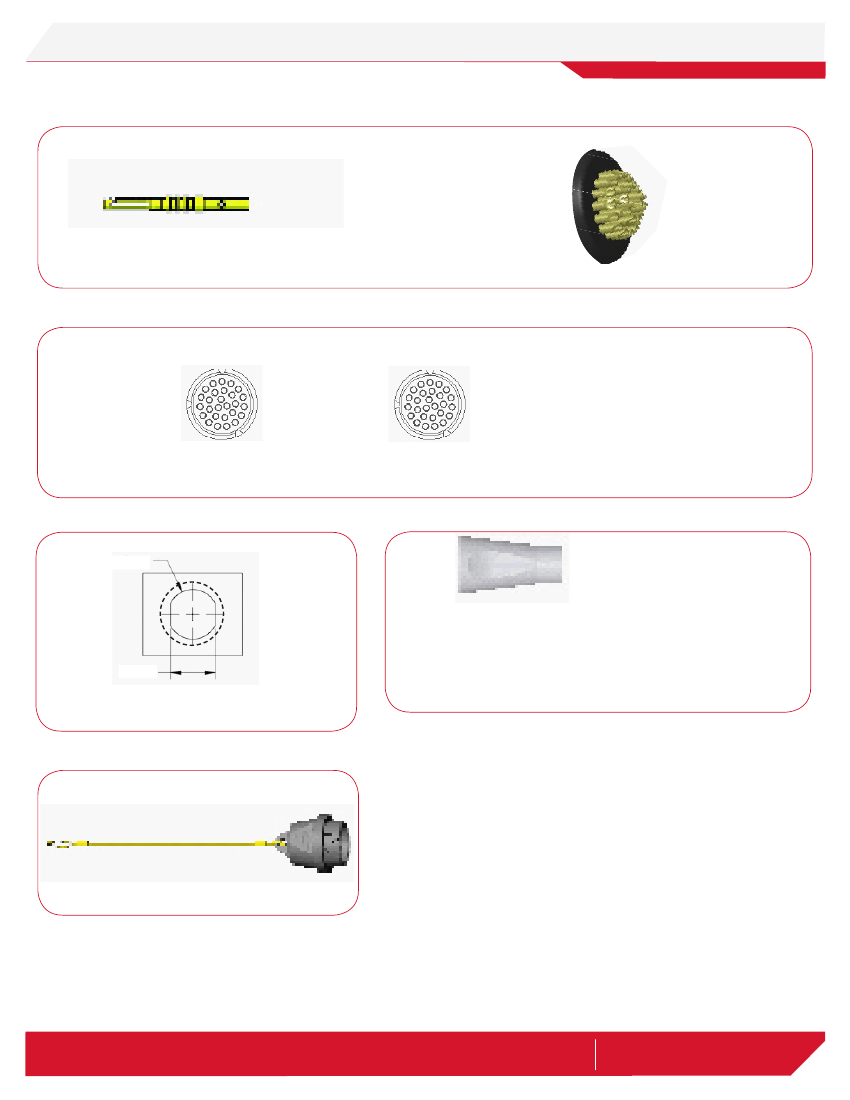

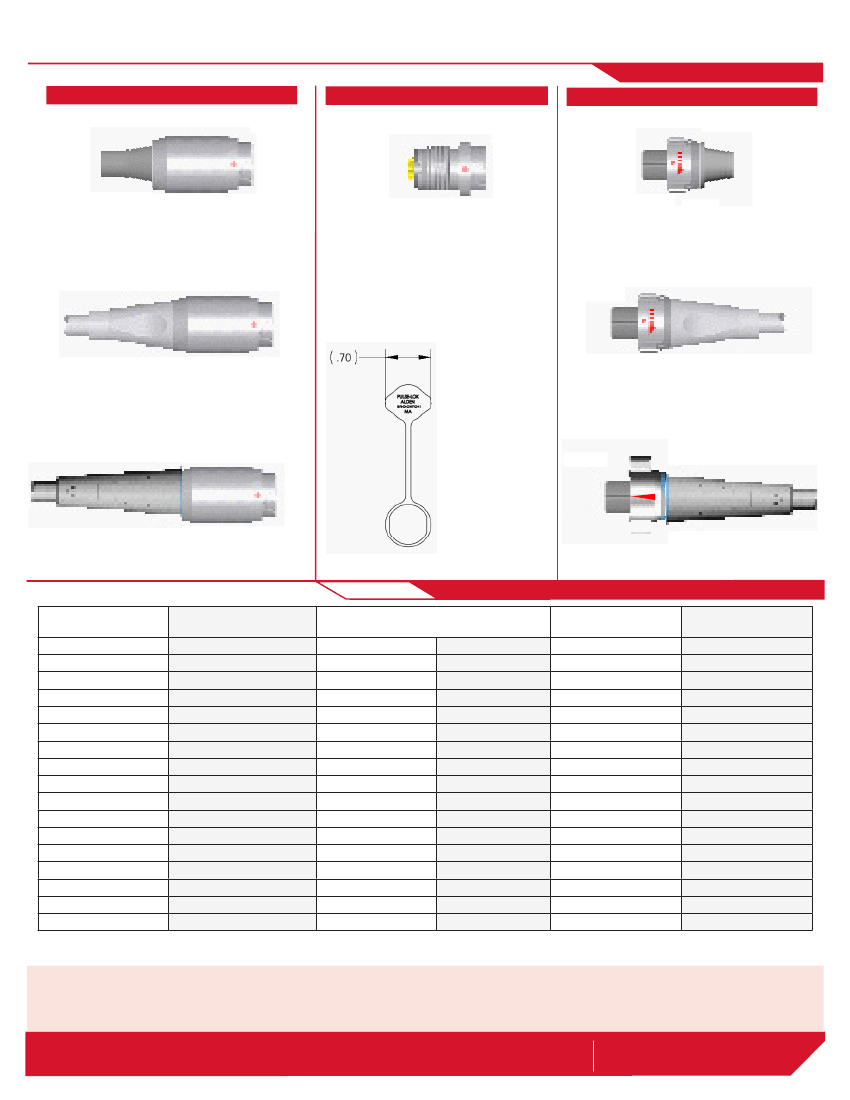

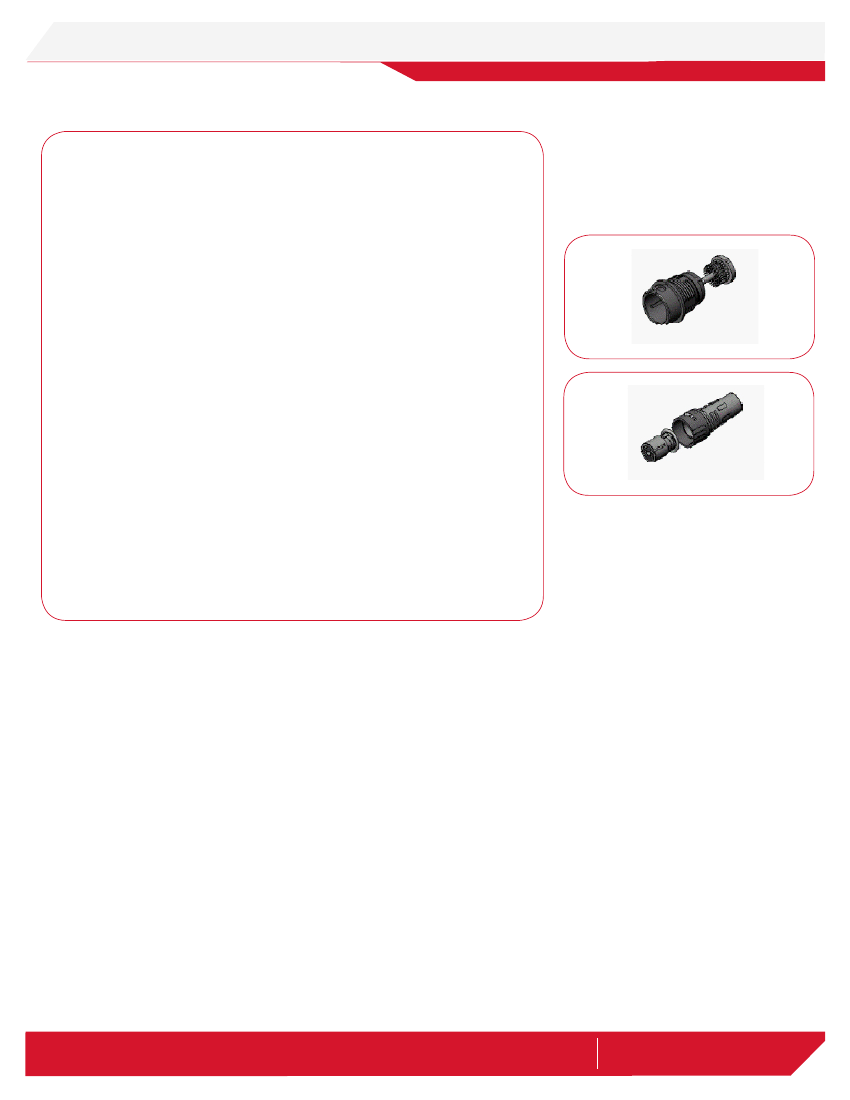

Housing Styles (illustrated on page 2)
• Plug – in-line, cable-mount
• Receptacle – front panel-mount
• Receptacle – in-line, cable-mount
Environmental
• Operating Temp: -20C to +125C**
• Moisture Resistance: to IP-67
• Sterilizable: steam, gamma & EtO
• Chem. Resistance: common OR
cleaning solvents
* post conditioning
** dependent on backshell material
TABLE A:
STANDARD CONTACT CONFIGURATIONS & SPECIFICATIONS
Operating Voltage
Operating Current
Contact Resistance
Up to 27
contact positions
Number of Poles
Contact Size
Pin
f
(mm)
Max Wire Gauge
27
24
18
14
0.5
0.5
0.5
0.7
0.7
0.7
0.7
0.7
0.7
0.7
2/1.5 + 2/.7
0.7
0.7
1.5
0.7
2.3
28
28
28
22
22
22
22
22
22
22
16 / 22
22
22
16
22
12
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
0.5 A
0.5 A
0.9 A
0.9 A
1.2 A
2.0 A
2.1 A
2.1 A
2.4 A
2.4 A
7.0 A / 3.0 A
3.0 A
3.0 A
13.0 A
3.0 A
15.0 A
< 14m ohms
< 14m ohms
< 14m ohms
< 6m ohms
< 6m ohms
< 6m ohms
< 6m ohms
< 6m ohms
< 6m ohms
< 6m ohms
< 6m ohms
< 6m ohms
< 6m ohms
< 2m ohms
< 6m ohms
< 2m ohms
Standard hybrid
circuit arrangements
12
10
7
6
5
Coaxial & custom
circuits available
4
4
3
2
2
1
1
For additional information about this, or any other Alden product, please
contact an Amphenol Alden specialist today.
© 2012 Amphenol Alden
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
“Pulse-Lok” is a trademark of Amphenol Alden Products Company US Patents 5,067,909 , 5,167,522 , & International Patents apply. Other Patents Pending.
