50122-3264J datasheet, PDF - EEWORLD Datasheet

50122-3264J: DescriptionBoard Connector, 264 Contact(s), 4 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size184KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

50122-3264J Overview

Board Connector, 264 Contact(s), 4 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	1152948819
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Board mount options	HOLE .12
body width	0.585 inch
subject depth	0.868 inch
body length	7.35 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VDC V
Durability	250 Cycles
Filter function	NO
maximum insertion force	0.97 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	264
UL Flammability Code	94V-0
Evacuation force-minimum value	0.18 N

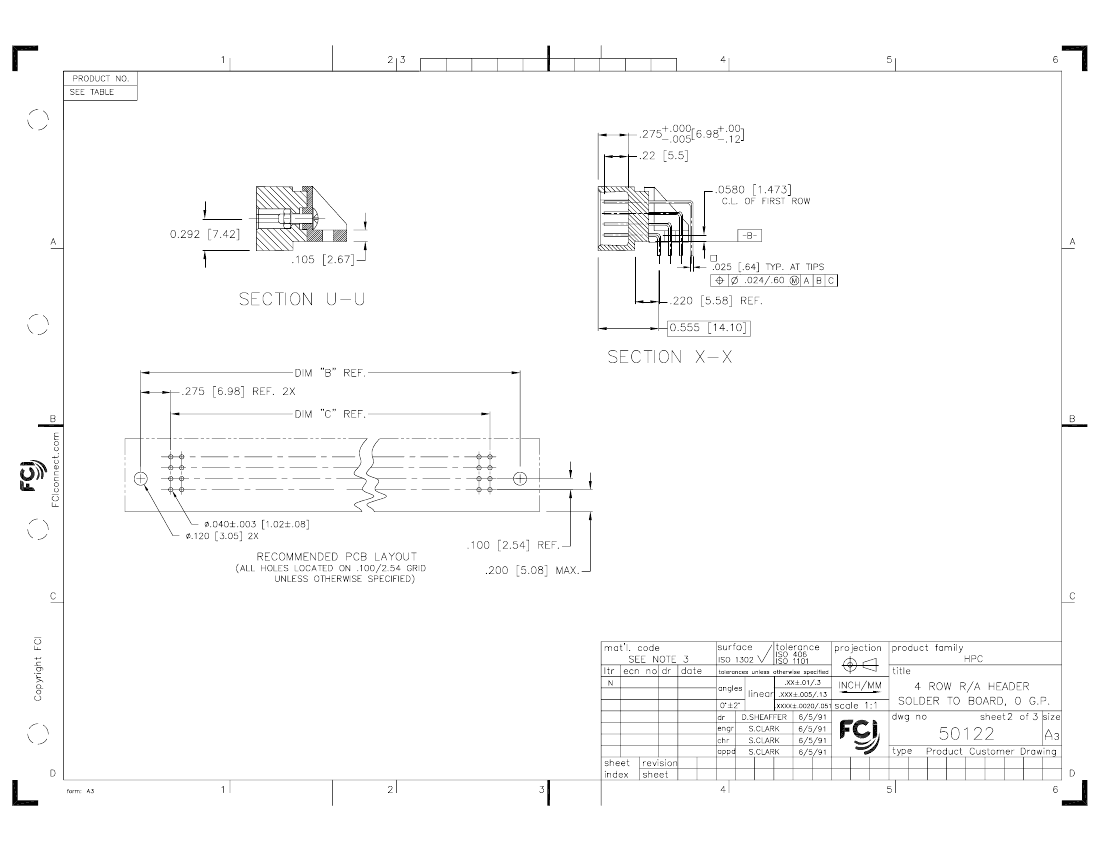

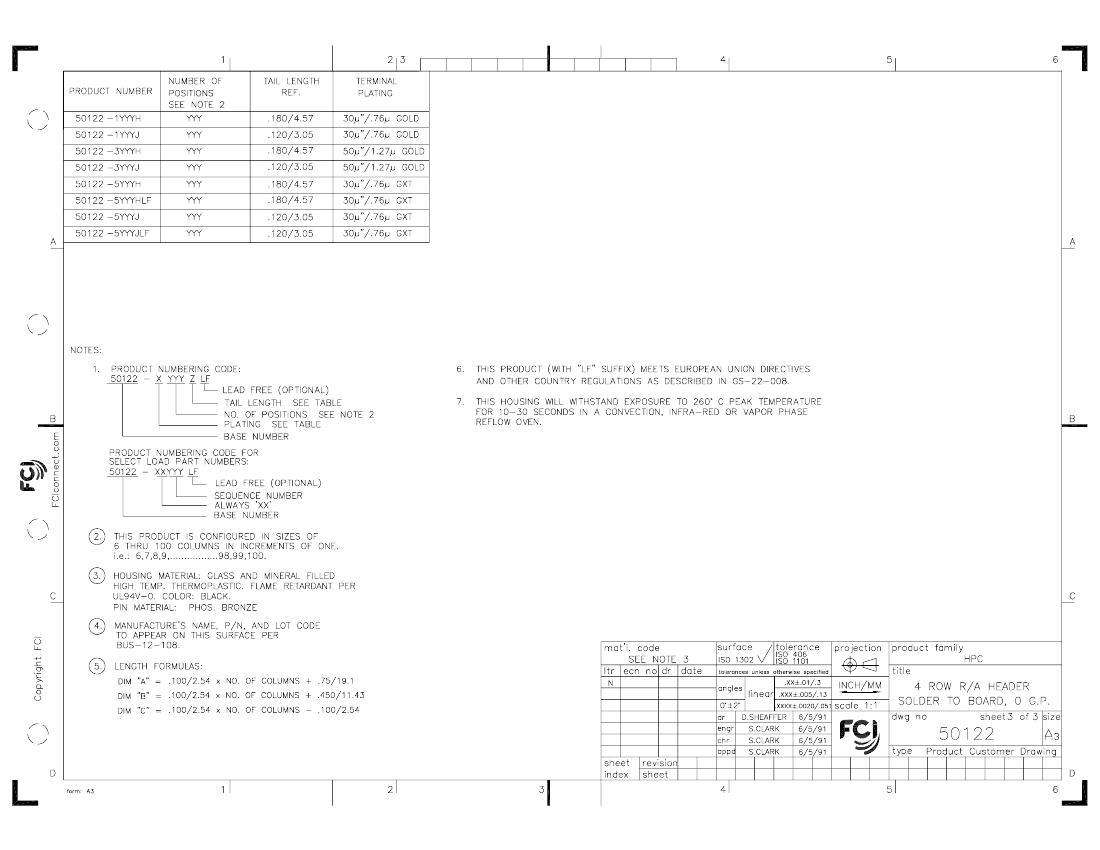

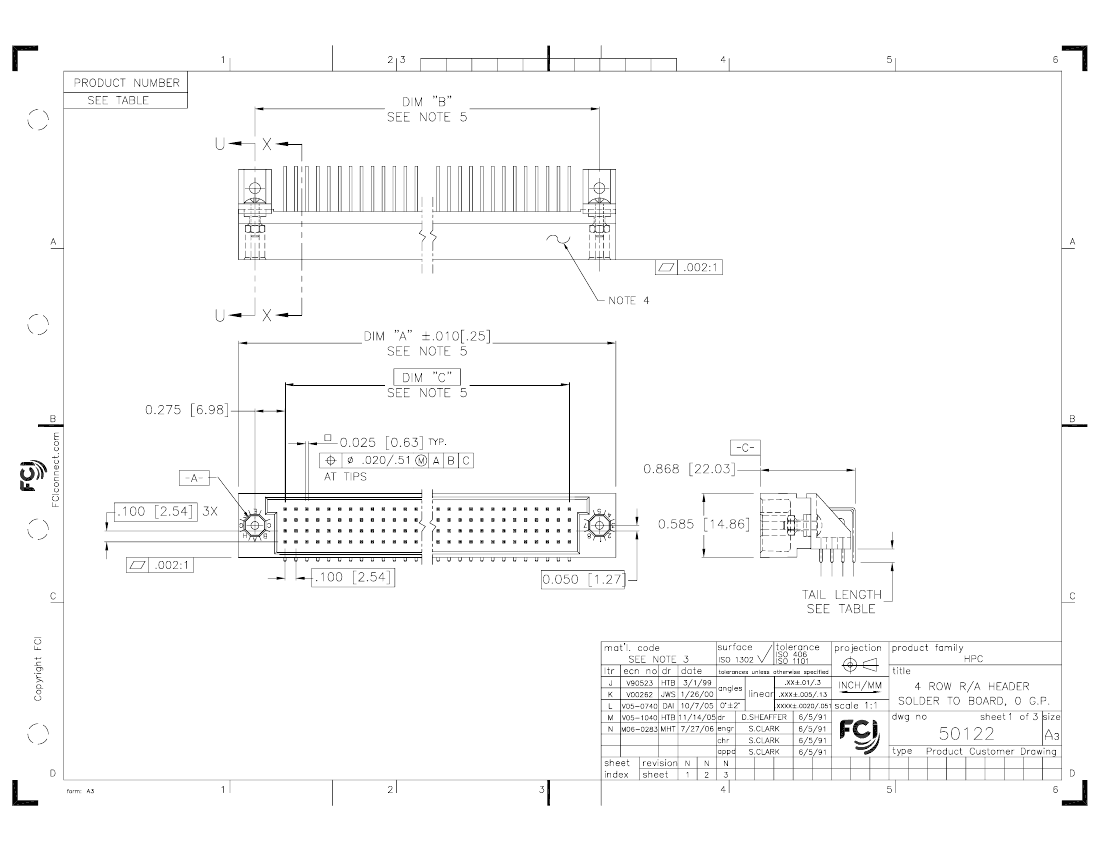

PDM: Rev:N

STATUS:

Released

Printed: May 13, 2011
