UKT1V471MPD1CM

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 470uF,
CategoryPassive components    capacitor
File Size41KB,1 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

UKT1V471MPD1CM Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 470uF,

UKT1V471MPD1CM Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid945185198
package instruction,
Reach Compliance Codecompliant
Country Of OriginJapan
ECCN codeEAR99
YTEOL6.5
capacitance470 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter10 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
length16 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package formRadial
method of packingTape
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)35 V
ripple current460 mA
Terminal surfaceMATTE TIN
Terminal pitch5 mm

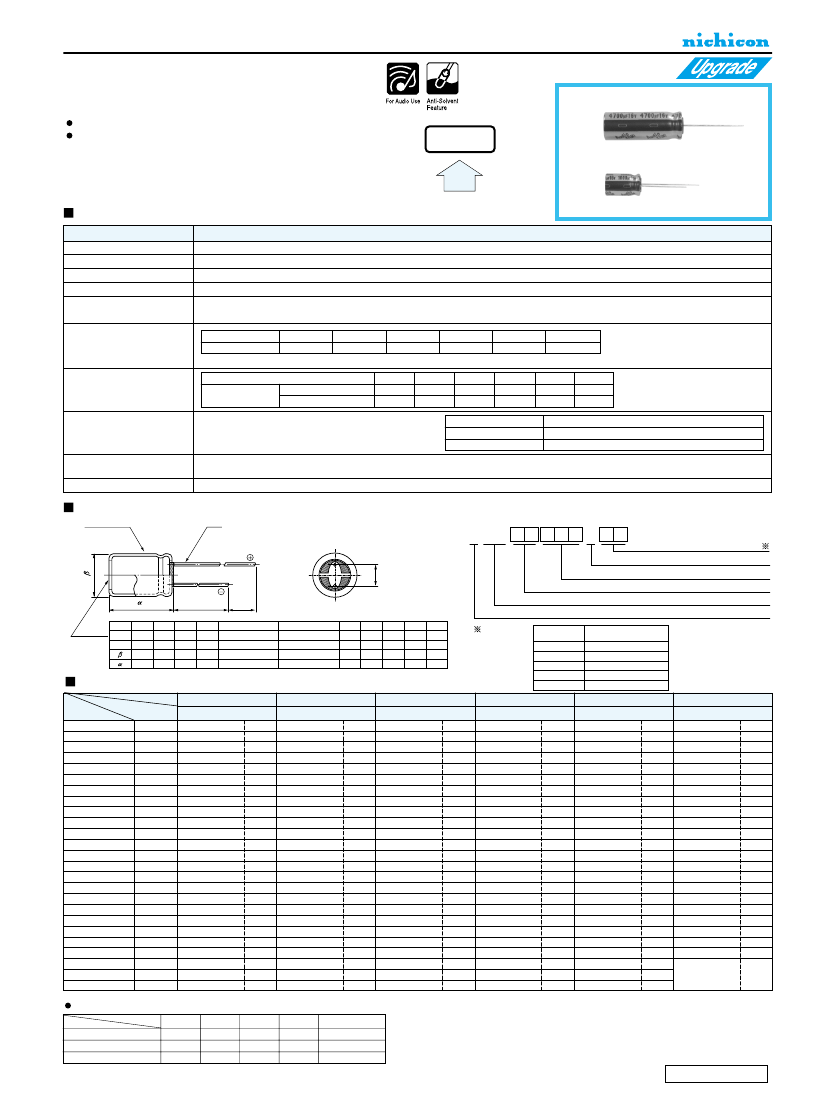

ALUMINUM ELECTROLYTIC CAPACITORS
KT
For General Audio Equipment,
Wide Temperature Range.
series
105°C standard for audio equipment.
Compliant to the RoHS directive (2002/95/EC).
KT
High Sound
Quality
VZ
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Performance Characteristics
– 55 to +105°C
6.3 to 50V
0.1 to 33000µF
± 20% at 120Hz, 20°C
After 1 minute's application of rated voltage, leakage current is not more than 0.03CV or 4 (µA) , whichever is greater.
After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.
Rated voltage (V)
tan
δ
(MAX.)
Tangent of loss angle (tan
δ)
6.3
0.30
10
0.26
6.3
5
10
16
0.22
10
4
8
25
0.18
16
3
6
35
0.16
25
2
4
35
2
3
50
0.14
50
2
3
Measurement frequency : 120Hz,
Temperature : 20°C
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF
Rated voltage (V)
Z– 25°C / Z+20°C
Impedance ratio
ZT / Z20 (MAX.)
Z
40°C / Z+20°C
Measurement frequency : 120Hz
Stability at Low Temperature
Endurance
The specifications listed at right shall be met when
the capacitors are restored to 20°C after the rated
voltage is applied for 1000 hours at 105°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 105°C tor 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with black color letter on purl blue sleeve.
Radial Lead Type
Sleeve (P.E.T.)
φ
d
Type numbering system (Example : 16V 1000
µ
F)
1
2
3
4
5
6
7
8
9
10 11
Configuration
UK T 1 C 1 0 2 M PD
MAX.
Capacitance tolerance (±20%)
P
±
0.5
φD
+
Rated capacitance (1000µF)
Rated voltage (16V)
Series name
(mm)
L+
Pressure
relief vent
(φ6.3up)
MAX.
15
MIN
4
MIN
Type
Configuration
φ
D
5
6.3
8
·
10
12.5 to 18
20 to 25
Pb-free leadwire
Pb-free PET sleeve
φD
P
φd
5
2.0
0.5
0.5
1.5
6.3
2.5
0.5
0.5
1.5
8
3.5
0.6
0.5
1.5
10
5.0
0.6
0.5
1.5
12.5(less than 25L)
5.0
0.6
0.5
1.5
12.5(31.5L or more)
5.0
0.8
0.5
1.5
16
7.5
0.8
0.5
1.5
18
7.5
0.8
0.5
1.5
20
10.0
1.0
0.5
1.5
22
10.0
1.0
1.0
2.0
25
12.5
1.0
1.0
2.0
Dimensions
V
Please refer to page 20 about the end seal configulation.
6.3
0J
DD
ED
PD
HD
RD
Cap.(µF)
code
10
1A
16
1C
25
1E
35
1V
0.1
0.22
0.33
0.47
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
2200
3300
4700
6800
10000
15000
22000
33000
0R1
R22
R33
R47
010
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
222
332
472
682
103
153
223
333
5
×
11
5
×
11
5
×
11
5
×
11
6.3
×
11
6.3
×
11
8
×
11.5
10
×
12.5
10
×
20
12.5
×
20
12.5
×
25
12.5
×
35.5
12.5
×
40
16× 35.5
18× 40
22× 50
45
55
65
95
160
195
270
420
710
910
1120
1360
1650
2010
2350
2800
5
×
11
5
×
11
5
×
11
5
×
11
6.3
×
11
8
×
11.5
8
×
11.5
10
×
16
12.5
×
20
12.5
×
25
12.5
×
35.5
12.5
×
40
16× 35.5
18× 40
22× 40
25× 50
45
58
68
105
175
240
280
500
810
1050
1300
1570
1890
2400
2650
2880
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
6.3
×
11
8
×
11.5
8
×
11.5
10
×
16
12.5
×
20
12.5
×
31.5
12.5
×
35.5
16
×
31.5
18
×35.5
20× 40
22× 50
35
54
65
79
115
190
265
315
560
920
1270
1480
1780
2060
2430
3000
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
6.3
×
11
8
×
11.5
8
×
11.5
10
×
12.5
10
×
20
12.5
×
31.5
12.5
×
35.5
16× 31.5
18× 35.5
20× 40
22× 50
25
36
58
68
83
140
240
290
380
680
1200
1400
1710
2040
2150
2750
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
6.3
×
11
8
×
11.5
10
×
12.5
10
×
16
12.5
×
25
12.5
×
40
16× 35.5
18× 35.5
20× 40
22× 50
28
41
61
75
93
150
260
350
460
860
1260
1610
1910
2150
2650
50
1H
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
5
×
11
6.3
×
11
8
×
11.5
10
×
12.5
10
×
16
12.5
×
20
12.5
×
31.5
16× 35.5
18× 35.5
20× 40
22× 50
Case size
φ
D
×
L (mm)
1.3
2.9
4.3
7.0
13
20
25
30
46
68
90
115
190
300
410
530
1040
1470
1770
2100
2500
Rated
ripple
Frequency coefficient of rated ripple current
Cap.(µF)
Frequency
Rated ripple current (mArms) at 105°C 120Hz
10kHz or more
2.00
1.50
1.15
Less than 47
100 to 470
1000 to 33000
50Hz
0.75
0.80
0.85
120Hz
1.00
1.00
1.00
300Hz
1.35
1.23
1.10
1kHz
1.57
1.34
1.13
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
CAT.8100Y-1
