UPM1J470MPD1FA

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 47uF,
CategoryPassive components    capacitor
File Size766KB,7 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

UPM1J470MPD1FA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 47uF,

UPM1J470MPD1FA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7313583516
package instruction,
Reach Compliance Codecompliant
Country Of OriginJapan
ECCN codeEAR99
YTEOL7.35
capacitance47 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter8 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
length11.5 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package formRadial
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)63 V
ripple current365 mA
Terminal surfaceMATTE TIN
Terminal pitch5 mm

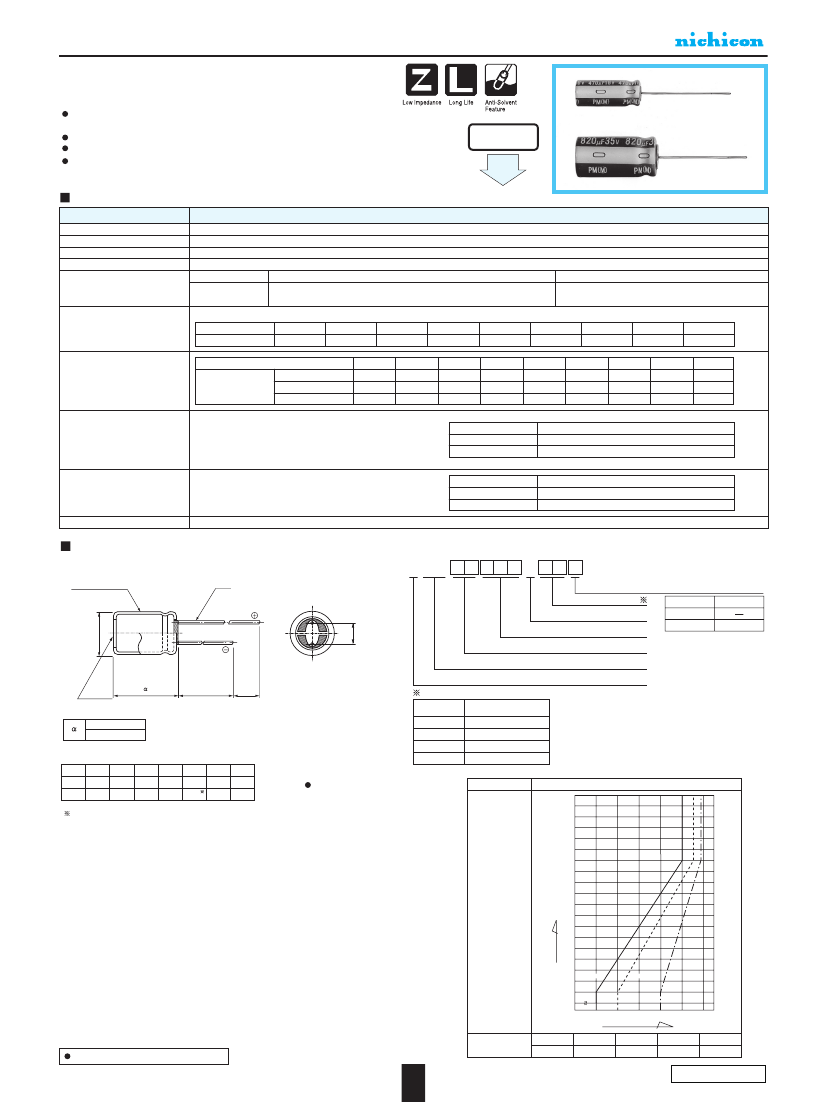

ALUMINUM ELECTROLYTIC CAPACITORS
UPM
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Low Impedance, High Reliability
High reliability withstanding 5000 hour load life at +105
°C
(3000/2000 hours for
smaller case sizes as specified below).
Capacitance ranges available based on the numerical values in E12 series under JIS.
Compliant to the RoHS directive (2011/65/EU).
AEC-Q200 compliant. Please contact us for details.
(Through 100V only)
UPM
Smaller
UPW
Performance Characteristics
– 55 to +105°C (6.3 to 100V), –40 to +105°C (160 to 400V), –25 to +105°C (450V)
6.3 to 450V
1 to 15000µF
± 20% at 120Hz, 20°C
Rated Voltage (V)
6.3 to 100
Leakage current
After 1 minute's application of rated voltage at 20°C, leakage current is
not more than 0.03CV or 4 (µA), whichever is greater.
<
CV = 1000 :
I
= 0.1CV+40 (µA) max.
CV > 1000 :
I
= 0.04CV+100 (µA) max.
160 to 450
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Measurement frequency : 120Hz at 20°C
Tangent of loss angle (tan
δ)
Rated Voltage (V)
tan
δ
(MAX.)
6.3
0.22
10
0.19
6.3 · 10
4
16
0.16
16
3
25
0.14
35
0.12
50
0.10
63 to 100 160 to 350 400 · 450
0.08
0.20
0.25
250
6
Stability at Low Temperature
Rated voltage (V)
Z– 25°C / Z+20°C
Impedance
Z– 40°C / Z+20°C
ratio (MAX.)
Z– 55°C / Z+20°C
25 · 35 50 to 100
160
·
200
4
3
2
315
·
350
8
400
10
450
15
120Hz
Endurance
Shelf Life
Marking
The specifications listed at right shall be met when the
capacitors are restored to 20°C after D.C. bias plus rated
ripple current is applied for 5000 hours (2000 hours for
φD=5
and 6.3, 3000 hours for
φD=8)
at 105°C, the peak voltage
shall not exceed the rated voltage.
After storing the capacitors under no load at 105°C
for 1000 hours and then performing voltage treatment based
on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the
characteristic requirements listed at right.
Printed with white color letter on dark brown sleeve.
1
2
3
Capacitance change
Within ±20% of the initial capacitance value
200% or less than the initial specified value
tan
δ
Less than or equal to the initial specified value
Leakage current
Capacitance change
Within ±20% of the initial capacitance value
150% or less than the initial specified value
tan
δ
Less than or equal to the initial specified value
Leakage current
Radial Lead Type
Sleeve (P.E.T.)
Type numbering system (Example : 25V 470
µ
F)
U PM 1 E 4 7 1 M PD
1
2
4
3
5
4
6
5
7
6
8
7
8
9 10
9 10
11 12
11 12
Sleeve (P.E.T.)
φ
d
U PM 1 E 4 7 1 M PD
Configuration
Configuration
Size code
φ
d
Type
Type
Small Dia
Small Dia
Low Profile
Low Profile
Capacitance tolerance ( ±20%)
Capacitance tolerance ( 20%)
P
±0.5
P
0.5
Size code
Code
Code
6
6
φD
+
0.5
MAX.
φD
+
0.5
MAX.
Rated capacitance (470
µ
F)
Rated capacitance (470 F)
Rated voltage (25V)
Rated voltage (25V)
Series name
Series name
(φ6.3up)
Pressure
relief vent
L
+ MAX.
(φ6.3up)
Pressure
relief vent
MAX.
L
+
MIN
15
15
MIN
4
MIN
4
MIN
Type
Configuration
(mm)
Type
Configuration
Pb-free leadwire
φ
D
Pb-free leadwire
sleeve
Pb-free PET
Pb-free PET sleeve
5
DD
φ
D
5
(φD < 10) 1.5
(φD > 10) 2.0
=
φD
P
φd
5
2.0
0.5
16
7.5
6.3
2.5
0.5
(mm)
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
6.3
6.3
8 · 10
8 · 10
12.5 to 18
12.5 to 18
DD
ED
ED
PD
PD
HD
HD
10) 1.5
10) 2.0
φD
P
φd
5
2.0
0.5
6.3
2.5
8
3.5
10
5.0
12.5
5.0
18
7.5
0.5
In case L >
0.6
for the
φ12.5
dia. unit, lead dia.
φ
d = 0.8mm.
0.6
0.6
0.8
0.8
25
Frequency coefficient of
Rated voltage
rated ripple current
Rated voltage
Frequency coefficient
15000
10000
Frequency coefficient
In case L > 25 for the
φ12.5
dia. unit, lead dia.
φ
d = 0.8mm.
15000
10000
6800
4700
Please refer to page 20 about the end seal configuration.
6800
3300
4700
2200
1500
3300
1000
2200
1500
680
1000
470
330
220
150
100
6.3 to 100V
(10kHz to
200kHz=1)
680
470
330
Cap.( F)
6.3 to 100V
(10kHz to
200kHz=1)
Cap.( F)
220
68
150
47
100
33
68
22
47
15
33
2.2
0.6
300Hz
0.7
0.8
1kHz
0.9
0
120Hz
0.5
22
Frequency coefficient
10
1.0
120Hz
300Hz
1kHz
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
160 to 450V
50Hz
0.80
10
0.68
0.47
0
15
120Hz
1.00
300Hz
1.25
1kHz
1.40
10kHz or more
1.60
Dimension table in next page.
200
0.5
0.6
0.7
0.8
Frequency coefficient
CAT.8100H
