FC5-09-01-T-WT-K: DescriptionCard Edge Connector, 9 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size821KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FC5-09-01-T-WT-K Overview

Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

FC5-09-01-T-WT-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

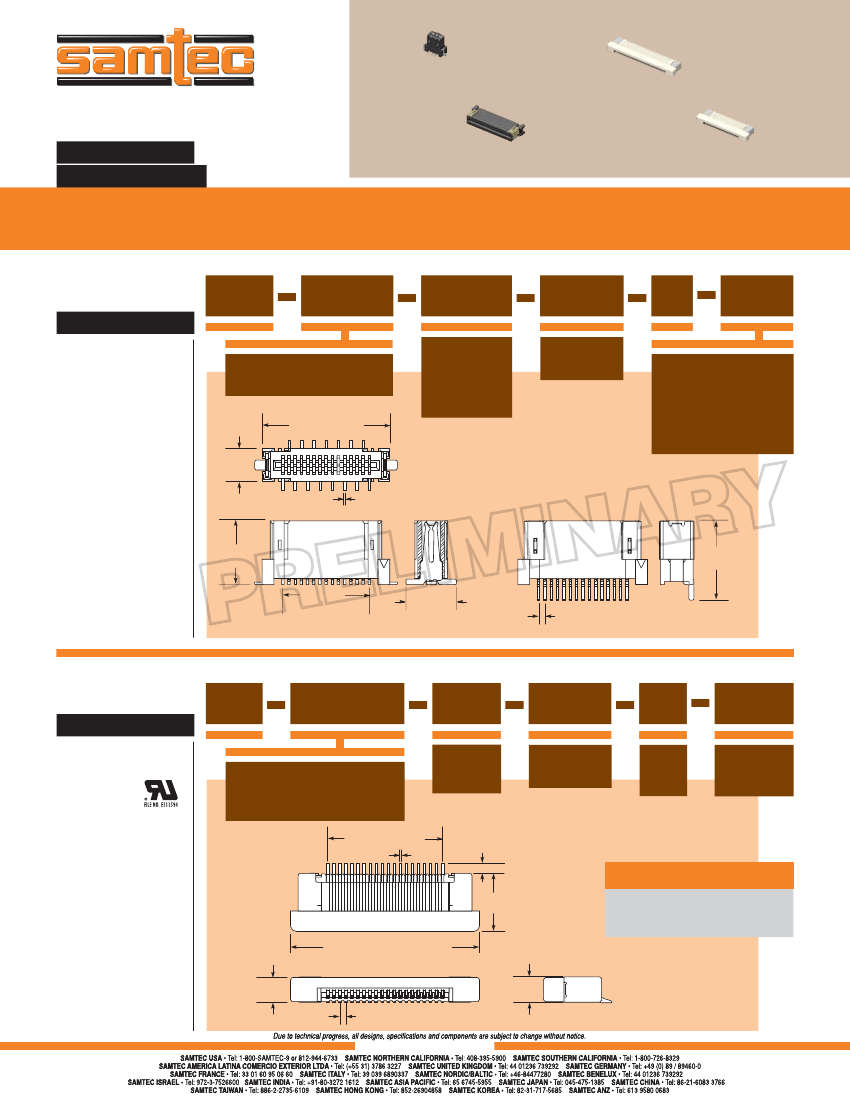

F-212

ZF5S–30–01–T–WT

FC5–05–01–T–WT

(0,50mm) .0197"

FC5, ZF5S SERIES

FC5–25–02–T–WT

ZF5S–25–01–T–WT

FLAT FLEXIBLE CABLE (FFC) SOCKET

Mates with:

FJH

FC5

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?FC5

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Copper Alloy

Weld Tab:

Brass

Plating:

Sn over 50µ" (1,27µm) Ni

Operating Temp Range:

-55°C to +105°C

RoHS Compliant:

Yes

–05 thru –30

(Call Samtec for other sizes.)

– 01

= Vertical

–T

= Matte Tin

–K

= (3,50mm) .138" DIA

Polyimide ﬁlm Pick & Place Pad

(–01 only)

– 02

= Horizontal

No. of positions x

(0,50) .0197 +

(2,80) .110

(2,65)

.104

–T

= Tape & Reel

Processing:

(0,20) .008

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

(5,15)

.203

203

(No. of

positions

-1) x

ositions

(0,50) .0197

–01

(6,40)

.252

(4,08)

.161

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0,50)

.0197

–02

Mates with:

FJH

ZF5S

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

– WT

= Weld

Tab

OPTION

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?ZF5S

Insulator Material:

Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn over 50µ" (1,27µm) Ni

Weld Tab:

Phosphor Bronze

Operating Temp Range:

-55°C to +105°C

Current Rating:

1.4 A @ 50°C ambient

(4 contacts powered)

RoHS Compliant:

Yes

–01

–10, –15, –20, –25,

–30, –40, –43, –50

(Call Samtec for other sizes.)

= Contact

Bottom

–T

= Matte Tin

–TR

= Tape & Reel

Packaging

(No. of positions -1)

x (0,50) .0197

(0,20) .008

(0,84)

.033

ALSO AVAILABLE

(4,62)

.182

No. of positions x

(0,50) .0197 + (5,65) .222

(2,00)

.079

(2,10)

.083

(0,50)

.0197

Processing:

Vertical, Contact Top and

other positions available.

Call Samtec.

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max (10-30)

(0,15mm) .006" max (40-50)

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

WWW.SAMTEC.COM

FC5-09-01-T-WT-K Related Products

	FC5-09-01-T-WT-K	FC5-09-01-T-WT-T
Description	Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT	Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Body/casing type	SOCKET	SOCKET
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	9	9
Base Number Matches	1	1
