D25S24A6RL12LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> D25S24A6RL12LF

D25S24A6RL12LF: DescriptionD-sub standard connectors 25p skt strt pip shell size B; CategoryThe connector; File Size281KB，2 Pages; ManufacturerFCI [First Components International]; Environmental Compliance

Download Datasheet View All

D25S24A6RL12LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D25S24A6RL12LF	-	-	View	Buy Now

D25S24A6RL12LF Overview

D-sub standard connectors 25p skt strt pip shell size B

Preview

Download Datasheet

View All

Plating

Tape & Reel

Termination

Code

24A

Type

Length of PCB

Foot Print/Pitch

termination

thickness

1.6

Straight version 2.84mm

6 /

See Note RoHS

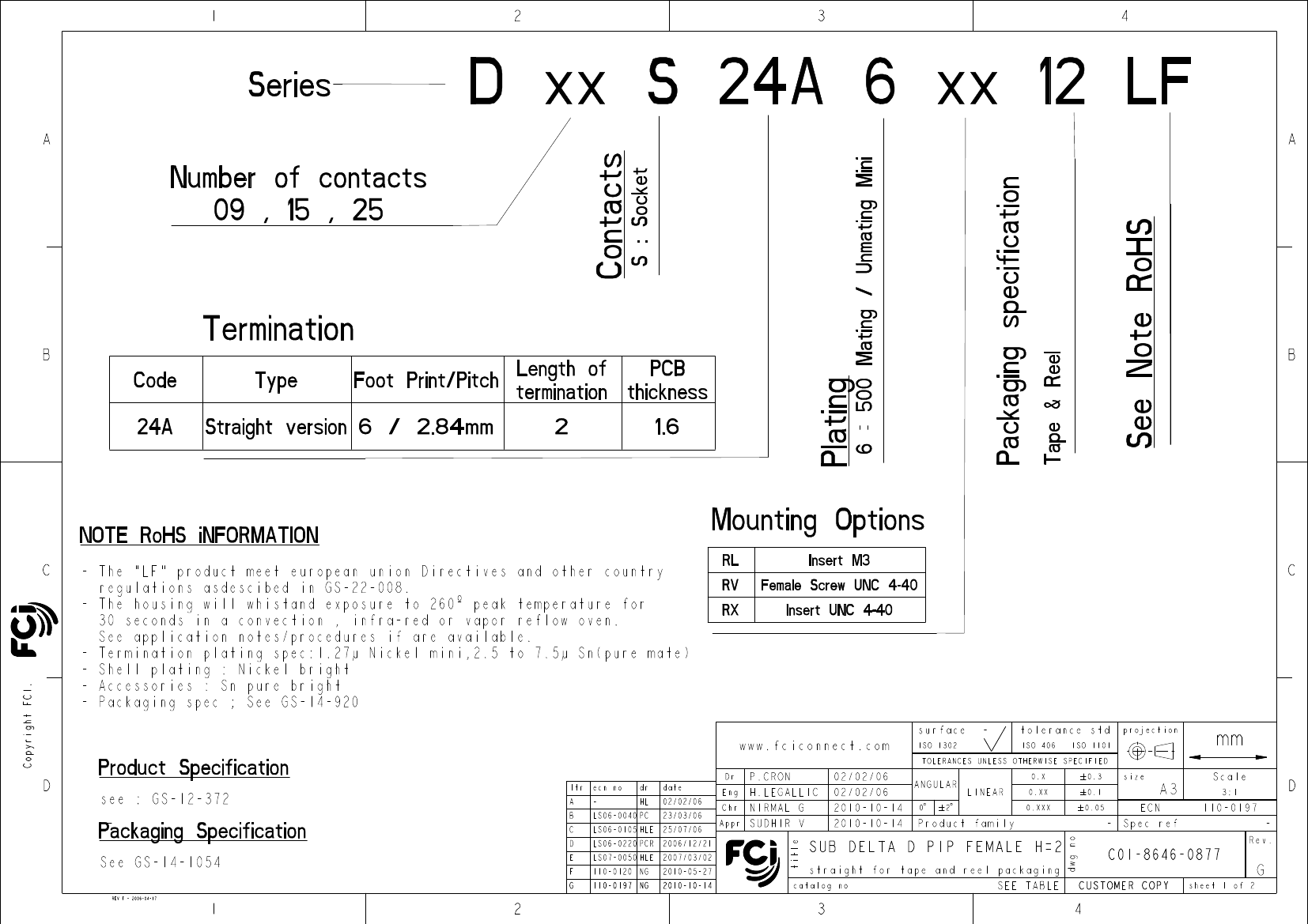

Number of contacts

09 , 15 , 25

S : Socket

Packaging specification

6 = 500 Mating / Unmating Mini

Series

D xx S 24A 6 xx 12 LF

Contacts

NOTE RoHS iNFORMATION

- The "LF" product meet european union Directives and other country

regulations asdescibed in GS-22-008.

- The housing will whistand exposure to 260º peak temperature for

30 seconds in a convection , infra-red or vapor reflow oven.

See application notes/procedures if are available.

- Termination plating spec:1.27µ Nickel mini,2.5 to 7.5µ Sn(pure mate)

- Shell plating : Nickel bright

- Accessories : Sn pure bright

- Packaging spec ; See GS-14-920

Mounting Options

Insert M3

Female Screw UNC 4-40

Insert UNC 4-40

surface

tolerance std

ISO 406

ISO 1101

projection

www.fciconnect.com

ISO 1302

Scale

3:1

Product Specification

see : GS-12-372

ltr

REV F - 2006-04-17

TOLERANCES UNLESS OTHERWISE SPECIFIED

ecn no

date

02/02/06

23/03/06

25/07/06

2006/12/21

2007/03/02

2010-05-27

2010-10-14

Eng

Chr

Appr

P.CRON

H.LEGALLIC

NIRMAL G

SUDHIR V

title

02/02/06

2010-10-14

ANGULAR

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

- Spec ref

Rev.

LS06-0040 PC

LS06-0105 HLE

LS06-0220 PCR

LS07-0050 HLE

I10-0120 NG

I10-0197 NG

I10-0197

dwg no

Packaging Specification

See GS-14-1054

Product family

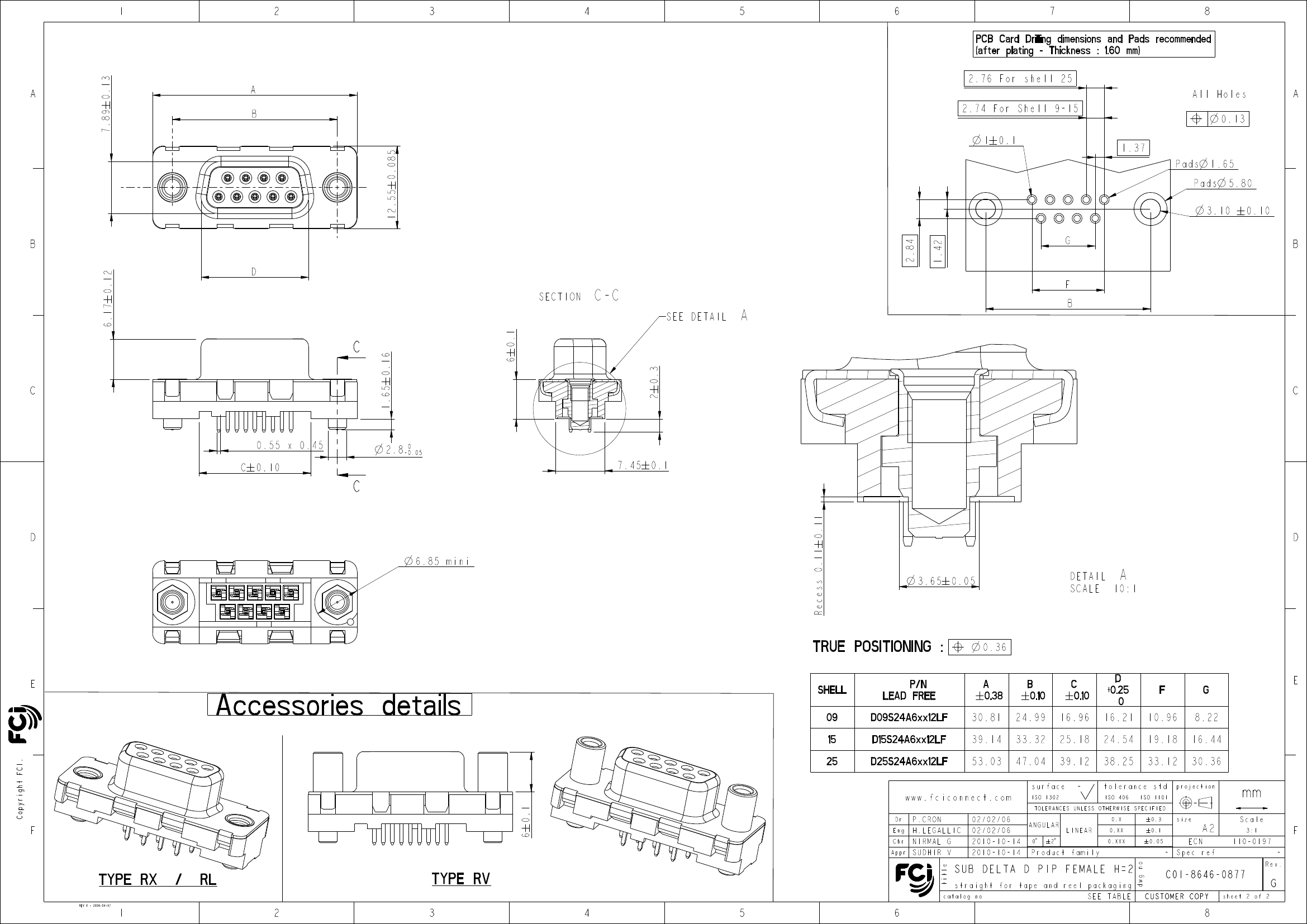

SUB DELTA D PIP FEMALE H=2

straight for tape and reel packaging

SEE TABLE

C01-8646-0877

CUSTOMER COPY

sheet

1 of 2

catalog no

PDM: Rev:G

STATUS:

Released

Printed: Jan 18, 2011
