Ultra-Low Jitter
MEMS Oscillators: 4H Series
ANALOG AND RF | DATA CONVERSION | INTERFACE AND CONNECTIVITY | MEMORY AND LOGIC | POWER MANAGEMENT |
TIMING AND SYNCHRONIZATION
™
Phase Jitter
100 fs
!
3.2 x 2.5mm Package
Smallest high-performance
package in the industry
3225
5032
7050
BENEFITS / FEATURES
• Phase Jitter (156.25MHz)
–
100fs (1.875MHz to 20MHz)
– 250fs (12KHz to 20MHz)
• Real-Time Frequency Tuning
Up to ±1000ppm on-the-fly
frequency tuning
• Any Frequency between:
50-625 MHz range
• LVDS / LVPECL Output
• Up to 40x Higher reliability
than Quartz
– No activity dips, no zero time failures
– High Shock and vibration resistance
PN 10.00dB/ Ref -10.00dBc/Hz
-10.00
-20.00
-30.00
-40.00
-50.00
-60.00
-70.00
-80.00
-90.00
-100.0
-110.0
-120.0
-130.0
-140.0
-150.0
-160.0
2
3
1
Carrier 156.250066 MHz 8.9050 dBm
1:
2:
3:
4:
5:
1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
-96.9148 dBc/Hz
-125.0951 dBc/Hz
-133.8877 dBc/Hz
-145.8014 dBc/Hz
-157.8769 dBc/Hz
225 fs
12 kHz to 20 MHz
75 fs
1.875 to 20 MHz
4
5
www.idt.com/go/MEMS
IDT
|
THE ANALOG + DIGITAL COMPANY
-170.0
4H SERIES MEMS PRODUCT BRIEF
1
MEMS Oscillators: 4H Series
POWER MANAGEMENT | ANALOG & RF | INTERFACE & CONNECTIVITY |
Integrated Device Technology
The Analog and Digital Company
™
TIMING & SYNCHRONIZATION
| MEMORY & LOGIC | DATA CONVERSION

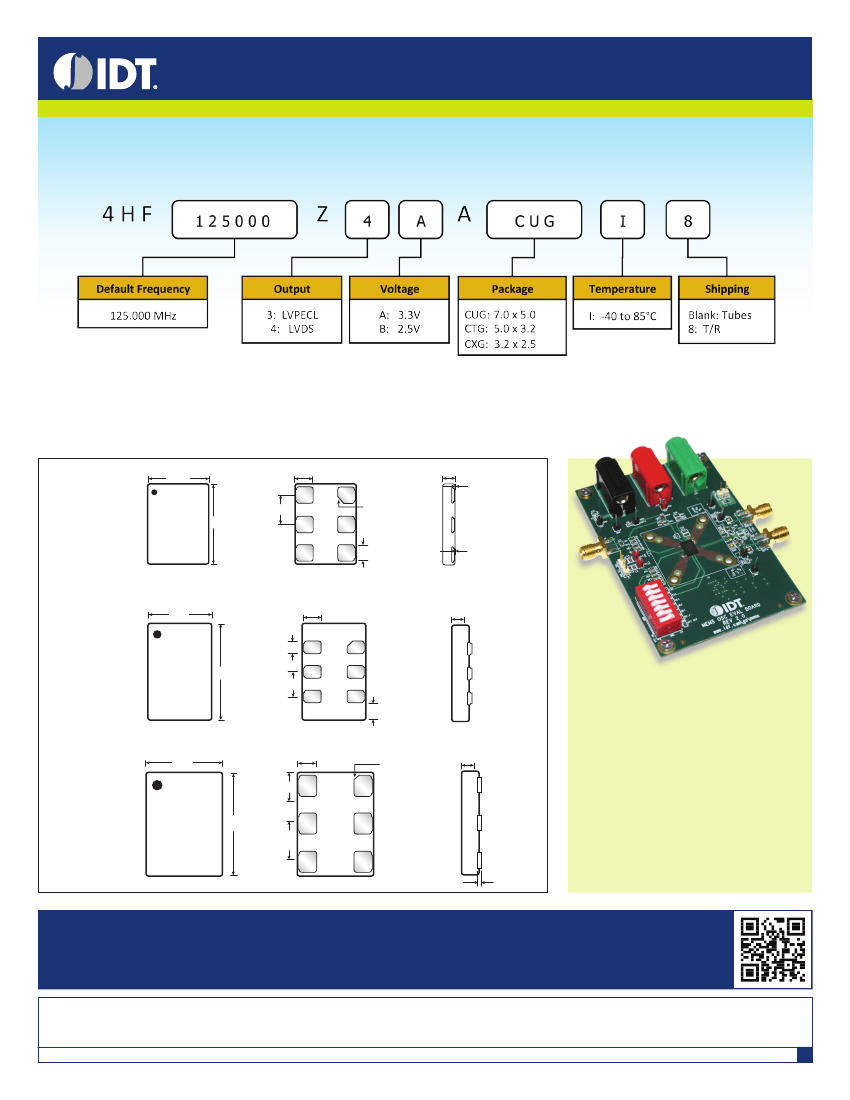

PART ORDERING GUIDELINE
PACKAGE OUTLINE AND DIMENSIONS
2.50
0.65 ±0.05
Pin#1 ID
Chamfer
0.30x45°
3.2 x 2.5 mm
3225
SMD
3.20
0.85 ±0.05
0.0 – 0.05
1.175 Bsc
0.65 ±0.05
0.203 Ref.
3.2
1.00
0.64
5.0 x 3.2 mm
5032
SMD
5.0
1.27
0.91
0.85
MEMS OSCILLATOR
EVALUATION BOARD
FEATURES
• Differential SMA output
• Standard banana plug power connectors
• Available in standard 3225, 5032 and 7050
size packages
• Selectable output termination for both
LVDS and LVPECL
• Switch control for Output Enable (OE)
0.20
7.0 x 5.0 mm
5.0
1.30
1.50
Pin #1 ID
R 0.45°
0.85
7050
SMD
7.0
2.54
TECHNICAL SUPPORT
EMAIL: MEMS_Support@idt.com
WEBSITE: www.idt.com/go/MEMS
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters
of the described products are determined in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied
warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties. IDT’s products are not intended for use in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective third party owners. © Copyright 2013. All rights reserved.
PB_MEMS4H_REVB0613
IDT
|
THE ANALOG + DIGITAL COMPANY
4H SERIES MEMS PRODUCT BRIEF
