BXO9319 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> BXO9319

BXO9319: DescriptionVoltage Controlled Oscillator, 170MHz Min, 300MHz Max,; CategoryPassive components oscillator; File Size138KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BXO9319 Overview

Voltage Controlled Oscillator, 170MHz Min, 300MHz Max,

BXO9319 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Maximum control voltage	9 V
Minimum control voltage	-9 V
Modulation sensitivity	-13.3 MHz/V
Installation features	CHASSIS MOUNT
offset frequency	100 kHz
Maximum operating frequency	300 MHz
Minimum operating frequency	170 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	8.4 dBm
phase noise	-108 dBc/Hz
physical size	25.4mm x 20.828mm x 12.7mm
Nominal supply voltage	12 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

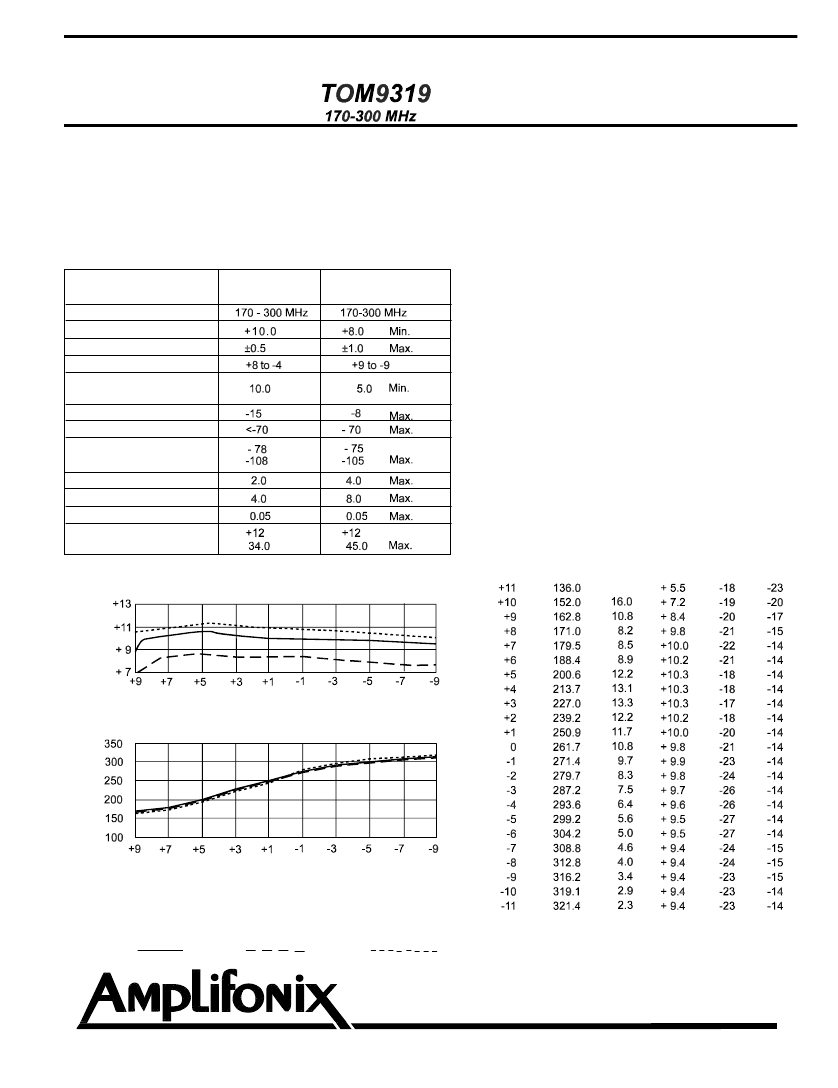

VOLTAGE CONTROLLED

OSCILLATOR

Features

■

Modulation Sensitivity Ratio: 1.7:1 Typical

3 dB Modulation Bandwidth: 4 MHz (50 ohm source)

Operating Case Temp. -55 ºC to + 100 ºC

Screening to the tables of MIL-STD-883 available

Available as:

TOM9319, 4 Pin TO-8 (T4)

TON9319, 4 Pin Surface Mount (SM3)

BXO9319, Connectorized Housing (H1)

Specifications

CHARACTERISTIC

Frequency

Output Power (dBm)

Power Flatness (dBm)

Tuning Voltage Range (V)

Tuning Voltage

Sensitivity (MHz/V)

Harmonics (dBc)

Spurious (dBc)

Phase Noise @10 KHz

@ 100 KHz (dBc/Hz)

Pushing (MHz/V)

Pulling (MHz); 12 dB RL

Frequency Drift (MHz/ºC)

Power

Vdc

NOTE: Care should always be taken to effectively ground the case of each unit.

TYPICAL

Ta = +25 ºC

MIN/MAX

Ta = -55ºC to +100 ºC

Maximum Ratings

Ambient Operating Temperature ....... -55ºC to + 100 ºC

Storage Temperature ....................... -62ºC to + 125 ºC

Case Temperature ........................................ + 125 ºC

DC Voltage .................................................. + 20 Volts

Maximum DC Tuning Voltage ...................... + 20 Volts

Minimum DC Tuning Voltage ........................... -11 Volt

Typical Performance Data

Output Power

(dBm)

∆

(V)

(MHz)

(dBm)

===============================

(dBc)

Tuning Voltage (Volts)

Frequency

(MHz)

Tuning Voltage (Volts)

Legend

+ 25 ºC

+100 ºC

-55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

2/25/03

BXO9319 Related Products

	BXO9319	TON9319
Description	Voltage Controlled Oscillator, 170MHz Min, 300MHz Max,	Voltage Controlled Oscillator, 170MHz Min, 300MHz Max,
Reach Compliance Code	compliant	compliant
Maximum control voltage	9 V	9 V
Minimum control voltage	-9 V	-9 V
Modulation sensitivity	-13.3 MHz/V	-13.3 MHz/V
Installation features	CHASSIS MOUNT	SURFACE MOUNT
offset frequency	100 kHz	100 kHz
Maximum operating frequency	300 MHz	300 MHz
Minimum operating frequency	170 MHz	170 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	8.4 dBm	8.4 dBm
phase noise	-108 dBc/Hz	-108 dBc/Hz
physical size	25.4mm x 20.828mm x 12.7mm	11.43mm x 11.43mm x 4.064mm
Nominal supply voltage	12 V	12 V
surface mount	NO	YES
Base Number Matches	1	1
