ERF8-075-10.0-L-DV-K-TY datasheet, PDF

Datasheet> All Categories > The connector> The connector> ERF8-075-10.0-L-DV-K-TY

ERF8-075-10.0-L-DV-K-TY: DescriptionBoard Connector, 150 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size934KB，6 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

ERF8-075-10.0-L-DV-K-TY Overview

Board Connector, 150 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

ERF8-075-10.0-L-DV-K-TY Parametric

Parameter Name	Attribute value
Objectid	315616118
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.4
body width	0.22 inch
subject depth	0.398 inch
body length	2.598 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Plug contact pitch	0.032 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.4958 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.2 A
Guideline	UL
Terminal pitch	0.8128 mm
Termination type	SURFACE MOUNT
Total number of contacts	150

Preview

Download Datasheet

View All

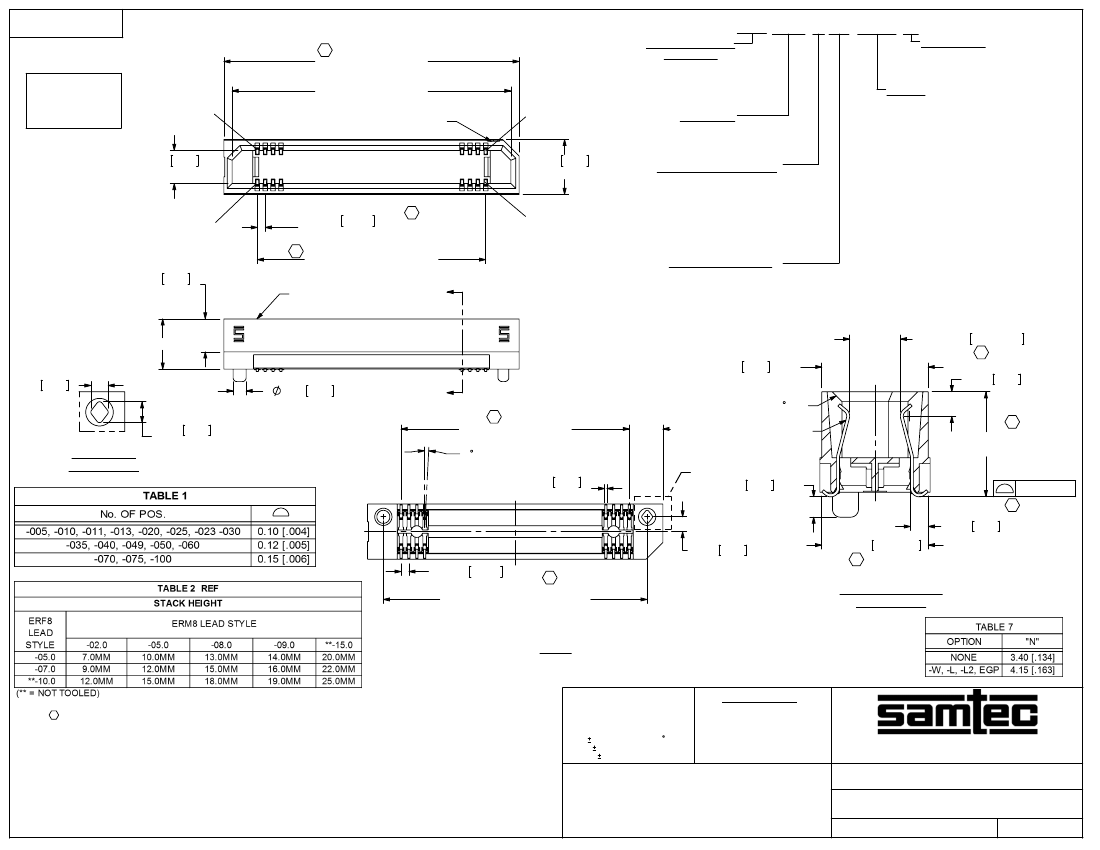

REVISION AH

DO NOT

SCALE FROM

THIS PRINT

"A" REF

(SEE SHT 2, TABLE 4)

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

"B" REF

(SEE SHT 2, TABLE 4)

POSITION #1

INDICATOR

3.36 .132

REF

0.800 .0315 (TYP)

(TOL. NON-ACCUM)

No OF POSITIONS

(PER ROW)

-005, -010, -011, -013, -020, -023, -025,

-030, -035, -040, -049, -050, -060,

-070, -075,-100

(-100 POSITION AVAILABLE IN -05.0 ONLY

SEE NOTE 9)

LEAD STYLE

-05.0 = 5mm

-07.0 = 7mm

**-10.0 = 10mm

5.60 .220

PLATING SPECIFICATION

REF

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

(USE C-211-XX.X-L)

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

(USE C-211-XX.X-S)

ROW SPECIFICATION

-DV: DOUBLE VERTICAL

ERF8-XXX-XX.X-X-DV-XXXX-XX

PACKAGING

-TR: TAPE & REEL (SEE NOTE 4 & 7)

-TY: TRAY (SEE NOTE 4)

***

"C" (SEE SHT 2, TABLE 4)

"A"

OPTION

-K: POLYIMIDE FILM PAD (SEE FIG 2)

-L: LATCHES (-05.0 LEAD STYLE ONLY,

SEE NOTE 5,

SEE FIG 5)

-EGP: EXTENDED GUIDE POST

(SEE NOTE 6, SEE FIG 3)

-EGPS: EXTENDED GUIDE POST SHIELD

(ONLY AVAILABLE IN ***-10.0

LEAD STYLE AND ONLY -010, -020,

-025 & -030 POSITIONS SEE FIG 6)

-L2: LATCH WITH LONG WELD TAB

(-05.0 & -07.0 LEAD STYLE ONLY,

SEE FIG 5)

-E: EXTENDED GUIDE POST WITH LONG

WELD TAB, SEE FIG 3)

-W: WELD TAB (-05.0 & -07.0 LEAD STYLE

ONLY, SEE FIG 10)

3.35 .132

REF

ERF8-XXX-XX.X-DV-01

(SEE SHT 2, TABLE 3)

** = NOT TOOLED

*** = NOT RELEASED FOR PRODUCTION

2.58±0.12 .101±.005

5.40 .213 REF

"E" REF

1.10 .043

REF

1.32 .052

REF

1.32 .052 REF

"A"

"C"

(SEE SHT 2, TABLE 4)

3 MAX SWAY

(TYP)

0.23 .009

REF

0.50 [.020] x 45 REF

"N"

(REF)

'D'

C-211-XX.X-X

(SEE SHT 2,

TABLE 3)

1.04 .041 REF

(2 PLCS)

1.24 .049 REF

"F"(TYP)

(SEE SHT 2, TABLE 5)

SEE TABLE 1

5.41±0.25 .213±.010

DETAIL 'D'

SCALE 4 : 1

1.50 .059

REF

0.90 .036 REF

0.800 .0315 (TYP)

(TOL NON-ACCUM)

"D" REF (SEE SHT 2, TABLE 4)

SECTION "A"-"A"

SCALE 5 : 1

(ERF8-030-05.0-X-DV-XX SHOWN)

(CENTER FEATURES REMOVED FOR CLARITY)

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: 0.038[.0015] MAX.

3. MINIMUM PUSHOUT FORCE: 2.22 N [.5 LB.]

4. FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER, OR EIA-481-D

REEL WILL BE SUPPLIED. FOR QUANTITIES OF 50-124 PIECES, NO LEADER,

TRAILOR WILL BE SUPPLIED.

5. NOT AVAILABLE WITH -EGP, -E, -W, -L2 OR -EGPS OPTIONS.

6. OPTION ONLY AVAILABLE ON -07.0 LEAD STYLE.

7. -TR PACKAGING NOT AVAILABLE ON 100 POSITION ONLY AVAILABLE IN TRAYS;

-TY AVAILABLE ON -100 POSITION ONLY.

8. NOTE DELETED.

9. NOT AVAILABLE WITH -L, -L2, -E, OR -W OPTIONS.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN

MILLIMETERS [INCHES].

TOLERANCES ARE:

DECIMALS

FIG 1

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

X.X: 0.3 [.01]

X.XX: 0.13 [.005]

X.XXX: 0.050 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP, COLOR: BLACK

CONTACT & LATCHES: BeCu

SHIELD: PHOS BRONZE

0.8MM EDGE RATE SOCKET ASSEMBLY

ERF8-XXX-XX.X-X-DV-XXXX-XX

9/26/2005

SHEET

BY:

KNOWLDEN

F:\DWG\MISC\MKTG\ERF8-XXX-XX.X-X-DV-XXXX-XX-MKT.SLDDRW
