REVISION AM
C
DO NOT
SCALE FROM
THIS PRINT
59
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
"A" REF
(SEE SHT 2, TABLE 4)
"B" REF
(SEE SHT 2, TABLE 4)
POSITION #1
INDICATOR
3.36 .132
REF
C
0.800 .0315 (TYP)
(TOL. NON-ACCUM)
C
3.35 .132
REF
"C" (SEE SHT 2, TABLE 4)
"A"
60
No OF POSITIONS
(PER ROW)
-005, -010, -011, -013, -020, -023, -025,
-030, -035, -040, -049, -050, -060,
-070, -075,-100
(-100 POSITION AVAILABLE IN -05.0 ONLY
SEE NOTE 9)
LEAD STYLE
01
-05.0 = 5mm
-07.0 = 7mm
**-10.0 = 10mm
5.60 .220
PLATING SPECIFICATION
REF
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
02
ERF8-XXX-XX.X-X-DV-XXXX-XX
PACKAGING
-TR: TAPE & REEL (SEE NOTE 4 & 7)
-TY: TRAY (SEE NOTE 4)
OPTION
-K: POLYIMIDE FILM PAD (SEE FIG 2)
-L: LATCHES (-05.0 LEAD STYLE ONLY,
SEE NOTE 5,
SEE FIG 5)
-EGP: EXTENDED GUIDE POST
(SEE NOTE 6, SEE FIG 3)
-EGPS: EXTENDED GUIDE POST SHIELD
(ONLY AVAILABLE IN -07.0
LEAD STYLE AND ONLY -010, -020,
-025 & -030 POSITIONS (SEE NOTE 6
& FIG 6)
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
** = NOT TOOLED
ERF8-XXX-XX.X-DV-01
(SEE SHT 2, TABLE 3)
"E" REF
5.40 .213 REF
1.10 .043
REF
1.32 .052
REF
1.32 .052 REF
"A"
"C"
(SEE SHT 2, TABLE 4)
3 MAX SWAY
(TYP)
C
L
0.23 .009
REF
C
0.50 [.020] x 45 REF
"N"
(REF)
'D'
C-211-XX.X-X
(SEE SHT 2,
TABLE 3)
1.04 .041 REF
(2 PLCS)
2.58±0.12 .101±.005
C
1.24 .049 REF
C
"F"(TYP)
(SEE SHT 2, TABLE 5)
SEE TABLE 1
C
L
5.41±0.25 .213±.010
DETAIL 'D'
SCALE 4 : 1
C
L
1.50 .059
REF
C
C
0.90 .036 REF
0.800 .0315 (TYP)
C
(TOL NON-ACCUM)
"D" REF (SEE SHT 2, TABLE 4)
SECTION "A"-"A"
SCALE 5 : 1
(ERF8-030-05.0-X-DV-XX SHOWN)
(CENTER FEATURES REMOVED FOR CLARITY)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: 0.038[.0015] MAX.
3. MINIMUM PUSHOUT FORCE: 2.22 N [.5 LB.]
4. FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER, OR EIA-481-D
REEL WILL BE SUPPLIED. FOR QUANTITIES OF 50-124 PIECES, NO LEADER,
TRAILOR WILL BE SUPPLIED.
5. NOT AVAILABLE WITH -EGP OR -EGPS OPTIONS.
6. OPTION ONLY AVAILABLE ON -07.0 LEAD STYLE; NOT AVAILABLE WITH -L OPTION.
7. -TR PACKAGING NOT AVAILABLE ON 100 POSITION ONLY AVAILABLE IN TRAYS;
-TY AVAILABLE ON -100 POSITION ONLY.
8. NOTE DELETED.
9. NOT AVAILABLE WITH -EGP OR -EGPS OPTIONS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
TOLERANCES ARE:
DECIMALS

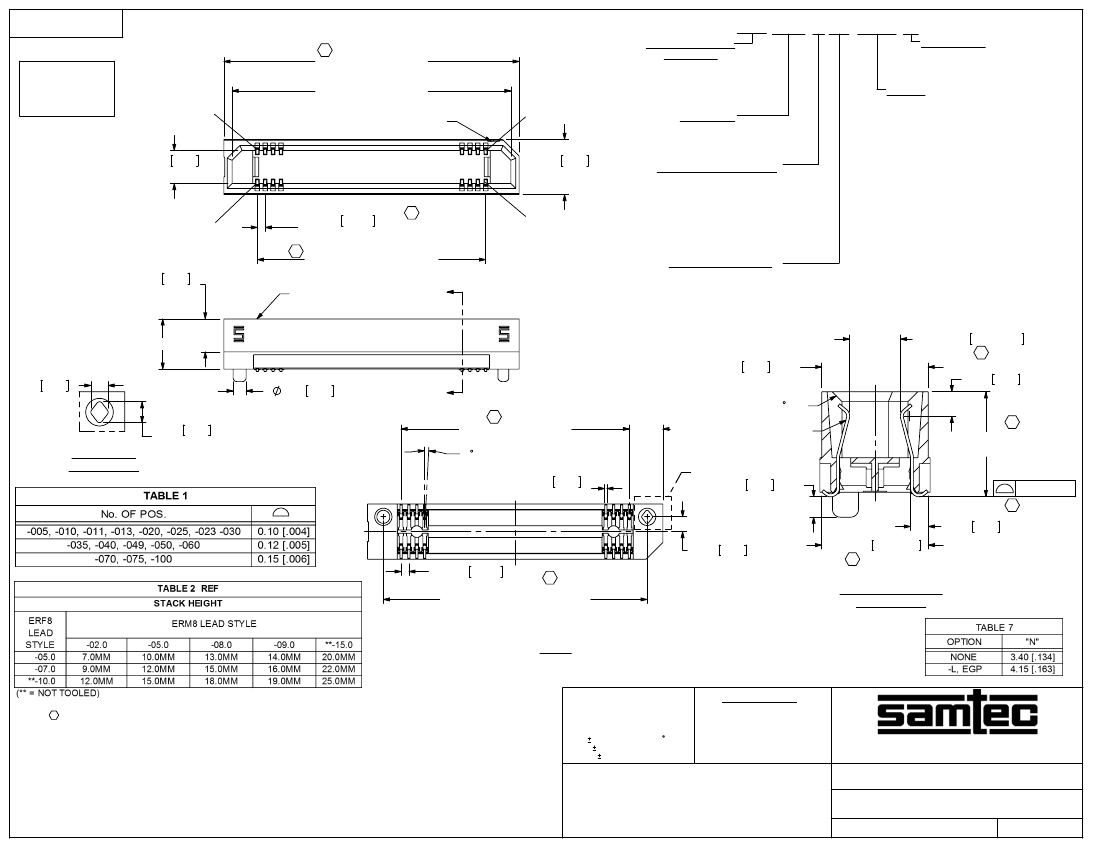

FIG 1

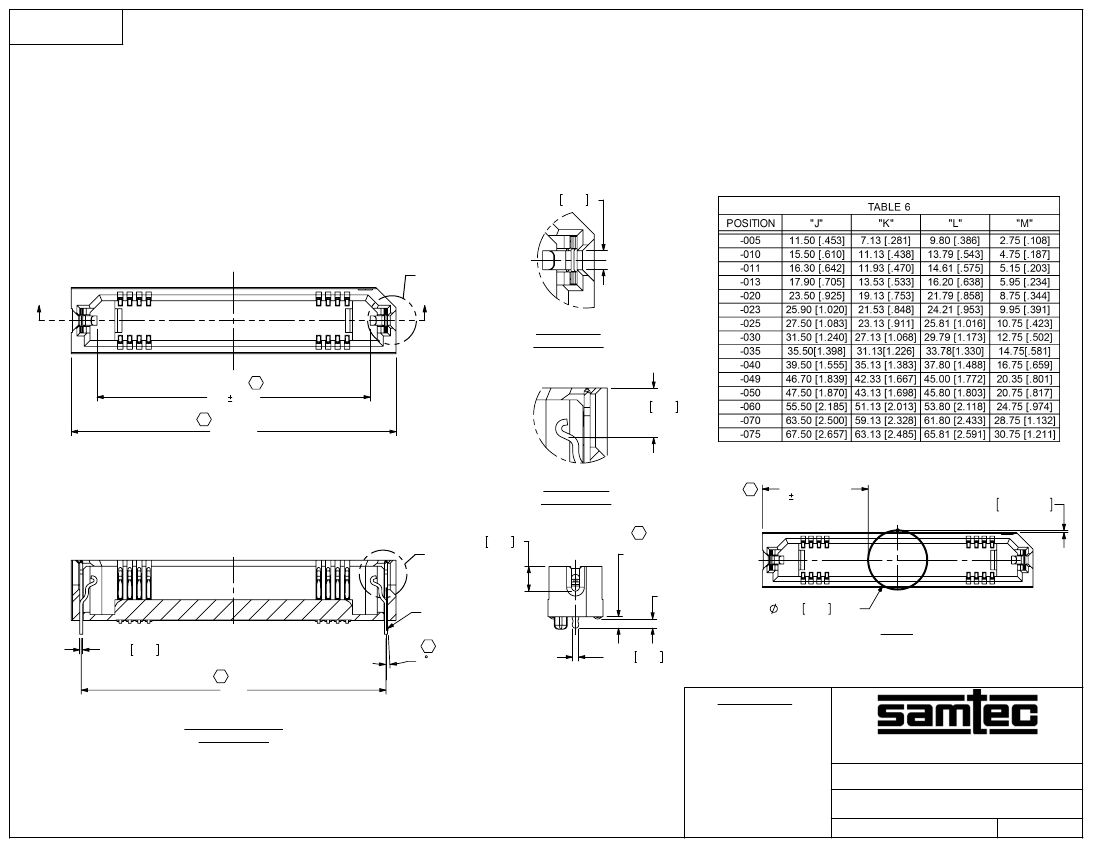

PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.050 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
CONTACT & LATCHES: BeCu
SHIELD: PHOS BRONZE
0.8MM EDGE RATE SOCKET ASSEMBLY
ERF8-XXX-XX.X-X-DV-XXXX-XX
9/26/2005
SHEET
1
OF
6
BY:
KNOWLDEN
F:\DWG\MISC\MKTG\ERF8-XXX-XX.X-X-DV-XXXX-XX-MKT.SLDDRW
REVISION AM
C
"F"
(SEE SHT 2
TABLE 5)
"H"
0.50[.020]
0.20
- 0.2
.008
- .008
(TYP)
C
C
L
+0.5
+.020
C
0.11±0.076 .004±.003
"V" REF
(SEE TABLE 5)
C
L
3 MAX SWAY C
(TYP)
6.00 .236 REF
"G"
IN-PROCESS
-K OPTION
(USE K-DOT-.236-.343-.005)
(ERF8-030-XX.X-X-DV-K SHOWN)
FIG 2

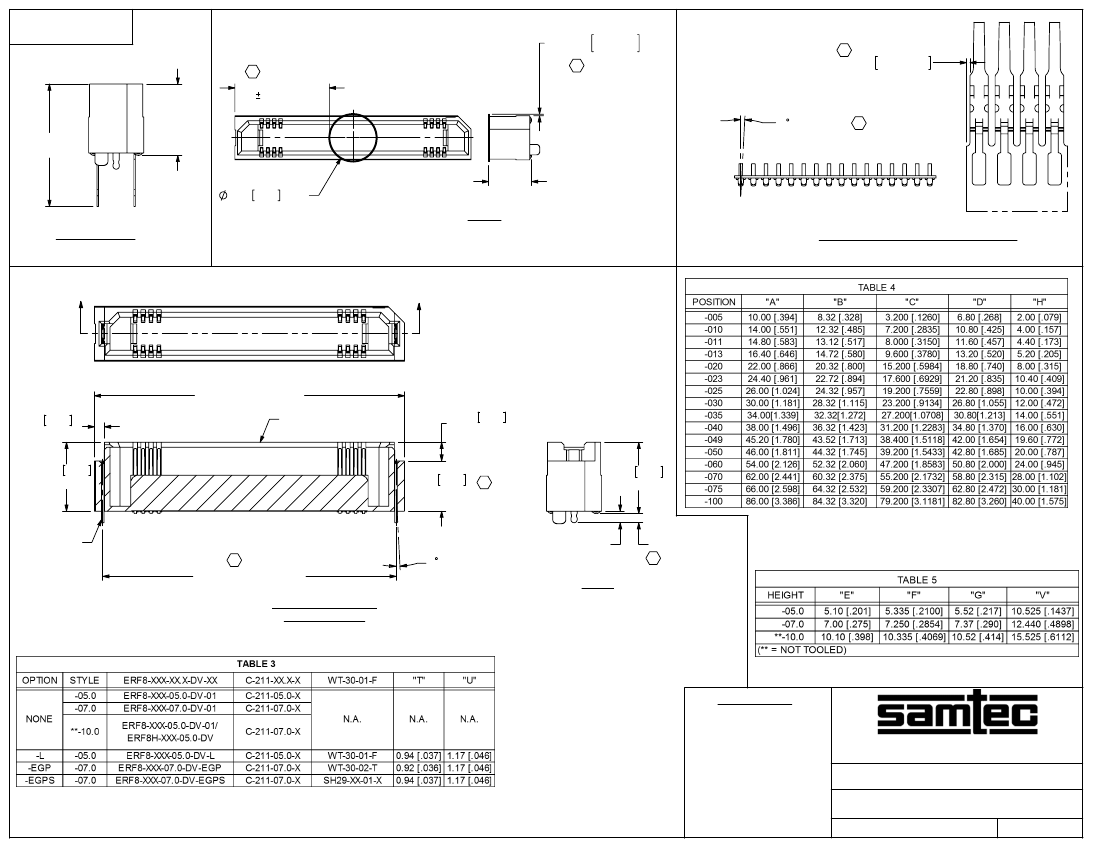

C-211-XX.X-X IN-PROCESS VIEW
"C"
"C"
"J" REF
(SEE SHT 3, TABLE 6)
1.03 .040
REF
7.00 .276
REF
SEE TABLE 3
1.90 .075
REF
5.10 .201
REF
C
7.25 .285
REF
WT-30-XX-T
(SEE TABLE 3)
"L"
(SEE SHT 3, TABLE 6)
C
2 MAX SWAY (TYP)
"U"
"T"
C
SECTION "C"-"C"
SCALE 2.5 : 1
-EGP OPTION
(ERF8-030-07.0-X-DV-EGP SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(AVAILABLE ON -07.0 LEAD STYLE ONLY)
(CENTER FEATURES REMOVED FOR CLARITY)
FIG 3
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
(** = NOT TOOLED)
0.8MM EDGE RATE SOCKET ASSEMBLY
SHEET SCALE: 2:1
ERF8-XXX-XX.X-X-DV-XXXX-XX
9/26/2005
SHEET
2
OF
6
BY:
KNOWLDEN
F:\DWG\MISC\MKTG\ERF8-XXX-XX.X-X-DV-XXXX-XX-MKT.SLDDRW
REVISION AM
0.80 .031
"E"
"B"
"B"
C
L
DETAIL "E"
SCALE 6 : 1
C
"K" 0.25
C
"J" REF
C
L
2.10 .083
REF
DETAIL 'G'
SCALE 6 : 1
2.50 .098
C
"U" (SEE SHT 2,
TABLE 3)
"T"
WT-30-XX-F
(SEE SHT 2, TABLE 3)
0.25 .010 REF
C
"L"
C
2 MAX SWAY (TYP)
0.64 .025
REF
C
"M"
0.50[.020]
C
L
0.21±0.25 .008±.010
C
L
'G'
C
L
C
L
6.00 .236 REF
(ERF8-025-05.0-X-DV-K-L SHOWN)
(SAME AS FIG 1 & 2, EXCEPT AS SHOWN)
(CENTER FEATURES REMOVED FOR CLARITY)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 5
SECTION "B"-"B"
SCALE 3 : 1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.8MM EDGE RATE SOCKET ASSEMBLY
9/26/2005
ERF8-XXX-XX.X-X-DV-XXXX-XX
SHEET
3
OF
6
BY:
KNOWLDEN
F:\DWG\MISC\MKTG\ERF8-XXX-XX.X-X-DV-XXXX-XX-MKT.SLDDRW
REVISION AM
"F"
C
L
"F"
C
6.200 .2441
6.80 .268
7.20 .283 REF
C
L
'P'
C
L
C
C
L
6.25 .246
"T"
(SEE SHT 2, TABLE 3)
0.64 .025
REF (TYP)
C
7.00 .276
REF
"U" REF
(SEE SHT 2, TABLE 3)
0.64 .025
REF
SH29-XX-XX-X
(SEE SHT 2, TABLE 3)
"S" REF
"R" REF
C
L
C
L
5.95 .234
REF
C
L
ERF8-XXX-07.0-DV-EGPS
(SEE SHT 2, TABLE 3)
C
0.25 .010
REF
"Q"
C
2° MAX SWAY
(TYP)

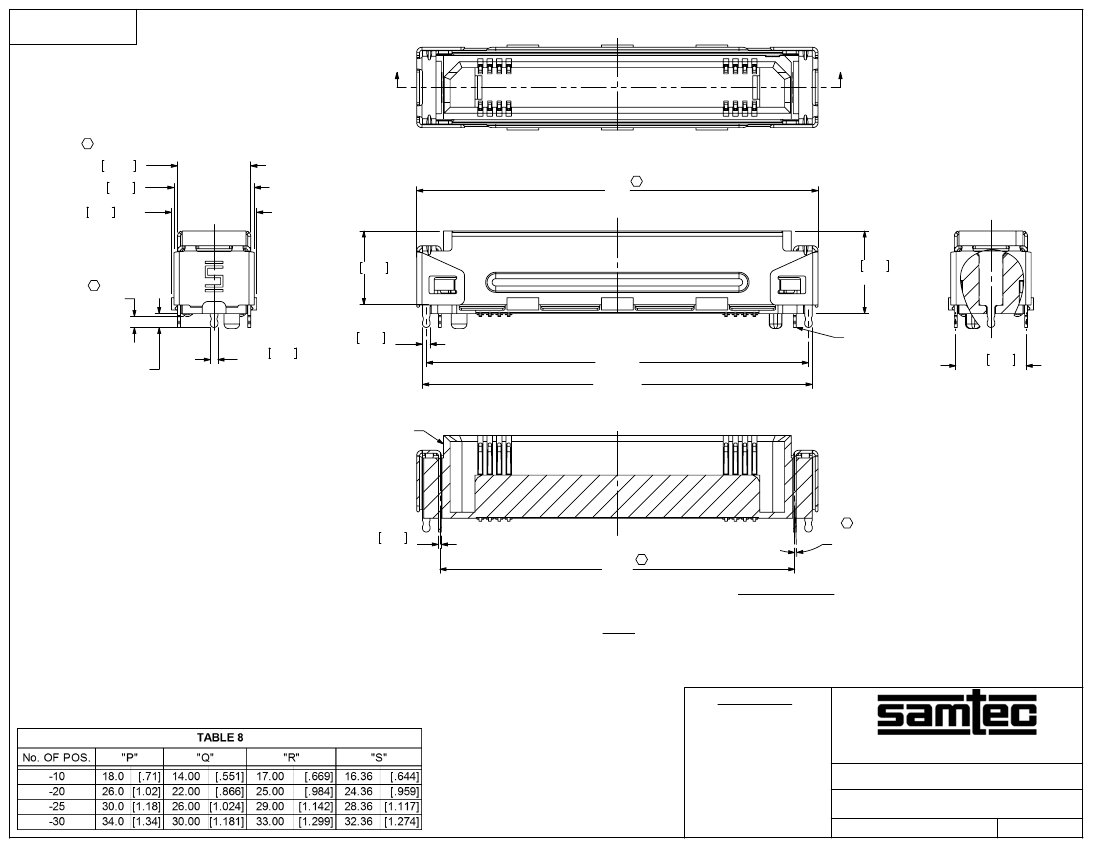

SECTION "F"-"F"
(ERF8-030-07.0-X-EGPS SHOWN)
(SAME AS FIG 3, EXCEPT AS SHOWN)
(AVAILABLE ON -07.0 LEAD STYLE ONLY)
(CENTER FEATURES REMOVED FOR CLARITY)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 6
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
0.8MM EDGE RATE SOCKET ASSEMBLY
ERF8-XXX-XX.X-X-DV-XXXX-XX
9/26/2005
SHEET
4
OF
6
BY:
KNOWLDEN
F:\DWG\MISC\MKTG\ERF8-XXX-XX.X-X-DV-XXXX-XX-MKT.SLDDRW
REVISION AM
"J" REF
(SEE SHT 3, TABLE 6)
"H"
"J"
5.40 .213 REF
ERF8-XXX-05.0-DV-S
C-314-01.0-X
ERF8H-XXX-05.0-DV
"H"
"D" REF
(SEE SHT 2, TABLE 4)
5.41
- 0.13
.213
- .005
"J"
C
1.04 .041

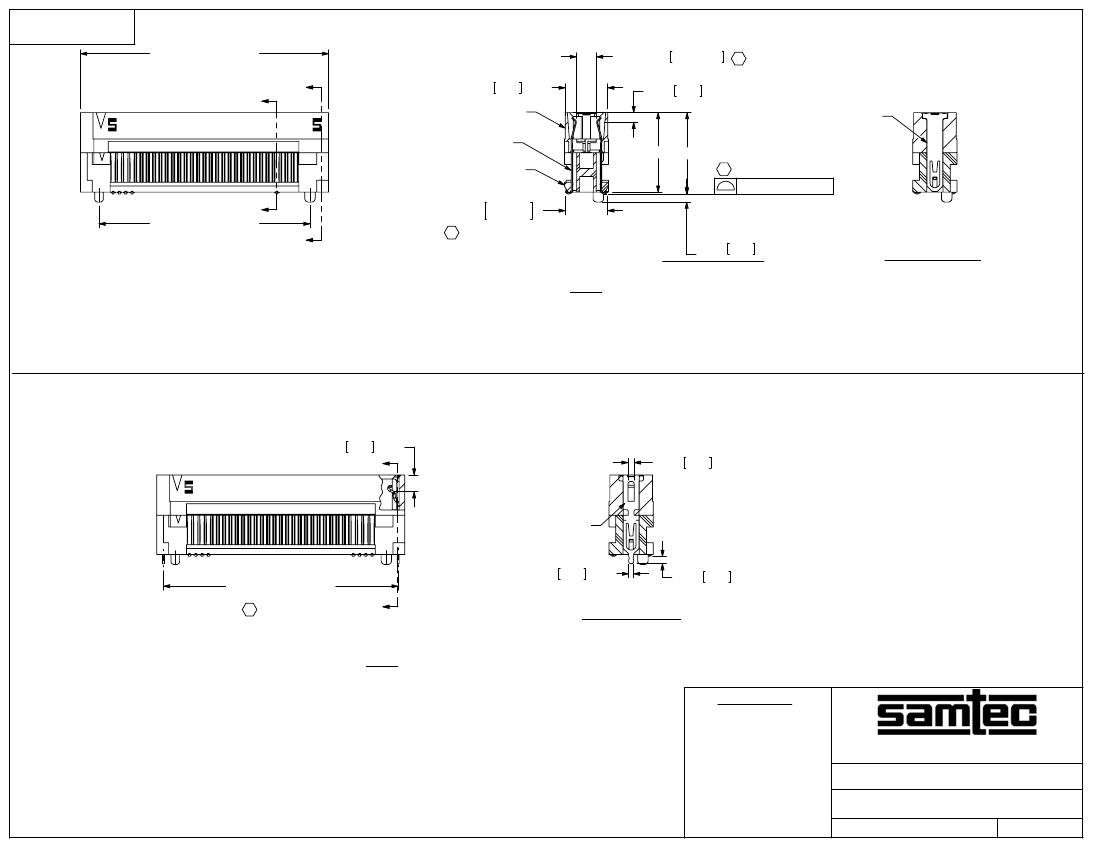

SECTION "H"-"H"
REF
+0.18
+.007
2.58±0.12 .101±.005
1.24 .049 REF
C
WT-67-02-X
(2 PLCS)
"E"
"F"
C
SEE SHT 1, TABLE 1
SECTION "J"-"J"
(**ERF8-030-10.0-X-DV SHOWN)
(CENTER FEATURES REMOVED FOR CLARITY)
** NOT TOOLED
FIG 7
2.10 .083 REF
"K"
0.80 .031
WT-67-01-X
(2 PLCS)
"L"
(SEE SHT 3, TABLE 6)
C
0.64 .025 REF
"K"
0.94 .037
REF
SECTION "K"-"K"
(**ERF8-030-10.0-X-DV-L SHOWN)
(SAME AS FIG 7, EXCEPT AS SHOWN)
** NOT TOOLED
FIG 8
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.8MM EDGE RATE SOCKET ASSEMBLY
ERF8-XXX-XX.X-X-DV-XXXX-XX
9/26/2005
SHEET
5
OF
6
BY:
KNOWLDEN
F:\DWG\MISC\MKTG\ERF8-XXX-XX.X-X-DV-XXXX-XX-MKT.SLDDRW
