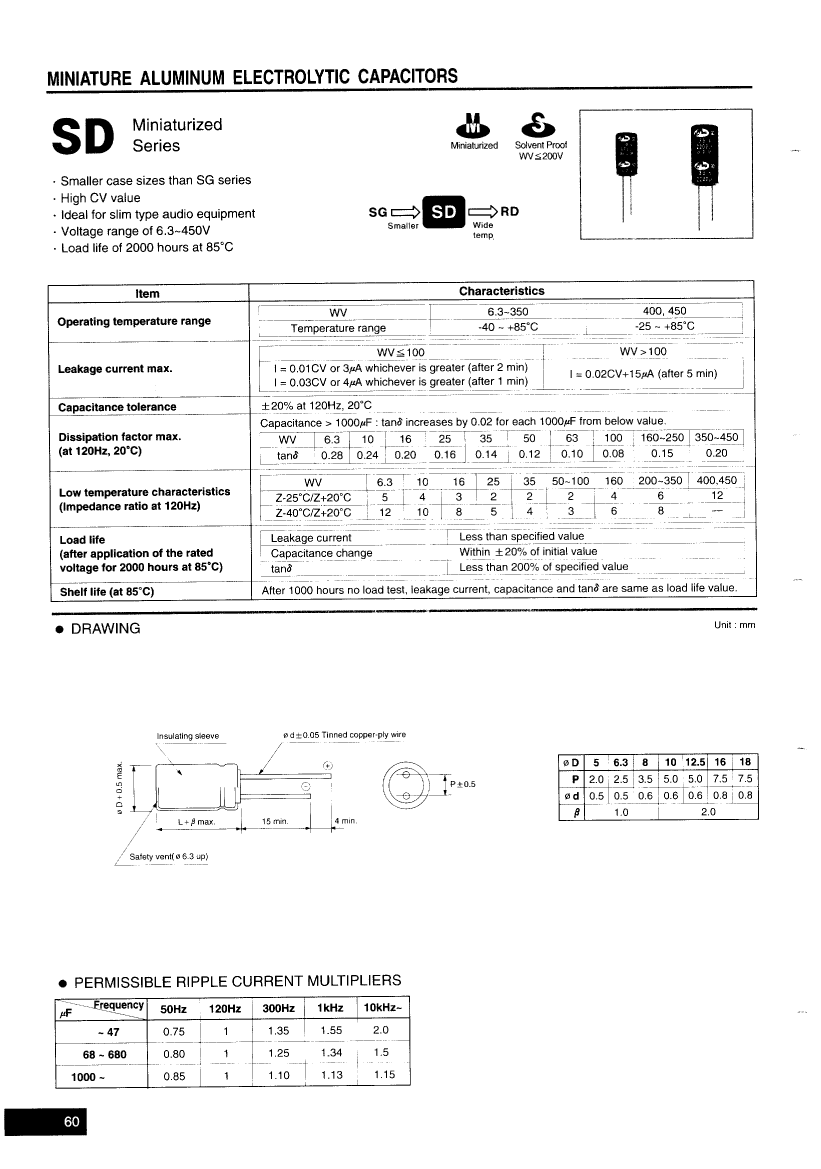

SD2W225M1012MSS datasheet, PDF

SD2W225M1012MSS: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size110KB，2 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

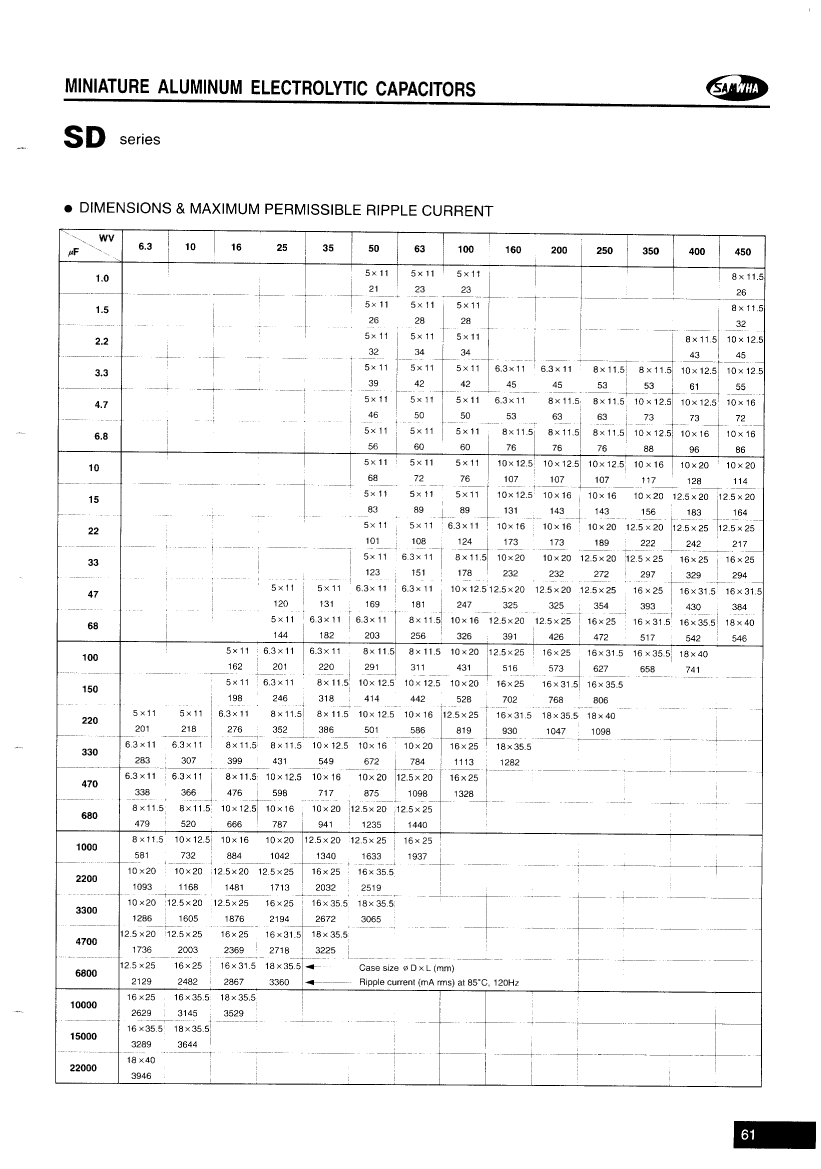

SD2W225M1012MSS Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2013124190
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.5
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.0348 mA
Manufacturer's serial number	SD
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	45 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	TIN
Terminal shape	WIRE
