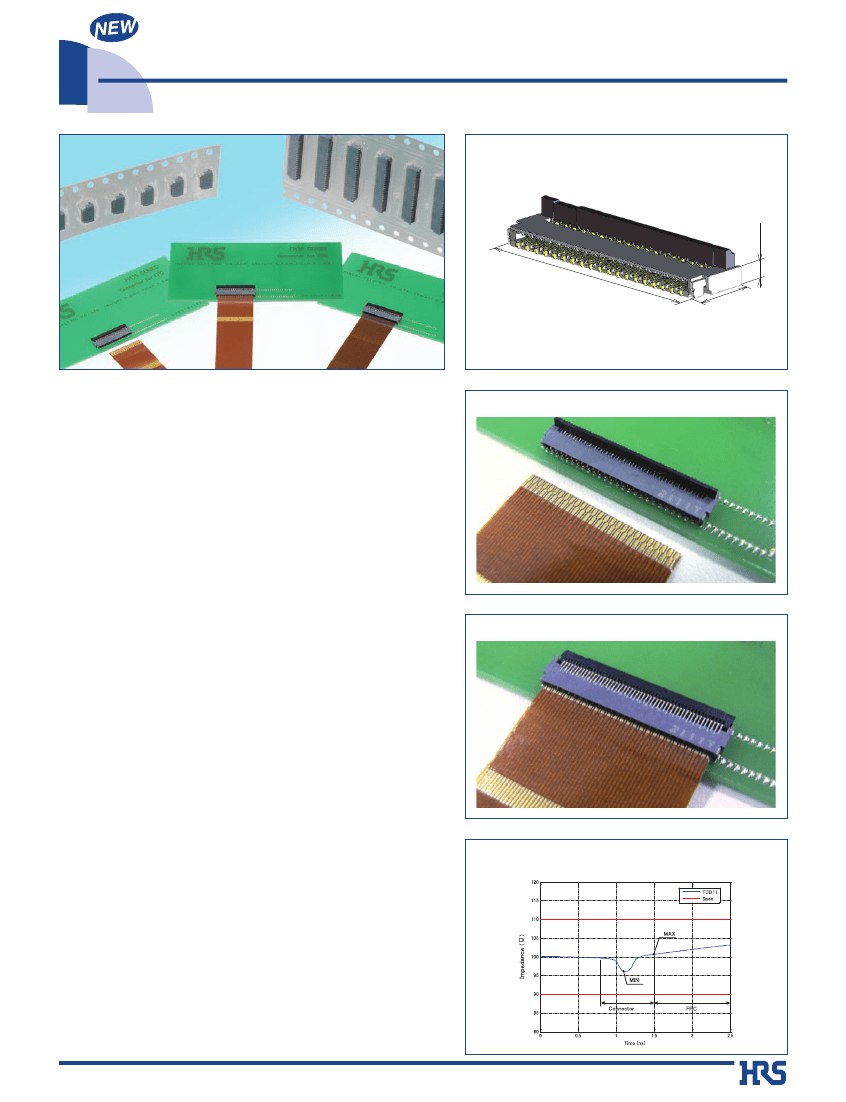

0.3 mm pitch, 0.9 mm height, back flip type dual-sided FPC connector
FH35C Series
l3.2
mm in depth
■Features
1.0.3 mm pitch, Dual-sided connector
This connector utilizes both a top and bottom contact and
provides design flexibility.
lAt
Time of FPC Insertion
2.Improved FPC retention force achieved through the use of
our proprietary contact structure and a back flip actuator.
FPC retention force (in the horizontal direction) is about 2.5 times
greater than similar products produced by other companies.
3.Supports high speed transmissions
By utilizing its excellent impedance characteristics, it is capable
of supporting high speed transmissions.
(Differential pairs of identical contacts allows for better
transmission characteristics and eDP (ver1.3) and compatibility
to MIPI(D−PHY) specifications.)
lLock
Completion State
4.Delivered with actuator open
To reduce installation time and costs, the actuator is delivered
in the open position and eliminates the need to open the
actuator before FPC insertion.
5.Easy FPC Insertion
Equipped with tapered guides at the FPC insertions point, they
help to create a smoother FPC insertion operation.
6.Compatible with 0.2mm thick FPC
The FH35C was designed to be used with 0.2 mm FPC. (Using
the appropriate FPC will prevent deformation and problems
that may occur during the insertion and mating processes.)
7.Bottom side protection
The bottom surface is over-molded and provides added
protection to the contacts (no exposure). This allows the PCB
space under the connector to be used for additional patterning.
FH35C Differential Impedance
130ps rise time (20-80%)
8.Halogen Free
Chlorine and bromine levels do not exceed the standard values
as defined by IEC 61249-2-21. (Br: 900 ppm or less, Cl : 900
ppm or less, Br + Cl : 1,500 ppm or less)
9.Compatible with Automatic Mounting
Tape-and-reel packaging is available for use with pick-and-place
machines. Connectors are available on 5000 or 500 piece reels.
(The outer diameter of an embossed reel is
Ø180mm)
2013.3
1
FH35C Series●0.3 mm pitch, 0.9 mm height, back flip type dual-sided FPC connector
■Product
Specifications
Ratings
Current rating: 0.2 A (Note 1)
Voltage rating: AC 30 Vrms
Operating temperature Range: –55 to +85°C (Note 2)
Operating temperature Range: 90% or less of relative
humidity
(No dew condensation is allowed)
t = 0.2 ± 0.03 gold plating
Conditions
Measured at 100 V DC
Conduct 90 V AC for one minute
AC 20 mV MAX (1 KHz), 1 mA
10 times
At the frequency of 10-55 Hz, half amplitude 0.75 mm,
and 10 cycles in each of three axial directions
Acceleration: 981 m/s
Duration: 6 ms, sine half-wave, 3 cycles in each of the
3 axis each in both directions
Left to stand for 96 hours at the temperature of 40°C
and the humidity of 90% to 95%
Temperature:-55➝ +15 to+35➝ +85➝ +15 to +35°C
Time: 30➝ 2 to 3
➝
30➝ 2 to 3 minutes
5 cycles with the above conditions
Reflow: According to the Recommended Temperature Profile
Manual soldering: 350± 10°C for 5± 1 sec.
2
Storage temperature Range: -10 to +50°C (Note 3)
Storage temperature Range: 90% or less of relative
humidity
(No dew condensation is allowed)
With specifications compatible with FPC contacts
Items
1.Insulation Resistance
2.Withstand Voltage
3.Contact Resistance
4.Mating Cycles
5.Vibration Resistance
No less than 50 Mø
Specifications
No flashover or breakdown
100 mø MAX.
* Including FPC conductor resistance
Contact resistance: no more than 100 mø
No breakage, cracks, or loosened parts
No electric outage of 1 μs or greater
Contact resistance: no more than 100 mø
No breakage, cracks, or loosened parts
No electric outage of 1 μs or greater
Contact resistance: no more than 100 mø
No breakage, cracks, or loosened parts
Contact resistance: no more than 100 mø
Insulation Resistance: 50 mø or more
No breakage, cracks, or loosened parts
Contact resistance: no more than 100 mø
Insulation Resistance: 50 mø or more
No breakage, cracks, or loosened parts
No deformation in appearance or marked instability of
contacts
6.Shock Resistance
7.Humidity Resistance
(Steady State)
8.Temperature Cycles
9.Solder Heat
Resistance
(Note 1) Use at 70% of the current rating when all pins are energized with the stated current rating.
(Note 2) Temperature rise at the time of electrification is included.
(Note 3) The term “storage” refers to the long-term storage condition of unused products before mounting on the PCB.
The operating temperature and humidity ranges apply to non-energized state after PCB mounting.
(Note 4) The above specifications are representative of this series. Please refer to “drawing for approval” for official individual agreement.
■Materials
Part
Insulator
Contact
Metal fitting
Materials
LCP
Polyamide resin
Phosphor bronze
Phosphor bronze
Treatment
Gray
Black
Nickel barrier Gold plating
Pure tin reflow plating
UL Regulation
Recognition
------
■Product
Number Structure
Refer to the chart below when searching for the part number nomenclature.
Please select connectors listed in this catalog when placing orders.
The characteristics and specifications of the products described in this catalog are for reference only.
Please make sure to check the latest delivery specifications before the time of purchase.
FH 35 C − 35S − 0.3 SHW (50)
❶
❷
❸
❹
❺
❻
❼
❶
Series Name: FH
❷
Series No.: 35
❸
C: dual-sided, halogen-free product
❹
Number of contacts : 9 to 51
❺
Contact Pitch: 0.3 mm
❻
Contact Form
SHW: SMT horizontal staggered array mount type
❼
Specifications:
(50): standard product (5000 connectors per reel)
(99): 500 connectors per reel
2
FH35C Series●0.3 mm pitch, 0.9 mm height, back flip type dual-sided FPC connector
■Connector
Dimensions
Note 1: The lead coplanarity of contact and reinforcing metal fitting is a MAX of 0.1 mm.
2: This product packaged on tape-and-reel. See the package specification diagram for details.
3: Dimensions may be changed for sink mark prevention due to improvement, etc.
In addition, black dots, etc., may occur in the mold resin but they have no effect on quality.
4: This product is halogen-free.
(Br content: 900 ppm or less; CI content: 900 ppm or less; Br + CL total content: 1,500 ppm or less)
■Connector
Dimension Table
Product No.
FH35C-9S-0.3SHW(50)
FH35C-11S-0.3SHW(50)
FH35C-13S-0.3SHW(50)
FH35C-15S-0.3SHW(50)
FH35C-17S-0.3SHW(50)
FH35C-19S-0.3SHW(50)
FH35C-21S-0.3SHW(50)
FH35C-23S-0.3SHW(50)
FH35C-25S-0.3SHW(50)
FH35C-27S-0.3SHW(50)
FH35C-31S-0.3SHW(50)
FH35C-33S-0.3SHW(50)
FH35C-35S-0.3SHW(50)
FH35C-37S-0.3SHW(50)
FH35C-39S-0.3SHW(50)
FH35C-41S-0.3SHW(50)
FH35C-45S-0.3SHW(50)
FH35C-49S-0.3SHW(50)
FH35C-51S-0.3SHW(50)
HRS No.
CL580-2910-5-50
CL580-2917-4-50
CL580-2925-2-50
CL580-2919-0-50
CL580-2916-1-50
CL580-2921-1-50
CL580-2922-4-50
CL580-2911-8-50
CL580-2912-0-50
CL580-2918-7-50
CL580-2923-7-50
CL580-2913-3-50
CL580-2926-5-50
CL580-2914-6-50
CL580-2915-9-50
CL580-2924-0-50
CL580-2909-6-50
–––––––
CL580-2920-9-50
The number of contacts
9
11
13
15
17
19
21
23
25
27
31
33
35
37
39
41
45
49
51
A
4.3
4.9
5.5
6.1
6.7
7.3
7.9
8.5
9.1
9.7
10.9
11.5
12.1
12.7
13.3
13.9
15.1
16.3
16.9
B
1.8
2.4
3
3.6
4.2
4.8
5.4
6
6.6
7.2
8.4
9
9.6
10.2
10.8
11.4
12.6
13.8
14.4
C
2.4
3
3.6
4.2
4.8
5.4
6
6.6
7.2
7.8
9
9.6
10.2
10.8
11.4
12
13.2
14.4
15
D
3.03
3.63
4.23
4.83
5.43
6.03
6.63
7.23
7.83
8.43
9.63
10.23
10.83
11.43
12.03
12.63
13.83
15.03
15.63
Unit: mm
E
3.73
4.33
4.93
5.53
6.13
6.73
7.33
7.93
8.53
9.13
10.33
10.93
11.53
12.13
12.73
13.33
14.53
15.73
16.33
The products with no HRS No. are currently under planning. Please contact our sales representative for questions concerning the number of contacts.
3
