540BCC30M7200ABGR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 540BCC30M7200ABGR

540BCC30M7200ABGR: DescriptionLVDS Output Clock Oscillator, 30.72MHz Nom, CLCC, 6 PIN; CategoryPassive components oscillator; File Size868KB，16 Pages; ManufacturerSilicon Laboratories Inc; Environmental Compliance

Download Datasheet Parametric View All

540BCC30M7200ABGR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	540BCC30M7200ABGR	-	-	View	Buy Now

540BCC30M7200ABGR Overview

LVDS Output Clock Oscillator, 30.72MHz Nom, CLCC, 6 PIN

540BCC30M7200ABGR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7422850036
package instruction	CLCC, 6 PIN
Reach Compliance Code	unknown
Other features	1.8V, 2.5V SUPPLY VOLT IS ALSO AVAILABLE; TRI-STATE; ENABLE/DISABLE FUNCTION; TR
maximum descent time	0.35 ns
Frequency Adjustment - Mechanical	NO
frequency stability	7%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	30.72 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
physical size	7.0mm x 5.0mm x 1.43mm
longest rise time	0.35 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

Ultra Series

™

Crystal Oscillator

Si540 Data Sheet

Ultra Low Jitter Any-Frequency XO (125 fs), 0.2 to 1500 MHz

KEY FEATURES

The Si540 Ultra Series

™

oscillator utilizes Silicon Laboratories’ advanced 4

generation DSPLL

technology to provide an ultra-low jitter, low phase noise clock

at any output frequency. The device is factory-programmed to any frequency from

0.2 to 1500 MHz with <1 ppb resolution and maintains exceptionally low jitter for

both integer and fractional frequencies across its operating range. The Si540

offers excellent reliability and frequency stability as well as guaranteed aging

performance. On-chip power supply filtering provides industry-leading power

supply noise rejection, simplifying the task of generating low jitter clocks in noisy

systems that use switched-mode power supplies. Offered in industry-standard

3.2×5 mm and 5×7 mm footprints, the Si540 has a dramatically simplified supply

chain that enables Silicon Labs to ship custom frequency samples 1-2 weeks after

receipt of order. Unlike a traditional XO, where a different crystal is required for

each output frequency, the Si540 uses one simple crystal and a DSPLL IC-based

approach to provide the desired output frequency. This process also guarantees

100% electrical testing of every device. The Si540 is factory-configurable for a

wide variety of user specifications, including frequency, output format, and OE pin

location/polarity. Specific configurations are factory-programmed at time of

shipment, eliminating the long lead times associated with custom oscillators.

Pin Assignments

• Available with any frequency from 0.2 MHz to

1500 MHz

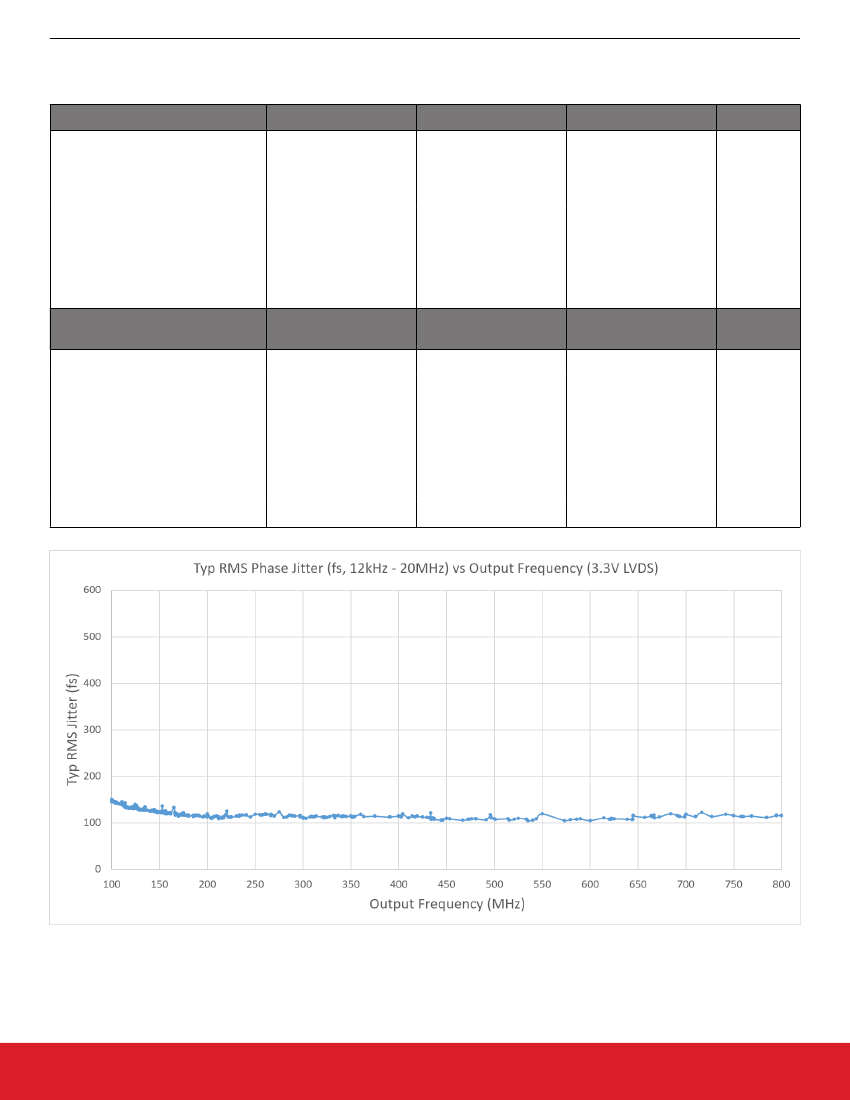

• Very low jitter: 125 fs Typ RMS

(12 kHz – 20 MHz)

• Excellent PSRR and supply noise immunity:

–80 dBc Typ

• 10 ppm stability option (-40 to 85C)

• 3.3 V, 2.5 V and 1.8 V V

supply operation

from the same part number

• LVPECL, LVDS, CML, HCSL, CMOS, and

Dual CMOS output options

• 3.2×5, 5×7 mm package footprints

• Any custom frequency available with 1-2

week lead times

APPLICATIONS

• 100G/200G/400G OTN, coherent optics

• 10G/40G/100G optical ethernet

• 3G-SDI/12G-SDI/24G-SDI broadcast video

VDD

CLK-

CLK+

OE/NC

(Top View)

• Servers, switches, storage, NICs, search

acceleration

• Test and measurement

• Clock and data recovery

• FPGA/ASIC clocking

NC/OE

GND

Pin #

1, 2

Descriptions

Selectable via ordering option

OE = Output enable; NC = No connect

GND = Ground

CLK+ = Clock output

CLK- = Complementary clock output. Not used

for CMOS.

VDD = Power supply

NVM

Control

Fixed

Frequency

Crystal

Frequency

Flexible

DSPLL

DCO

Low

Noise

Driver

OSC

Digital

Phase

Detector

Phase Error

Cancellation

Phase Error

Fractional

Divider

Digital

Loop

Filter

Flexible

Formats,

1.8V – 3.3V

Operation

Power Supply Regulation

Output Enable

(Pin Control)

Built-in Power Supply

Noise Rejection

silabs.com

| Building a more connected world.

Rev. 0.75
