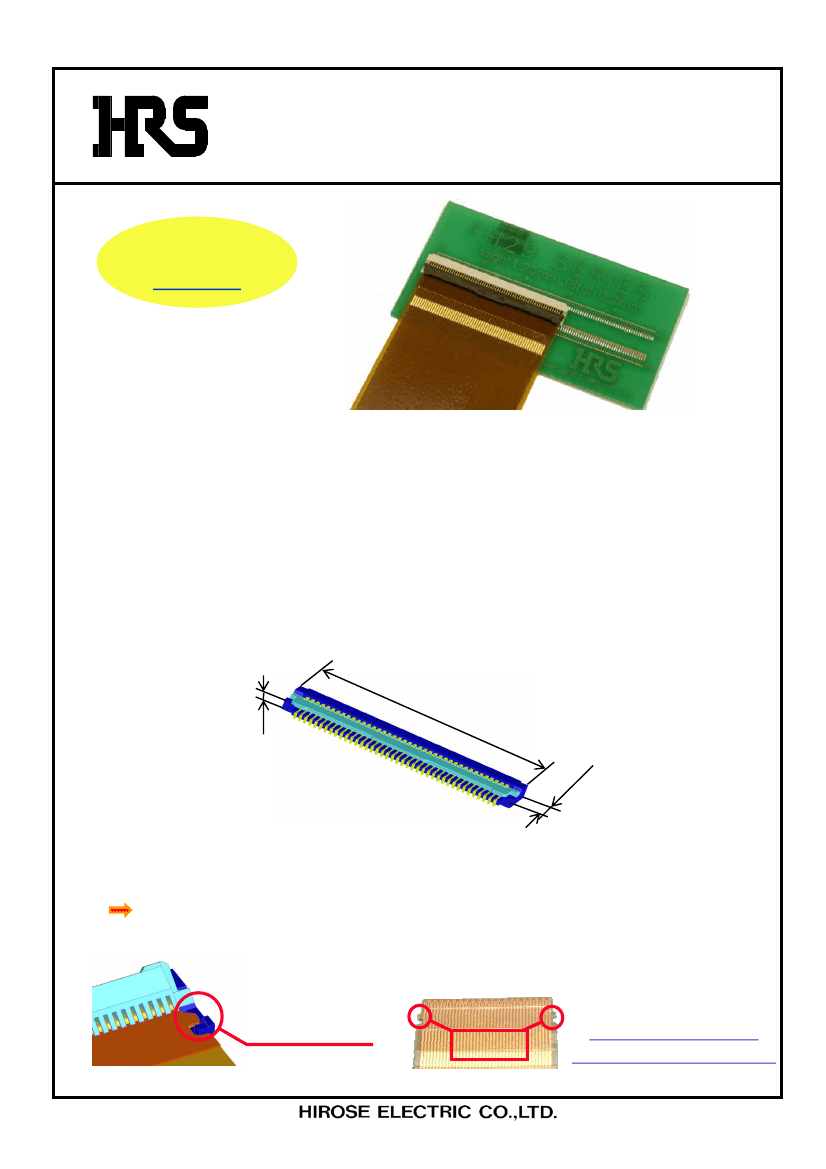

FH29 Series
ITS-P-04015H-.1
0.2mm Pitch 1.2 mm Height
Space Saving FPC Connectors
Mounting Pitch
0.4mm
Features
1．Space saving and light weight
2．Easy mounting in double-sided lead design: 0.4 mm mounting lead pitch
3．FPC alignment mechanism enables high connection reliability
4．Unique and user-friendly actuator operation:
Tactile sensation allows reliable actuator retention
5．Board surface under the connector is available for PCB patterning
6．Suitable for FPC with mating area thickness of 0.2±0.03mm
[Industry standard thickness]
7. Satisfies RoHS requirements
Dimensions
1.2
17.
82
FPC Side-Catcher Design
1. FPC is temporarily retained before the actuator is closed.
2. Precise FPC positioning prevents angled FPC insertion
High production quality independent of each workers’ capability
3. Enhanced FPC retention force
Side-catcher
FPC
FPC Tab
Specifications herein are subject to change without notice. Contact Hirose for latest specifications, drawings or availabilities.
Issued: June 29, 2005
4.
55
Secure and Highly
Reliable Connection!!
