JKXER1G02MSNDPR

Description
Circular Connector, 2 Contact(s), Brass, Male, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size257KB,10 Pages
ManufacturerSOURIAU
Download Datasheet Parametric View All

JKXER1G02MSNDPR Overview

Circular Connector, 2 Contact(s), Brass, Male, Solder Terminal, Receptacle,

JKXER1G02MSNDPR Parametric

Parameter NameAttribute value
Objectid1075755416
Reach Compliance Codeunknown
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialBRASS
Housing size1
Termination typeSOLDER
Total number of contacts2

JKXER1G02MSNDPR Preview

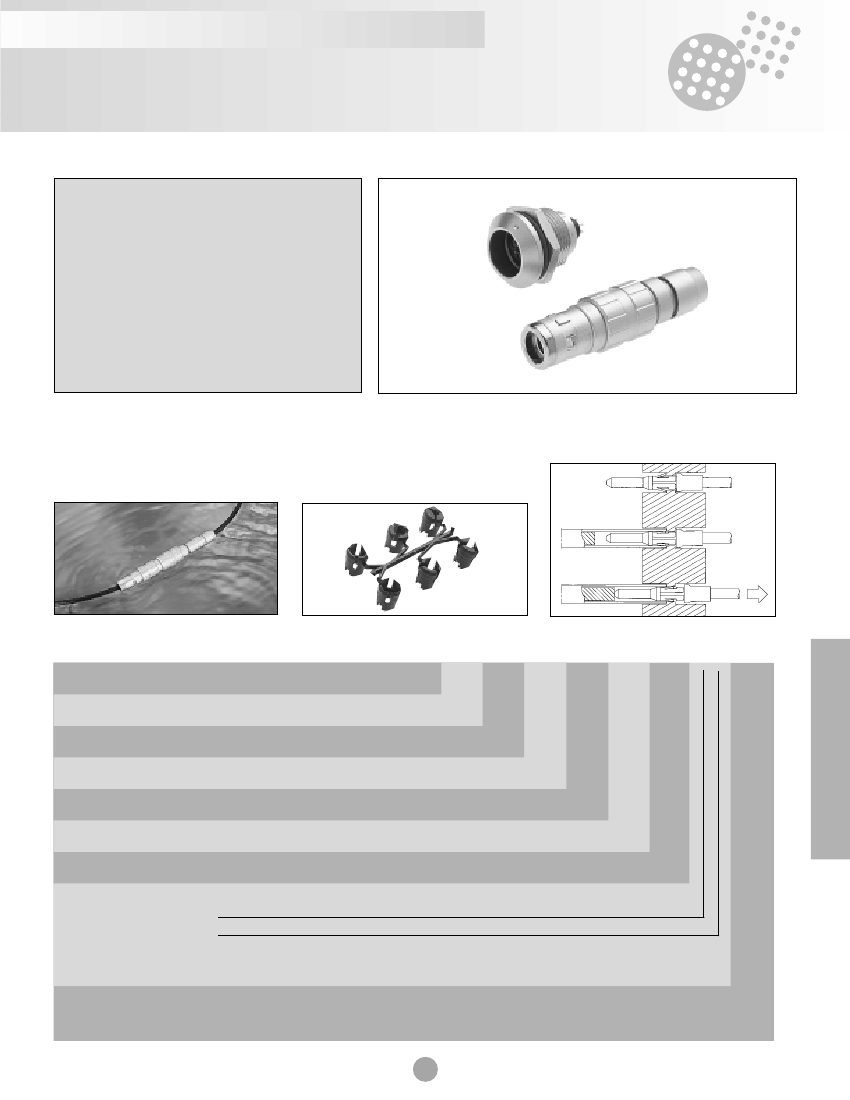

JKX Series
Key features
• Sealed IP 68 (mated connectors)
• Mechanically keyed : ensures correct polarization
and alignment.
• Contact arrangements : from 2 to 10 contacts.
• Wire gauge range from 28 AWG to 14 AWG.
• High contact density in a small space.
• Contact termination in either crimp, solder or
PCB contacts.
User advantages
Temporary immersion IP 68
6-collet cluster
Allows a wide range of cable diameter
applications for a single connector.
Reduces inventory variations.
Removable contacts
Crimp versions allow easier wiring and
maintenance.
Part number system
Basic series
Shell configuration
Size
Keying
Contact layouts
Contact type
Contact termination
Material & surface plating
FD - ER - EP - PC
0-1
G
02 ---------- 10
(see page 33)
M
: pin
F
: socket (in relation with keying)
JKX
FD
1
G
05
M
C
SDS
M
C
: crimp ;
S
: solder ;
P*
: straight PCB tails ;
Q*
: 90° PCB tails ;
W
: 0.7 mm clipped
solder
S
: Outer shell in brass alloy with glossy chrome over nickel
N
: Outer shell in brass alloy with black plating (consult us)
D
: Obligatory suffix
S
: Insulator in PPS
P
: Insulator in Peek (for Ø 0.5 mm contacts only)
Obligatory suffix for layouts including contacts of Ø 0.5 mm
Options
M
: Connector with backnut for protective boot (protective boot to order separately page 34)
G
: Connector adapted to accomodate larger cables (Ø 4.5 to 6 in size 0 and Ø 6 to 8 in size 1)
R
: Red dot (possible for FD, PC, ER only)
*
For receptacles with female contacts only.
31
JKX Series
JKX Series

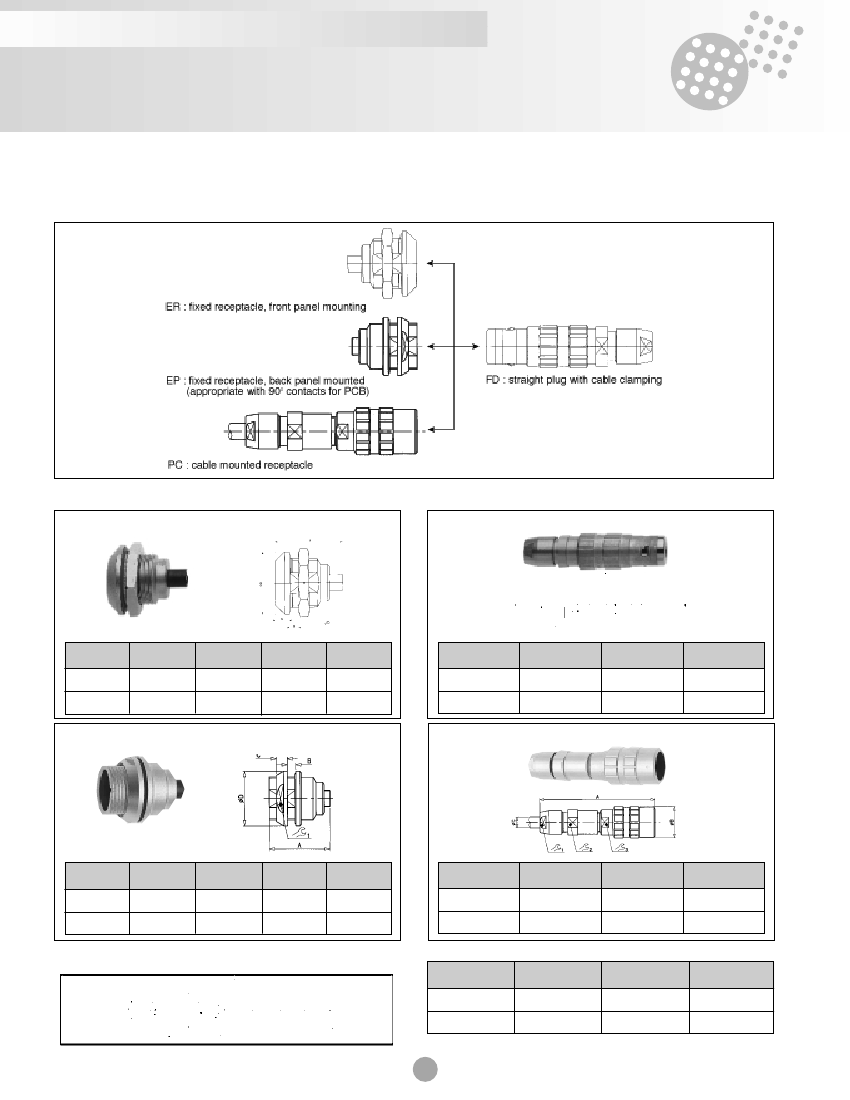

Shell type
Available JKX shells
• Dimensions
ER :
Fixed receptacle, front panel mounting
FD :
Straight plug with cable clamping
Size
0
1
A
19.5
24.5
B
4.5
8.5
C
4
4.5
Ø
D
18
20
Size
0
1
A
47
57
Ø
B
12
15
Ø
M
1.5 to 4.5
2 to 6
EP :
Fixed receptacle, back panel mounting
PC :
Cable mounted receptacle
Size
0
1
A
19.5
24.5
B
4.5
6
C
3.2
4
Ø
D
18
20
Size
0
1
A
_
60
Ø
B
_
16
Ø
C
_
2 to 6
• Option G : to accomodate bigger cables
Size
0
1
A
51
60
Ø
B
12
15
Ø
M
4.6 to 6
6 to 8
32
JKX Series
Keying
G keying is available in standard version (0°
keying angle, plugs with pin contacts,
receptacles with female contacts) for the 4
shell types. Reverse gender available in all
layouts.
Shell size
0
1
Key
G
G
ER
q
q
EP
q
q
PC
_
q
FD
q
q
q
Concerning the availability of other alternatives, please consult our commercial office.
Contacts

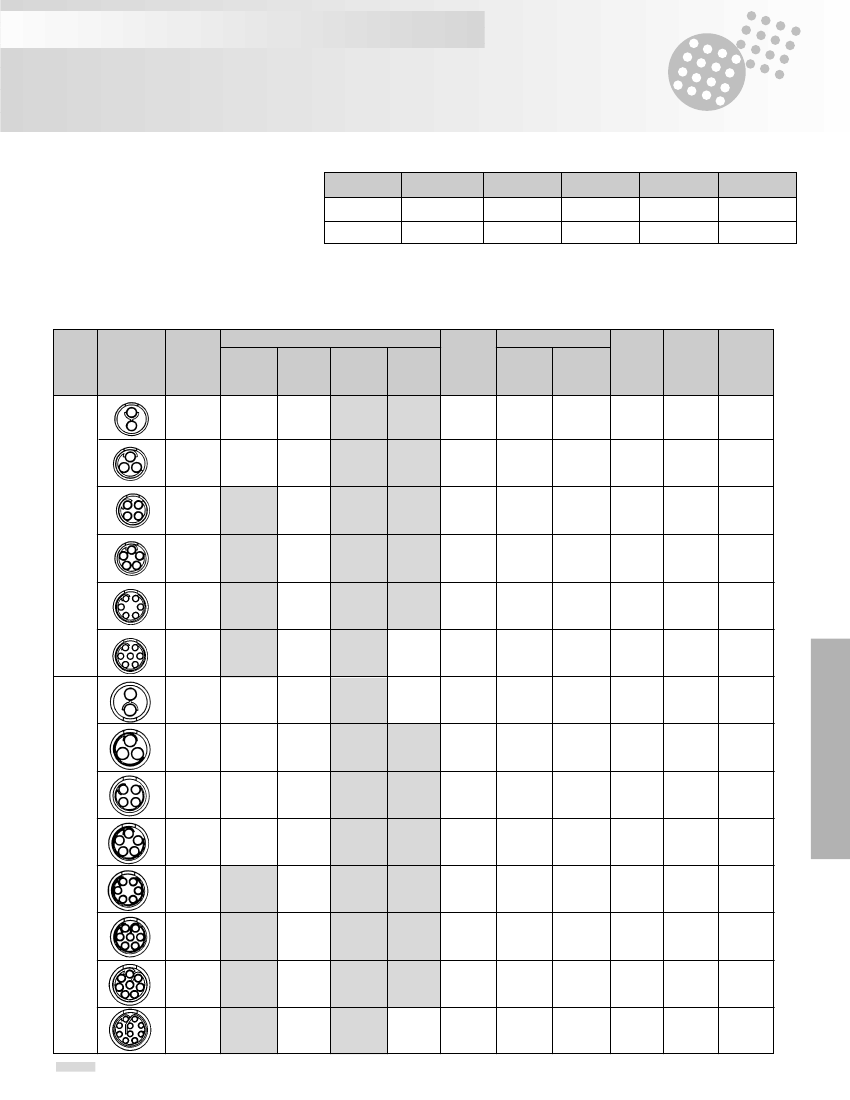

• Multi contacts inserts
Shell
size
Male
insulator
Contact
viewed from layout
wiring side
02
Available Contact types
S
solder
C
crimp
P*
straight
PCB tails
Q*
90°
PCB tails
Ø
Contact
AWG
Solder
Crimp
wire
wire
Max.
Max.
Max.
current
rating
(A)
10
Testing
voltage
(Vrms)
1400
Working
voltage
(Vdc /
Vrms)
660/460
S
C
P
Q
0.9
24
20
03
S
C
P
Q
0.9
24
20
8
1300
600/420
04
S
C
P
Q
0.7
26
22
7
1400
660/460
0
05
S
C
P
Q
0.7
26
22
6.5
800
400/260
06
S
P
0.5
28
-
2.5
680
320/220
07
S
P
0.5
28
-
2.5
680
320/220
02
S
C
P
1.3
20
18
15
1600
760/530
03
S
C
P
Q
1.3
20
18
12
1300
600/420
04
S
C
P
Q
0.9
24
20
10
1900
900/630
05
S
C
P
Q
0.9
24
20
9
1400
660/460
1
06
S
C
P
Q
0.7
26
22
7
1400
660/460
07
S
C
P
Q
0.7
26
22
7
1400
660/460
08
S
C
P
Q
0.7
26
22
5
1200
600/420
10
S
P
0.5
28
-
2.5
600
300/200
Inserts with fixed contacts (non removable contacts)
*
For receptacles with female contacts only
JKX Series
JKX Series
Options

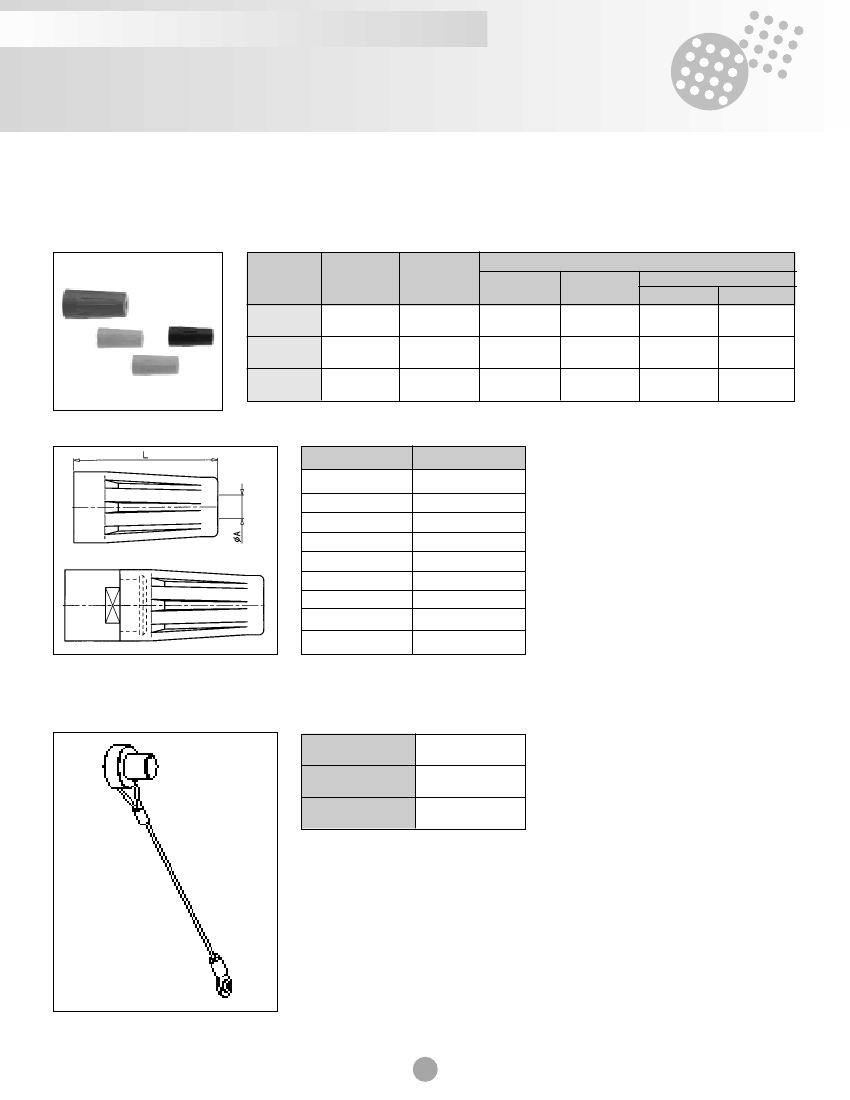

• Protective boot
Protective boot can accept multiple cable diameters
Part
number
JBX 0 MP*
JBX 1 MP*
JBX 2 MP*
* Color code
Shell
size
0
1
-
Shell size
Option
G
-
0
1
Dimensions
Ø
A
2.2
2.6
4
L
min
20
25
30
1.5
2
3.5
Ø
Câble
Max.
5.5
7.5
9.7
Color code
A
B
G
J
M
N
R
V
O
Colors
blue
white
grey
yellow
brown
black
red
green
orange
Material :
ELASTOLLAN (PUR)
Working temperature :
- 40°C ; + 80°C
- 40°F ; + 176°F
With each JKX connector, one protective boot can accept diverse cable diameters thus the end-user can manage various cable
diameters without bothering with multiple part numbers.
• Caps :
an efficient protection until 2 bars
Part number
JKX BR0
JKX BR1
Ø
15
17
34
JKX Series
Technical characteristics
• Material and treatment
Standard
Component
Outer shell and collet nut
Latching sleeve & metal collet
Shielding ring
Nut
Tapered washer and half bushes
Socket contact
(1)
Pin contact
(1)
Clip
Material
ISO
Brass
Brass
Brass
Brass
Brass
Copper-nickel
Brass
Beryllium copper
CuZn40Pb3
CuZn40Pb3
CuZn40Pb3
CuZn40Pb3
CuZn40Pb3
CuNi1Pb1P
CuZn35Pb2
CuBe1,9
ASTM
C38500/C360
C38500/C360
C38500/C360
C38500/C360
C38500/C360
CDA C 19150
C35300/C360
C17200/C360
-
-
-
-
Cr
0.1 - 0.6
-
-
Ni
5-8
5-8
3-7
5-8
5-8
3-5
3-5
-
Au
-
-
-
-
-
0.5
0.5
-
Surface treatment (µm)
(1) Gold thickness as per MIL-G-45204C type 1, class 00.
Component
Insert
Material
PPS + 40%GF
Color
black
brown
black
red
Temperature withstanding
- 65°C + 200°C
- 50°C + 250°C
- 55°C + 125°C
- 50°C + 250°C
- 85°F + 392°F
- 58°F + 482°F
- 67°F + 257°F
- 58°F + 482°F
or PEEK
+ 15%GF
Plastic collet
Cable seal
PA 6/6 + MoS2
Silicon rubber
• Mechanical and climatics
Characteristics
Endurance
Shock
Vibrations
Protection index
Values
> 1000 cycles (except for 0.7 mm crimp contacts for which
endurance is limited to 500 cycles)
50 g, duration 6 ms ; contact
Ø
0.7 mm and 0.9 mm
100 g, duration 6 ms ; contact
Ø
1.3 mm - 1.6 mm and 2 mm
10 to 2000 Hz
γ
= 15 g, contact
Ø
0.7 mm and 0.9 mm
γ
= 20 g, contact
Ø
1.3 mm - 1.6 mm and 2 mm
IP 68 (watertight - 48 hours under 1 m of water)
with plastic collets
Operating temperature
with optional metal collets
Standard
MIL-STD
1344A
MIL-STD
1344A
MIL-STD
1344A
CEI 529
-
-
Method
2016.1
2004.1
2005.1
}
}
- 55°C + 125°C
- 67°F + 257°F
- 55°C + 200°C
- 67°F + 392°F
-
-
35
