EYA36DCWN datasheet, PDF - EEWORLD Datasheet

EYA36DCWN: DescriptionCard Edge Connector, 36 Contact(s), 2 Row(s), 0.125 inch Pitch, Solder Terminal, Hole .125-.137, Blue-green Insulator, Receptacle; CategoryThe connector The connector; File Size334KB，4 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

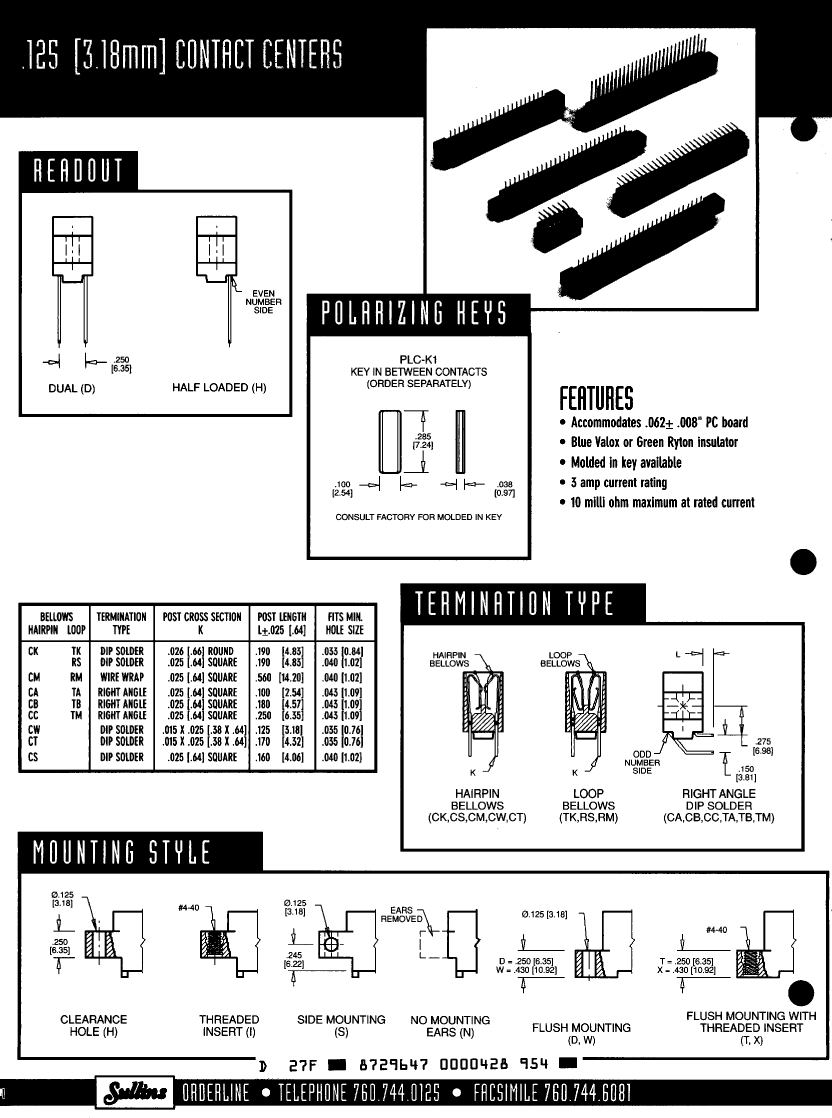

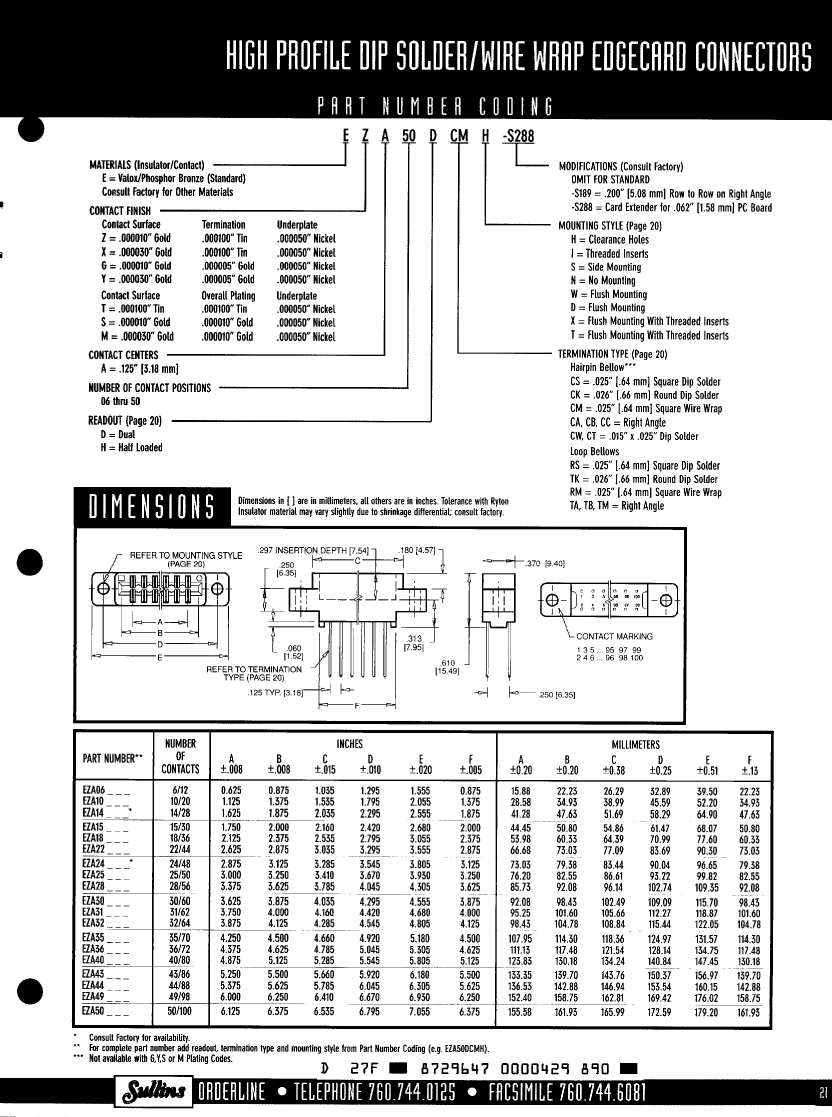

EYA36DCWN Overview

Card Edge Connector, 36 Contact(s), 2 Row(s), 0.125 inch Pitch, Solder Terminal, Hole .125-.137, Blue-green Insulator, Receptacle

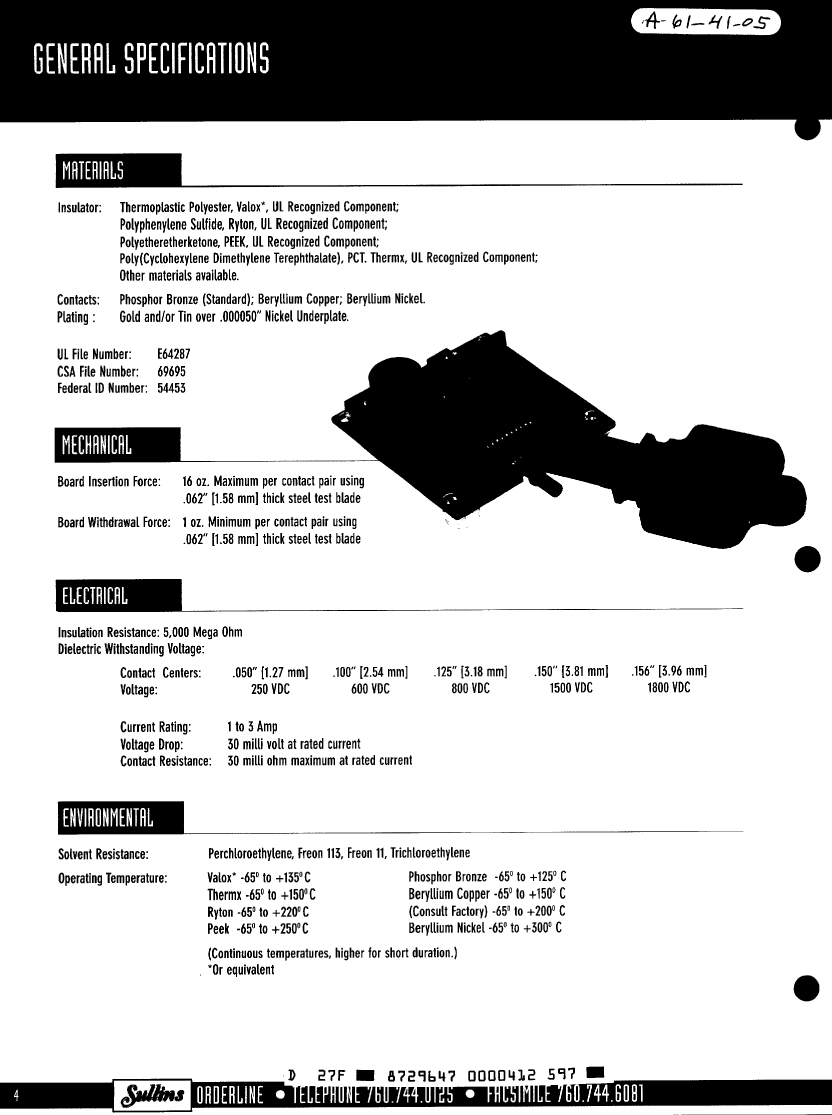

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1157312927
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7
body width	0.37 inch
subject depth	0.61 inch
body length	5.305 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	800VDC V
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLUE-GREEN
insulator material	POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.125 inch
Match contact row spacing	0.25 inch
Installation option 1	HOLE .125-.137
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.35 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal length	0.19 inch
Terminal pitch	3.175 mm
Termination type	SOLDER
Total number of contacts	36
Evacuation force-minimum value	.139 N
