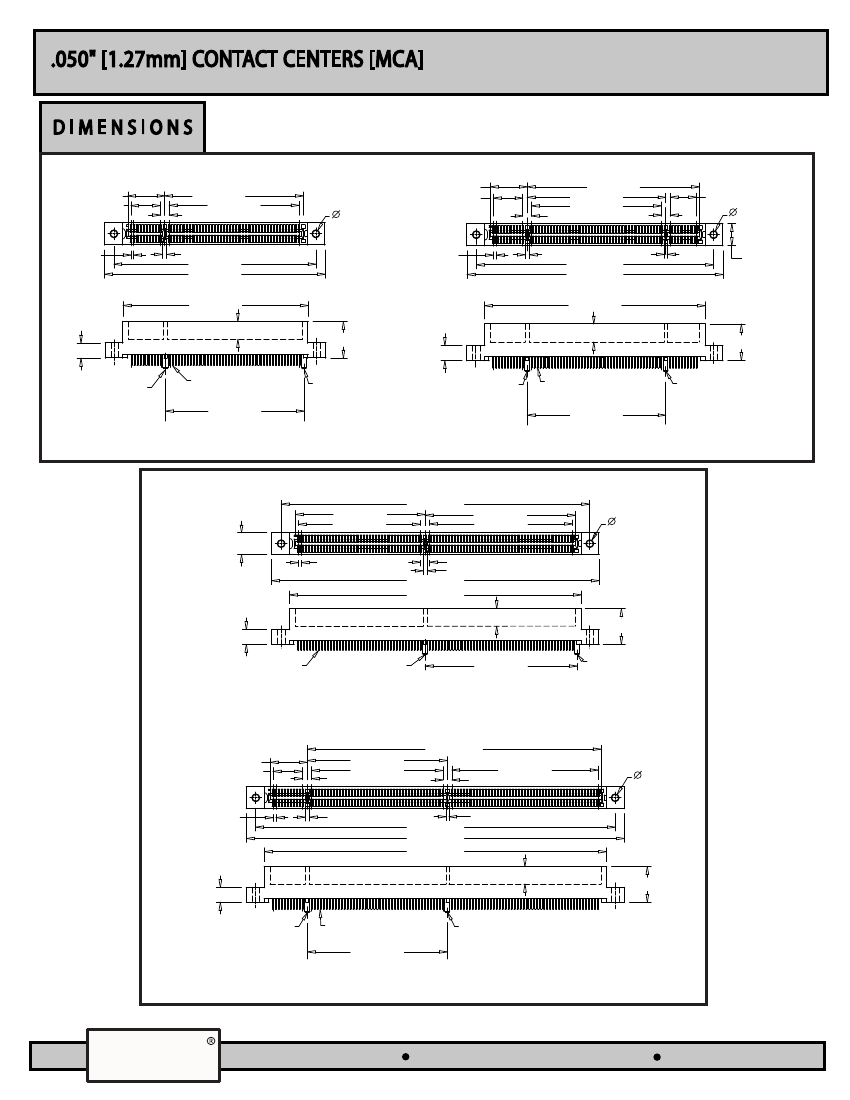

Dimensions in [ ] are in millimeters, all others in inches.
.625 [15.88]
.500 [12.70]
2.350 [59.69]
2.200 [55.88]
.150 [3.81]
.625 [15.88]
.500 [12.70]
.125, 2 PLS.
[3.18]
.050 TYP.
[1.27]
2.925 [74.30]
2.350 [59.69]
2.200 [55.88]
.150 [3.81]
.150 [3.81]
.450 [11.43]
.125, 2 PLS.
[3.18]
.050 TYP.
[1.27]
.070 [1.78]
3.426 [87.02]
3.740 [95.00]
3.140 [79.76]
.300 INSERTION DEPTH
[7.62]
.050 [1.27]
.070 [1.78]
4.026 [102.26]
4.340 [110.24]
3.740 [95.00]
.300 INSERTION DEPTH [7.62]
.370 [9.40]
.250 [6.35]
11 POS.
.093 [2.36]
GUIDE POST
.610 [15.49]
45 POS.
.012 X .018 [0.31 X 0.46]
.060 [1.52]
POST,REFER TO
GUIDE POST
TERMINATION TYPE (Opposite Page)
2.350 [59.69]
.250 [6.35]
11 POS.
.093 [2.36]
GUIDE POST
45 POS.
10 POS.
.012 X .018 [0.31 X 0.46]
.060 [1.52]
POST,REFER TO
GUIDE POST
TERMINATION TYPE (Opposite Page)
2.350 [59.69]
.610 [15.49]
RZB56DCHD-S578, 56 (11/45) POSITIONS
RZB66DCHD-S578, 66 (11/45/10) POSITIONS
2.175 [55.24]
2.050 [52.07]
.370 [9.40]
.050 TYP. [1.27]
5.176 [131.47]
2.525 [64.14]
2.400 [60.96]
.125, 2 PLS.
[3.18]
.150 [3.81]
.070 [1.78]
5.490 [139.45]
4.890 [124.21]
.300 INSERTION DEPTH [7.62]
.610
[15.49]
.060 [1.52]
GUIDE POST
.250 [6.35]
42 POS.
.012 X .018 [0.31 X 0.46] POST, .093 [2.36] GUIDE POST
REFER TO TERMINATION TYPE
(Opposite Page)
49 POS.
2.550 [64.77]
RZB91DCHD-S578, 91 (42/49) POSITIONS
4.925 [125.10]
.625 [15.88]
.500 [12.70]
2.350 [59.69]
2.200 [55.88]
.150 [3.81]
2.450 [62.23]
.150 [3.81]
.125, 2 PLS.
[3.18]
.050 TYP. [1.27]
.070 [1.78]
6.026 [153.06]
6.340 [161.04]
5.740 [145.80]
.050 [1.27]
.300 INSERTION DEPTH [7.62]
.250 [6.35]
11 POS.
.093 [2.36] GUIDE POST
45 POS.
.012 X .018 [0.31 X 0.46]
2.350 [59.69]
50 POS.
.060 [1.52] GUIDE POST
.610
[15.49]
POST REFER TO
TERMINATION TYPE (Opposite Page)
RZB106DCHD-S578, 106 (11/45/50) POSITIONS
16
s›’’Œ”™
PHONE 760.744.0125
www.SullinsElectronics.com
FAX 760.744.6081

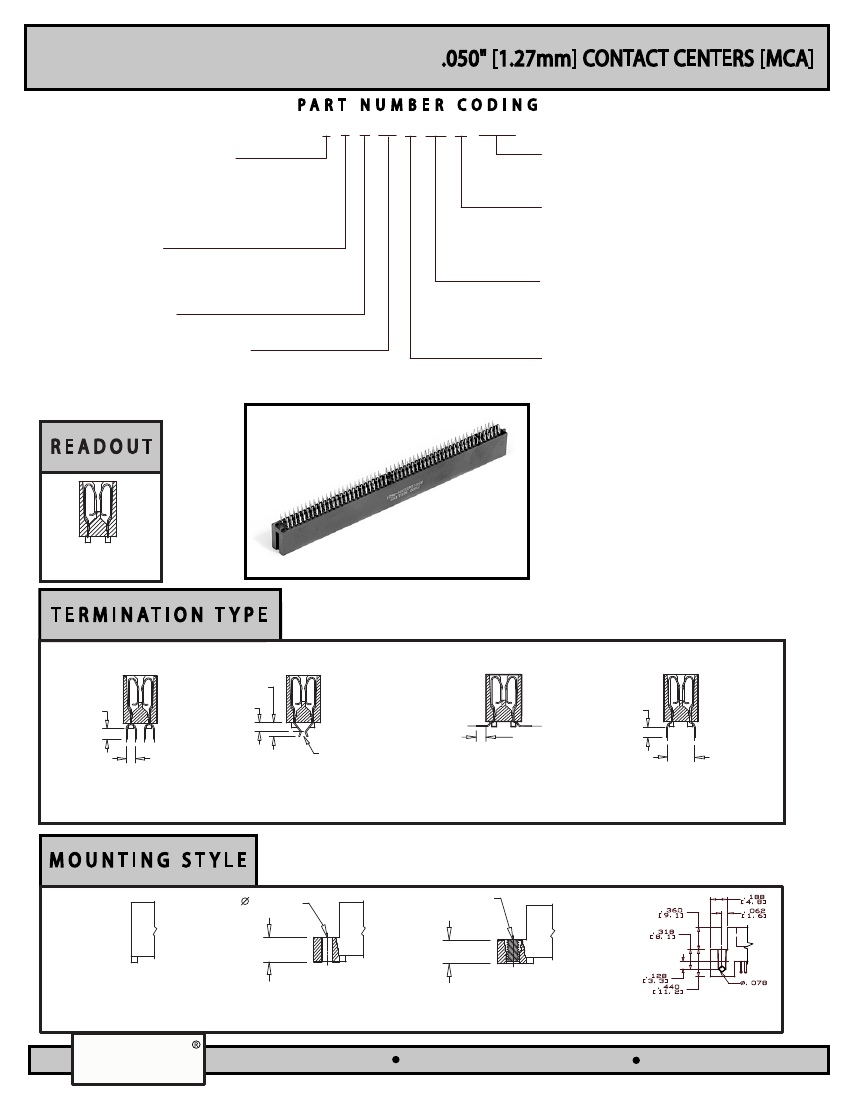

R Z B 56 D CH D -S578
MATERIALS (Insulator/Contact)
R = PPS/Phosphor Bronze
A = PPS/Beryllium Copper
L = PCT/Phosphor Bronze
M = PCT/Beryllium Copper
Consult Factory for Other Materials
CONTACT FINISH
Contact Surface
Z = .000010" Gold
X = .000030" Gold
CONTACT CENTERS
B = .050" [1.27 mm]
NUMBER OF CONTACT POSITIONS
56 = 11/45
66 = 11/45/10
91 = 42/49
106 = 11/45/50
Termination Underplate
.000100" Tin .000050" Nickel
.000100" Tin .000050" Nickel
MODIFICATIONS
-S578 = Card Slot Barriers With Guide Posts
-S621 = Card Slot Barriers Without Guide Posts
MOUNTING STYLE
N = No Mounting
D = Flush Mounting
T = Flush Mounting With Threaded Insert
Q = Straddle Mount
TERMINATION TYPE
CH = Staggered Dip Solder
CR = Card Extender
CF = Surface Mount
CL = .250" [6.35mm] X .160" [4.06mm] Dip Solder
READOUT
D = Dual
FEATURES
+
* Accommodates .062
_
.008" PC board
(Consult factory for other board thicknesses)
* PPS or PCT insulator
* Molded-in key available
* High reliability/high cycle hairpin
bellows contact
* 1 amp current rating
* 150 grams normal force minimum
DUAL (D)
FOR PC BOARD LAYOUTS REFER TO WWW.EDGECARDS.COM
.160
[4.06]
.100
[2.54]
.100, 3 PLS.
[2.54]
ACCOMMODATES
.062 PCB
.100
[2.54]
.125
[3.18]
.160
[4.06]
.250
[6.35]
STAGGERED DIP
SOLDER (CH)
CARD EXTENDER (CR)
SURFACE MOUNT (CF)
DIP SOLDER (CL)
.125 [3.18]
#4-40
.250 [6.35]
.250 [6.35]
NO MOUNTING EARS (N)
FLUSH MOUNTING (D)
FLUSH MOUNTING
WITH THREADED INSERT (T)
STRADDLE MOUNT (Q)
Formerly (Z)
