DV74LS21N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74LS21N

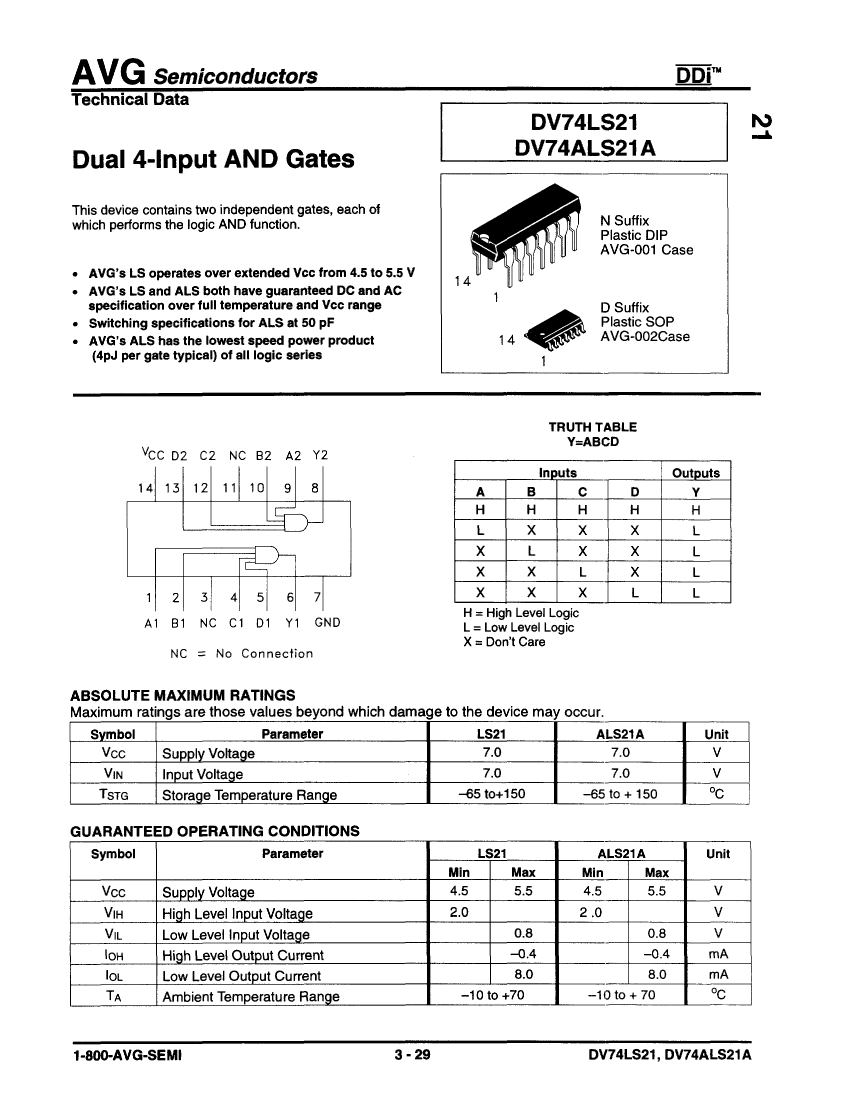

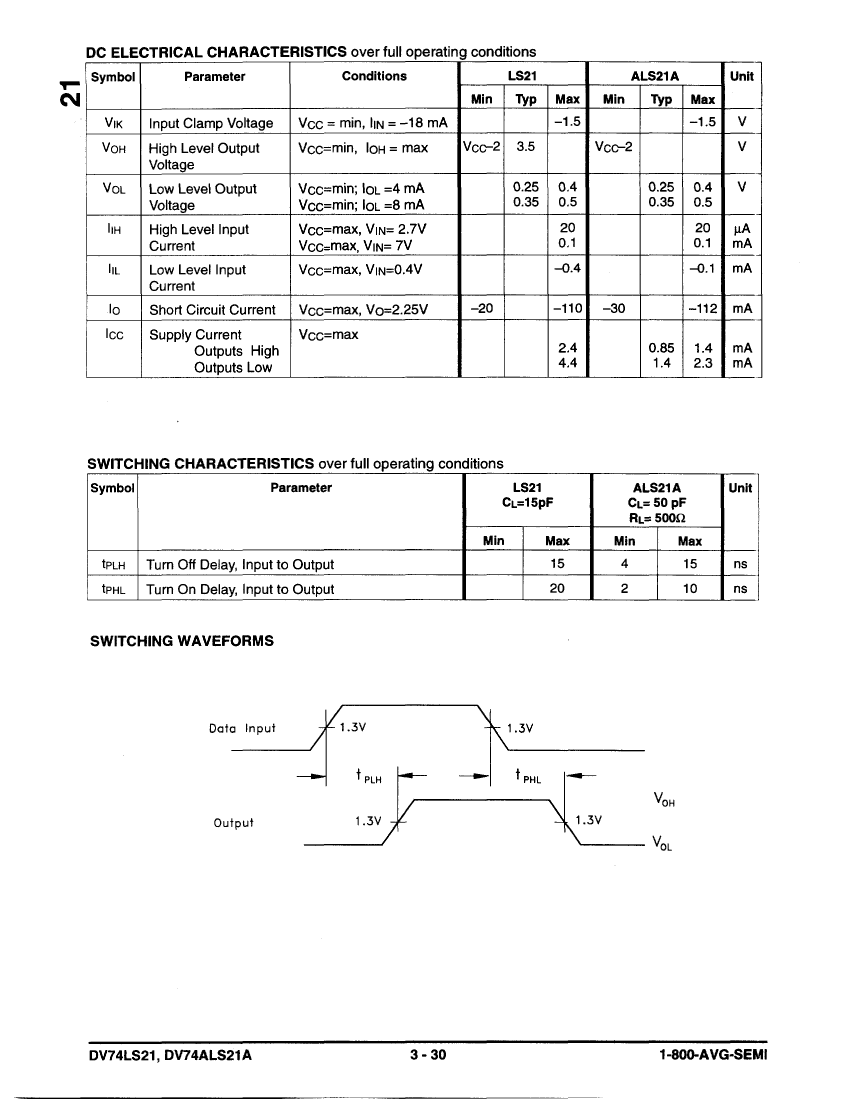

DV74LS21N: DescriptionAND Gate, LS Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size90KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS21N Overview

AND Gate, LS Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14

DV74LS21N Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	PLASTIC, DIP-14
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	AND GATE
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	4.4 mA
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DV74LS21N Related Products

	DV74LS21N	DV74ALS21AN	DV74LS21D	DV74ALS21AD
Description	AND Gate, LS Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14	AND Gate, ALS Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14	AND Gate, LS Series, 2-Func, 4-Input, TTL, PDSO14, PLASTIC, SOP-14	AND Gate, ALS Series, 2-Func, 4-Input, TTL, PDSO14, PLASTIC, SOP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	DIP	SOIC	SOIC
package instruction	PLASTIC, DIP-14	DIP,	PLASTIC, SOP-14	PLASTIC, SOP-14
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	LS	ALS	LS	ALS
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14
length	18.86 mm	18.86 mm	8.65 mm	8.65 mm
Load capacitance (CL)	15 pF	50 pF	15 pF	50 pF
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE
Number of functions	2	2	2	2
Number of entries	4	4	4	4
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	4.4 mA	2.3 mA	4.4 mA	2.3 mA
propagation delay (tpd)	20 ns	15 ns	20 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.69 mm	4.69 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	3.9 mm	3.9 mm
