200111MB027G600ZO: DescriptionBoard Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size247KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

200111MB027G600ZO Overview

Board Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

200111MB027G600ZO Parametric

Parameter Name	Attribute value
Objectid	303886683
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PACKAGING SLIM BOX W/O CAP
body width	0.094 inch
subject depth	0.112 inch
body length	2.138 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulator color	BLACK
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
Rated current (signal)	1.5 A
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	27

Preview

Download Datasheet

View All

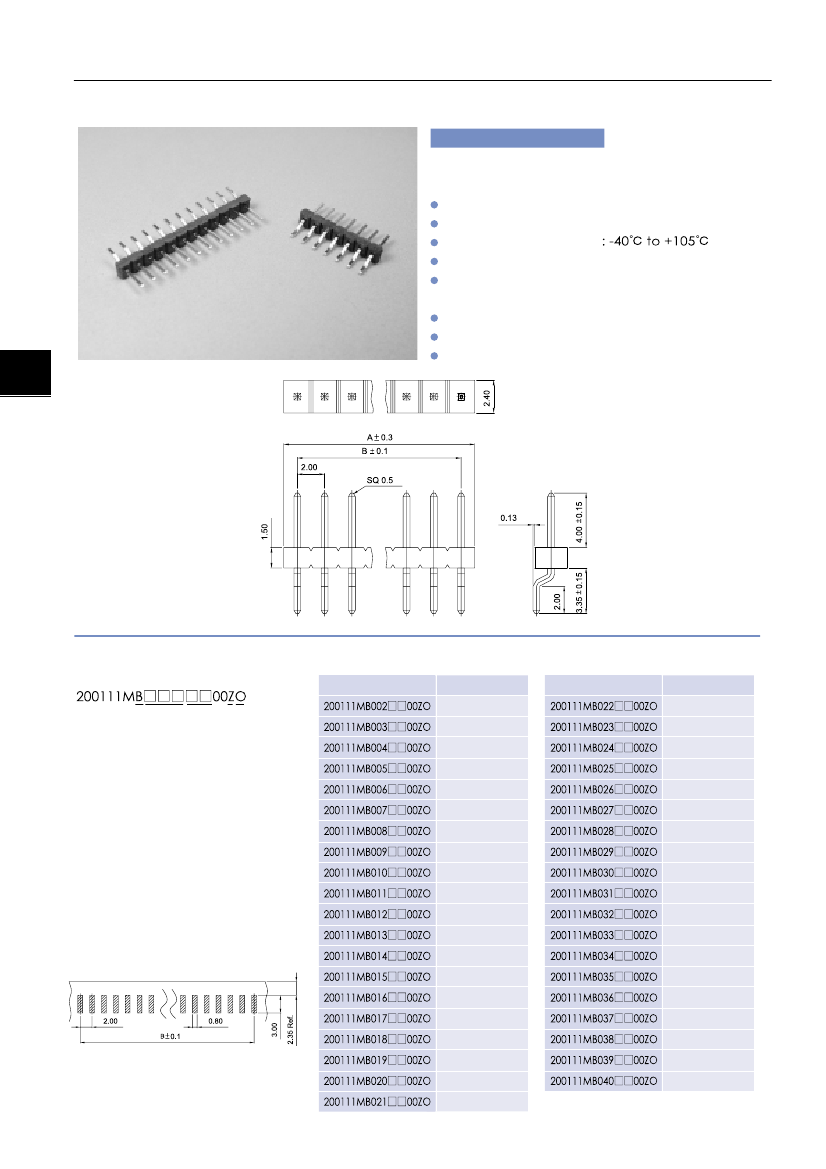

2.0mm SINGLE ROW HEADER

HORIZONTAL S.M.D.TYPE

200111MB Series

Mates With

SUYIN 200123,200130,200160

Series

Specifications:

2-40 Circuits

Insulator Material

Operating Temp.Range

Terminal Material

Plating

Max. Current Rating

Voltage Rating

2.0

mm

: Black High Temp . Plastic

: Brass 65/35

: Contact-Selective Gold Plated

or Full Gold Plated

: 1.5A

: 150V AC

: 500V(Min. 60 Seconds)

Dielectric Strength

Order Information

1

2

3

45

Dimensional Information

SUYIN P/NO.

DIM.A

4.3

6.3

DIM.B

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

SUYIN P/NO.

DIM.A

44.3

46.3

48.3

50.3

52.3

54.3

56.3

58.3

60.3

62.3

64.3

66.3

68.3

70.3

72.3

74.3

76.3

78.3

80.3

DIM.B

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

60.0

62.0

64.0

66.0

68.0

70.0

72.0

74.0

76.0

78.0

1. 'B' : Right Angle SMT Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'O' : Slim Box Package Without

CAP

Reference Page 11

8.3

10.3

12.3

14.3

16.3

18.3

20.3

22.3

24.3

26.3

28.3

30.3

32.3

34.3

36.3

38.3

40.3

42.3

Recommended P.C.B Layout
