ATC 900 C Series X7R
Ceramic RF Power
Multilayer Capacitors
• Case C Size
(.250" x .250")
• Low ESR/ESL
• Rugged Construction
• Capacitance Range
0.01
µF
to 1
µF
• Mid-K
• High Reliability
• Available with Encapsulation Option*

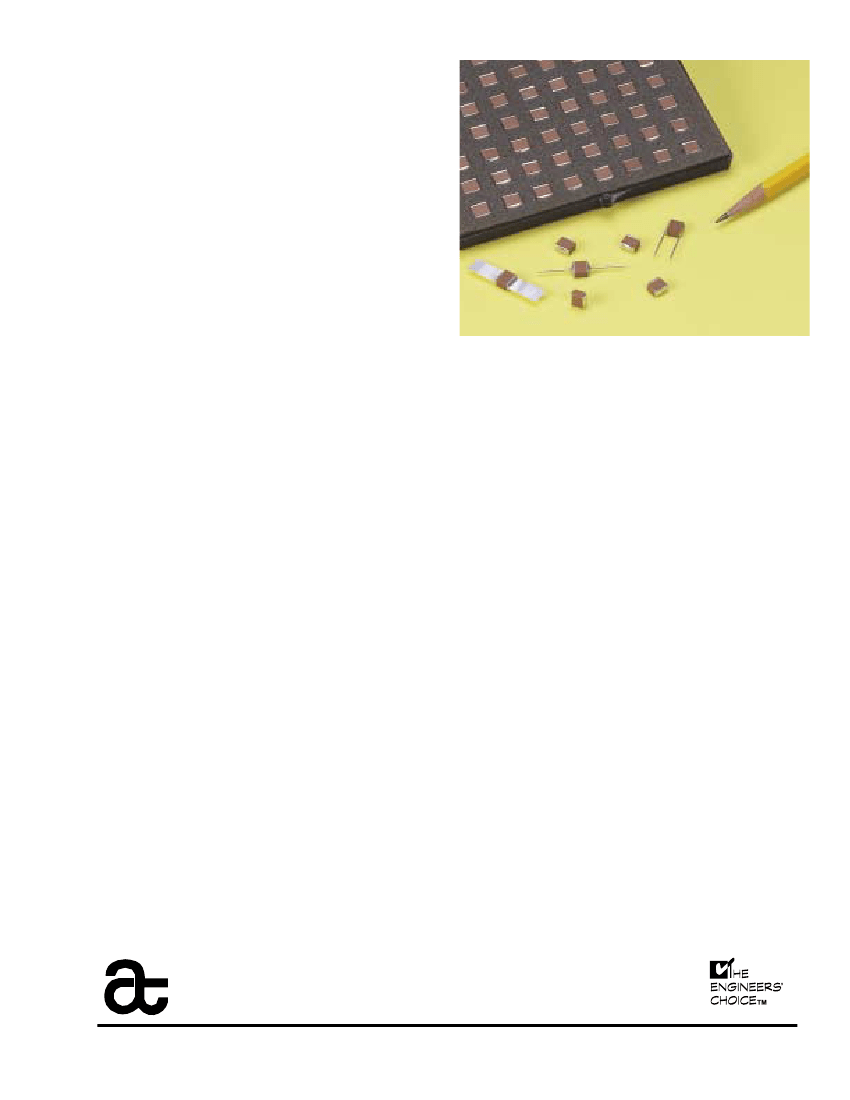

ATC, the industry leader, offers new improved ESR/ESL performance
for the 900 C Series RF Capacitors. This Series exhibits superior vol-
umetric efficiency, providing high levels of capacitance for HF/ RF
power applications. Ceramic construction provides a rugged, hermet-
ic package.
ATC offers an encapsulation option for applications requiring extend-
ed protection against arc-over and corona.
Typical functional applications: Bypass, Coupling and DC Blocking.
Typical circuit applications: HF/RF Power Amplifiers, Switching Power
Supplies, High Frequency SMPS Filters and Medical Equipment.
*For leaded styles only.
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
DISSIPATION FACTOR (DF):
2.5% max. at 1 KHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
Less than ±15% (-55°C to +125°C)
INSULATION RESISTANCE (IR):
0.01 MFd to 1 MFd
1000 megohms min. @ +25°C at rated WVDC.
100 megohms min. @ +125°C at rated WVDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2.
ENVIRONMENTAL TESTS
ATC 900 C Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
Case C: 250% of rated WVDC for 5 secs.
AGING EFFECTS:
3% maximum per decade hour.
PIEZOELECTRIC EFFECTS:
Negligible
DIELECTRIC ABSORPTION:
2% typical
OPERATING TEMPERATURE RANGE:
-55°C to +125°C (No derating of working voltage).
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative humidi-
ty for 240 hours min.
TERMINATION STYLES:
Available in various surface mount and leaded styles.
See Mechanical Configurations, page 3.
TERMINAL STRENGTH:
Terminations for chips and pellets
withstand a pull of 10 lbs. min., 15 lbs. typical, for 5 seconds in
direction perpendicular to the termina-tion surface of the capacitor.
Test per MIL-STD-202, method 211.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
200% WVDC applied.
American
ATC North America
631-622-4700
sales@atceramics.com
Technical
ATC Europe
+46 8 6800410
sales@atceramics-europe.com
Ceramics
ISO 9001 REGISTERED
ATC # 001-815 Rev. G 12/04
ATC Asia
+86-755-8366-4318
sales@atceramics-asia.com
www.atceramics.com
ATC 900 C Capacitance Values
CAP. CODE
103
153
223
333
473
683
104
154
224
334
474
684
824
105
CAP. (MFd)
.010
.015
.022
.033
.047
.068
.10
.15
.22
.33
.47
.68
.82
1.0
TOL.
RATED WVDC
300
300
300
250
250
250
200
200
200
150
150
150
100
100
K, M, N
VRMS = 0.707 X WVDC
• SPECIAL VALUES, TOLERANCES, HIGHER WVDC AND MATCHING AVAILABLE.
• ENCAPSULATION OPTION AVAILABLE. PLEASE CONSULT FACTORY.
CAPACITANCE TOLERANCE
Code
K
M
N
Tol.
±10% ±20% ±30%
ATC PART NUMBER CODE
ATC900 C 10 5
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
WVDC
Termination Code
The above part number refers to a 900 C Series (case size C) 1.0 MFd capacitor,
M tolerance (±20%), 100 WVDC, with W termination (Tin /Lead, Solder Plated over Nickel Barrier), laser marking and Waffle-packaging.
M W 100 X
C
Packaging
C - ATC Waffle-pack (Standard)
B - Bulk Packaging
(packed in plastic bags)
I - Special Packaging. Consult Factory
Laser Marking
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
2
ATC North America
631-622-4700 • sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410 • sales@atceramics-europe.com
C E R A M I C S
ATC Asia
+86-755-8366-4318 • sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
ATC 900 C Capacitors: Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
.230
+.020 -.010
(5.84
+0.51 -0.25)
.230
+.025 -.010
(5.84
+0.64 -0.25)
.230
+.020 -.010
(5.84
+0.51 -0.25)
TL
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
WIDTH
(W)
THICKNESS
(T)
900C
W
C
Solder Plate
W
L
T
Tin /Lead, Solder Plated over
Nickel Barrier Termination
Y
900C
P
C
Pellet
L
W
T
.040 (1.02) max.
Heavy Tin/Lead Coated,
over Nickel Barrier Termination
900C
T
C
Lead-Free
Solderable Nickel
Barrier
C
Y
W
L
T
Lead-Free
and RoHS Compliant
.145 (3.68)
max. for
capacitance
values
< 0.82 MFd;
.250 ±.015
(6.35 ±0.38) .165 (4.19)
max. for
capacitance
values
≥
0.82
MFd.
Tin Plated over
Nickel Barrier Termination
LL
WL
W
L
T
TL
900C
MS
Microstrip
High Purity
Silver Leads
LL = .500 (12.7) min.
WL = .240 ±.005
(6.10 ±.127)
TL = .004 ±.001
(.102 ±.025)
Leads are Attached with
High Temperature Solder.
Silver-plated Copper Leads
LL = 1.0 (25.4) min.
Dia. = .032 ±.002 (
0.81 ±0.05
)
Silver Leads
LL = .500 (12.7) min.
WL = * See below
TL = .004 ±.001 (.102 ±.025)
C
900C
AR
Axial Ribbon
L
WL
LL
W
T
LL
900C
AW
C
Axial Wire
• •
L
LL
W
•
T
WL
.245 ±.025
(6.22 ±0.64)
N/A
900C
VA
C
Veritical Axial Ribbon
W
L
T
TL
LL
900C
RW
C
Radial Wire
• •
L
T
W
Silver-plated Copper Leads
LL = 1.0 (25.4) min.
Dia. = .032 ±.002 (0.81 ±0.05)
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
**WL = .110 (2.79) for capacitance values < 0.82 MFd.; WL = .130 (3.30) for capacitance values
≥
0.82 MFd.
A M E R I C A N
3
ATC North America
631-622-4700 • sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410 • sales@atceramics-europe.com
C E R A M I C S
ATC Asia
+86-755-8366-4318 • sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
ATC 900 C Capacitors: Non-Magnetic Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
.230
+.025 -.010
(5.84
+0.64 -0.25)
.250 ±.015
(6.35 ±0.38)
.230
+.025 -.010
(5.84
+0.64 -0.25)
WIDTH
(W)
THICKNESS
(T)
OVERLAP
(Y)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
MATERIALS
900C
WN
C
Non-Mag
Solder Plate
C
Non-Mag
Lead-Free
Solderable
Barrier
Y
W
L
T
.145 (3.68)
max.
< 0.82 MFd
.165 (4.19)
max.
≥
0.82 MFd
Tin/Lead, Solder Plated over
Non-Magnetic Barrier Termination
.040 (1.02) max.
900C
TN
W
L
T
Lead-Free
and RoHS Compliant
Tin Plated over
Non-Magnetic Barrier Termination
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
Suggested Mounting Pad Dimensions
T
Case C Vertical Mount
Cap Value
W
L
L
1
0
W
5
Pad Size
Normal
High Density
Normal
High Density
A Min.
.150
.130
.185
.165
B Min.
.050
.030
.050
.030
C Min.
.200
.200
.200
.200
D Min.
.300
.260
.300
.260
T
> .82 uF
105M
Horizontal
Electrode Orientation
B
M
≥
.82 uF
Vertical
Electrode Orientation
B
Horizontal Mount
A
C
All
values
Normal
High Density
.280
.260
.050
.030
.200
.200
.300
.260
D
A M E R I C A N
4
ATC North America
631-622-4700 • sales@atceramics.com
T E C H N I C A L
C E R A M I C S
ATC Europe
ATC Asia
+46 8 6800410 • sales@atceramics-europe.com +86-755-8366-4318 • sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
ATC 900 C Performance Data
ESR VS. CAPACITANCE
ATC SERIES 900, CASE C
0.1
100
Q VS. CAPACITANCE
ATC SERIES 900, CASE C
ESR (Ohms)
10
30 MHz
Q
30 MHz
1
(Typical)
0.01
0.01
0.1
1
0.1
0.01
0.1
(Typical)
1
CAPACITANCE(µF)
CAPACITANCE (µF)
SERIES RESONANCE VS. CAPACITANCE
ATC SERIES 900, CASE C
100
100
CURRENT RATING VS. CAPACITANCE
ATC SERIES 900, CASE C
The current rating is based on a 65°C mounting
surface and a device thermal resistance ( ) of
15°C/W. A power dissipation of 4 W will result
in a case temperature of 125°C.
RMS CURRENT (Amps)
30 MHz
10
10
(Typical)
1
0.01
0.1
1
1
0.01
Dotted line = Power dissipation limited
0.1
1
CAPACITANCE (µF)
CAPACITANCE (µF)
A M E R I C A N
5
ATC North America
631-622-4700 • sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410 • sales@atceramics-europe.com
C E R A M I C S
ATC Asia
+86-755-8366-4318 • sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
