DB-25SR0CD1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DB-25SR0CD1

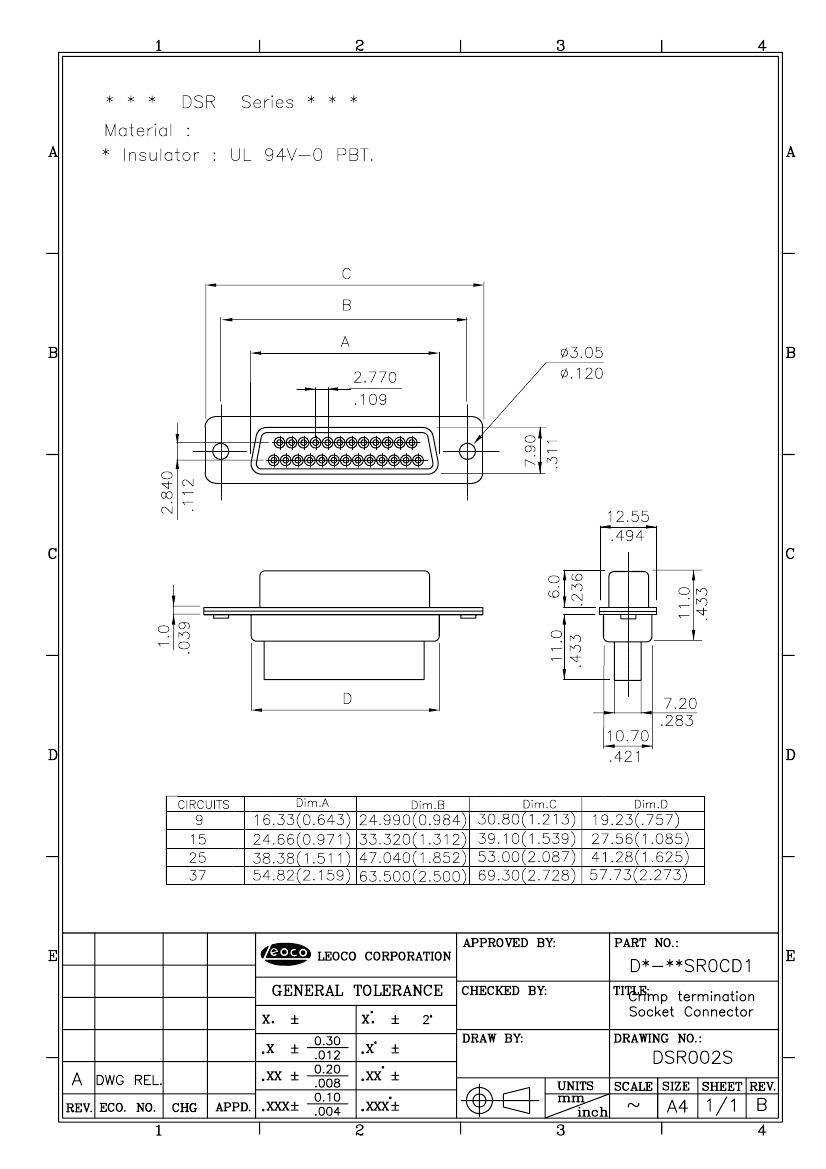

DB-25SR0CD1: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Plug; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

DB-25SR0CD1 Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Plug

DB-25SR0CD1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.494 inch
subject depth	0.433 inch
body length	2.087 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DSR
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	CRIMP
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

DB-25SR0CD1 Related Products

	DB-25SR0CD1	DC-37SR0CD1	DE-09SR0CD1	DA-15SR0CD1
Description	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.433 inch	0.433 inch	0.433 inch	0.433 inch
body length	2.087 inch	2.728 inch	1.213 inch	1.539 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DSR	DSR	DSR	DSR
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Rated current (signal)	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	25	37	9	15
Base Number Matches	1	1	1	-
