CD4045BPWRG4 datasheet, PDF - EEWORLD Datasheet

CD4045BPWRG4: DescriptionDivide By N Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 21-Bit, Up Direction, CMOS, PDSO16, PLASTIC, TSSOP-16; Categorylogic logic; File Size320KB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

CD4045BPWRG4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD4045BPWRG4	-	-	View	Buy Now

Divide By N Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 21-Bit, Up Direction, CMOS, PDSO16, PLASTIC, TSSOP-16

Parameter Name	Attribute value
Maker	Rochester Electronics

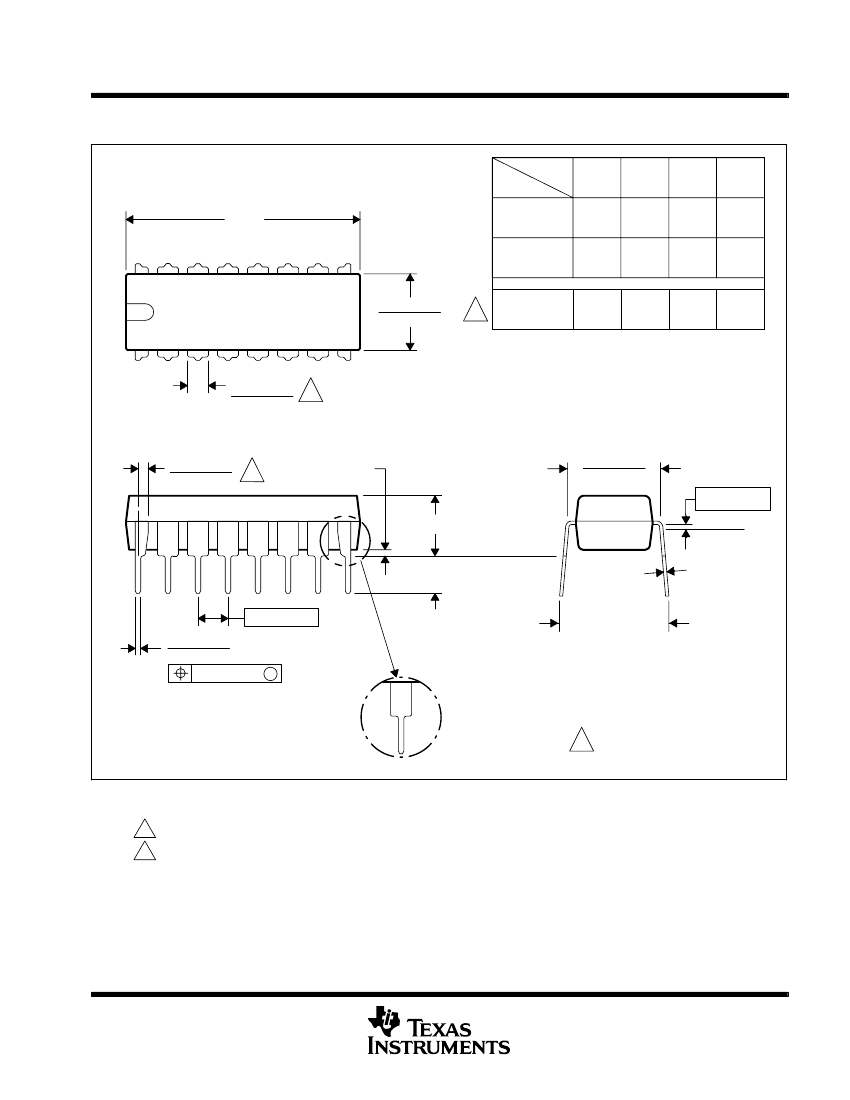

package instruction	TSSOP,
Reach Compliance Code	unknown
Counting direction	UP
series	4000/14000/40000
JESD-30 code	R-PDSO-G16
length	5 mm
Load/preset input	YES
Logic integrated circuit type	DIVIDE BY N COUNTER
Operating mode	SYNCHRONOUS
Number of digits	21
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5500 ns
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	4.4 mm
minfmax	45 MHz
Base Number Matches	1

Data sheet acquired from Harris Semiconductor

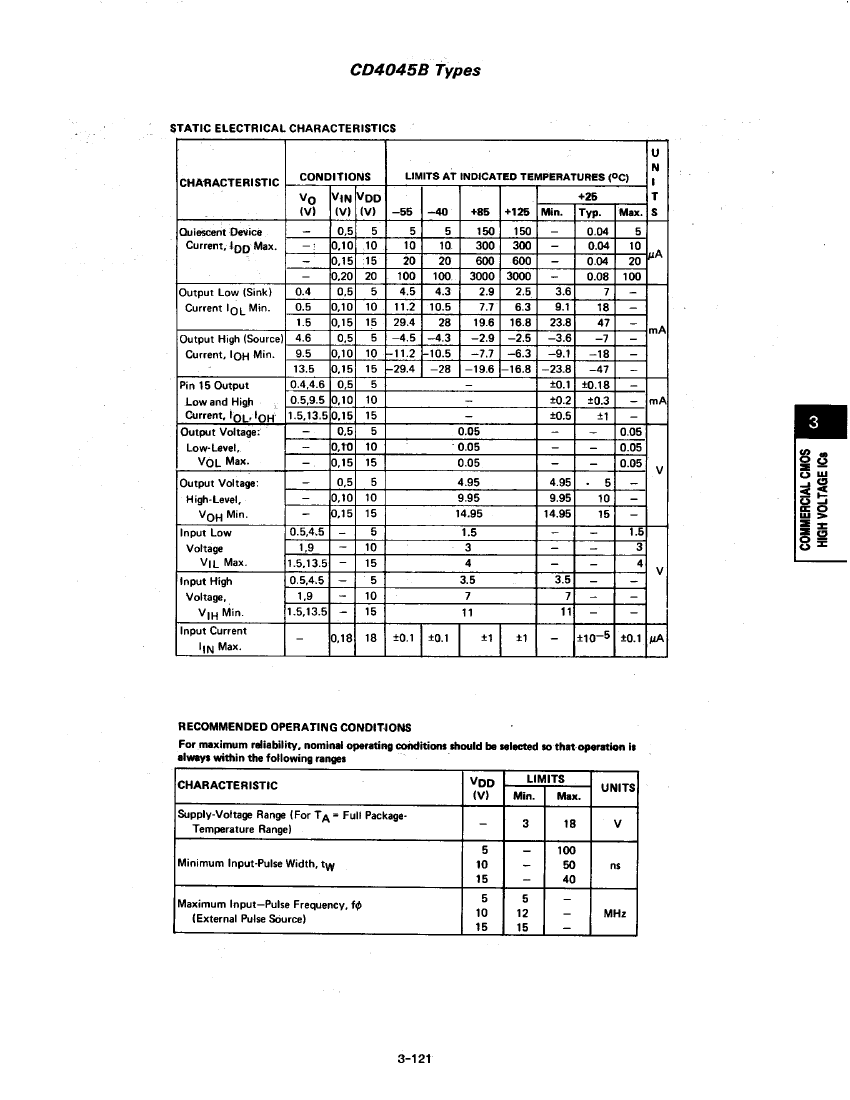

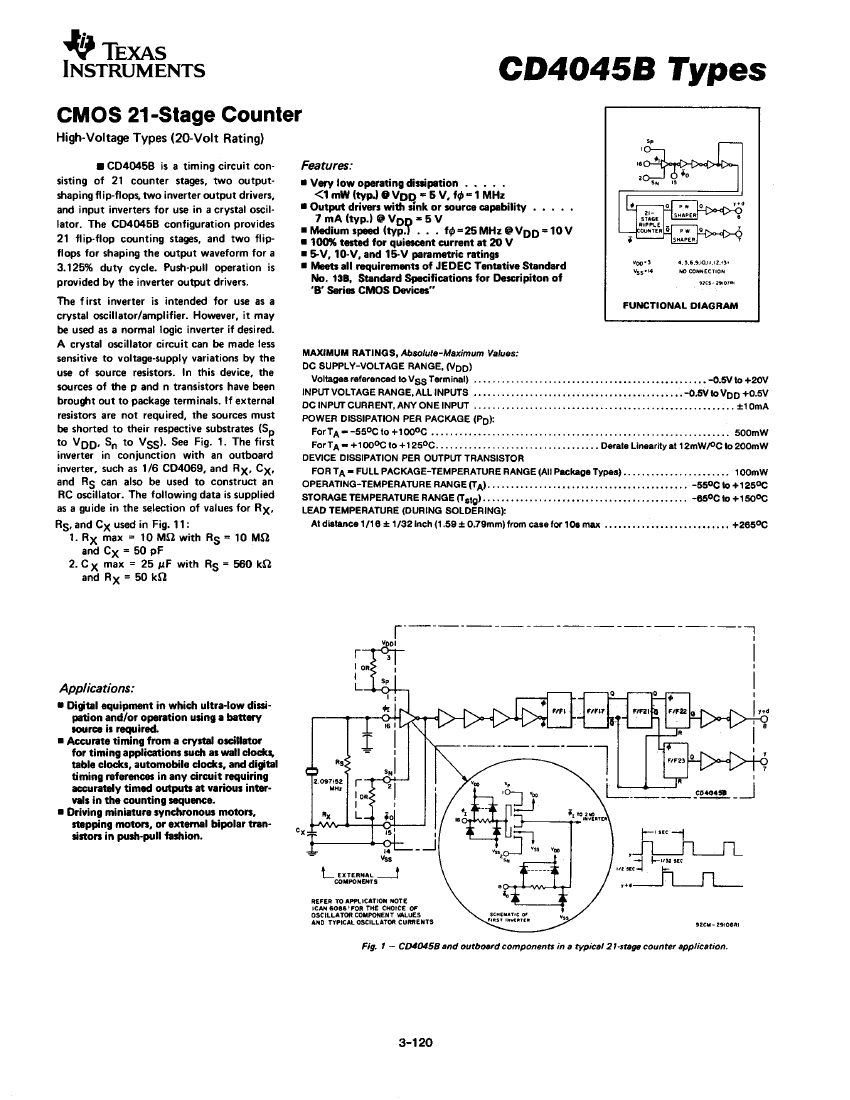

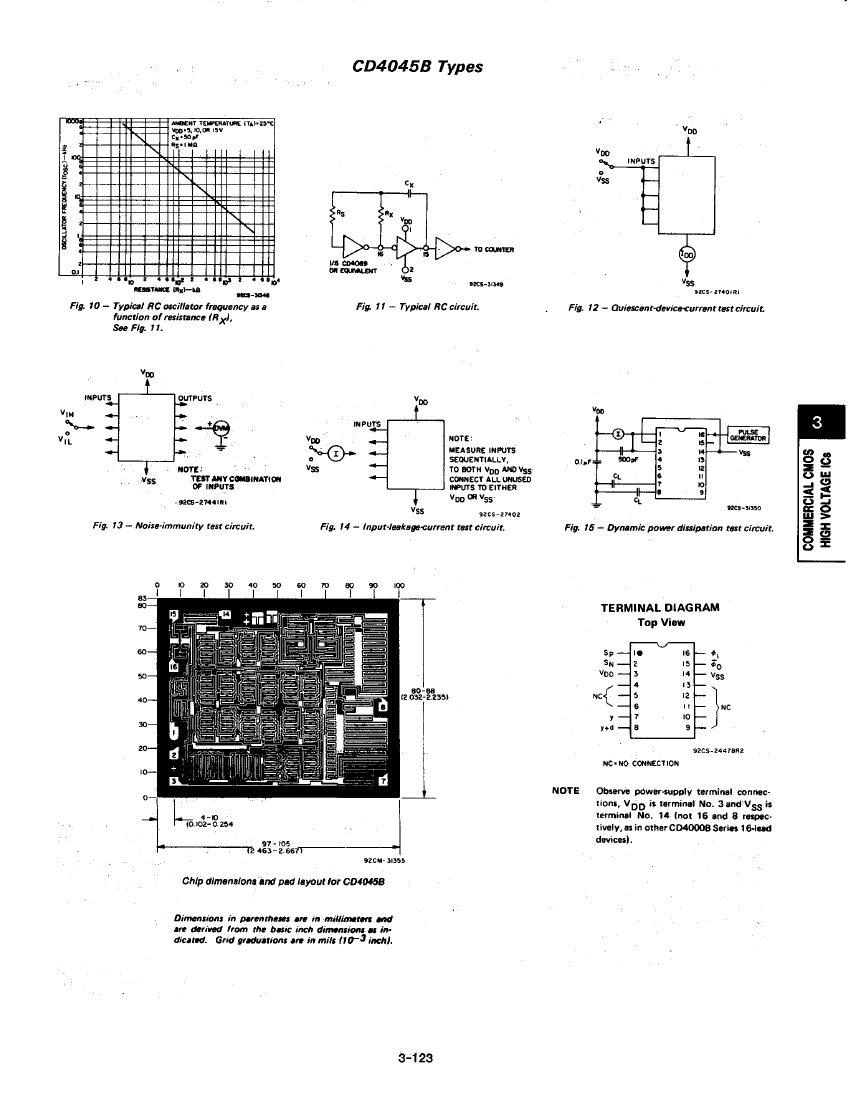

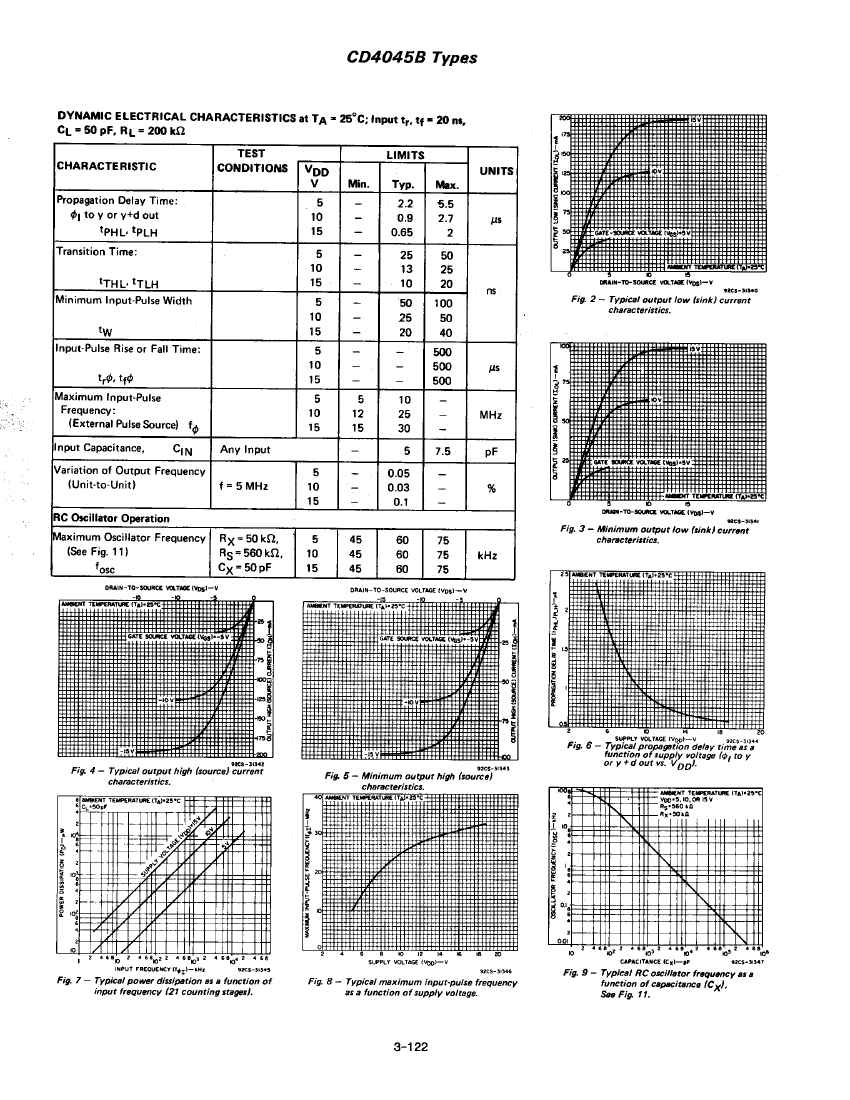

SCHS042C – Revised July 2003

The CD4045B types are supplied in 16-lead

dual-in-line plastic packages (E suffix), 16-lead

small-outline package (NSR suffix), and 16-lead

thin shrink small-outline packages (PW and

PWR suffixes).



2003, Texas Instruments Incorporated

	CD4045BPWRG4	CD4045BPWRE4
Description	Divide By N Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 21-Bit, Up Direction, CMOS, PDSO16, PLASTIC, TSSOP-16	Divide By N Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 21-Bit, Up Direction, CMOS, PDSO16, PLASTIC, TSSOP-16
Maker	Rochester Electronics	Rochester Electronics
package instruction	TSSOP,	TSSOP,
Reach Compliance Code	unknown	unknown
Counting direction	UP	UP
series	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	5 mm	5 mm
Load/preset input	YES	YES
Logic integrated circuit type	DIVIDE BY N COUNTER	DIVIDE BY N COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Number of digits	21	21
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5500 ns	5500 ns
Maximum seat height	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	18 V	18 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	4.4 mm	4.4 mm
minfmax	45 MHz	45 MHz
Base Number Matches	1	1
