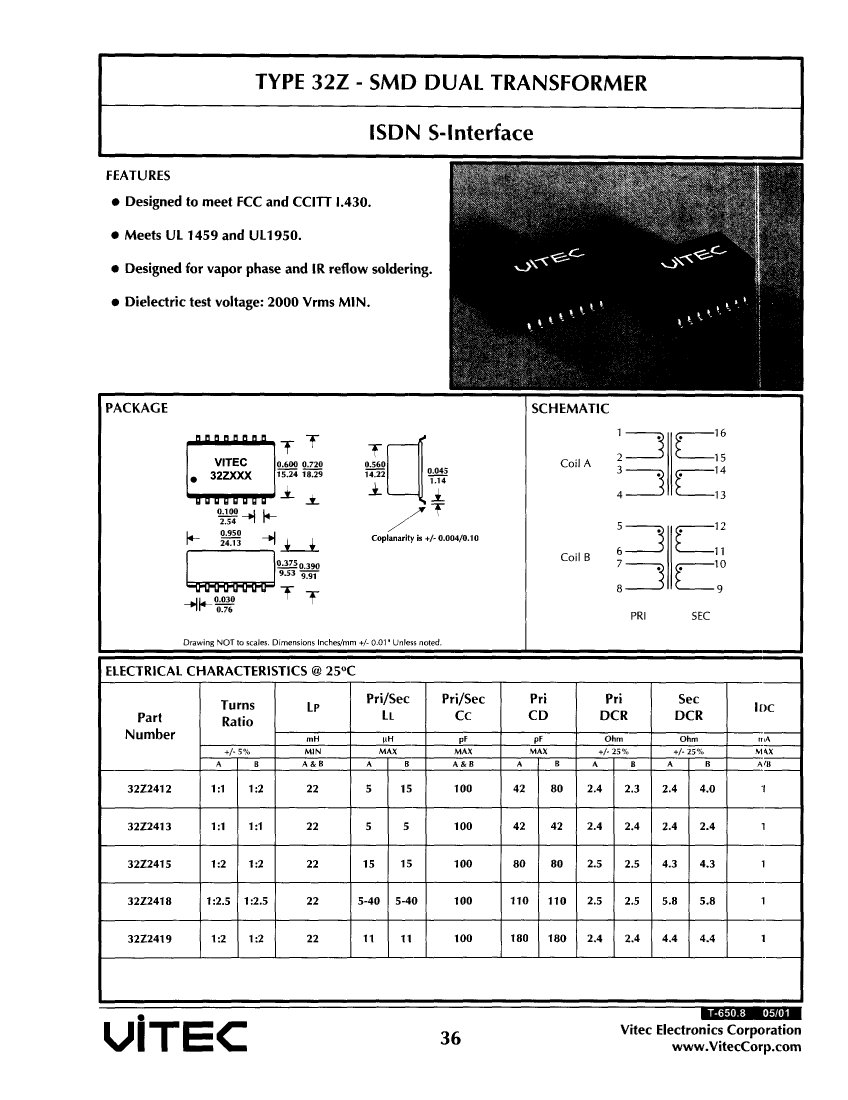

32Z2415 datasheet, PDF - EEWORLD Datasheet

32Z2415: DescriptionDatacom Transformer, ISDN Application(s), 1:2; CategoryPower management transformer; File Size98KB，1 Pages; ManufacturerVitec Electronics Corporation

Download Datasheet Parametric Compare View All

32Z2415 Overview

Datacom Transformer, ISDN Application(s), 1:2

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
application	ISDN
high	9.53 mm
Insulation voltage	2000 V
length	24.13 mm
Manufacturer's serial number	32Z
Installation features	SURFACE MOUNT
Number of functions	2
physical size	24.13mm X 15.24mm X 9.53mm
Primary inductance	22000 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:2
width	15.24 mm
Base Number Matches	1

	32Z2415	32Z2413	32Z2418	32Z2419
Description	Datacom Transformer, ISDN Application(s), 1:2	Datacom Transformer, ISDN Application(s), 1:1	Datacom Transformer, ISDN Application(s), 1:2.5	Datacom Transformer, ISDN Application(s), 1:2
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	ISDN	ISDN	ISDN	ISDN
high	9.53 mm	9.53 mm	9.53 mm	9.53 mm
Insulation voltage	2000 V	2000 V	2000 V	2000 V
length	24.13 mm	24.13 mm	24.13 mm	24.13 mm
Manufacturer's serial number	32Z	32Z	32Z	32Z
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2	2
physical size	24.13mm X 15.24mm X 9.53mm	24.13mm X 15.24mm X 9.53mm	24.13mm X 15.24mm X 9.53mm	24.13mm X 15.24mm X 9.53mm
Primary inductance	22000 µH	22000 µH	22000 µH	22000 µH
surface mount	YES	YES	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:2	1:1	1:2.5	1:2
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1	1
