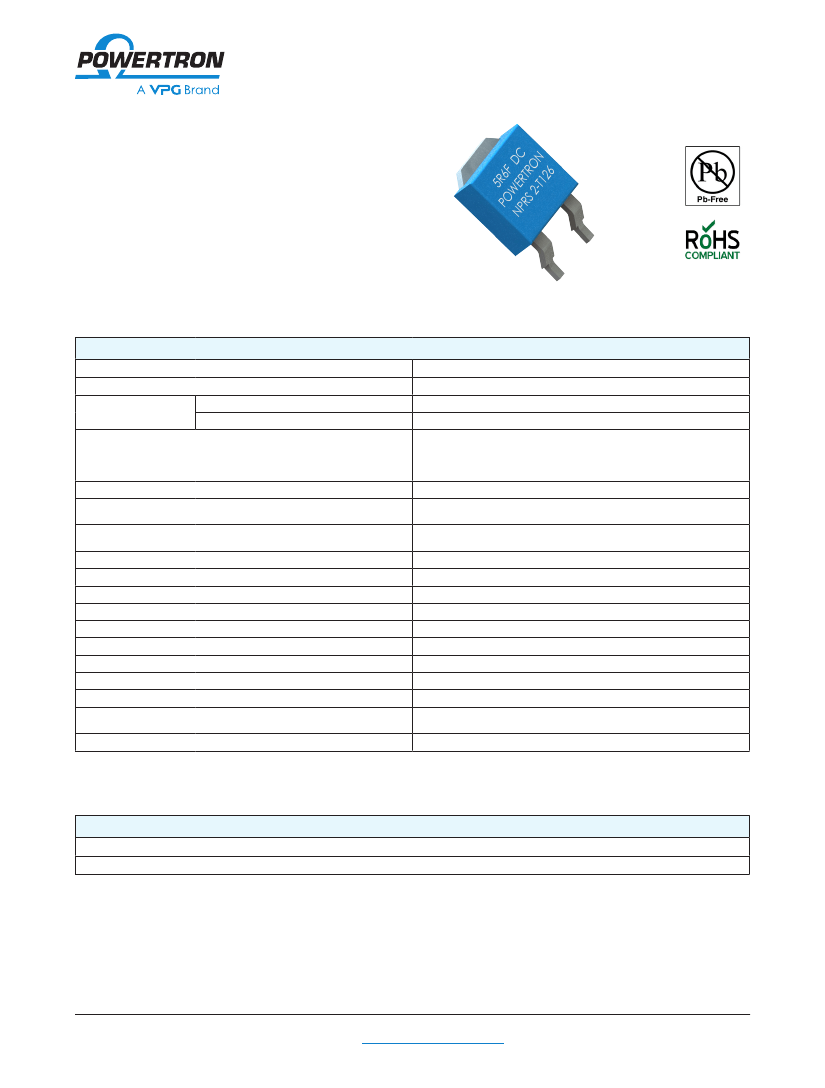

FPRS 2-T220
FEATURES
•
•
•
•
•
•
Resistances from 0.002Ohm to 10Ohms
Power Rating to 15Watt
Resistance Tolerances to ±0.5%
TCR to ±50ppm/K
Load Stability to 0.1%
SMD D2Pak
TABLE 1—SPECIFICATIONS
TYPE
Resistance Range
Power Rating
Free air 70°C
With heatsink
1.5W
15W
2% / 5%
1% / 2% / 5%
0.5% / 1% / 2% / 5%
4.8 K/W
0.1% / 0.2% / 0.5%
(depends on stress)
±50ppm/K (20 to 60°C)
other specification upon request
300 VDC
50A
< 0.1µV/K
-40 to 130°C
CuNiMn-Foil
Anodized aluminium
Copper / Nickel-plated
PPS
Cu / tinned
During surface mount soldering the soldering profile must secure
the metal tab of this resistor is not exceeding 220°C
2 (standard contact S)
FPRS 2-T220
0.002 to 10 Ohms
Tolerances
from 0.002 Ohms
from 0.01 Ohms
from 0.1 Ohms
Thermal Resistance
Stability (1000h)
Temperature Coefficient
Voltage Proof
Maximum Current
Thermal EMF
Operating Temperature Range
Resistor Material
Substrate
Backplate
Housing
Connector Material
Soldering Profile
Terminals
ORDERING INFORMATION
Part Number - Resistance - Contact - Tolerance
FPRS 2-T220 0R010 S 0.5%
Document No.: 64269
Revision: 15-06-2016
For technical questions,
contact
powertron@vpgsensors.com
www.powertron.de
1
FPRS 2-T220

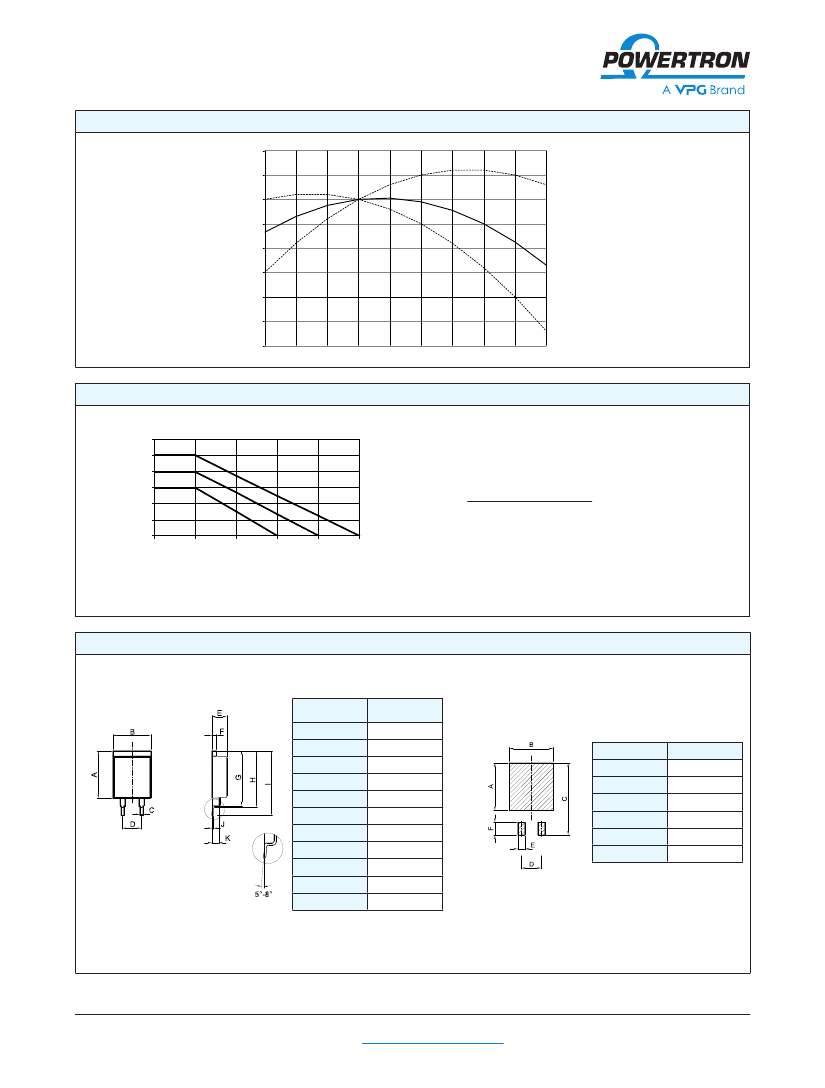

FIGURE 1—TEMPERATURE COEFFICIENT
4000
2000
Limit 2
0
-2000
∆R/R
(ppm)
-4000
Nominal
∆R/R
-6000
-8000
-10000
Limit 1
-12000
-40
-20
0
20
40
60
80
100
120
140
Temperature (°C)
FIGURE 2—DERATING
Power Rating Notes -
120
Power ( % from
nominal power)
100
80
60
40
20
0
25
0.5%
0.2%
0.1%
The FPRS Series Resistors must be attached to a suitable heat-
sink. The maximum internal resistor temperature is 130°C.
To specify an appropriate heatsink use the following formula :
R
qH
= T
MAX
- ( P x R
qR
) - T
A
P
50
85
100
115
130
Where:
Temperature of the backplate (°C)
R
qH
= Thermal Resistance of Heatsink ( K/W )
R
qR
= Thermal Resistance of Resistor ( K/W )
T
MAX
= Maximum Temperature of Resistor
T
A
= Ambient Temperature of Heatsink ( °C )
P = Power Through Resistor ( W )
FIGURE 3—DIMENSIONS
in mm (inches)
Dimension
A
±0.2 (±0.008)
B
±0.2 (±0.008)
C
±0.1 (±0.004)
D
±0.1 (±0.004)
E
±0.1 (±0.004)
F
±0.1 (±0.004)
G
±0.2 (±0.008)
H
±0.2 (±0.008)
I
±0.2 (±0.008)
J
±0.1 (±0.004)
K
±0.1 (±0.004)
12.70 (0.50)
10.16 (0.40)
0.76 (0.03)
5.08 (0.20)
4.00 (0.16)
1.20 (0.05)
14.60 (0.57)
15.00 (0.59)
17.33 (0.68)
0.40 (0.02)
1.85 (0.07)
Dimension
A
B
C
D
E
F
12.10 (0.476)
11.16 (0.439)
18.33 (0.722)
5.08 (0.200)
1.76 (0.069)
3.20 (0.126)
