L0805H7R15FN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> L0805H7R15FN

L0805H7R15FN: DescriptionRESISTOR, THIN FILM, 0.2 W, 1 %, 50 ppm, 7.15 ohm, SURFACE MOUNT, 0805, CHIP, GREEN; CategoryPassive components The resistor; File Size139KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

L0805H7R15FN Overview

RESISTOR, THIN FILM, 0.2 W, 1 %, 50 ppm, 7.15 ohm, SURFACE MOUNT, 0805, CHIP, GREEN

L0805H7R15FN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1749966961
package instruction	SMT, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.85
structure	Chip
JESD-609 code	e2
Manufacturer's serial number	L
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	1.91 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.27 mm
method of packing	WAFFLE PACK
Rated power dissipation(P)	0.2 W
Rated temperature	70 °C
resistance	7.15 Ω
Resistor type	FIXED RESISTOR
series	L
size code	0805
surface mount	YES
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

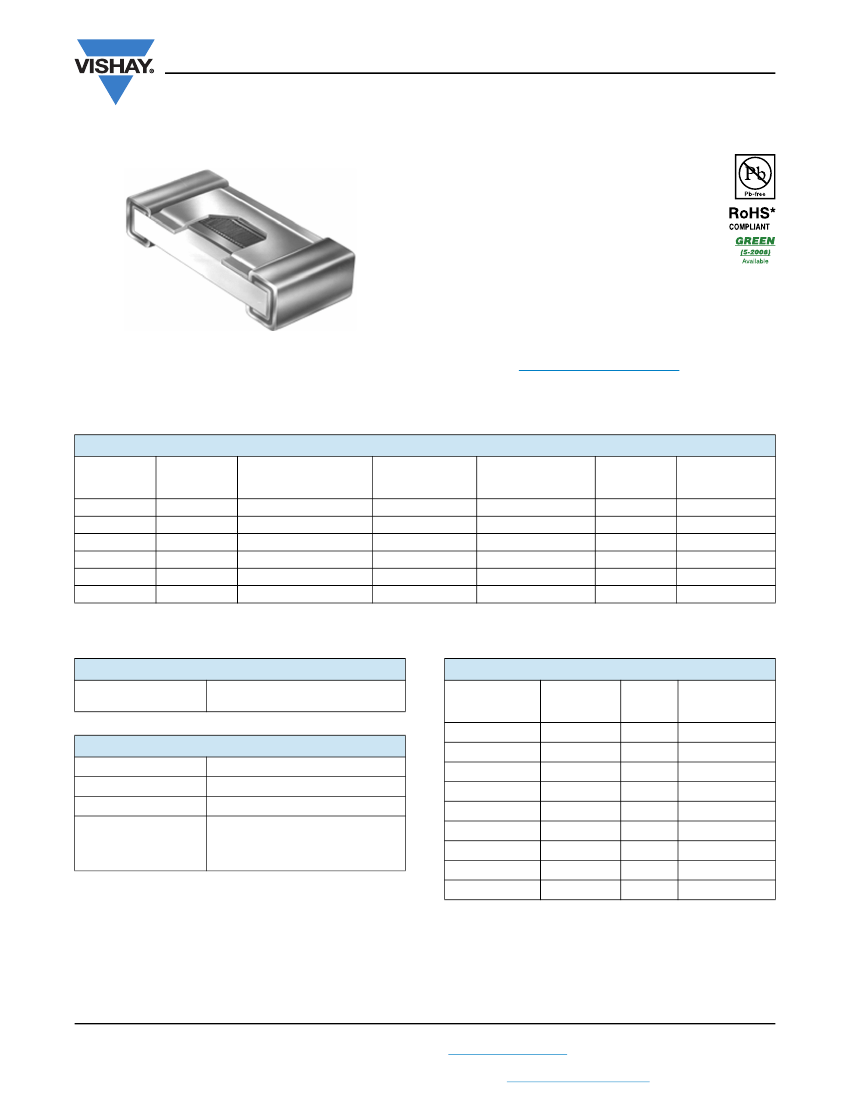

www.vishay.com

Vishay Sfernice

SMD Wraparound Ultra Low Value Thin Film Resistors

FEATURES

• NiCr + Ta

resistive layer

• Pre-soldered or gold terminations

• No inductance for high frequency applications

• Alumina substrates for high power handling

capability

• Resistance range: 0.1



to 9.99



• TCR down to 50 ppm/°C

• Power rating: Up to 2 W at + 70 °C

• Withstand AEC-Q200 humidity test

With extremely low resistance and high power capabilities,

these ultra low value resistors are available with solderable

or weldable terminations.

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

Note

Lead (Pb)-containing terminations are not RoHS-compliant.

Exemptions may apply.

STANDARD ELECTRICAL SPECIFICATIONS

MODEL

L0603

L0805

L1206

L1505

L2010

L2512

(1)

SIZE

0603

0805

1206

1505

2010

2512

RESISTANCE RANGE



0.1 to 9.99

RATED POWER

70 °C

0.125

0.2

0.33

0.5

1.0

2.0

(1)

LIMITING ELEMENT

VOLTAGE

TOLERANCE

±%

1, 3, 5

TEMPERATURE

COEFFICIENT

± ppm/°C

50, 100, 200, 300

Note

With special assembly care

CLIMATIC SPECIFICATIONS

Operating temperature

range

- 55 °C; + 155 °C

TOLERANCE AND TCR VS. OHMIC VALUE

OHMIC VALUE

RANGE in



0R1 < 0R25

TIGHTEST

BEST

TOLERANCE

TCR

(%)

(ppm/°C)

300

200

100

300

200

100

TERMINATIONS

N or B

MECHANICAL SPECIFICATIONS

Substrate

Technology

Coating

Terminations

Alumina

NiCr + Ta

Silicone

Solderable

B type:

SnPb over nickel barrier

N type:

SnAg over nickel barrier

G type:

Gold over nickel barrier

0R25 < 0R5

0R5 < 2R5

2R5 < 9R99

0R1 < 0R25

0R25 < 0R5

0R < 1R

1R < 2R5

2R5 to 9R99

Note

• Refer to Application Note “Guidelines for Vishay Sfernice

Resistive and Inductive Components” (document number:

52029) for recommended reflow profile. Profile #3 applies.

Revision: 05-Jun-12

Document Number: 53018

For technical questions, contact:

sferthinfilm@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000
