M55342L12B336YTSVS: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.1W, 336000ohm, 50V, 0.5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP; CategoryPassive components The resistor; File Size111KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

M55342L12B336YTSVS Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 336000ohm, 50V, 0.5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP

M55342L12B336YTSVS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	145093954467
package instruction	SMT, 0603
Reach Compliance Code	unknown
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	7.8
Other features	ANTI-SULFUR
structure	Rectangular
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	0.46 mm
Package length	1.6 mm
Package form	SMT
Package width	0.81 mm
method of packing	TR, 7 Inch
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
Guideline	MIL-PRF-55342
resistance	336000 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	50 V

M55342L12B336YTSVS Preview

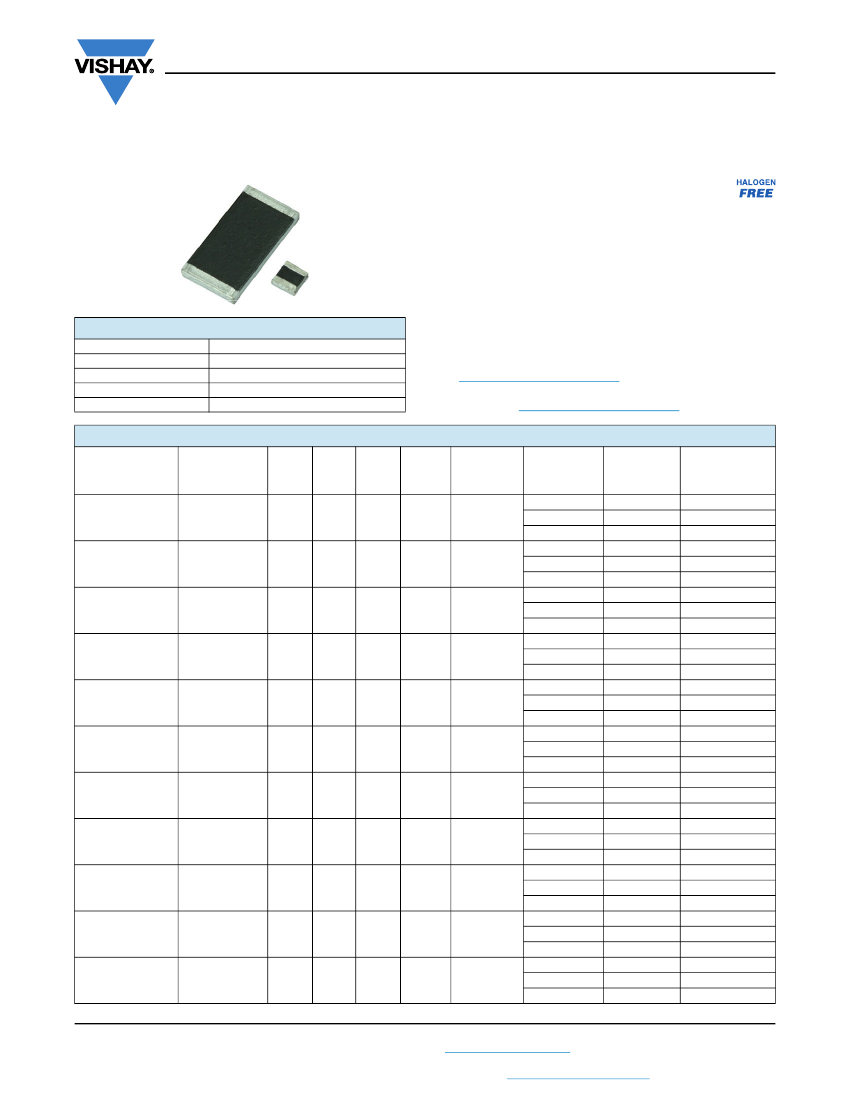

RCWPM (Military M/D55342)

www.vishay.com

Vishay Dale

Thick Film Chip Resistors, Military / Established Reliability

MIL-PRF-55342 Qualified, Type RM

FEATURES

• Fully conforms to the requirements of

MIL-PRF-55342

• Established reliability - verified failure rate; M, P, R, U, S,

V, and T levels

• Construction is sulfur impervious against a high sulfur

environment (ASTM B 809-95 test method)

• 100 % group A screening per MIL-PRF-55342

• Termination style B - tin / lead wraparound over nickel

barrier

• Operating temperature range is -65 °C to +150 °C

• For MIL-PRF-32159 zero ohm jumpers, see Vishay Dale’s

RCWPM

Jumper

(Military

M32159)

datasheet

(www.vishay.com/doc?31028)

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

MATERIAL SPECIFICATIONS

Resistive element

Encapsulation

Substrate

Termination

Solder finish

Ruthenium oxide

Epoxy

96 % alumina

Solder-coated nickel barrier

Tin / lead solder alloy

STANDARD ELECTRICAL SPECIFICATIONS

VISHAY DALE

MODEL

RCWPM-0502,

RCWPM-0502-98

RCWPM-550,

RCWPM-550-98

RCWPM-5100,

RCWPM-5100-98

RCWPM-5150,

RCWPM-5150-98

RCWPM-7225,

RCWPM-7225-98

RCWPM-575,

RCWPM-575-98

RCWPM-1206,

RCWPM-1206-98

RCWPM-2010,

RCWPM-2010-98

RCWPM-2512,

RCWPM-2512-98

RCWPM-1100,

RCWPM-1100-98

RCWPM-0402,

RCWPM-0402-98

MIL-PRF-55342 MIL

SPEC. TERM.

STYLE

SHEET

RM0502

CASE

SIZE

POWER

MAX.

RATING WORKING RESISTANCE TOLERANCE TEMPERATURE

COEFFICIENT

(2)

RANGE

70 °C

VOLTAGE

(1)

±%



± ppm/°C

1 to 9.1

2, 5, 10

200, 300

0.05

10 to 22M

1, 2, 5, 10

100, 200, 300

10 to 10M

0.5

100, 200, 300

1 to 9.1

2, 5, 10

200, 300

0.125

10 to 22M

1, 2, 5, 10

100, 200, 300

10 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.20

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.15

125

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.225

175

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.15

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.25

100

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.80

150

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

1.0

200

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.50

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 9.1

2, 5, 10

200, 300

0.05

10 to 22M

1, 2, 5, 10

100, 200, 300

10 to 10M

0.5

100, 200, 300

0502

RM0505

0505

RM1005

1005

RM1505

1505

RM2208

2208

RM0705

0705

(3)

RM1206

1206

RM2010

2010

RM2512

2512

RM1010

1010

RM0402

0402

Revision: 10-Mar-17

Document Number: 31010

For technical questions, contact:

ff2aresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

RCWPM (Military M/D55342)

www.vishay.com

Vishay Dale

POWER

MAX.

TEMPERATURE

RESISTANCE

RATING WORKING

TOLERANCE

COEFFICIENT

(2)

RANGE

(1)

70 °C

VOLTAGE

±%



± ppm/°C

1 to 5.1

2, 5, 10

200, 300

0.10

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 9.1

2, 5, 10

200, 300

0.04

10 to 22M

1, 2, 5, 10

100, 200, 300

10 to 10M

0.5

100, 200, 300

STANDARD ELECTRICAL SPECIFICATIONS

VISHAY DALE

MODEL

RCWPM-0603,

RCWPM-0603-98

RCWPM-0302,

RCWPM-0302-98

MIL

MIL-PRF-55342

SPEC. TERM.

STYLE

SHEET

RM0603

CASE

SIZE

0603

RM0302

0302

Notes

• DSCC has created a series of drawings to support the need for 0201-sized product. Vishay Dale is listed as a resource on this drawing as

follows:

POWER RATING

MAX. WORKING

DSCC DRAWING VISHAY DALE

RES. RANGE RES. TOL. TEMP. COEF.

TERM.

70 °C

VOLTAGE

(1)

NUMBER

MODEL



±%

± ppm/°C

10 to 46.4

200

07009

RCWP-0201

0.05

1, 5

47 to 1M

100

This drawing can be viewed at:

www.landandmaritime.dla.mil/Programs/MilSpec/ListDwgs.aspx?DocTYPE=DSCCdwg

(1)

Continuous working voltage shall be

or maximum working voltage, whichever is less

(2)

Characteristics: K = ± 100 ppm/°C; L = ± 200 ppm/°C; M = ± 300 ppm/°C

(3)

MIL case size 0705 and EIA case size 0805 are dimensionally the same

GLOBAL PART NUMBER INFORMATION

New Global Part Numbering: M55342M02B10E0RWB (preferred part number format)

MIL

STYLE

D55342

applies to

Style 07

(RM1206)

only.

M55342

applies to

all other

styles.

FAILURE

RATE

SPECIAL

CHARACTERISTICS

= 100 ppm

= 200 ppm

= 300 ppm

SPEC.

SHEET

TERMINATION

STYLE

VALUE AND

TOLERANCE

PACKAGING

(1)

(see Standard

= pre-tinned (see Tolerance

Electrical

nickel barrier, and Multipliers

Specifications wraparound

table)

= non-ER

Blank =

= tin / lead,

= 1.0 %/1000 h

T/R (full)

standard

= 0.1 %/1000 h

(dash number)

= tin / lead,

= 0.01 %/1000 h

(up to 1 digits)

T/R (full), w/ESD

= 0.01 %/1000 h

(2)

= tin / lead, T/R

= 0.5 %

tolerance

(3)

= 0.001 %/1000 h single lot date code

(2)

= 0.001 %/1000 h

= tin / lead,

T/R (1000 pieces)

space level

= space level

= tin / lead, T/R w/option 1 part

(1000 pieces), w/ESD marking (-97)

(4)

= tin / lead,

waffle tray

space level (-98)

= tin / lead,

option 1

waffle tray,

part marking

w/ESD

(-20)

(4)

= tin / lead,

waffle tray,

single lot date code oiptions 2 and 3

part marking

= tin / lead,

(-30)

(4)

T/R (500 pieces)

= tin / lead, T/R

(500 pieces), w/ESD

= tin / lead,

T/R (300 pieces)

= tin / lead, T/R

(300 pieces), w/ESD

10E0

VALUE AND

TOLERANCE

FAILURE

RATE

PACKAGING

CODE

Historical Part Numbering: M55342M02B10E0R (will continue to be accepted)

M55342

MIL

STYLE

CHARACTERISTICS

SPEC. SHEET

TERMINATION

STYLE

Notes

• For additional information on packaging, refer to the Surface Mount Resistor Packaging document (www.vishay.com/doc?31543)

(1)

Products with space level failure rates are only offered in packaging codes with ESD overpack and labeling. For all other failure rates, the

ESD pack codes are an optional type of packaging

(2)

Failure rates U and V require group A and B inspection ran on each production lot

(3)

Add a “D” after the packaging code at the end of the global part number to specify Vishay Dale Thick Film product with a tolerance of 0.5 %

(4)

MIL spec option 1, 2, and 3 part marking is not offered for the slash sheet 01, 02, 11, and 13 sizes

Revision: 10-Mar-17

Document Number: 31010

For technical questions, contact:

ff2aresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

RCWPM (Military M/D55342)

www.vishay.com

Vishay Dale

RESISTANCE TOLERANCE AND MULTIPLIERS

TOLERANCE

MULTIPLIER

± 0.5 %

Examples:



38W8 = 38.8



± 0.5 %

10Y0 = 10 k ± 0.5 %

988W = 988



± 0.5 %

2Z13 = 2.13 M ± 0.5 %

±1%

±2%

±5%

± 10 %

1000

1 000 000

15J0 = 15



± 5 %

10K0 = 10 k ± 5 %

560K = 560 k ± 5 %

8L20 = 8.2 M ± 5 %

10M0 = 10



± 10 %

10N0 = 10 k ± 10 %

2P70 = 2.7 M ± 10 %

8P20 = 8.2 M ± 10 %

VALUE

RANGE ()

1 to 9xx

1K to 9xxK

1M to 22M

11D3 = 11.3 ± 1 %

10E0 = 10 k ± 1 %

332D = 332



± 1 %

2F21 = 2.21 M ± 1 %

51G0 = 51 ± 2 %

10H0 = 10 k ± 2 %

33H0 = 33 k ± 2 %

22T0 = 22 M ± 2 %

DIMENSIONS

in inches (millimeters)

VISHAY DALE

MODEL

RCWPM-0502

RCWPM-550

RCWPM-5100

RCWPM-5150

RCWPM-7225

RCWPM-575

RCWPM-1206

RCWPM-2010

RCWPM-2512

RCWPM-1100

RCWPM-0402

RCWPM-0603

RCWPM-0302

RCWP-0201

MIL-PRF-55342

STYLE

RM0502

RM0505

RM1005

RM1505

RM2208

RM0705

RM1206

RM2010

RM2512

RM1010

RM0402

RM0603

RM0302

MIL

SPEC.

SHEET

(LENGTH)

0.055 ± 0.005

(1.40 ± 0.13)

0.055 ± 0.005

(1.40 ± 0.13)

0.105 ± 0.005

(2.67 ± 0.13)

0.155 ± 0.005

(3.94 ± 0.13)

0.230 ± 0.005

(5.84 ± 0.13)

0.080 ± 0.005

(2.03 ± 0.13)

0.125 ± 0.005

(3.18 ± 0.13)

0.197 ± 0.006

(5.00 ± 0.15)

0.250 ± 0.005

(6.35 ± 0.13)

0.105 ± 0.005

(2.67 ± 0.13)

0.039 ± 0.003

(0.99 ± 0.08)

0.063 ± 0.005

(1.60 ± 0.13)

0.034 ± 0.004

(0.86 ± 0.10)

0.024 ± 0.002

(0.61 ± 0.05)

(WIDTH)

0.023 ± 0.003

(0.58 ± 0.08)

0.050 ± 0.005

(1.27 ± 0.13)

0.050 ± 0.005

(1.27 ± 0.13)

0.050 ± 0.005

(1.27 ± 0.13)

0.075 ± 0.005

(1.91 ± 0.13)

0.050 ± 0.005

(1.27 ± 0.13)

0.063 ± 0.005

(1.60 ± 0.13)

0.098 ± 0.005

(2.49 ± 0.13)

0.124 ± 0.005

(3.15 ± 0.13)

0.100 ± 0.005

(2.54 ± 0.13)

0.020 ± 0.003

(0.51 ± 0.08)

0.032 ± 0.005

(0.81 ± 0.13)

0.021 ± 0.003

(0.53 ± 0.08)

0.012 ± 0.002

(0.30 ± 0.05)

(HEIGHT)

0.015 ± 0.003

(0.38 ± 0.08)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.013 ± 0.003

(0.33 ± 0.08)

0.018 ± 0.005

(0.46 ± 0.13)

0.013 ± 0.003

(0.33 ± 0.08)

0.009 ± 0.002

(0.23 ± 0.05)

(TOP TERM)

0.010 ± 0.005

(0.25 ± 0.13)

0.010 ± 0.005

(0.25 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.016 ± 0.008

(0.41 ± 0.20)

0.015 ± 0.005

(0.38 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.010 ± 0.005

(0.25 ± 0.13)

0.012 ± 0.005

(0.30 ± 0.13)

0.007 ± 0.005

(0.18 ± 0.13)

0.006 ± 0.003

(0.15 ± 0.08)

(BOTTOM TERM)

0.015 ± 0.005

(0.38 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.020 ± 0.005

(0.51 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.010 ± 0.005

(0.25 ± 0.13)

0.015 ± 0.005

(0.38 ± 0.13)

0.008 ± 0.005

(0.20 ± 0.13)

0.006 + 0.002 - 0.004

(0.15 + 0.05 - 0.10)

Revision: 10-Mar-17

Document Number: 31010

For technical questions, contact:

ff2aresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

RCWPM (Military M/D55342)

www.vishay.com

Vishay Dale

DERATING CURVE

Rated Power in %

120

100

- 55 - 25

75 100 125 150 175

70 Ambient Temperature in °C

CAGE CODE: 91637 and 2799A (formerly SH903)

Revision: 10-Mar-17

Document Number: 31010

For technical questions, contact:

ff2aresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 13-Jun-16

Document Number: 91000

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Principle circuit of current switching class D amplifier

Interface circuit for automatic counting using electronic counter d

Water-filled meat detector circuit

PHS-4 computer type precision acidity meter circuit

Squirrel cage motor Y-replacement starting control

Automatic night lighting circuit using bidirectional thyristor

[Urgent recruitment] Shanghai AGV company urgently recruits a large number of implementation engineers: [Urgent recruitment] Shanghai AGV company is urgently recruiting a large number of implementation engineers. Monthly salary: 4,000-7,000 yuan. Job responsibilities: (1) AGV on-site construction; (2) W...; 西瓜籽 Recruitment

Newbie Question: About Pocket PC Program Signature: I wrote a simple MFC program using Window Mobile 5.0, and added a signature in the configuration properties. I released it as an .exe file, which can be run on the simulator, but when I synchronize it...; wanglicha Embedded System

ESP32-S2-Kaluga-1 Espressif's new multimedia development board: Resource Download: Software Demo Code: https://github.com/espressif/esp-dev-kits/tree/master/esp32-s2-kaluga-1 User Guide: https://docs.espressif.com/projects/esp-idf/en/latest/esp32s2/hw-reference/es...; okhxyyo Domestic Chip Exchange

Are the angular velocity and acceleration read by MPU6050 using DMP raw data without any processing?: When using dmp, does it use Kalman filtering when calculating the angle quaternion, but does it not do any filtering for velocity and acceleration?...; 赵怡彬 stm32/stm8

Data communication between two GPRS modules?: 1. One module is connected to the single-chip microcomputer system for data collection, and the other module is connected to the computer data processing center. Can data be transmitted directly throu...; benf Embedded System

If you want to learn ARM, should you start with the C51 microcontroller?: Is ARM difficult? Should I start with microcontrollers? And what is the future of ARM?...; xchromosome ARM Technology

Shortcut: 00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components
