MMA0204-150.1%VG03B1107R

Description
Fixed Resistor, Thin Film, 0.25W, 107ohm, 200V, 0.1% +/-Tol, -15,15ppm/Cel,
CategoryPassive components    The resistor
File Size177KB，8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

MMA0204-150.1%VG03B1107R Overview

Fixed Resistor, Thin Film, 0.25W, 107ohm, 200V, 0.1% +/-Tol, -15,15ppm/Cel,

MMA0204-150.1%VG03B1107R Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid902167201
Reach Compliance Codecompliant
Country Of OriginGermany
ECCN codeEAR99
YTEOL7.85
structureCylindrical
JESD-609 codee3
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package diameter1.4 mm
Package length3.6 mm
Package shapeCYLINDRICAL PACKAGE
Package formMELF
method of packingTR, Blister, 7 Inch
Rated power dissipation(P)0.25 W
resistance107 Ω
Resistor typeFIXED RESISTOR
seriesMMA 0204 VG03
technologyTHIN FILM
Temperature Coefficient15 ppm/°C
Terminal surfaceMATTE TIN OVER NICKEL
Tolerance0.1%
Operating Voltage200 V

MMA0204-150.1%VG03B1107R Preview

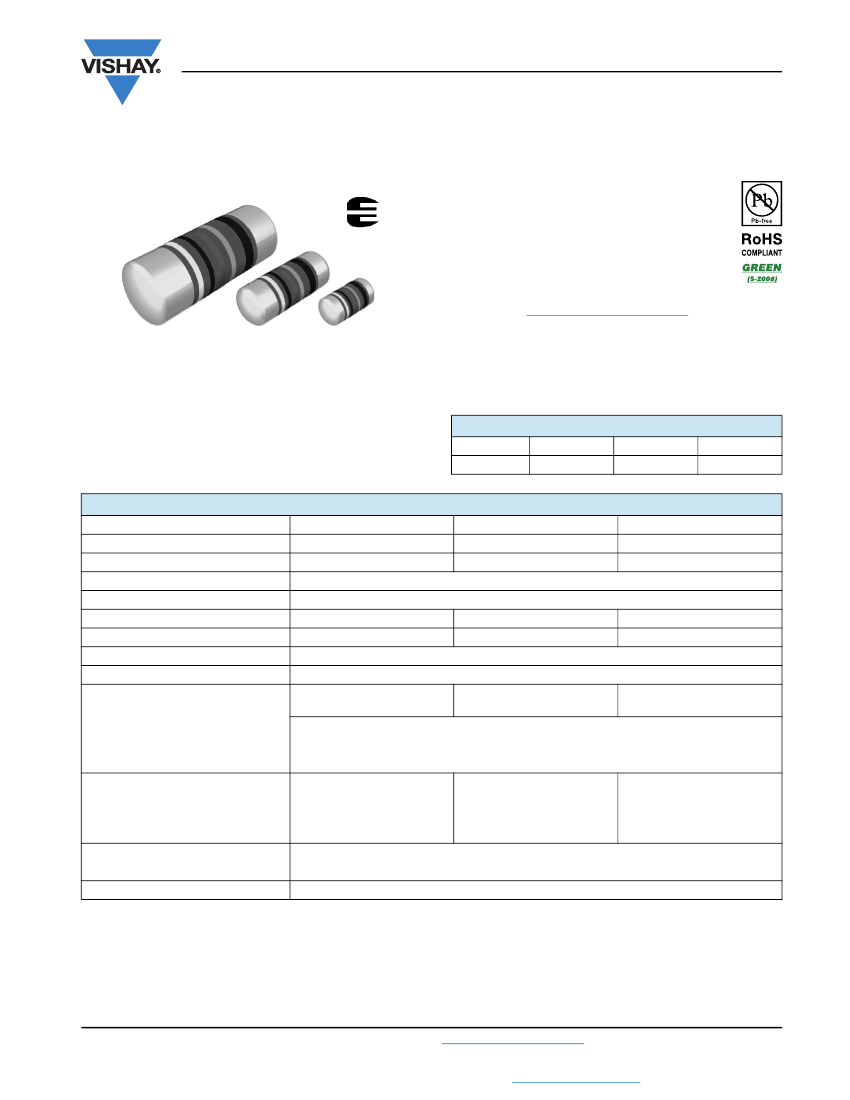

MMU 0102 VG03, MMA 0204 VG03, MMB 0207 VG03
Vishay Beyschlag
MELF Resistors with Established Reliability
FEATURES
Approved to EN 140401-803, version E
Established reliability, failure rate level E6
Advanced thin film technology
Pure matte Sn termination on Ni barrier layer
Single Lot Date Code
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
MMU 0102 VG03, MMA 0204 VG03 and MMB 0207 VG03
thin film MELF resistors with established reliability are the
perfect choice for all high-reliability applications typically
found in military, aircraft and spacecraft electronics. These
versions supplement the families of professional and
precision MELF resistors MMU 0102, MMA 0204 and
MMB 0207.
Medical
Military
Aerospace
METRIC SIZE
DIN
EN/CECC
0102
RC2211M
0204
RC3715M
0207
RC6123M
TECHNICAL SPECIFICATIONS
DESCRIPTION
EN/CECC style (size)
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70
Operating voltage,
U
max.
AC/DC
Permissible film temperature,
F max.
Operating temperature range
Max. resistance change at
P
70
for resistance range, |R/R| after:
1000 h
8000 h
225 000 h
Permissible voltage against ambient
(insulation):
1 min;
U
ins
Continuous
Assessed failure rate level
Quality factor,
Q
Failure rate: FIT
observed
200 V
75 V
300 V
75 V
E6 = 10
-6
/h
0.3
< 0.1 x 10
-9
/h
500 V
75 V
100
to 221 k
0.2 W
150 V
MMU 0102 VG03
RC2211M
100
to 2.21 M; 0
MMA 0204 VG03
RC3715M
1
to 5.11 M; 0
± 1 %; ± 0.1 %
± 50 ppm/K; ± 15 ppm/K
0.25 W
200 V
125
C
- 55 °C to 125 °C
1
to 332 k
0.15 %
(1)
0.3 %
(1)
1%
1
to 1 M
0.4 W
300 V
MMB 0207 VG03
RC6123M
1
to 10 M; 0
Notes
• These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over
operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime.
• The failure rate level E6 (10
-6
/h,
Q
= 0,3), corresponding to MIL level P, is superior to level E5 (10
-5
/h,
Q
= 1) and thus may be used as a
replacement.
(1)
These tightened requirements provide a user advantage over the requirements of EN 140401-803.
www.vishay.com
Document Number: 28707
For technical questions, contact:
specialresistors@vishay.com
Revision: 21-May-12
59
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMU 0102 VG03, MMA 0204 VG03, MMB 0207 VG03
Vishay Beyschlag
DIMENSIONS
MELF Resistors with Established Reliability
L
K
L
1
D
1
D
DIMENSIONS AND MASS
TYPE
MMU 0102 VG03
MMA 0204 VG03
MMB 0207 VG03
L
(mm)
2.2 + 0/- 0.1
3.6 + 0/- 0.2
5.8 + 0/- 0.15
D
(mm)
1.1 + 0/- 0.1
1.4 + 0/- 0.1
2.2 + 0/- 0.2
L
1 min.
(mm)
1.2
1.8
3.2
D
1
(mm)
D + 0/- 0.1
D + 0/- 0.15
D + 0/- 0.2
K
(mm)
0.4 ± 0.05
0.8 ± 0.1
1.15 ± 0.1
MASS
(mg)
8
22
80
Note
• Color code marking is applied according to IEC 60062
(3)
in five bands. Each color band appears as a single solid line, voids are permissible
if at least
2
/
3
of the band is visible from each radial angle of view. The last color band for tolerance is approximately 50 % wider than the other
bands. An interrupted blue band between the 1
st
and 2
nd
full band indicates the failure rate level E6. An interrupted orange band between the
4th and 5th full band indicates the temperature coefficient of 15 ppm/K.
PATTERN STYLES FOR MELF RESISTORS
G
Y
Z
X
RECOMMENDED SOLDER PAD DIMENSIONS
WAVE SOLDERING
TYPE
G
(mm)
0.7
1.5
2.8
Y
(mm)
1.2
1.5
2.1
X
(mm)
1.5
1.8
2.6
Z
(mm)
3.1
4.5
7.0
G
(mm)
1.1
1.7
3.2
REFLOW SOLDERING
Y
(mm)
0.8
1.2
1.7
X
(mm)
1.3
1.6
2.4
Z
(mm)
2.7
4.1
6.6
MMU 0102 VG03
MMA 0204 VG03
MMB 0207 VG03
Note
• The given solder pad dimensions reflect the considerations for board design and assembly as outlined e.g. in standards IEC 61188-5-x, or in
publication IPC 7351. They do not guarantee any supposed thermal properties, however, they will be found adequate for most general
applications.
www.vishay.com
For technical questions, contact:
specialresistors@vishay.com
Document Number: 28707
60
Revision: 21-May-12
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMU 0102 VG03, MMA 0204 VG03, MMB 0207 VG03
MELF Resistors with Established Reliability
Vishay Beyschlag
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: MMA0204WC4999FB300
Part Number: MMA0204WZ0000ZB300
M
M
M
M
A
A
0
0
2
2
0
0
4
4
W
W
C
Z
4
0
9
0
9
0
9
0
F
Z
B
B
3
3
0
0
0
0
TYPE/SIZE
MMU 0102
MMA 0204
MMB 0207
VERSION
W
= EN 140401-803,
“Version E”;
failure rate level E6
TCR
C
= ± 50 ppm/K
E
= ± 15 ppm/K
Z
= Jumper
RESISTANCE
3 digit value
1 digit multiplier
MULTIPLIER
8
= *10
-2
9
= *10
-1
0
= *10
0
1
= *10
1
2
= *10
2
3
= *10
3
4
= *10
4
5
= *10
5
0000
= Jumper
TOLERANCE
F
=±1%
B
= ± 0.1 %
Z
= Jumper
PACKAGING
B1
B3
B0
B2
B7
Product Description: MMA 0204-50 1 % VG03 BL 49R9
Product Description: MMA 0204 VG03 BL 0R0
MMA 0204
MMA 0204
TYPE/SIZE
MMU 0102
MMA 0204
MMB 0207
-50
-
TCR
±
50
ppm/K
±
15
ppm/K
1%
-
TOLERANCE
±1%
± 0.1 %
VG03
VG03
VERSION
VG03
= EN 140401-803,
“Version E”;
failure rate level E6
BL
BL
PACKAGING
B1
BL
B0
B2
B7
49R9
0R0
RESISTANCE
49R9
= 49.9
4K64
= 4.64 k
0R0
= Jumper
Notes
• The products can be ordered using either the PART NUMBER or the PRODUCT DESCRIPTION.
• Products within a packaging unit are single lot date code.
PACKAGING
TYPE
MMU 0102 VG03
CODE
B1
B3 = BL
B0
B1
B3 = BL
B0
B1
B2
B7
QUANTITY
1000
3000
10 000
1000
3000
10 000
1000
2000
7000
CARRIER TAPE
Antistatic blister tape
acc. IEC 60286-3
Type II
Antistatic blister tape
acc. IEC 60286-3
Type II
Antistatic blister tape
acc. IEC 60286-3
Type II
WIDTH
8 mm
PITCH
4 mm
REEL DIAMETER
180 mm/7"
330 mm/13"
8 mm
4 mm
180 mm/7"
330 mm/13"
12 mm
4 mm
180 mm/7"
330 mm/13"
MMA 0204 VG03
MMB 0207 VG03
www.vishay.com
Document Number: 28707
For technical questions, contact:
specialresistors@vishay.com
Revision: 21-May-12
61
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMU 0102 VG03, MMA 0204 VG03, MMB 0207 VG03
Vishay Beyschlag
MELF Resistors with Established Reliability
EN 140401-803 ORDERING INFORMATION
Example of the ordering information for a resistor: MMA 0204-50 1 % VG03 49R9
EN140401-803EZRC3715MR49R9FE6
Example of the ordering information for a zero ohm jumper: MMA 0204 VG03 0R0
EN140401-803EZRC3715M-0R00-E6
The elements used in the component number have the following meaning:
EN140401-803
EZ
RC3715M
R
49R9
F
E6
EN detail specification number
Assessment level for the zero-defect approach
Style (size)
Temperature coefficient, according to EN 60062
R = ± 50 ppm/K; P = ± 15 ppm/K
Resistance, according to EN 60062, 4 characters
Tolerance on rated resistance, according to EN 60062
F = ± 1 %; B = ± 0.1 %
Failure rate level according to EN 60115-1, annex ZR
Notes
• The ordering information according to EN 140401-803:2007 shown above succeeds and replaces the ordering information according to earlier
versions of the detail specification EN 140401-803 or its predecessor CECC 40401-803, for example:
CECC 40401-803 EZ RC3715M C 49R9 F E6
CECC 40401-803 S RC3715 C 49R9 F E6
with
EZ; S
Assessment level, where EZ is successor to and superior replacement for S
RC3715M; RC3715
Style, with added suffix M for “metric”
C
Temperature coefficient, according to the detail specification
C = ± 50 ppm/K; E = ± 15 ppm/K.
• EN 140401-803 succeeds the prior specifications CECC 40401-803, CECC 40401-001 (now “Version E”) and CECC 40401-005 (now
“Version A”).
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
DESCRIPTION
TCR
± 50 ppm/K
± 15 ppm/K
Jumper
TOLERANCE
±1%
± 0.1 %
MMU 0102 VG03
100
to 2.21 M
100
to 100 k
10
m
I
max.
= 2 A
RESISTANCE
MMA 0204 VG03
1
to 5.11 M
75
to 100 k
10
m
I
max.
= 3 A
MMB 0207 VG03
1
to 10 M
75
to 499 k
10
m
I
max.
= 5 A
Note
• According to EN 140401-803, resistance values are to be selected from the E96 series for ± 1 % tolerance and from the E192 series for
± 0.1 % tolerance.
www.vishay.com
For technical questions, contact:
specialresistors@vishay.com
Document Number: 28707
62
Revision: 21-May-12
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMU 0102 VG03, MMA 0204 VG03, MMB 0207 VG03
MELF Resistors with Established Reliability
DESCRIPTION
Production is strictly controlled and follows an extensive
set of instructions established for reproducibility. A
homogeneous film of metal alloy is deposited on a high grade
ceramic body (Al
2
O
3
) and conditioned to achieve the desired
temperature coefficient. Nickel plated steel termination caps
are firmly pressed on the metallized rods. A special laser is
used to achieve the target value by smoothly cutting a helical
groove in the resistive layer without damaging the ceramics.
The resistor elements are covered by a protective coating
designed for electrical, mechanical and climatic protection.
The terminations receive a final pure tin on nickel plating.
Five color code rings designate the resistance value and
tolerance in accordance with
IEC 60062
(3)
.
The result of the determined production is verified by an
extensive testing procedure performed on 100 % of the
individual resistors. This includes pulse load screening (for
R
10
)
and additional non-linearity screening (for
R
30
)
for the elimination of products with a potential risk
of early life failures according to EN 140401-803, 2.1.2.2.
Only accepted products are laid directly into the blister tape
in accordance with
IEC 60286-3
(3)
, Type II.
Products within
a package unit are from the same production lot and carry
the same date code.
Vishay Beyschlag
All products comply with the
GADSL
(1)
and the
CEFIC-EECA-EICTA
(2)
list of legal restrictions on
hazardous substances. This includes full compliance with
the following directives:
2000/53/EC End of Vehicle Life Directive (ELV) and
Annex II (ELV II)
2011/65/EU Restriction of
Substances directive (RoHS)
the
use
of
Hazardous
2002/96/EC Waste Electrical and Electronic Equipment
Directive (WEEE)
APPROVALS
The resistors are approved within the IECQ-CECC Quality
Assessment System for Electronic Components to the detail
specification
EN 140401-803
which refers to
EN 60115-1,
EN 140400
and the variety of environmental test procedures
of the
IEC 60068
(3)
series.
Conformity is attested by the use of the
CECC
logo (
the mark of conformity on the package label.
) as
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic soldering
using wave, reflow or vapour phase as shown in
IEC 61760-1
(3)
. Solderability is specified for 2 years after
production or requalification, however, excellent solderability
is proven after extended storage in excess of 10 years. The
permitted storage time is 20 years.
The resistors are completely lead (Pb)-free, the pure tin
plating provides compatibility with lead (Pb)-free soldering
processes. The immunity of the plating against tin whisker
growth has been proven under extensive testing.
The encapsulation is resistant to all cleaning solvents
commonly used in the electronics industry, including
alcohols, esters and aqueous solutions. The suitability of
conformal coatings, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
Vishay BEYSCHLAG has achieved
“Approval of
Manufacturer”
in accordance with
IEC QC 001002-3,
clause 2.
The release certificate for
“Technology Approval
Schedule”
in accordance with
CECC 240001
based on
IEC QC 001002-3, clause 6
is granted for the
Vishay BEYSCHLAG manufacturing process.
The Vishay BEYSCHLAG production facility is registered
with the CAGE code D9539.
RELATED PRODUCTS
A wider range of TCR, tolerance and resistance values, plus
the option of values from a different E series is available with
products approved to
EN 140401-803,
Version A, without
established reliability, nominal failure rate level E0 (quality
factor
Q
= 3). See the datasheets:
“Professional MELF Resistors”
(www.vishay.com/doc?28713)
“Precision MELF Resistors”
(www.vishay.com/doc?28714)
“High Precision MELF Resistor”
(www.vishay.com/doc?28715)
Notes
(1)
Global Automotive Declarable Substance List, see
www.gadsl.org.
(2)
CEFIC (European Chemical Industry Council), EECA (European Electronic Component Manufacturers Association), EICTA (European trade
organisation representing the information and communications technology and consumer electronics), see
www.eicta.org/index.php?id=995
issues
environment policy
chemicals
chemicals for electronics.
(3)
The quoted IEC standards are also released as EN standards with the same number and identical contents.
www.vishay.com
Document Number: 28707
for technical questions, contact:
specialresistors@vishay.com
Revision: 21-May-12
63
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Electrician is also crazy game good
eeworld I love you I participated in the Electrician Crazy Game today and got a good result. I am a little proud of it....
yuerry Discrete Device
If you want to make an adjustable power supply yourself, here is the reference tutorial~~~
I recently wanted to make an adjustable power supply, and then I found some information on the Internet. I'll record it here and share it with netizens who want to make their own.Some homemade videos ...
木犯001号 Power technology
i.mx6ull uses Openwrt system
Introduction: OpenWrt can be described as an embedded Linux distribution. (Mainstream router firmwares include dd-wrt, tomato, and openwrt.) Compared to a single, static system, OpenWrt's package mana...
明远智睿Lan Industrial Control Electronics
ATMEL was also acquired
Today I heard from a friend that ATMEL has also been acquired, and the details will be announced in September. This year, semiconductor manufacturers are in a trend of mergers and acquisitions, and I ...
dcexpert Microchip MCU
Input Impedance Measurement Problems of Differential Amplifier Circuit
I would like to ask you a question, how can I measure the input impedance of the differential amplifier circuit? Thank you...
hebiancao Test/Measurement
STC90c516 control dot matrix problem, need help
I want to use the keyboard to control the movement of the dot matrix. After selecting a point and pressing a key, the point will always be lit and will not move with the keyboard control. I wrote it t...
xmlored 51mcu
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. C1206C109B4HACTU
  2. FW-31-01-L-D-200-100
  3. SN75C189DBLE-00
  4. UTO-444R
  5. 74467-88HLF
  6. PEG60DR-HBF
  7. ATC111SEC151J100ACD
  8. TW-18-01-SM-S-120-050
  9. 3KP22A_B0_00001
  10. BZM55-C62T/R7
  11. PG4004-AU_AY_100A1
  12. A2549HB-20P+A2549-TP-A

Popular Articles

Technical ResourceMore

  1. 3D8S_Alpha_Light Cube Control Software
  2. Design and simulation of audio power amplifier based on Proteus
  3. Parmon (Parallel port monitoring program Parmon.rar contains source code)
  4. Multi-core architecture and programming technology
  5. Design of smart water card based on DS1991 and PIC microcontroller
  6. An Improved Algorithm for Reducing Peak-to-Average Ratio in OFDM Systems
  7. Common Faults of Electrostatic Precipitator and Their Solutions
  8. Design and analysis of dual battery power supply scheme based on bq24161+TPS2419
  9. Design and Implementation of Embedded Software Debugger
  10. Teleoperation surgery simulation environment based on virtual reality

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1993  1733  1236  334  642  41  35  25  7  13
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
