MS1ESCC0C7158FBX

Description
Fixed Resistor, Thin Film, 0.25W, 7.15ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1406, MELF
CategoryPassive components    The resistor
File Size210KB,10 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

MS1ESCC0C7158FBX Overview

Fixed Resistor, Thin Film, 0.25W, 7.15ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1406, MELF

MS1ESCC0C7158FBX Parametric

Parameter NameAttribute value
Objectid145112562412
package instructionMELF
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL7.15
Other featuresRATED AC VOLTAGE(V): 200
structureCylindrical
JESD-609 codee0
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C

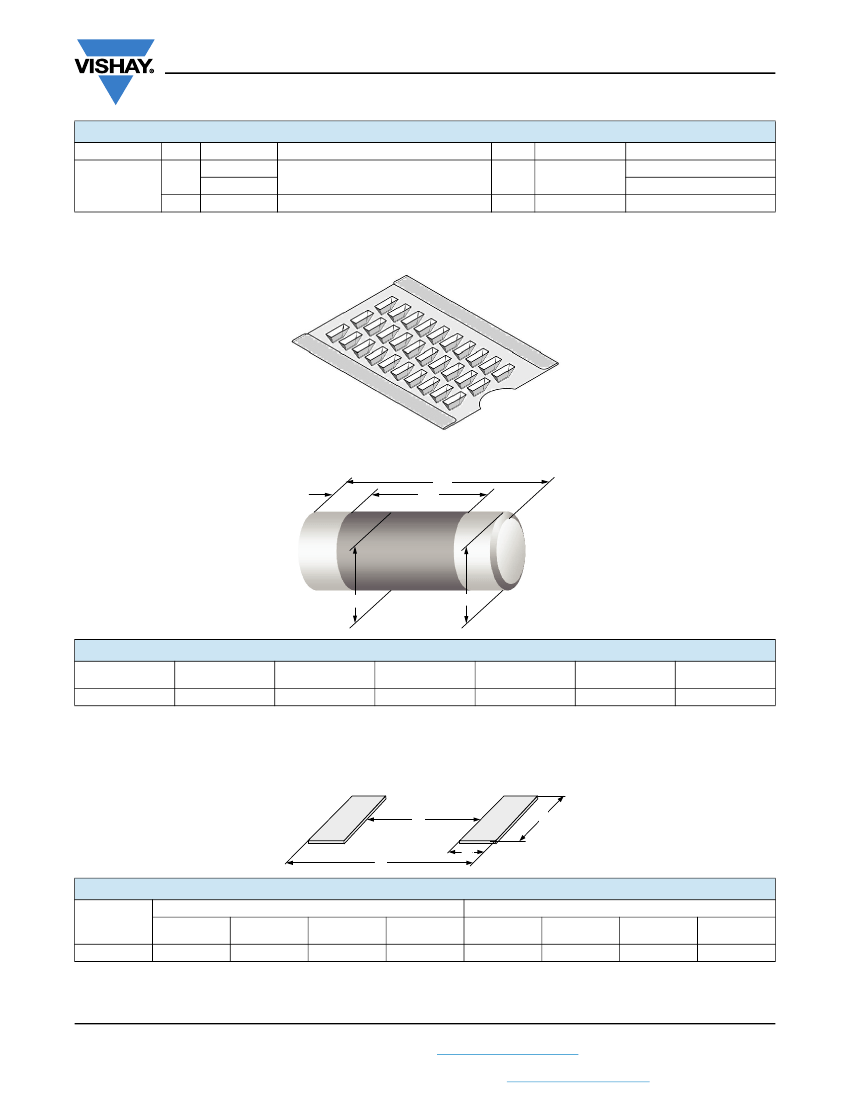

Package diameter1.5 mm
Package length3.6 mm
Package formSMT
method of packingTR, BLISTER, 7 INCH
Rated power dissipation(P)0.25 W
Rated temperature70 °C
GuidelineESCC4001/022
resistance7.15 Ω
Resistor typeFIXED RESISTOR
size code1406
surface mountYES
technologyTHIN FILM
Temperature Coefficient50 ppm/°C
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeWRAPAROUND
Tolerance1%
Operating Voltage200 V
MS1 .... ESCC
www.vishay.com
Vishay Draloric
Hi-Rel Thin Film MINI-MELF Resistors
FEATURES
• High-reliability product
• ESA approved to ESCC 4001/022
• Advanced thin film technology
• SnPb termination plating, minimum 6 % Pb
APPLICATIONS
• Aerospace
MS1 .... ESCC high-reliability thin film MINI-MELF resistors
are the premium choice for the design and manufacture of
equipment where matured technology and proven reliability
are of the utmost importance. They are regularly used in
communication and research satellites and fit equally well
into aircraft and military electronic systems.
Approval of the MS1 .... ESCC is granted by the European
Space Components Coordination and registered in the
ESCC Qualified Parts List, REP005.
• Avionics
• Military
METRIC SIZE
DIN
CECC
0204
RC3715M
TECHNICAL SPECIFICATIONS
DESCRIPTION
CECC size
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation
P
70
Operating voltage,
U
max.
AC
RMS
or DC
Permissible film temperature,
F max.
Operating temperature range
Max. resistance change at
P
70
, |R| max., after:
1000 h
2000 h
Permissible voltage against ambient (insulation):
1 min;
U
ins RMS
Storage temperature range
500 V
-65 °C to +155 °C
(0.35 %
R
+ 50 m)
(0.5 %
R
+ 50 m)
MS1 .... ESCC
RC3715M
2.21
to 5.11 M
± 1 %; ± 0.5 %; ± 0.1 %
± 50 ppm/K; ± 25 ppm/K; ± 15 ppm/K
0.25 W
200 V
125 °C
- 55 °C to 125 °C
Note
• These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over
operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime.
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
DESCRIPTION
TCR
± 50 ppm/K
± 25 ppm/K
± 15 ppm/K
TOLERANCE
±1%
± 0.5 %
± 0.1 %
± 0.1 %
RESISTANCE RANGE
MS1 .... ESCC
2.21  to 5.11 M
10.0  to 1.00 M
43.2  to 1.00 M
43.2  to 221 k
Notes
• The indicated combinations of TCR, tolerance and resistance range are a subset of those combinations approved to ESCC 4001/022
• According to ESCC 4001/022, resistance values are to be selected from the E96 series only
Revision: 10-Sep-13
Document Number: 28790
1
For technical questions, contact:
specialresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
