Packaging
Specification
107-19515
Rev. C
GEL CONNECTOR
IDC / WIRE TO WIRE
- NOT IN SCALE -
C
B
A
rev letter
DR.
Erik Derks
Added modifications and new partnumbers
Update after release
1
st
release
rev. record
DATE
22juli09
This information is confidential and is disclosed to
you on condition that no further disclosure is made
by you to other than AMP personnel without written
authorization from AMP Italia.
PPo
EDe
EDe
DR
APVD
G. TURCO
06 Aug. 10
18mar10
22JUL2009
Date
EDe
EDe
EDe
CHK
9aug10
18mar10
22JUL2009
Date
DATE
22JUL2009
This specification is a controlled document.
Page
1
of
7
LOC I
* Trademark of AMP Incorporated
FTEC174 rev. 1 - July 99
Packaging
Specification
1.
SCOPE
107-19515

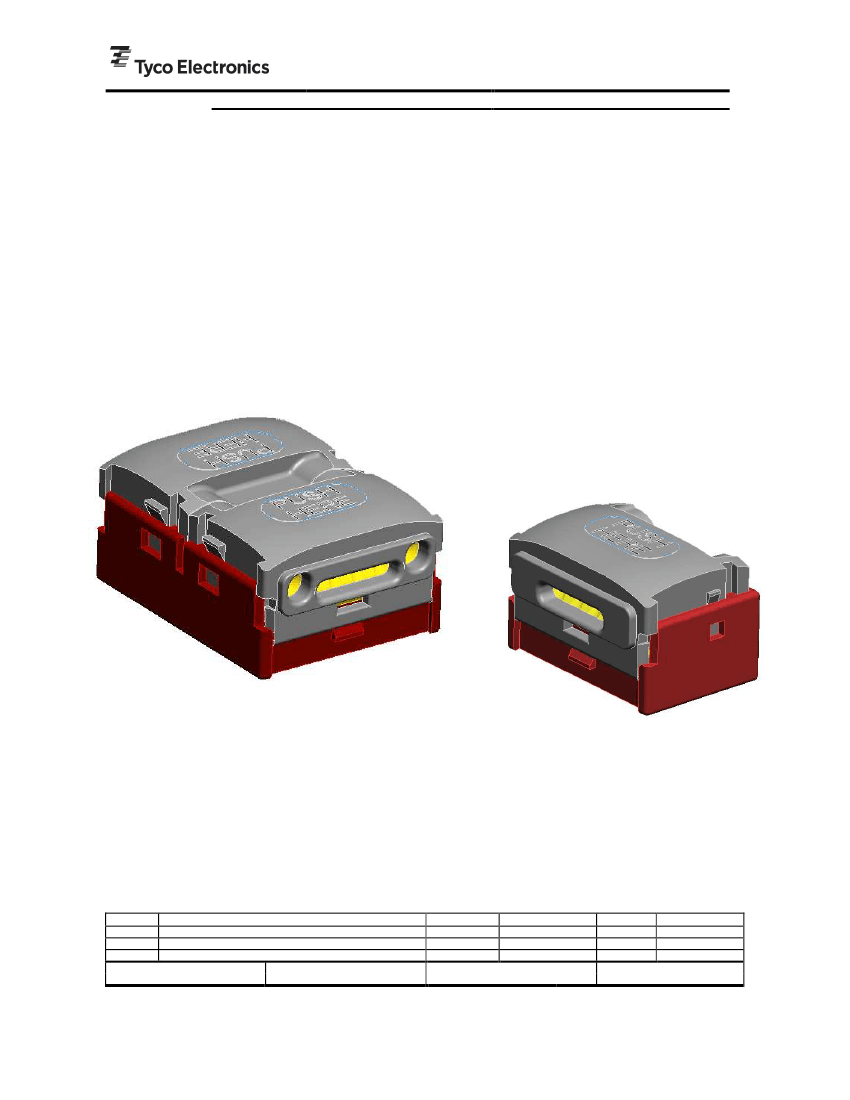

This specification covers the packaging material and standard method for the “GEL CONNECTOR, IDC /
WIRE TO WIRE” in the versions listed below:
•
Standard versions: P/N 293521-1 & 5-293521-1.
•
Cable-end version: P/N 293522-1 & 5-293522-1 (bridge version) and P/N 293522-2 & 5-293522-2 (no
bridge).
2.
MATERIAL
2.1
2.2
2.3
Carton box P/N 1961016-4 (or equivalent)
Folding carton box P/N 1961035-1
Adhesive label 50.8x101.6 mm TE PN 623865-4
or Philips P/N 4422 400 41910 (36x99mm) or alike (width needs to be >=36 and <=51 mm)
2.5
Self Adhesive Label 102x102 mm TE P/N 623865-1 (for SAP Countries) or P/N 999102-1 (for
NON SAP Countries)
2.6
Carton or plastic pad (to use as filling if necessary)
2.7
Self-adhesive tape (transparent and without any logo)
2.8
Plastic stretch wrap film
2.9
Wooden pallet (L = 1250mm, W = 730mm, H = 110mm)
Rev. C
FTEC174 rev. 1 July 99
Page
2
of
7
LOC I
Packaging
Specification
3.
PACKAGING PREPARATION
3.1
107-19515

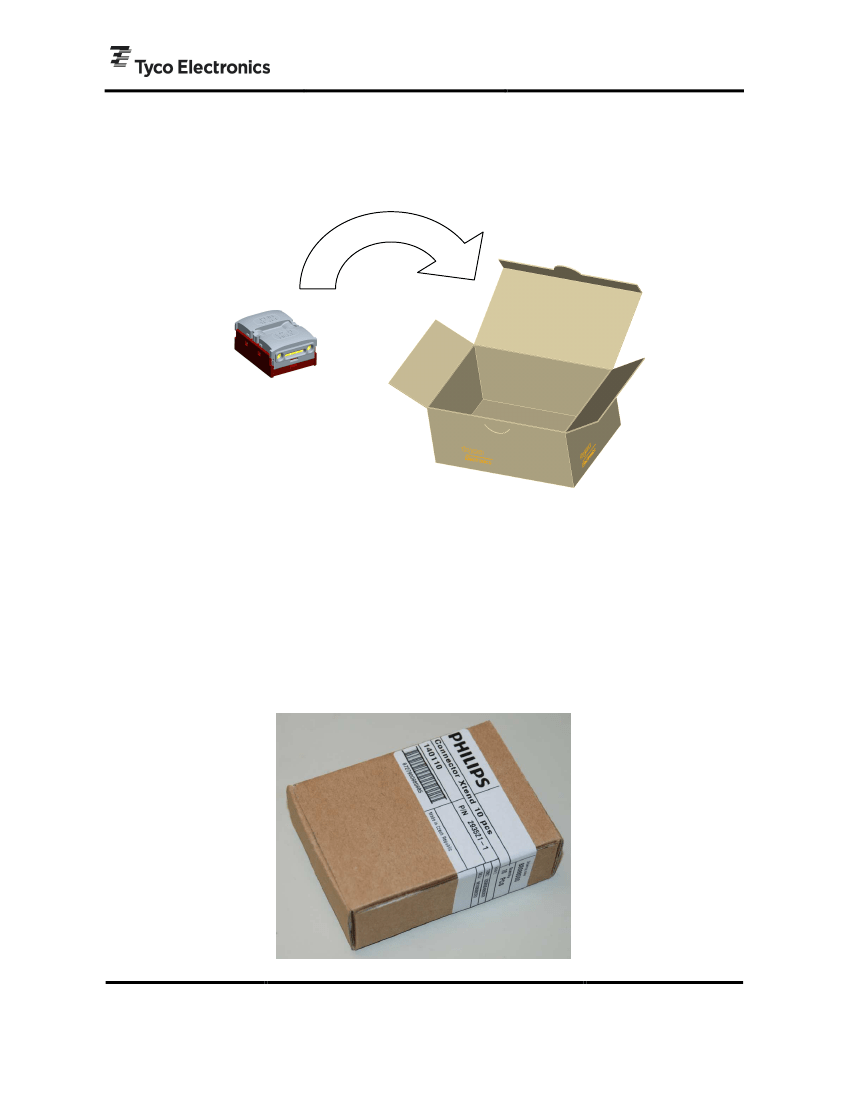

Put 10 x Pre-assembled Connectors (P/N X-293521-Y or X-293522-Y) into box PN 1961035-1.
1 BOX
PN 1961035-1
10 CONNECTORS
Connectors quantity per folding box:
1 filled Box (10 connectors)
3.3
Close the Folding Carton Box and apply following label:
For 293521-1, 293522-1, 293522-2 use Philips label P/N 4422 400 41910.
For 5-293521-1, 5-293522-1, 5-293522-2 use general label TE P/N 623865-4.
The label has to be folded over the closed lid, so that it also has a sealing function (always
possible to see if box is opened earlier)
Rev. C
FTEC174 rev. 1 July 99
Page
3
of
7
LOC I
Packaging
Specification
107-19515
For PHILIPS label (P/N 293521-1, 293522-1 and 293522-2)):
Indicate only the data below (no further info to be put on the label) on the label as described in Philips
drawing P/N 4422 332 81121 :
- Philips word mark (PHILIPS), tracking and tracing number (DDMMYY), country of origin (Made in
China) and quantity (10PCS)
- The product description, barcode EAN-3 (128), product image, ordering code, 12NC code, SKU
number have been defined by Philips :
•
For P/N 293521-1: full product description :
Connector Xtend 10 pcs
barcode (EAN-3) :
8727900880885
product image (no pic or dwg) :
TE P/N 293521-1
ordering code :
880885 00
12NC :
9290 004 86203
SKU number :
M100008791
•
For P/N 293522-1: full product description :
Connector End Cap 10 pcs
barcode (EAN-3) :
8727900880892
product image (no pic or dwg) :
TE P/N 293522-1
ordering code :
880892 00
12NC :
9290 004 86403
SKU number :
M100008792
•
For P/N 293522-2: full product description :
HP Connector End Cap 10 pcs
barcode (EAN-3) :
8727900880908
product image (no pic or dwg) :
TE P/N 293522-2
ordering code :
880908 00
12NC :
9290 004 86603
SKU number :
M100008793
For other label (P/N 5-293521-1, 5-293522-1 and 5-293522-2):
- Tracking and tracing number (DDMMYY), country of origin (Made in China) and quantity (10PCS).
- Product description:
•
For P/N 5-293521-1: full product description :
Connector Xtend 10 pcs
product image (no pic or dwg) :
TE P/N 293521-1
Connector End Cap 10 pcs
•
For P/N 5-293522-1: full product description :
product image (no pic or dwg) :
TE P/N 293522-1
•
For P/N 5-293522-2: full product description :
HP Connector End Cap 10 pcs
product image (no pic or dwg) :
TE P/N 293522-2
Rev. C
FTEC174 rev. 1 July 99
Page
4
of
7
LOC I
Packaging
Specification
3.4
107-19515

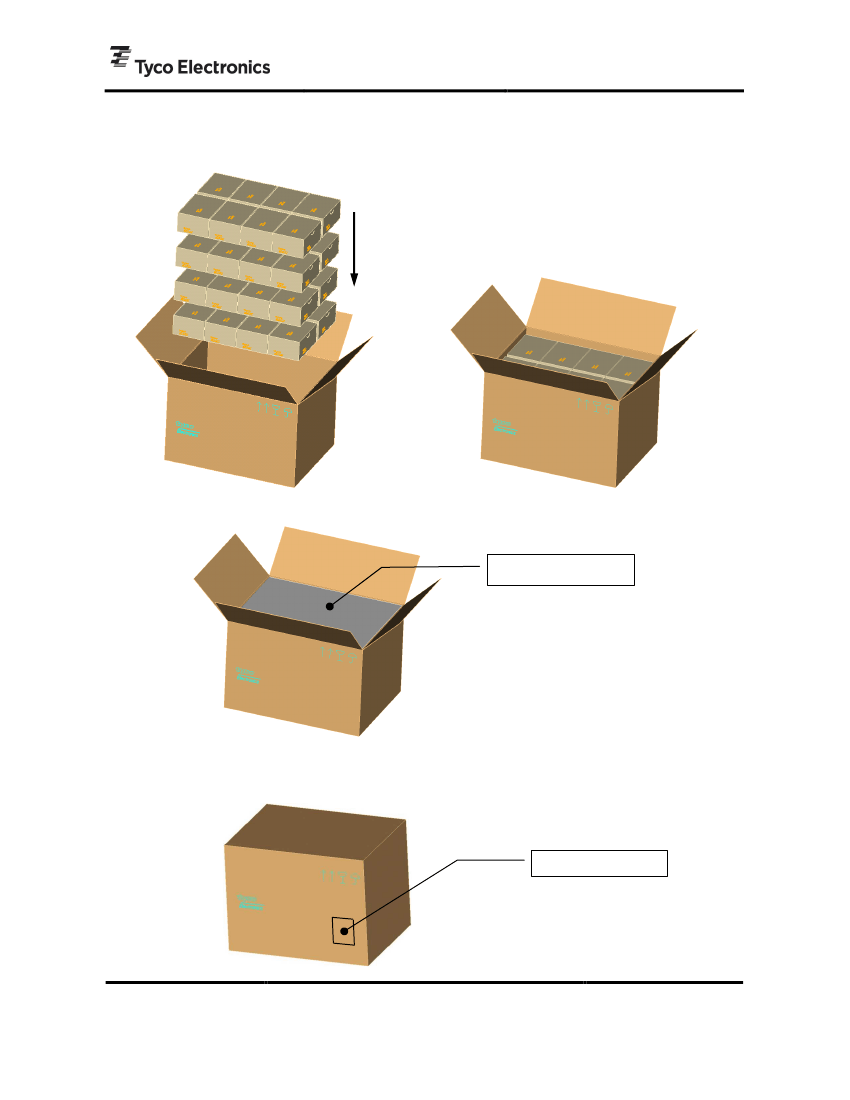

Insert 128 filled folding carton boxes P/N 1961035-1 into one carton box P/N 1961016-4 or alike.
(4 (70mm) width x 4 (95mm) length x 8 (30mm) layers, makes 280x380x240mm)
3.5
Use carton or plastic pad as filling, if necessary:
Carton or Plastic Pad
3.7
Close the filled carton box P/N 1961016-4 with the Self Adhesive Tape and put on 1 Self
Adhesive Label P/N 623865-1 (for SAP Countries) or P/N 999102-1 (for NON SAP Countries).
Self Adhesive Label
Rev. C
FTEC174 rev. 1 July 99
Page
5
of
7
LOC I
