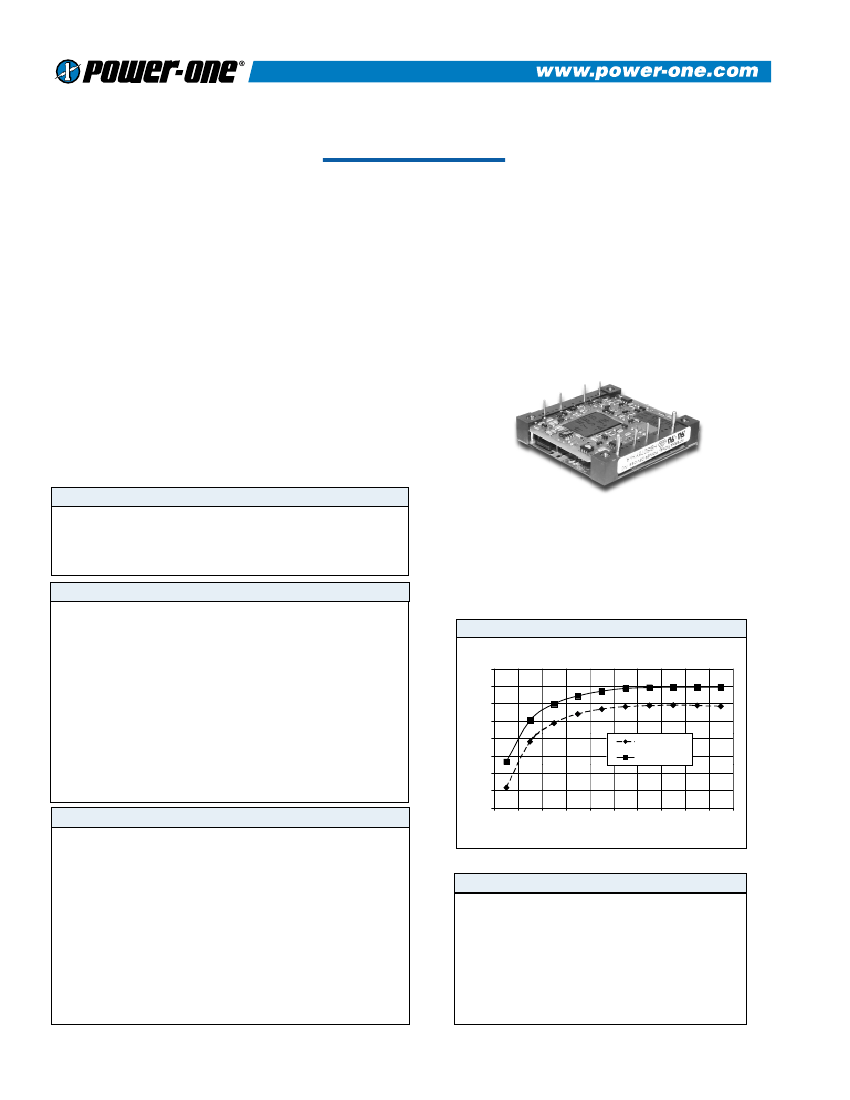

HBS SERIES - 75 WATT
DESCRIPTION
FEATURES
•
•
•
•
Water Washable
“True-Trim” Option
1500V Isolation
Positive Or Negative
Logic
HBS single output DC/DC converters provide up to
• Industry Standard Half-
75 Watts of output power in an industry standard
Brick
half-brick package and footprint. These units feature
• Open-Frame Packaging
excellent efficiency, Class A conducted noise specs, and • 100°C Baseplate Operation
fixed switching frequency. The HBS features open-frame
packaging, along with planar magnetics to provide
maximum useable power with minimal thermal
constraints. The HBS converters are especially suited to
telecom, networking, and industrial applications, and are
fully compatible with production board washing
processes.
TECHNICAL SPECIFICATIONS
Input
Voltage Range
24 VDC Nominal
48 VDC Nominal
Reflected Ripple
Input Reverse Voltage Protection
Output
Setpoint Accuracy
Line Regulation V
in
Min. - V
in
Max., I
out
Rated
±1%
0.2% V
out
Efficiency vs. Load (48V Input)
18 - 36 VDC
34 - 75 VDC
20% I
in
Max.
Shunt Diode
Load Regulation I
out
Min. - I
out
Max., V
in
Nom.
Remote Sense Headroom
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Current Limit Threshold Range, % of I
out
Rated
OVP Trip Range
OVP
General
Turn-On Time
Remote Shutdown
Remote Shutdown Reference
Switching Frequency
Isolation, Input - Output
Isolation, Input - Case
Isolation, Output - Case
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Thermal Shutdown Range
Vibration, 3 Axes, 5 Min Each
MTBF† (Bellcore TR-NWT-000332)
Safety
Weight (approx.)
4% V
out
500
µs
±10%
Hiccup
110 - 140%
115 - 140% V
out
Nom.
Hiccup
0.2% V
out
0.5 VDC
10 % I
out
Rated
25% I
out
90
85
EFFICIENCY %
80
75
70
65
60
55
50
10
20
30
40
50
60
70
80
90
100
HBS050ZE-ANT
HBS075ZG-ANT
10 ms
Positive Or Negative Logic
V
in
Negative
500 kHz
1500 VDC
1050 VDC
500 VDC
0.2%/°C
-40 To +100°C
-40 To +125°C
105 To 115°C
5 g, 10 - 55 Hz
2.1 x 10
6
hrs
UL, CUL, VDE
2.5 oz
LOAD %
Notes
†
MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
1
HBS SERIES - 75 WATT
MODELS - (See the last page of this file for options.)
Vin
(Volts)
24
24
24
24
48
48
48
48
Vin Range
(Volts)
18 - 36
18 - 36
18 - 36
18 - 36
34 - 75
34 - 75
34 - 75
34 - 75
Iin Max.*
(Amps)
4.60
5.40
5.40
5.40
2.50
2.70
2.70
2.70
Vout
(Volts)
3.3
5
12
15
3.3
5
12
15
Iout Rated
(Amps)
20.00
15.00
6.25
5.00
20.00
15.00
6.25
5.00
Ripple & Noise
Pk-Pk (mV)
100
100
150
150
100
100
150
150
Efficiency
Typ. **
80%
83%
85%
86%
80%
84%
86%
87%
Model
HBS066YE-A
†
HBS075YG-A
HBS075YH-A
HBS075YJ-A
†
HBS066ZE-A
HBS075ZG-A
HBS075ZH-A
HBS075ZJ-A
† Denotes advanced product release. Consult factory for product availability.
* Maximum input current at minimum input voltage, maximum rated output power.
** At nominal Vin, rated output.

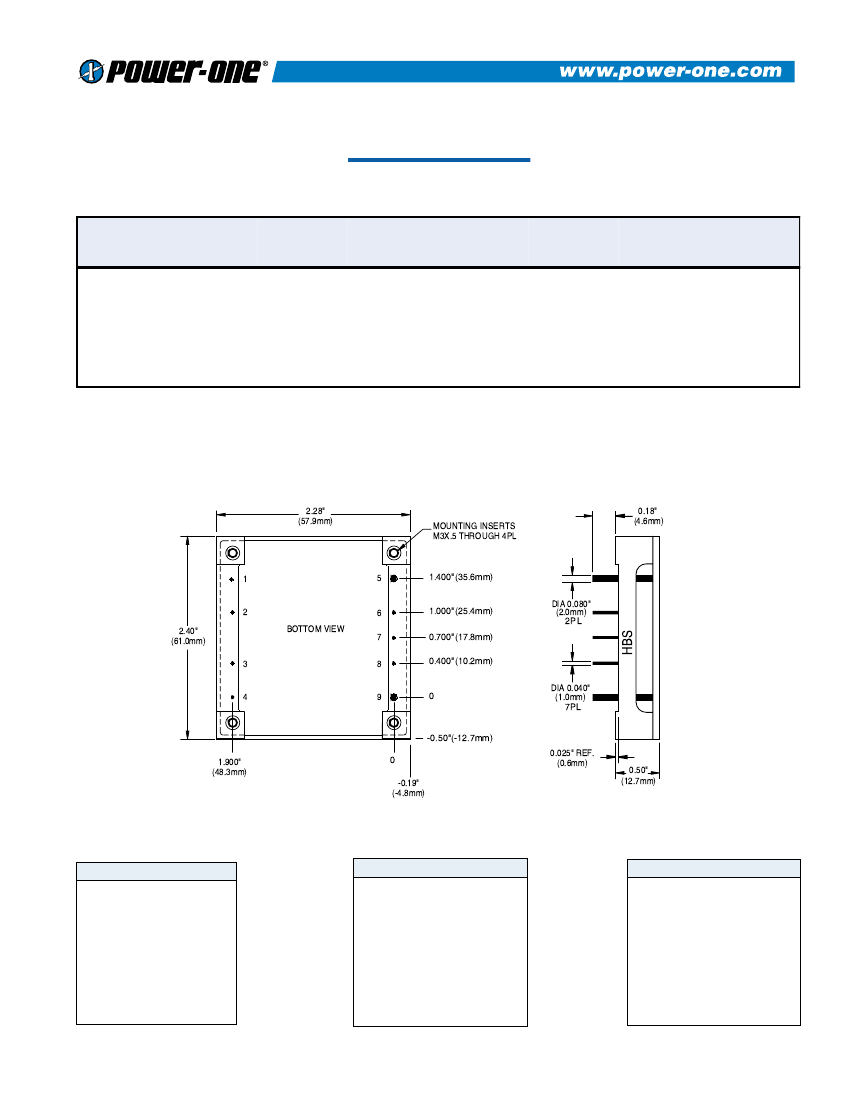

MECHANICAL DRAWING
2.28"
(57.9mm)
MOUNTING INSERTS
M3X.5 THROUGH 4PL
0.18"
(4.6mm)
1
5
1.400"(35.6mm)
2
2.40"
(61.0mm)
3
BOTTOM VIEW
6
1.000"(25.4mm)
DIA 0.080"
(2.0mm)
2PL
7
0.700"(17.8mm)
0.400"(10.2mm)
8
4
9
0
DIA 0.040"
(1.0mm)
7PL
-0.50"(-12.7mm)
1.900"
(48.3mm)
-0.19"
(-4.8mm)
0
0.025" REF.
(0.6mm)
0.50"
(12.7mm)
HBS
Thermal Impedance
Natural Convection
100 LFM
200 LFM
300 LFM
400 LFM
6.6
5.7
4.2
3.1
2.6
°C/W
°C/W
°C/W
°C/W
°C/W
Pin
1
2
3
4
5
6
7
8
9
Function
-V
in
Case
On/Off
+V
in
-V
out
-Sense
Trim
+Sense
+V
out
Tolerances
Inches:
.XX ± 0.020
.XXX ± 0.010
Pin:
± 0.002
(Millimeters)
.X ± 0.5
.XX ± 0.25
± 0.05
Note:
Thermal impedance data is dependent on
many environmental factors. The exact
thermal performance should be validated for
specific application.
(Dimensions as listed unless otherwise
specified.)
2
OPTIONS
When ordering equipment options, use the following suffix information. Select the option(s) that
you prefer and add them to the model number. Example ordering options are located below the
options table.
OPTION
Negative Logic
Lucent Compatible Trim
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
SUFFIX
N
T
TS
1
2
3
4
Y
APPLICABLE SERIES
HAS, HBD, HBS, HES, LES, QBS,
QES, TES, TQD
HAS, HBD, HBS, HES, QBS, QES
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
REMARKS
TTL “Low” Turns Module ON
TTL “High” Turns Module OFF
PIN LENGTH AND HEATSINK
OPTIONS
0.110” (2.8mm) Pin Length
0.150” (3.8mm) Pin Length
0.24” (6.1mm) Horizontal Heatsink
0.24” (6.1mm) Vertical Heatsink
0.45” (11.4mm) Horizontal
Heatsink
0.45” (11.4mm) Vertical Heatsink
0.95” (24.1mm) Horizontal
Heatsink
0.95” (24.1mm) Vertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Units (Except SMS)
All Units (Except SMS)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
Standard Pin Length is 0.180”
(4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and
0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.
NUCLEAR AND MEDICAL APPLICATIONS
Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS
The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
3
