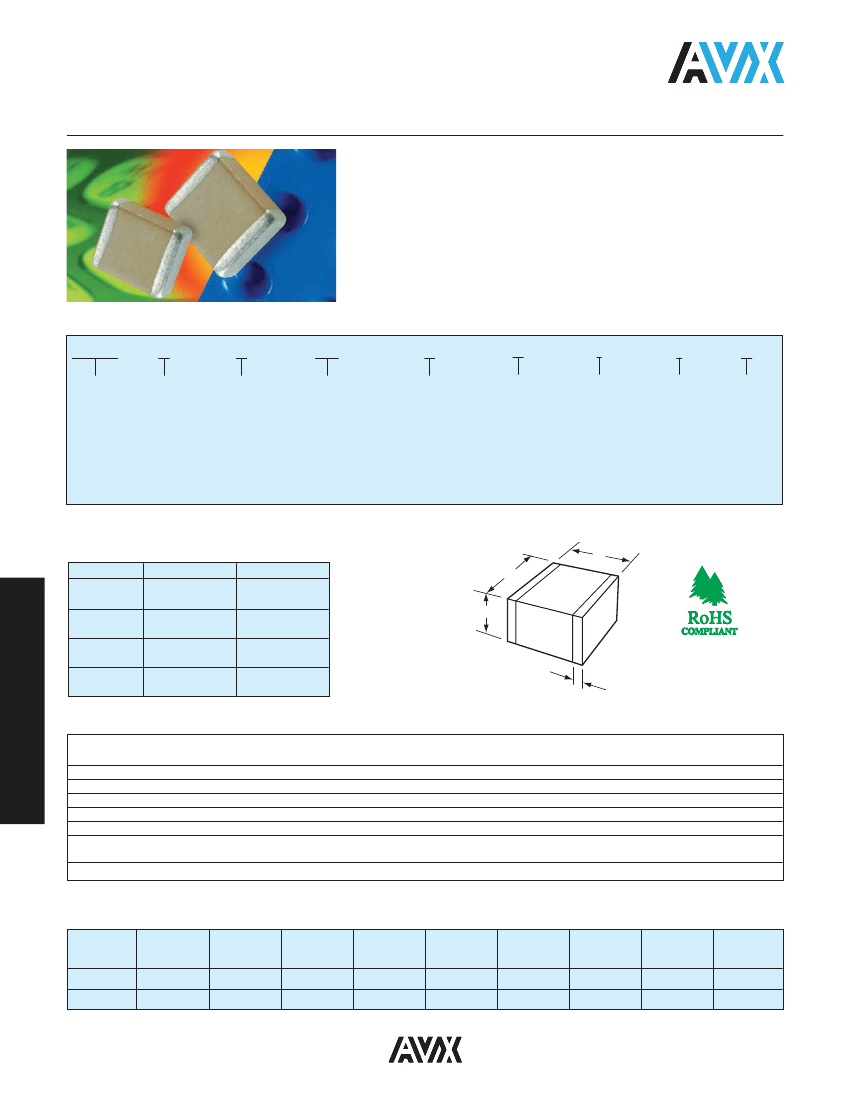

Hi-Q
®
High RF Power
MLC Surface Mount Capacitors
For 600V to 7200V Applications
PRODUCT OFFERING
Hi-Q
®
, high RF power, surface mount MLC capacitors from AVX
Corporation are characterized with ultra-low ESR and dissipation factor
at high frequencies. They are designed to handle high power and
high voltage levels for applications in RF power amplifiers, inductive
heating, high magnetic field environments (MRI coils), medical and
industrial electronics.
HOW TO ORDER
HQCC
AVX
Style
HQCC
HQCE
A
Voltage
600V/630V =
1000V =
1500V =
2000V =
2500V =
3000V =
4000V =
5000V =
7200V =
C
A
S
G
W
H
J
K
M
A
271
J
A
T
1
A
Temperature Capacitance Code
Coefficient
(2 significant digits
C0G = A
+ no. of zeros)
Examples:
4.7 pF = 4R7
10 pF = 100
100 pF = 101
1,000 pF = 102
Test Level
Termination*
Capacitance
A = Standard 1 = Pd/Ag
Tolerance
T = Plated
C = ±0.25pF (<13pF)
Ni and Sn
D = ±0.50pF (<25pF)
(RoHS Compliant)
F = ±1% ( 25pF)
J = 5% Min Pb
G = ±2% ( 13pF)
J = ±5%
K = ±10%
M = ±20%
Packaging
Special
1 = 7" Reel**
Code
3 = 13" Reel A = Standard
9 = Bulk
Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.
**The HQCE Style is not available on 7" reels.
DIMENSIONS
STYLE
(L) Length
(W) Width
(T) Thickness
Max.
(t) terminal
millimeters (inches)
HQCE
9.4 ± 0.51
(0.370 ± 0.020)
9.9 ± 0.51
(0.390 ± 0.020)
3.3 max.
(0.130 max.)
0.64 ± 0.38
(0.025 ± 0.015)
L
W
T
HQCC
5.84 ± 0.51
(0.230 ± 0.020)
6.35 ± 0.51
(0.250 ± 0.020)
3.3 max.
(0.130 max.)
0.64 ± 0.38
(0.025 ± 0.015)
t
DIELECTRIC PERFORMANCE CHARACTERISTICS
Capacitance Range
Capacitance Tolerances
Dissipation Factor 25°C
Operating Temperature Range
Temperature Characteristic
Voltage Ratings
Insulation Resistance
Dielectric Strength
3.3pF to 6,800pF
(25°C, 1.0 ±0.2 Vrms at 1kHz, for ≤ 1000 pF use 1MHz)
±0.25pF, ±0.50pF, ±1%, ±2%, ±5%, ±10%, ±20%
0.1% Max (+25°C, 1.0 ±0.2 Vrms at 1kHz, for ≤ 1000 pF use 1MHz)
-55°C to +125°C
C0G: 0 ± 30 ppm/°C (-55°C to +125°C)
600, 630, 1000, 1500, 2000, 2500, 3000, 4000, 5000, 7200VDC
100K MΩ min. @ +25°C and 500VDC
10K MΩ min. @ +125°C and 500VDC
Minimum 120% of rated WVDC
HIGH VOLTAGE CAPACITANCE VALUES (pF)
Style
HQCC
HQCE
600/630
WDC
min./max.
1000
WVDC
min./max.
1500
WVDC
min./max.
2000
WVDC
min./max.
2500
WVDC
min./max.
3000
WVDC
min./max.
4000
WVDC
min./max.
5000
WVDC
min./max.
7200
WVDC
min./max.
2,200 - 2,700
3.3 - 6,800
1,500 - 1,800
3.3 - 4,700
820 - 1,200
3.3 - 2,700
470 - 680
3.3 - 1,800
330 - 390
3.3 - 1,000
3.3 - 270
3.3 - 680
3.3 - 6.8
3.3 - 390
3.3 - 180
3.3 - 100
100
