Crystal Clock Oscillators - Leaded
KXO-HC/KHO-HC
Series: HCMOS Drive -
TTL or CMOS Compatible
ƒo: 1 to 72MHz
HOW TO ORDER
KXO-HC 1 -TS E - 32.0000M T
1
23 4
5
6
1
Type:
KXO = 14 pin DIP; KHO = 8 pin DIP
2
Frequency Precision:
S = ±25ppm (special)
3
4
5
6
Specifications: TTL Compatible
CLASSIFICATION
Output Frequency
Frequency Precision
(Inclusive of Temp. Voltage variation)
0 = ±50ppm
1 = ±100ppm
Output Level/Duty Cycle:
TS = TTL compatible/45 to 55%
CS = CMOS compatible/45 to 55%
Enable/Disable Function:
Blank = without function
E = with function
Frequency
Standard Packaging:
T = tube (KXO-HC = 25 pcs.)
(KHO-HC = 40 pcs.)
CODE
f
OUT
RATING
1~50
50.1~72
0 : ±50
1 : ±100
±5
0~+70
-55~+125
5±0.5
50 max.
45~55
0.4 max.
2.4 min.
5.0 max.
3.5 max.
100 max.
10 max.
-150 max.
2.2 max.
0.8 max.
10
15 max.
5±0.25
70 max.
UNIT
MHz
ppm
ppm
ppm/year
°C
°C
V
mA
%
V
V
nsec
nsec
µA
µA
V
V
TTL
pF
REMARKS
———
Ta=0~+70°C
———
———
———
———
CL=15pF • 10TTL Load, Ta=25°C
1.4V DC Level
I
OL
=16mA
I
OH
=-1mA
0.4V~2.4V CL=15pF, • 10TTL Load
———
V
CC
=5.5V
V
CC
=5.5V
———
———
———
f/f
f/f
T
OPR
T
STR
V
cc
I
cc
Sy
V
OL
V
OH
T
R
, T
F
———
I
IH
I
IL
V
IH
V
IL
———
C
L
Aging Rate
Operating Temp.
Storage Temp.
Supply Voltage
Supply Current
Duty Ratio
Output 0 Level
Output
Output 1 Level
Rise/Fall Time
Time to Enable/Disable
Input Current
Input Voltage
Fan Out
Load Capacitance
Test Circuit
(KXO-HC-T/KHO-HC-T)
5.0V
TP
400
Shape of Output Wave
(KXO-HC-T/KHO-HC-T)
H
T
F
T
R
2.4V
14
8
A
V
DD
V
1.4V
KXO-HC
0.1 F
1
7
C
L
15pF
0.4V
L
A
B
A
DUTY RATIO= ____
A+B
CL = 15pF max (Inclusive of test jig and probe capacitance)
Additional information on this product is available from AVX’s catalog or AVX’s FAX Service.
Call 1-800-879-1613 and request document
#141.
Visit our website http://www.avxcorp.com
141

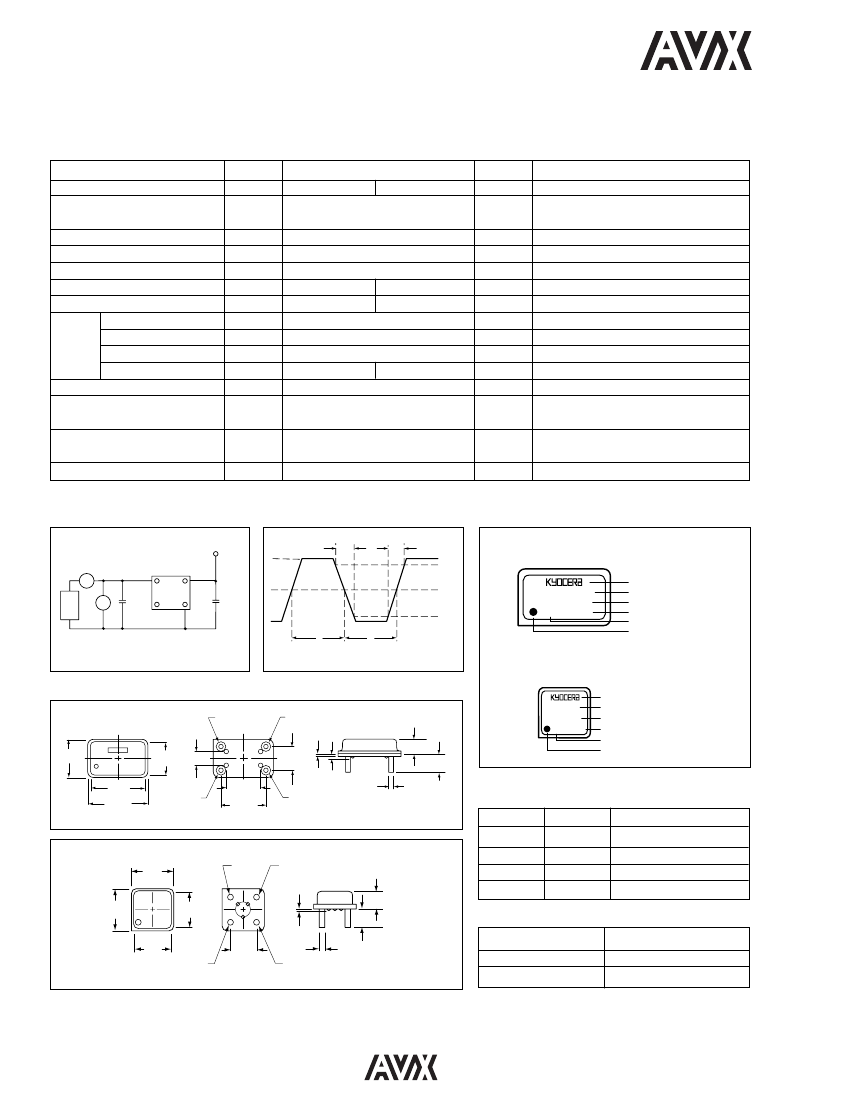

Crystal Clock Oscillators - Leaded
KXO-HC/KHO-HC Series HCMOS Drive -
TTL or CMOS Compatible
(Continued)
Specifications: CMOS Compatible
CLASSIFICATION
Output Frequency
Frequency Precision
(Inclusive of Temp. Voltage variation)
ƒo: 1 to 72MHz
CODE
f
OUT
RATING
1~50
50.1~72
0 : ±50
1 : ±100
±5
0~+70
-55~+125
5±0.5
50 max.
5±0.25
80 max.
UNIT
MHz
ppm
ppm
ppm/year
°C
°C
V
mA
%
V
V
nsec
nsec
µA
µA
V
V
pF
REMARKS
———
Ta=0~+70°C
———
———
———
———
CL=50pF, Ta=25°C
0.5V
CC
DC Level
I
OL
= 16mA
I
OH
= 1mA
0.1
CC
~0.9
CC
CL=50pF
———
V
CC=
5.5V
V
CC=
5.5V
———
———
f/f
f/f
T
OPR
T
STR
V
cc
I
cc
Sy
V
OL
V
OH
T
R
, T
F
———
I
IH
I
IL
V
IH
V
IL
C
L
Aging Rate
Operating Temp.
Storage Temp.
Supply Voltage
Supply Current
Duty Ratio
Output 0 Level
Output
Output 1 Level
Rise/Fall Time
Time to Enable/Disable
Input Current
Input Voltage
Load Capacitance
45~55
0.1V
CC
max.
0.9V
CC
min.
10 max.
6 max.
100 max.
10 max.
-150 max.
2.2 max.
0.8 max.
50 max.
Test Circuit
(KXO-HC-C/KHO-HC-C)
T.P.
Shape of Output Wave
(KXO-HC-C/KHO-HC-C)
H
T
F
T
R
0.9V
Markings
KXO-HC
0.5V
A
V
DD
V
8
5
KHO-HC
0.1 F
1
4
C
L
50pF
0.1V
L
KXO-HC-TSE
42.0000 MHz
9907 Japan
CL = 50pF max (Inclusive of test jig and probe capacitance)
A
B
A
DUTY CYCLE= ____
A+B
MFG. ID
PART NUMBER
OUTPUT FREQUENCY
COUNTRY OF ORIGIN
DATE CODE
DOT (INDICATING PIN 1)
KHO-HC
HCI-TS
24.0000
9907 JPN
4.93
(.194)
6.35
±0.5
(.250
±.02
)
Dimensions and PIN Identification
KXO-HC
13 max.
(.512)
11 max. 4.58
±0.5
(.433)
(.180
±.02
)
#1
#7
0.8
(.031)
7.62
±0.3
(.300
±.01
)
0.5
(.020)
4 - 0.45 (.018)
MFG. ID
PART NUMBER
OUTPUT FREQUENCY
COUNTRY OF ORIGIN
DATE CODE
DOT (INDICATING PIN 1)
19 max.
(.748)
21 max.
(.827)
12.2
±0.5
(.480
±.02
)
#14
15.24
±0.3
(.600
±.01
)
#8
Pin Connection
KXO
1
7
8
14
mm (inch)
KHO
1
4
5
8
N.C. or Control
Case/GND
Output
+5.0V D.C.
KHO-HC
12.9
(.508)
#1
#4
0.8
(.031)
5.08
(.200)
6.35
(.250)
12.9
(.508)
10.8
(.425)
Enable / Disable Function Chart
Pin 1
High or Open
Low
10.8
(.425)
7.62
(.300)
#8
#5
4 - 0.55max.
(.022)
Pin 8
Oscillation
High Impedance
mm (inch)
Additional information on this product is available from AVX’s catalog or AVX’s FAX Service.
Call 1-800-879-1613 and request document
#142.
Visit our website http://www.avxcorp.com
142
