SPECIFICATIONS
1.Material:
A. Body: Nylon (PA66), UL94 V-0, color: see sheet 2
B. Screw: Steel, M2.5, Zinc plated
C. Contact: Brass, Nickel plated
D. Terminal block: Brass, Tin Plated
2. Wire Rating: 22-14 AWG
3. Electrical rating: 300V,10A
4. Power-Frequency withstand: AC 2500V/1min
6. Rated impulse voltage: 4000V/minus and plus 5 times each.
7. Wire strip length: .28 (7.0mm.)
8. Screw Torque (max): 3.0 lbf.in(or 0.34 N.m).
mm
---
---
---
---
---
DIA.
C
B
DIMENSION STYLE
SCALE
DESIGN UNITS
IN/MM
DESCRIPTION
4:1
TITLE
METRIC
THIRD ANGLE
PROJECTION
=
0
C
=
0
A
10. Number of circuits: 2 to 24, see sheet 2
B1
4 PLACES
3 PLACES
2 PLACES
1 PLACE
INCH
---
---
---
---
DRAWN BY
DATE
CHECKED BY
DATE
APPROVED BY
DATE

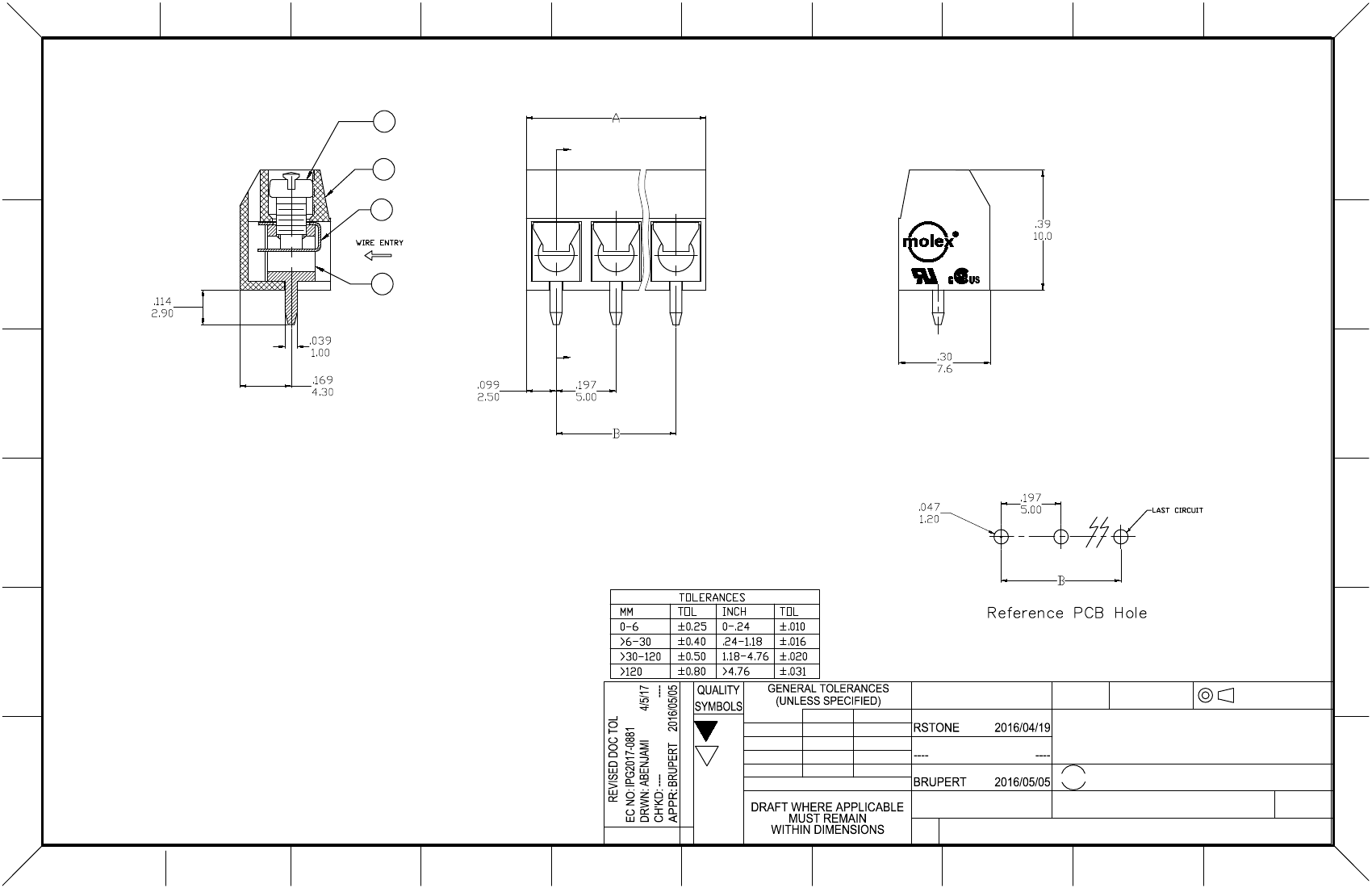

5.00MM (.197) PITCH
PC MOUNT, LOW PROFILE
molex
MOLEX INCORPORATED
DOCUMENT NO.
SHEET NO.
EURO TERMINAL BLOCK
A
MATERIAL NO.
SEE SHEET 2
