Data Bus (MIL-STD-1553B)
Components

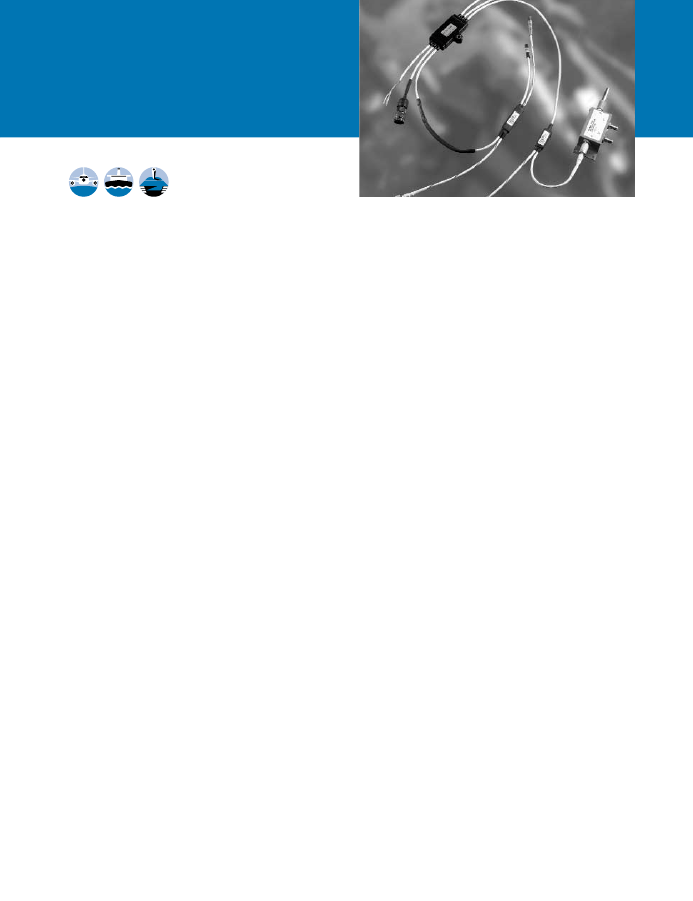

The full line of Raychem data bus products offers a
complete system of interconnection hardware for
all MIL-STD-1553B multiplexing needs.
Available components include:
Couplers (micros, boxes, flat packs).
Data bus cables.
Triax connectors and contacts with strain relief.
One-piece triaxial contacts for MIL-C-38999
connectors (size 8 cavity).
Bus and stub terminators.
Cable marker sleeves (TMS).
Lightweight couplers (see page 8-92).
Space components (see page 8-103).
Harness design (HarnWare).
All Raychem data bus components offer:
High packaging density and weight savings.
Design flexibility.
High performance (to 150°C rating).
Raychem MIL-STD-1553B data bus components
are also specified in the Air Force drawings listed in
Air Force Drawing 8340707.
Tyco Electronics also supplies complete Raychem data
bus networks in accordance with customer harness
drawings. Using factory-built harnesses eliminates
unnecessary splices and connectors, reducing the cost
and increasing the reliability of the networks. Factory-
built harnesses are pre-tested and ready for installation.
Users should independently evaluate the suitability of the product for their application.
Before ordering check with factory for most current data.
8-85 Electrical Interconnect Products
Data Bus (MIL-STD-1553B)
Components
Cables
Applications

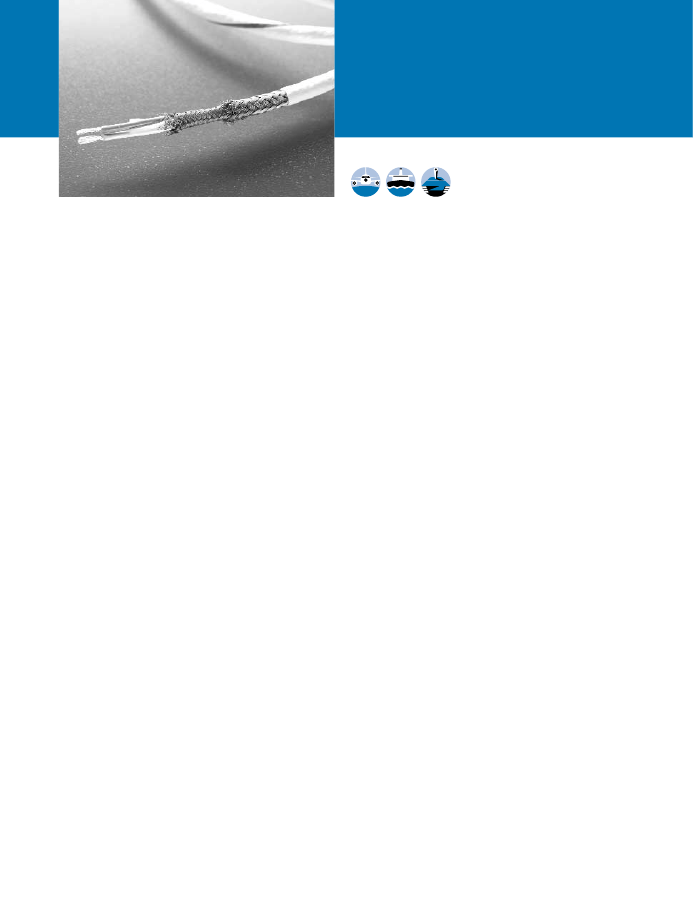

Tyco Electronics manufactures a line of Raychem
SPEC 55 data bus cables that meet or exceed the
performance requirements of MIL-STD-1553B.
SPEC 55 insulation is a high-temperature, radiation-
crosslinked, modified ETFE material that can be used
in wire constructions rated up to 200°C.
Features and benefits
Light weight.
Highly flexible.
Flame resistant.
Chemical resistant to all aircraft fluids.
Solder iron resistant.
Defined shielding levels.
Note:
Tyco Electronics will build harnesses with any
customer - specified cables and/or connectors.
8-86 Electrical Interconnect Products
Fax-on-demand
US only
(800) 260-9099
Outside US
(650) 257-2301
Fax ID
9040
Description
Cables and
markers bulletin
Visit our website at www.tycoelectronics.com
Specifications/approvals
Series
SPEC 55 insulation
Military
MIL-W-22759/32–/35
MIL-W-22759/41–/46
Product selection
Cable type
24 AWG single optimized shield
Part number
10612
24 AWG double optimized shield
10613
24 AWG EMP hardened
10614
24 AWG flat shield, unfilled
7724 E 2664
Users should independently evaluate the suitability of the product for their application.
Before ordering check with factory for most current data.
8-87 Electrical Interconnect Products
Data Bus (MIL-STD-1553B)
Components

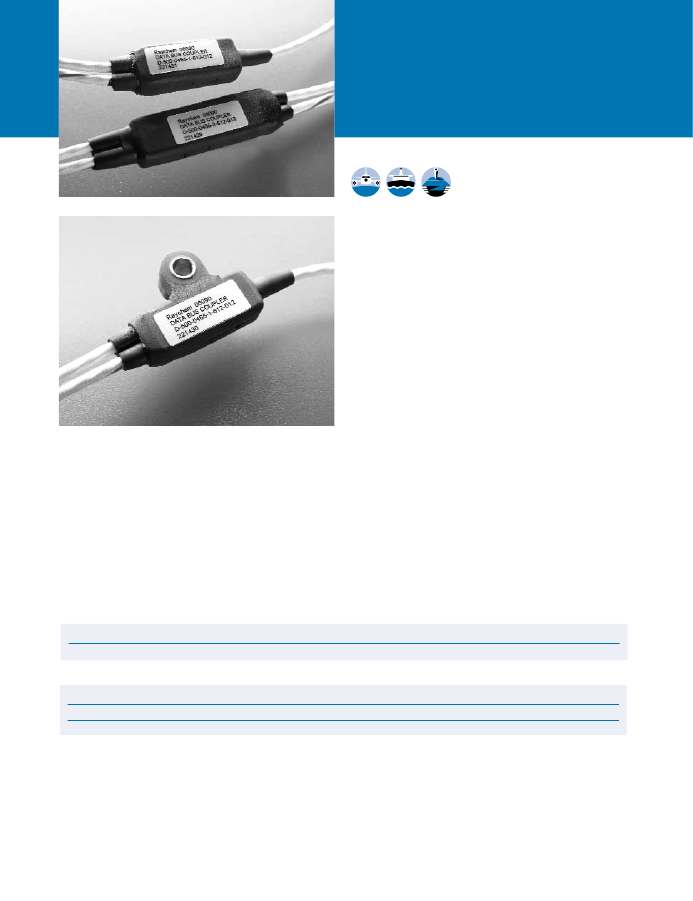

In-line microcouplers: one- and two stub
Applications
The low-profile configuration of these couplers enables
avionics system designers to plan for optimum coupler
locations. Microcouplers are supplied with Raychem
SPEC 55 data bus cables, including EMP-hardened
versions. They are also available assembled with other
components into a complete data bus harness.
Features and benefits
Environmental sealing.
No connectors.
Very small size.
Light weight (1 stub: 10 g max.; 2 stubs: 15 g max.).
In-line profile that makes wire bundle
mounting possible.
360° continuous low-impedance
cable-shield terminations.
Reliable solder termination of all components.
Potted circuit elements for maximum durability
and in-use reliability.
Ease of installation.
Altitude immersion resistance.
Optional eyelet configurations for
bulkhead mounting.
Mean time between failures > 1,000,000 hours.
Available in:
Americas
Europe
Asia Pacific
Specifications/approvals
Series
D-500-04
Military
MIL-STD-1553B
Raychem
D-6020
8-88 Electrical Interconnect Products
Fax-on-demand
US only
(800) 260-9099
Outside US
(650) 257-2301
Fax ID
8070
8080
Description
Microcoupler
bulletin
System bulletin
Visit our website at www.tycoelectronics.com
Product selection
Single stub
D-500-0455-1-YYY-ZZZ
Double stub
D-500-0455-2-YYY-ZZZ
D-500-0465-1-YYY-ZZZ
D-500-0465-2-YYY-ZZZ
D-500-0456-1-YYY-ZZZ
D-500-0456-2-YYY-ZZZ
D-500-0466-1-YYY-ZZZ
D-500-0466-2-YYY-ZZZ
D-500-0457-1-YYY-ZZZ
D-500-0457-2-YYY-ZZZ
D-500-0467-1-YYY-ZZZ
D-500-0467-2-YYY-ZZZ
D-500-0458-1-YYY-ZZZ
D-500-0458-2-YYY-ZZZ
D-500-0468-1-YYY-ZZZ
D-500-0468-2-YYY-ZZZ
Note:
1. Bus cable
2. Stub cable
Users should independently evaluate the suitability of the product for their application.
Before ordering check with factory for most current data.
8-89 Electrical Interconnect Products
