30FLZT-RSM1-TF(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 30FLZT-RSM1-TF(LF)(SN)

30FLZT-RSM1-TF(LF)(SN): DescriptionCard Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size166KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

30FLZT-RSM1-TF(LF)(SN) Overview

Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

30FLZT-RSM1-TF(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	ZIF
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

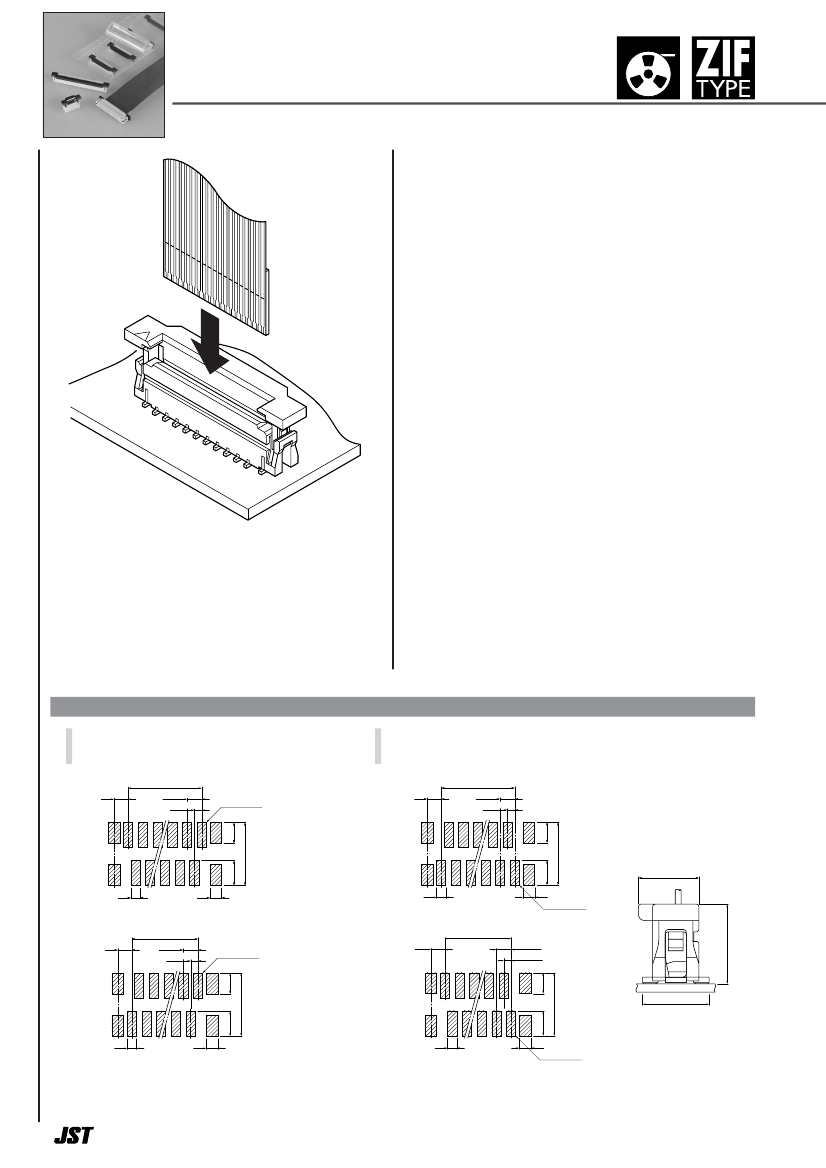

0.5mmピッチ

FLZT

CONNECTOR

0.5mm pitch/Connectors for FPC

Emboss Tape

Specifications –––––––––––––––––––

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/20m

Ω

max.

After environmental testing/40m

Ω

max.

• Insulation resistance:

100M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.5mm

Conductor width/0.35mm

Mating part thickness/0.3±0.05mm

Note

FPC to be actually used should be checked for applicability.

Vertical 0.5mm pitch ZIF type connector

with staggered solder tails. Both normal

type and reverse type are available.

• Zero insertion force mechanism

• Two types of connections

• Heat resisting design suitable for surface

mounting

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Certified LR20812

Reverse type

Recognized E60389

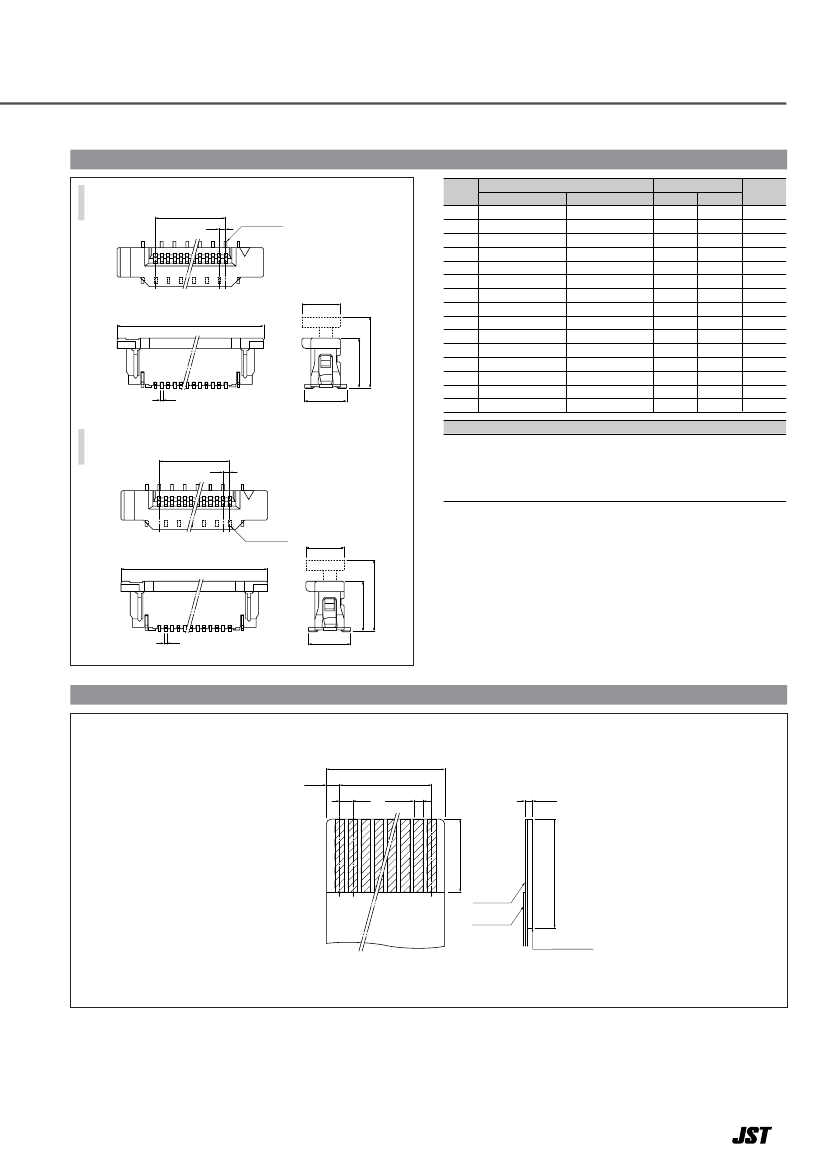

PC board layout (viewed from component side) and Assembly layout

Normal type

1.0

±0.1

1.0

±0.05

0.5

±0.05

1.0

Circuit No.1

±0.1

1.0

±0.05

0.5

±0.05

1.4

4.3

1.7

4.3

3.0

0.6

0.8

Odd number circuits

±0.1

1.0

±0.05

0.5

±0.05

0.6

Odd number circuits

±0.1

0.8

Circuit No.1

1.0

Circuit No.1

1.0

±0.05

0.5

±0.05

1.4

4.3

1.7

0.6

0.8

Even number circuits

0.6

Even number circuits

0.8

Circuit No.1

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

1.7

4.3

3.3

3.9
