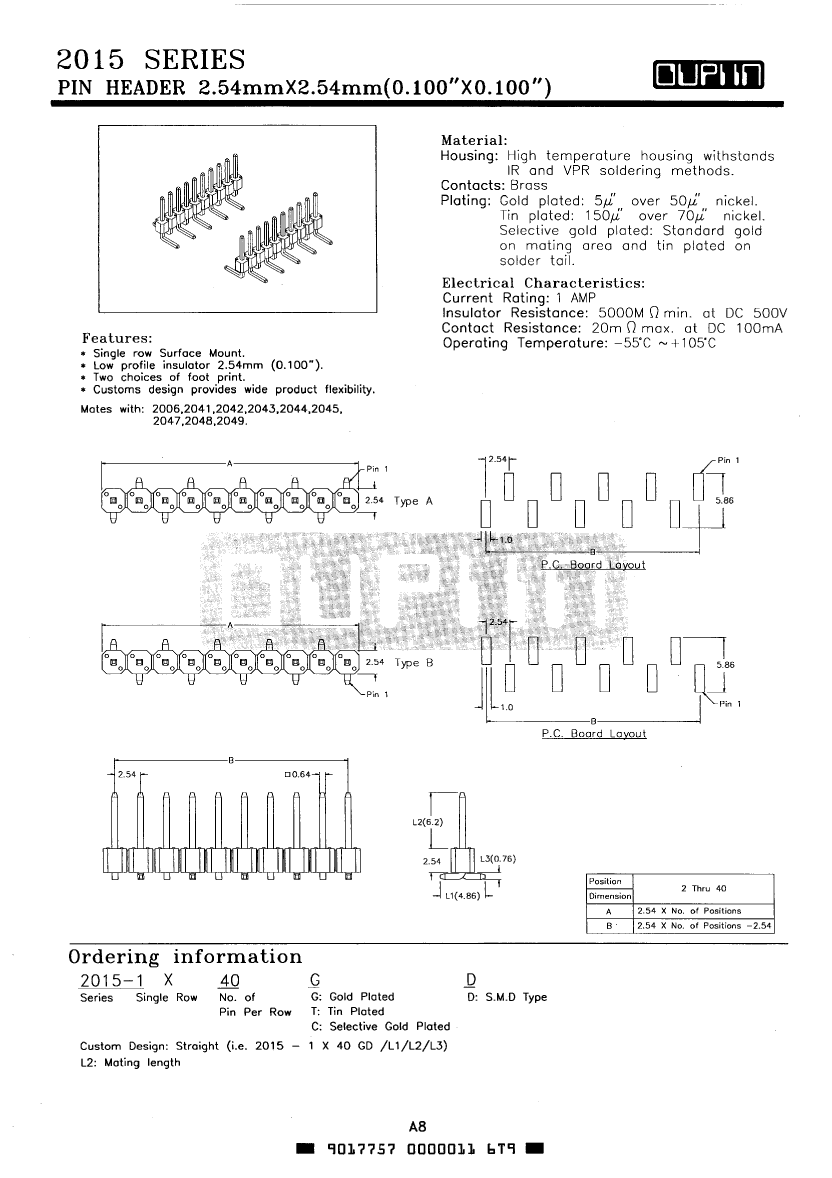

2015-1X15CD

Description
Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Receptacle
CategoryThe connector    The connector
File Size87KB,1 Pages
ManufacturerOUPIIN
Websitehttp://www.oupiin.com/index_ch.html
Environmental Compliance
Hongzhen's factories in Taiwan and China use fully automated production equipment and the highest technical standards. They are proud to have modern production equipment comparable to that of world-class factories. Hongzhen's products are widely used in various types of computers, communications, industrial production and electrical equipment, and their customers include major well-known companies around the world. All products are carefully designed by engineers to meet detailed testing requirements and strict working environment. Hongzhen's automated production process is integrated with a strict quality control system, and through sophisticated equipment, skilled technology and motivated staff, we achieve a perfection-oriented orientation. Hongzhen has always been able to provide consistent and reliable products at very competitive prices. In fact, it is because of this unremitting quality control spirit that Hongzhen has become an ISO9001 certified manufacturer. With ISO9001 certification, all customers can rest assured to cooperate with Hongzhen, because Hongzhen's products are beyond the industrial quality standards. In addition to quality, Hongzhen also pays great attention to the safety of product use, and constantly requires all products to pass UL, CUL, CSA and other well-known foreign safety certifications.
Download Datasheet Parametric View All

2015-1X15CD Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Receptacle

2015-1X15CD Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid301433599
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.1 inch
subject depth0.1 inch
body length1.5 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Insulation resistance5000000000 Ω
insulator materialPOLYETHYLENE
JESD-609 codee3
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.921 mm
Plating thickness5u inch
Rated current (signal)1 A
Terminal pitch5.08 mm
Total number of contacts15
