ASRM1FB2M87 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> ASRM1FB2M87

ASRM1FB2M87: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 1W, 1%, 2870000ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size111KB，3 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

ASRM1FB2M87 Overview

RESISTOR, METAL GLAZE/THICK FILM, 1W, 1%, 2870000ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

ASRM1FB2M87 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1008492041
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e2
Manufacturer's serial number	ASRM
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	2870000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	2000 V

Preview

Download Datasheet

View All

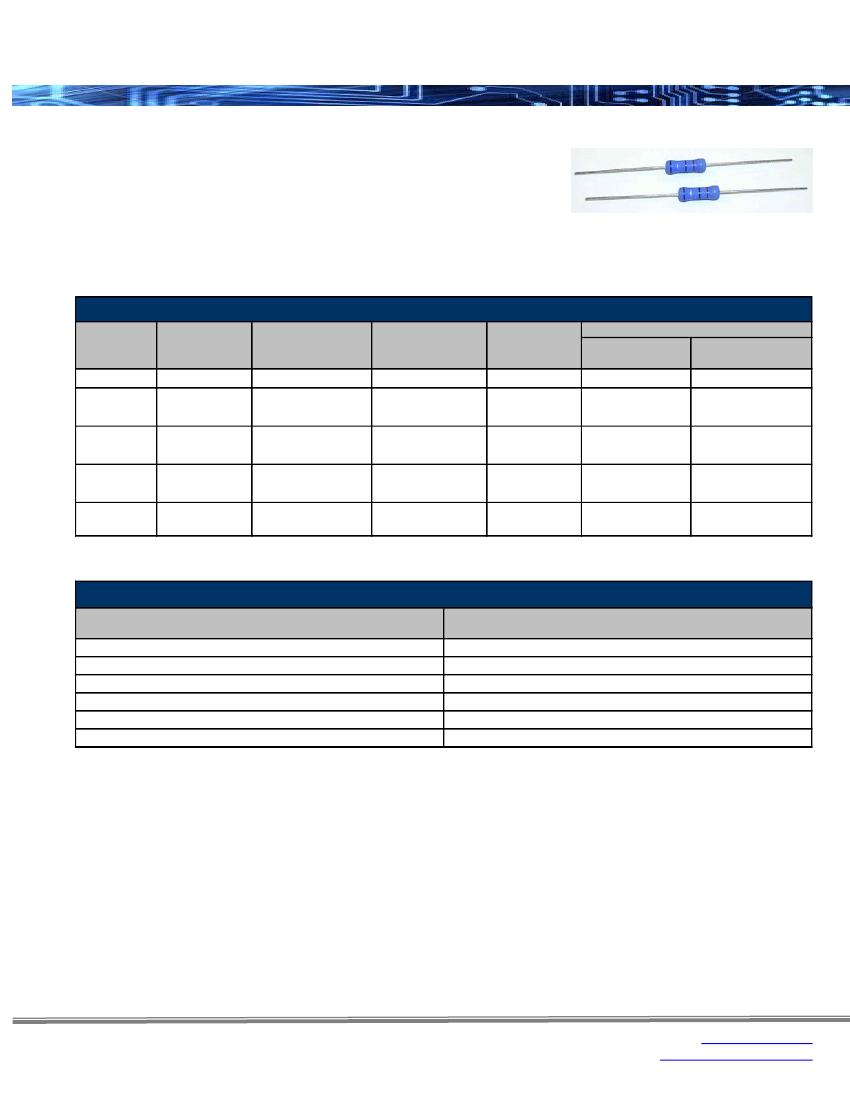

ASR/ASRM Series

Anti-Surge Resistor

Stackpole Electronics, Inc.

Resistive Product Solutions

Features:

•

Excellent anti-surge characteristics

Stable characteristics through the resistance range

Good alternative to carbon composition resistors

Applications include power supplies, CRT’s, and anti-surge

circuits

Cut and formed product is available on select sizes; contact

factory for details

RoHS compliant / lead-free

Electrical Specifications

Type / Code

ASRM14

ASR14

ASRM12

ASRM1

ASR1

Power Rating

(Watts) @ 70ºC

0.25W

0.5W

Maximum Working

Voltage (1)

500V

DC 1,600V

AC 1,150V

2,000V

Maximum Overload

Voltage

1,000V

DC 2,000V

AC 1,500V

2,500V

3,000V

Surge

Withstanding

2KV

1KV

3KV

5KV

10KV

5KV

10KV

5KV

10KV

Ohmic Range (Ω) and Tolerance

Metal Glazed Film

Special Film

1%, 2%, 5%

10 - 510K

560K - 12M

10 - 510K

560K - 12M

10 - 510K

560K - 12M

10 - 510K

560K - 12M

100K - 22M

100K - 510K

560K - 33M

100K - 510K

560K - 100M

100K - 510K

560K - 100M

100K - 510K

560K - 100M

(1) Lesser of

√PR

or maximum working voltage.

Performance Characteristics

Test

Moisture Resistance

Temperature Cycling

Load Life

Resistance to Soldering Heat

Overload (short time)

Discharge

Operating Temperature Range: -55°C to +155°C

Test Results

± 5%

± 1%

± 5%

± 1%

± (2%+0.05Ω)

± (10%+0.05Ω)

Rev Date: 03/24/2011

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com
