ZM50E70A01 Overview

switch pin plunger spdt 5A 125v

Preview

Download Datasheet

View All

MICRO SWITCH™

Basic Switches

Line Guide

The switch is on.

Simple, superior, durable, and irreplaceable

even by 21st-century standards, the MICRO SWITCH™

technology cycles on. Today, Honeywell Sensing and Control

(S&C) manufactures millions of MICRO SWITCH™ basic switches

annually for water and irrigation, aerospace and defense,

industrial, off-highway, and medical applications. They are

globally compliant, and known worldwide for their compact and

lightweight design, accurate repeatability, and extended life.

Looking for enhanced accuracy and repeatability? Our premium

line of MICRO SWITCH™ Large and Subminiature switches were

designed for high-precision applications. Originally developed

to support United States aircraft in World War II, advancements

in packaging and operating controls have helped further expand

applications over the past 75 years while maintaining enhanced

accuracy and repeatability. Our standard line of basic switches

includes our V15 series, and is designed with the same high

quality standards, but for low cost-of-failure applications – ones

where the cost of replacing the switch is less than the cost of a

switch failing.

MICRO SWITCH™ V-Basic series switches are often best suited

for presence and absence detection where physical contact with

an object is permissible. They also excel in applications requiring

simple on-and-off actions.

FEATURES

PREMIUM V-BASIC SWITCHES

V7 Series.

Features:

Best suited for higher cost-

of-failure applications • Designed for

100K operations at a full load or 10M for

mechanical life • World-wide package size

acceptance • Current rating ranges from

0.1 A to 25 A • UL/CSA recognized, ENEC

(European) approval available • Choice

of actuation, termination and operating

characteristics

Benefits: “Premium”

product line. For

broad range electrical loads and

operating force in high cost-of-failure

potential applications: appliances, timing

devices, office equipment, computer/

business equipment, test instruments,

manually operated devices, and valves.

ENEC, and CQC) • Limited configuration

options available

Benefits:

“Standard” product line.

Series for low cost-of-failure potential

applications: appliances, gaming, vending

machines, water heaters, and industrial

controls.

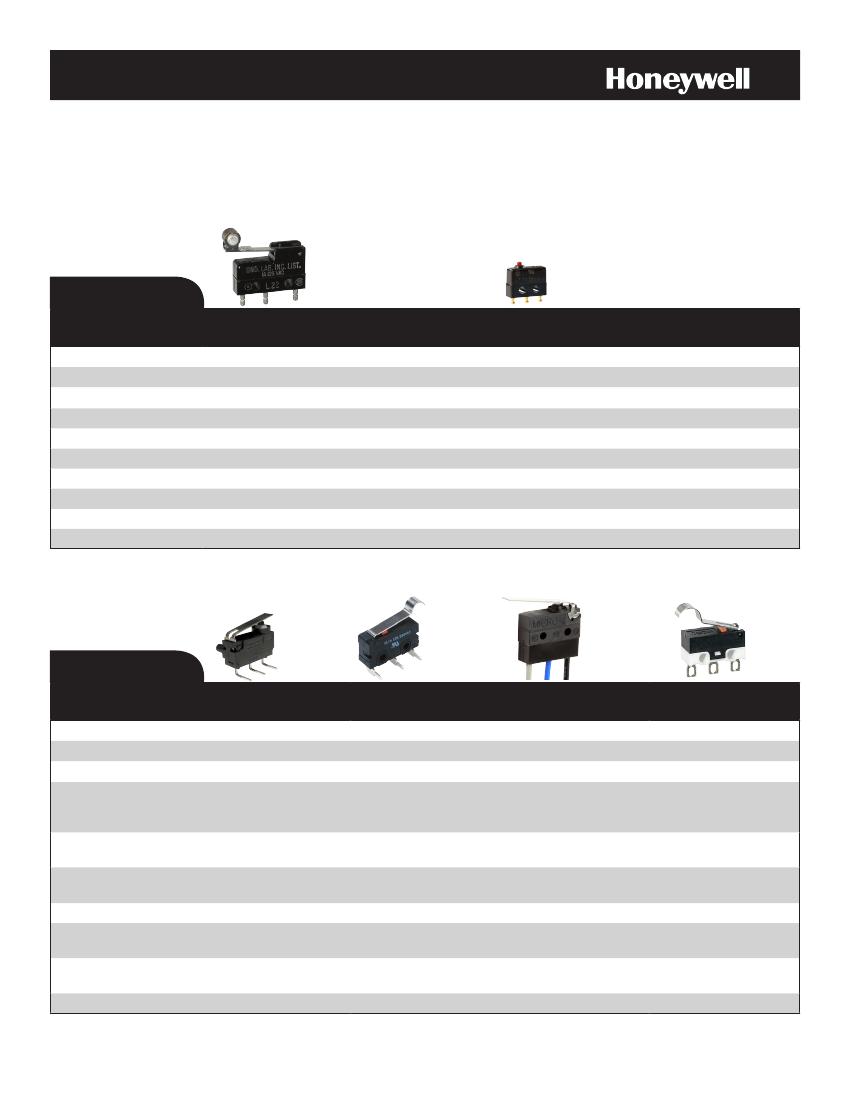

PREMIUM MINIATURE/

SUBMINIATURE SWITCHES

SM Series.

Features:

Extended operating life

• Elongated mounting hole provides for

easier, more accurate mounting • Choice

of actuation, electrical termination, and

operating characteristics (sensitive

differential travel as low as 0,0254 mm

[0.001 in] maximum, low operating force to

0,56 N [2.0 oz] maximum) • MIL-PFR-8805

qualified listings available

Benefits:

Small size and light weight are

combined with ample electrical capacity,

precision operation, and extended life.

Features high precision and repeatability.

Options available (gold contacts for

low energy switching, bifurcated gold

contacts for maximum reliability, power

load switching capability to 11 A).

Potential applications include aerospace,

instrumentation, appliances, office

equipment, medical/dental equipment,

valves, and more.

WATERTIGHT SWITCHES

V15W Series.

Features:

Designed for harsh-duty,

wash down areas • Delivers high sealing

capability with an IP67 rating (pre-leaded

only) • Gives highly accurate machine

control for turning circuits on and off

• Current ratings of 0.1 A, 5 A, 10 A

• Global approvals (UL, cUL, ENEC, and

CQC)

Benefits:

compact, lightweight and long-

lasting basic switch. Potential applications

include appliances, HVAC wall controls,

valves, automotive, truck, and boat wire

harnesses, lock modules for tail-gate/

trunk, sub-assemblies for convertible

roofs, foot pedal controls.

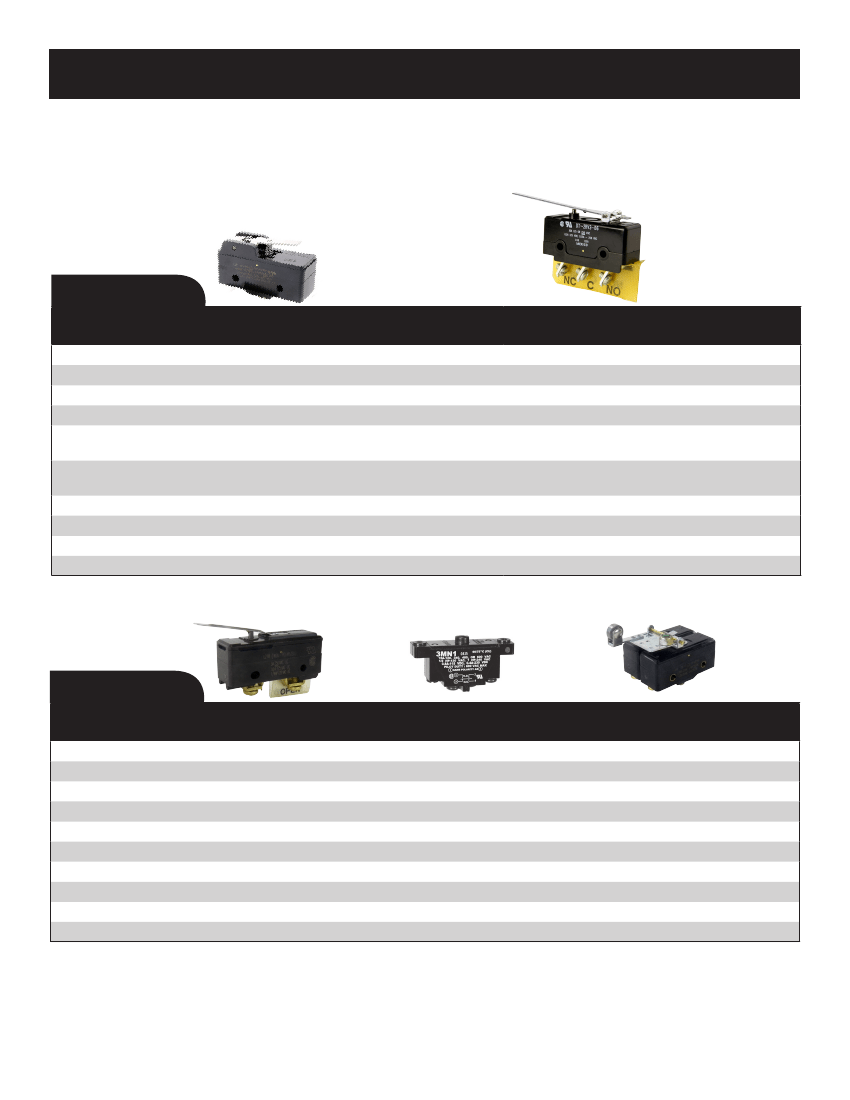

STANDARD V-BASIC SWITCHES

V15 Series.

Features:

Best suited for lower cost-

of-failure applications • Designed for

50K operations at a full load or 5M for

mechanical life • Worldwide package size

acceptance • Current ratings of 5 A to

26 A • Global approvals (UL/CSA, cUL,

continued on page 6
