B065-0104-008-Z: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size207KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B065-0104-008-Z Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

B065-0104-008-Z Parametric

Parameter Name	Attribute value
Objectid	304395536
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.331 inch
subject depth	0.545 inch
body length	0.52 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.087 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

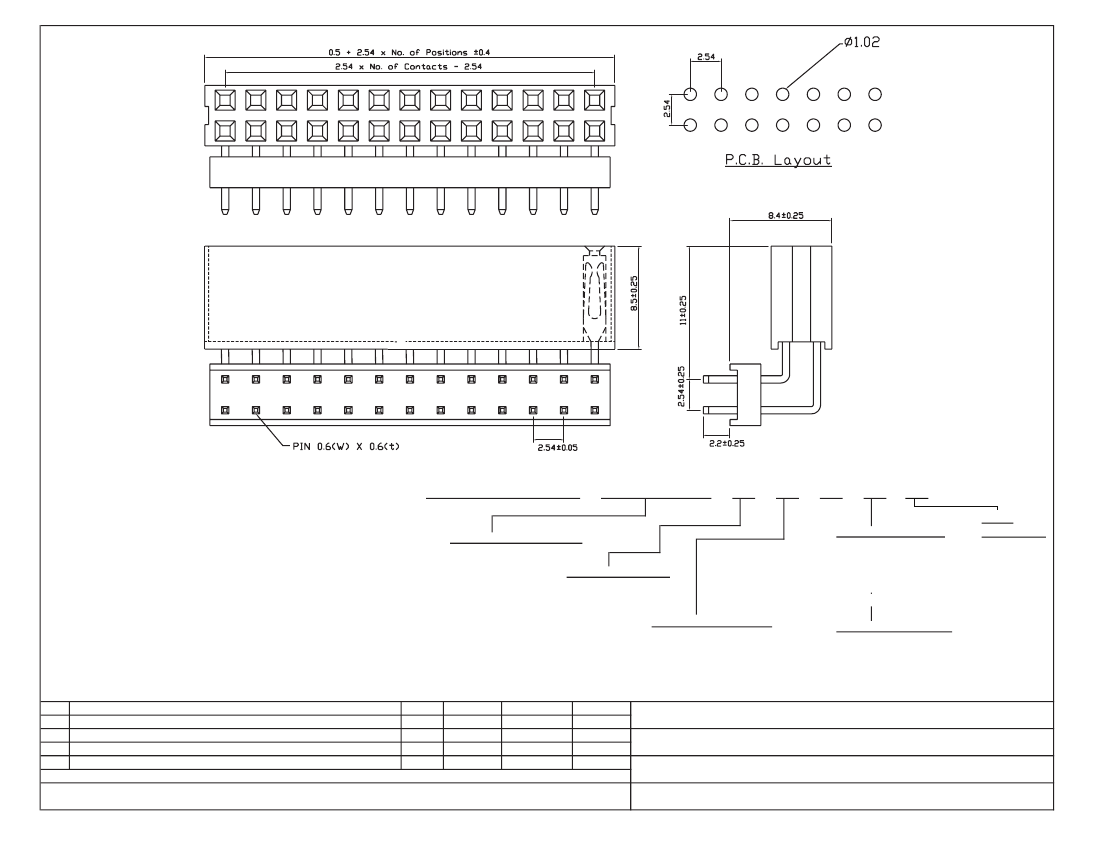

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

NUMBER OF CONTACTS:

006 thru 080

NUMBER OF ROWS:

4 - DOUBLE ROW

RIGHT ANGLE

NUMBER OF STACKS:

0 - RIGHT ANGLE

1 - ONE

2 - TWO

3 - THREE

4 - FOUR

Drawn Checked

S.M.

A.M.

B.S.

S.M.

Date

Appproved

S.M.

11/06/03

S.M.

12/15/06

CURRENT RATING: 3A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 5000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

CONTACT: PHOSPHOR BRONZE

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

Elevated Receptacle, Right Angle, 2.54mm Pitch, Double Row

Thru Hole, Side Entry

P/N: B065-0XX4-00X-Z

Pg: 1
