Ordering number :EN4690
1SS375
Schottky Barrier Diode
VHF, UHF Detector and Mixer Applications
Features
· Series connection of 2 elements in a very small-sized
package facilitates high-density mounting and
permits 1SS375-applied equipment to be made
smaller.
· Small interterminal capacitance.
· Low forward voltage.
· High breakdown voltage.
Package Dimensions
unit:mm
1246A
[1SS375]
1:Anode
2:Cathode
3:Cathode, Anode
SANYO:MCP
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Reverse Voltage
Forward Current
Junction Temperature
Storage Temperature
Symbol
VR
IF
Tj
Tstg
Conditions
Ratings
10
35
125
–55 to +125
Unit
V
mA
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Forward Voltage
Forward Current
Reverse Current
Interterminal Capacitance
Forward Voltage Difference
Interterminal Capacitance Difference
Symbol
VF(1)
VF(2)
IF
IR(1)
IR(2)
C
∆V
F
∆C
IF=1mA
IF=10mA
VF=1V
VR=2V
VR=10V
VR=0V, f=1MHz
IF=10mA
VR=0V, f=1MHz
Conditions
Ratings
min
350
480
35
0.2
10
0.85
10
0.1
typ
max
420
580
Unit
mV
mV
mA
µA
µA
pF
mV
pF
· Marking:FH
Electrical Connection
1:Anode
2:Cathode
3:Cathode, Anode
(Top view)
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33098HA (KT)/42294YH (KOTO) BX-0589 No.4690-1/2

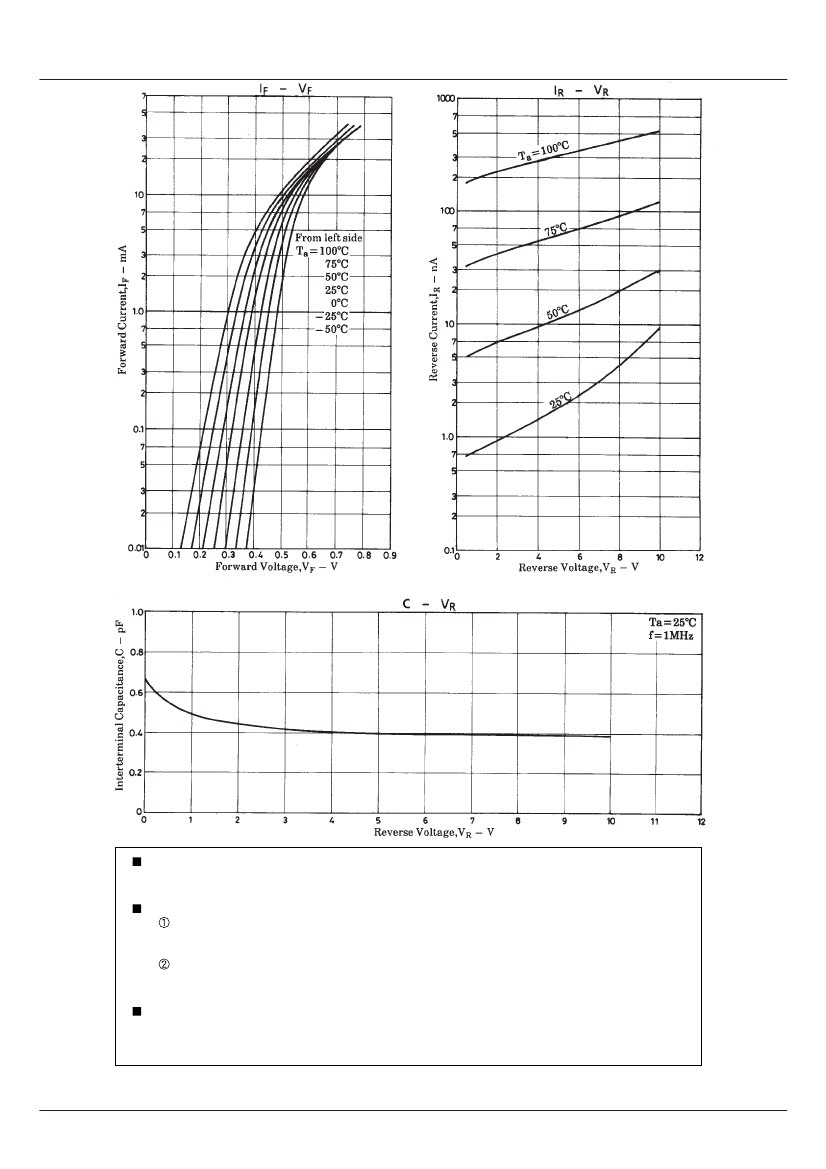

1SS375
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of March, 1998. Specifications and information herein are subject to
change without notice.
PS No.4690-2/2
