9922150003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 9922150003

Preview

9922150003: Descriptioncir brkr 15a 480vac 65vdc; CategoryCircuit protection; File Size38KB，1 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet View All

9922150003 Overview

cir brkr 15a 480vac 65vdc

Preview

Download Datasheet

View All

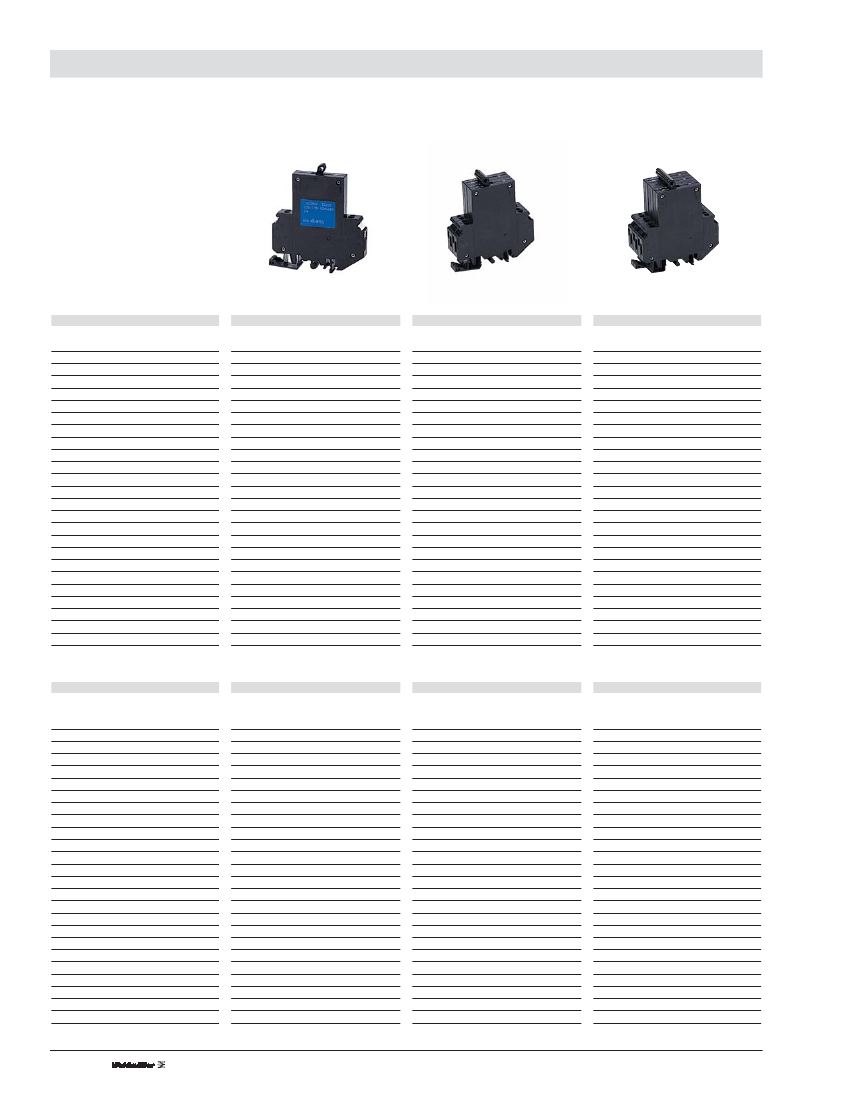

C B 2 2 0 0 S e r i e s S u p p l e m e n t a l C i rc u i t B re a k e r s

Circuit Breakers

Thermal Magnetic Type

• Rated from 0.1 to 32.0 amps

• Available in single, double and triple

pole configurations

• Offers normally open (N/O) and normally

closed (N/C) auxiliary contacts

• Lever-switch trip/reset function

• Mounts on 32mm or 35mm DIN-rail

• UL 1077 recognized

CB2200 Series

Single Pole

CB2200 Series

Double Pole

CB2200 Series

Triple Pole

Ordering Data

Type: Single Pole*

Current Ratings

(amps)

0.1

0.2

0.3

0.4

0.5

0.6

0.8

1.0

1.5

2.0

2.5

3.0

4.0

5.0

6.0

8.0

N/O Aux.

Part No.

9911010005

9911020005

9911030005

9911040005

9911050005

9911060005

9911080005

9911100005

9911150005

9911200005

9911250005

9911300005

9911400005

9911500005

9911600005

9911800005

9921100005

9921120005

9921150005

9921160005

9921180005

9921200005

9921250005

9921320005

Type: Double Pole

Current Ratings

(amps)

0.1

0.2

0.3

0.4

0.5

0.6

0.8

1.0

1.5

2.0

2.5

3.0

4.0

5.0

6.0

8.0

N/O-N/C

Part No.

9912010003

9912020003

9912030003

9912040003

9912050003

9912060003

9912080003

9912100003

9912150003

9912200003

9912250003

9912300003

9912400003

9912500003

9912600003

9912800003

9922100003

9922120003

9922150003

9922160003

9922180003

9922200003

Type: Triple Pole

Current Ratings

(amps)

0.1

0.2

0.3

0.4

0.5

0.6

0.8

1.0

1.5

2.0

2.5

3.0

4.0

5.0

6.0

8.0

N/O-N/C

Part No.

9913010003

9913020003

9913030003

9913040003

9913050003

9913060003

9913080003

9913100003

9913150003

9913200003

9913250003

9913300003

9913400003

9913500003

9913600003

9913800003

9923100003

9923120003

9923150003

9923160003

9923180003

9923200003

*All part numbers with N/O Auxiliary Contacts on each pole when the main breaker contact is open (in the OFF position)

Ordering Data

Type: Single Pole

Type: Double Pole

Type: Triple Pole

All part numbers with N/C Auxiliary Contacts on each pole when the main breaker contact is open (in the OFF position)

Current Ratings

(amps)

Part No.

(amps)

Part No.

(amps)

Part No.

0.1

9911010000

0.1

9912010000

0.1

9913010000

0.2

9911020000

0.2

9912020000

0.2

9913020000

0.3

0.4

0.5

0.6

0.8

1.0

1.5

2.0

2.5

3.0

4.0

5.0

6.0

8.0

9911030000

9911040000

9911050000

9911060000

9911080000

9911100000

9911150000

9911200000

9911250000

9911300000

9911400000

9911500000

9911600000

9911800000

9921100000

9921120000

9921150000

9921160000

9921180000

9921200000

9921250000

9921320000

0.3

0.4

0.5

0.6

0.8

1.0

1.5

2.0

2.5

3.0

4.0

5.0

6.0

8.0

9912030000

9912040000

9912050000

9912060000

9912080000

9912100000

9912150000

9912200000

9912250000

9912300000

9912400000

9912500000

9912600000

9912800000

9922100000

9922120000

9922150000

9922160000

9922180000

9922200000

9922250000

9922320000

0.3

0.4

0.5

0.6

0.8

1.0

1.5

2.0

2.5

3.0

4.0

5.0

6.0

8.0

9913030000

9913040000

9913050000

9913060000

9913080000

9913100000

9913150000

9913200000

9913250000

9913300000

9913400000

9913500000

9913600000

9913800000

9923100000

9923120000

9923150000

9923160000

9923180000

9923200000

9923250000

9923320000
