FNF05MB-684

Description
Fixed Resistor, Metal Glaze/thick Film, 0.125W, 680000ohm, 150V, 20% +/-Tol, -100,100ppm/Cel, 0805,
CategoryPassive components    The resistor
File Size444KB,5 Pages
ManufacturerProsperity Dielectrics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

FNF05MB-684 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 680000ohm, 150V, 20% +/-Tol, -100,100ppm/Cel, 0805,

FNF05MB-684 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid946812351
Reach Compliance Codecompliant
ECCN codeEAR99
structureChip
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.5 mm
Package length2 mm
Package formSMT
Package width1.25 mm
method of packingBulk
Rated power dissipation(P)0.125 W
resistance680000 Ω
Resistor typeFIXED RESISTOR
seriesFNF
size code0805
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient100 ppm/°C
Tolerance20%
Operating Voltage150 V

FNF05MB-684 Preview

信昌電子陶瓷股½有限公司
Prosperity Dielectrics Co., Ltd.
No. 148, Chang-An Road, Sec 1,Lu-Tsu Shiang, Taoyuan, Taiwan, ROC.
Tel.:886-3-3224471
Fax:886-3-3212216
SPECIFICATION FOR APPROVAL
DATE:
CUSTOMER:
PART NAME:
Thick Film Lead Free Surge Chip Resistors
LIMTTED COMPANY
CUSTOMER'S DWG. NO.
CUSTOMER'S PART NO.
PDC PART NO.
FNF Series Approved
DESCRIPTION.
ACTION
RESULT
"
ˇ"
CUSTOMER'S
SIGNATURE
NOTE
FULL APPROVED
CONDITIONAL APPROVED
REJECTED
OUR ACTION
PREPARED BY
CHECKED BY
APPROVED BY
SIGNATURE
Angel Wu
James Tseng
Roger Hsu
CUSTOMER SIGNATURE FOR ACCEPTANCE
Edition
:
F N F - R e v . 11 . 0
Serial Number
:
PDC
FNF Series
Thick Film Lead Free Surge Chip Resistors
Features
‧Small
size and lightweight with size range per int'l standard
‧Highly
stable in auto-placement surface mounting application
‧Suitable
for withstanding circuit for surge voltage
‧RoHS
compliant & Halogen Free
Applications
‧CD-ROM
‧Power
supply
‧Automotive
industry
‧Measurement
instrument
‧Medical
or Military equipment
‧Electronic
watch and camera
Configuration
Dimensions
S ize
0603
0805
1206
2010
2512
L
1.60±0.10
2.00±0.10
3.10±0.10
5.00±0.20
6.40±0.20
W
0.80±0.10
1.25±0.10
1.60±0.10
2.50±0.20
3.20±0.20
C
0.30± 0.10
0.40± 0.20
0.50± 0.20
0.65± 0.25
0.65± 0.25
D
0.30±0.15
0.40±0.20
0.45±0.20
0.60±0.25
0.90±0.25
T
0.45±0.15
0.50±0.15
0.60±0.15
0.55±0.10
0.60±0.10
473
(unit: mm)

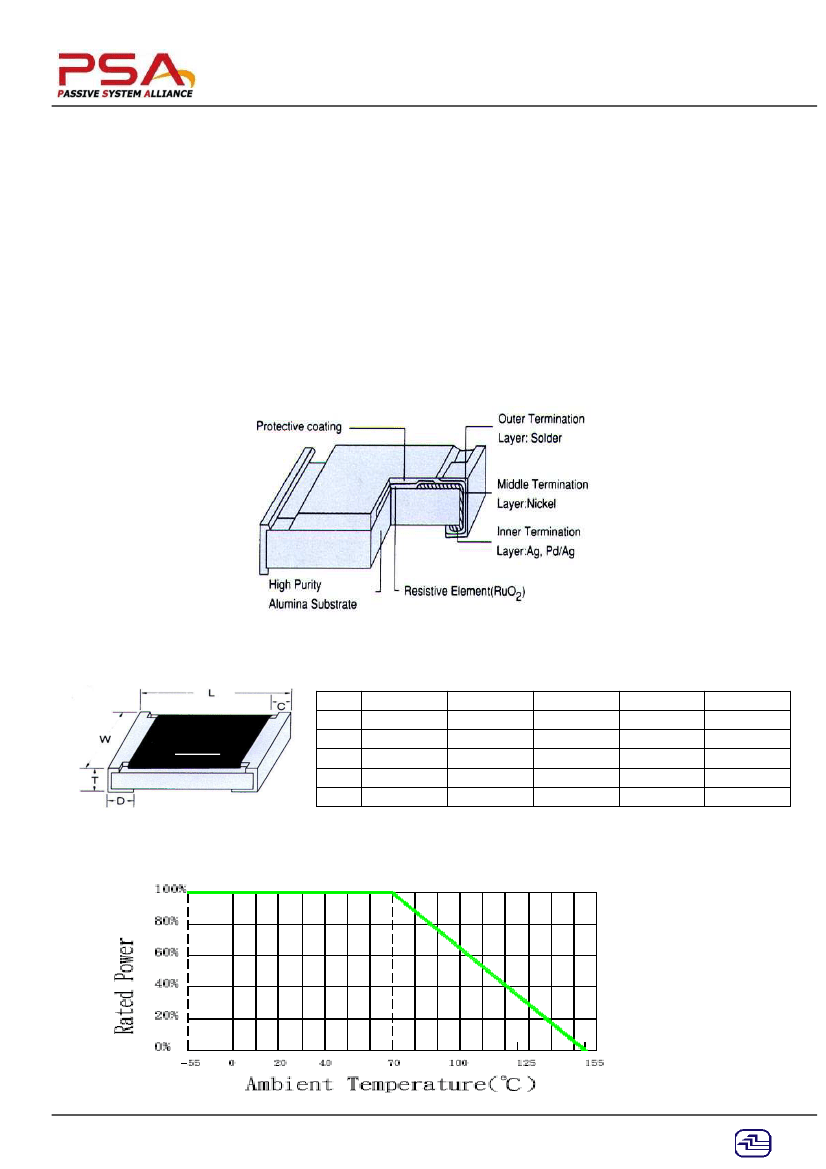

Power Derating Curve
Prosperity Dielectrics Co.,Ltd.
1/4
F N F- R e v. 11.0
PDC
FNF Series
Thick Film Lead Free Surge Chip Resistors
Rating
Type
Size
Power
Rating
at 70℃
1/10W
1/8W
1/4W
1/2W
1W
Max.
RCWV
50V
150V
200V
200V
200V
Max. Overload
Voltage
100V
300V
400V
400V
400V
±5%(J)
±10%(K)
±15%(L)
±20%(M)
Resistance
Tolerance
(%)
Temperature
Coefficient
(TCR; ppm/℃)
Resistance
Range
Min.
Max.
Standard
Resistance
Values
FNF03
FNF05
FNF06
FNF20
FNF25
0603
0805
1206
2010
2512
±100
1MΩ
E-24

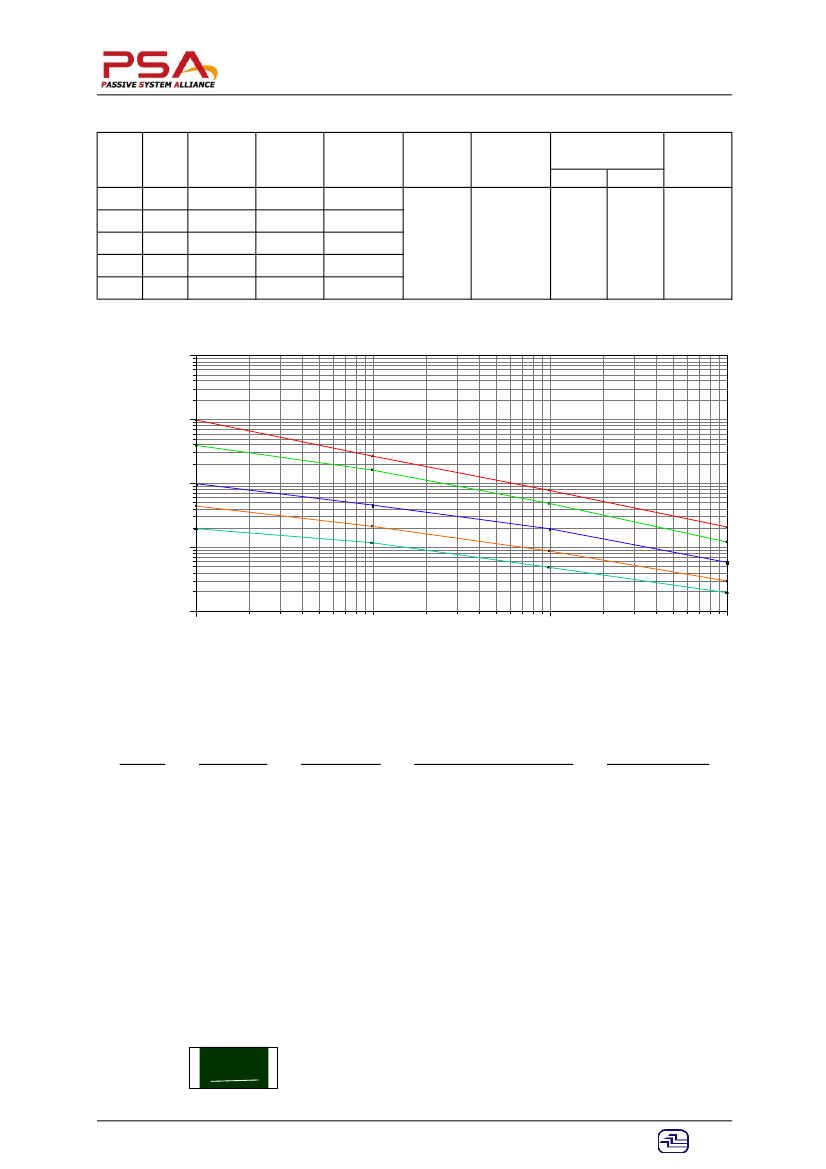

Surge Performance
0603,0805,1206,2010,2512
10000
1000
Peak Power
(Watt)
100
2512
1206
10
2010
0603
0805
1
.001
1ms
.01
10ms
100ms
.1
1s
1
Surge duration
Part Number
FNF
Type
FNF
05
Size
03
:
0603
05
:
0805
06
:
1206
20
:
2010
25
:
2512
K
Tolerance
J
:
±
5%
K
:
± 10%
L
:
± 15%
M
:
± 20%
T
Packing
T
:
Paper tape
V
:
Paper tape
W
:
Paper tape
-
5Kpcs
- 10Kpcs
- 20Kpcs
4Kpcs
8Kpcs
-
473
GM
P
:
Plastic tape -
X
:
Plastic tape -
B
:
Bulk Case
0805 - 10Kpcs
0603 - 25Kpcs
Y
:
Plastic tape - 16Kpcs
Resistance Marking
E - 24 SERIES
3 digit marking
473
Prosperity Dielectrics Co.,Ltd.
Underline for identification sruge resistors
examples:
473
47×10
3
= 47KΩ
2/4
F N F- R e v. 11.0
PDC
FNF Series
Thick Film Lead Free Surge Chip Resistors
SPECIFICATION

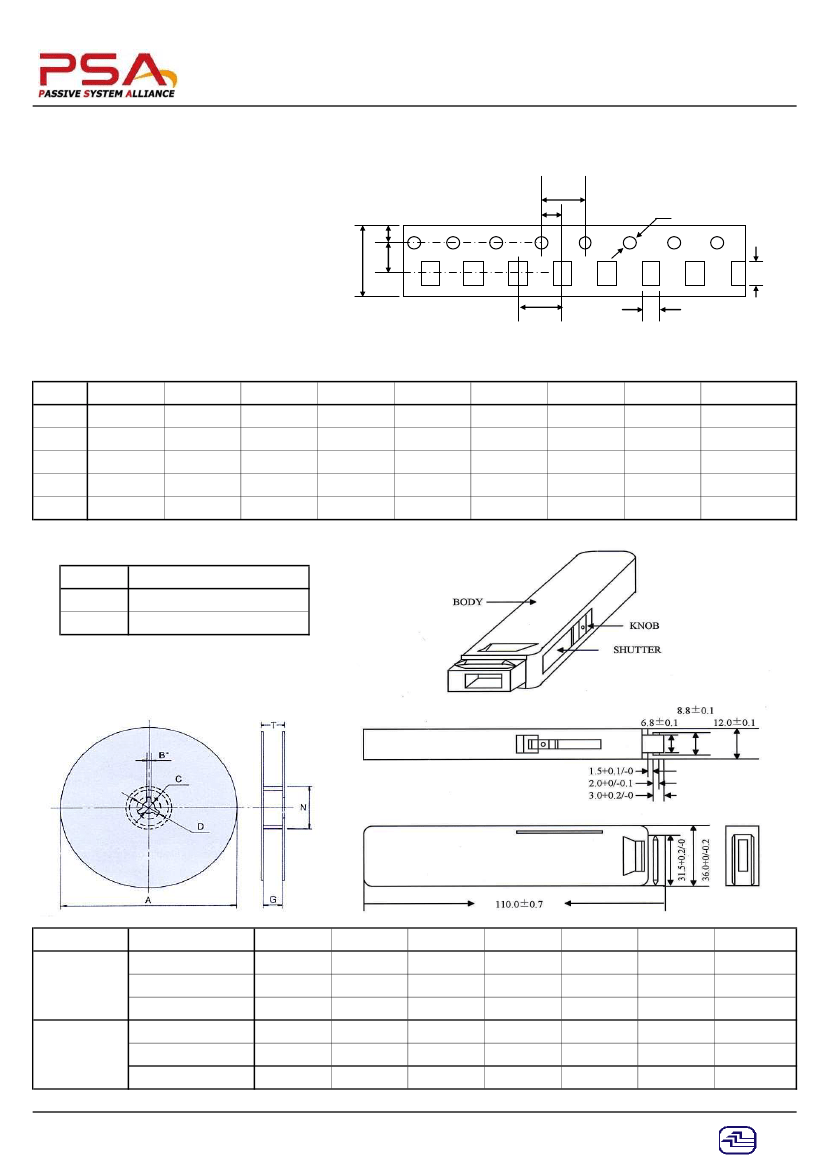

Tape And Reel Package
‧Taping
specs are according to EIA RS-481
E
W
F
P
2
P
0
D
B
P
1
A
Accumulated dimensional tolerance 40±0.2mm
Size
0603
0805
1206
2010
2512
A
1.10±0.20
1.65±0.20
2.00±0.20
2.80±0.20
3.50±0.20
B
1.90±0.20
2.40±0.20
3.60±0.20
5.50±0.20
6.70±0.20
W
8.00±0.30
8.00±0.30
8.00±0.30
12.00±0.30
12.00±0.30
F
3.50±0.05
3.50±0.05
3.50±0.05
5.50±0.05
5.50±0.05
E
1.75±0.10
1.75±0.10
1.75±0.10
1.75±0.10
1.75±0.10
P1
4.00±0.10
4.00±0.10
4.00±0.10
4.00±0.10
4.00±0.10
P2
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
P0
4.00±0.10
4.00±0.10
4.00±0.10
4.00±0.10
4.00±0.10
D
1.50+0.10/-0
1.50+0.10/-0
1.50+0.10/-0
1.50+0.10/-0
1.50+0.10/-0
(unit: mm)
‧Bulk
Configuration
Size
Packaging Q'ty
10Kpcs / Case
0805
25Kpcs / Case
0603
‧Reel
Package
Size
0603
0805
1206
2010
2512
Packaging Q'ty
5Kpcs / Reel
10Kpcs / Reel
20Kpcs / Reel
4Kpcs / Reel
8Kpcs / Reel
16Kpcs / Reel
A
178.0±2.0
254.0±2.0
330.0±2.0
178.0±2.0
254.0±2.0
330.0±2.0
N
60.0±0.5
100.0±1.0
100.0±1.0
60.0±0.5
100.0±1.0
100.0±1.0
C
13.0±0.5
13.5±0.5
13.5±0.5
13.0±0.5
13.5±0.5
13.5±0.5
3/4
D
20min
20min
20min
20min
20min
20min
B
2.0±0.5
2.0±0.5
2.0±0.5
2.0±0.5
2.0±0.5
2.0±0.5
G
10.0±1.5
10.0±1.5
10.0±1.5
13.8±1.5
13.8±1.5
13.8±1.5
T
14.9 max.
14.9 max.
14.9 max.
16.7 max.
20.0 max.
20.0 max.
(unit: mm)
Prosperity Dielectrics Co.,Ltd.
F N F- R e v. 11.0
PDC
FNF Series
Thick Film Lead Free Surge Chip Resistors
SPECIFICATION
Specification And Test Methods
ITEM
SPECIFICATION
DC Resistance
Short time
Overload
Solderability
Resistance to
Solder Heat
J : ±5% , K : ±10% , L : ±15% , M : ±20%
TEST METHOD
IEC 60115-1 / JIS C 5201-1,Clause 4.5
Measure the resistance value.
IEC 60115-1 / JIS C 5201-1,Clause 4.13
2.5×Rated voltage or Max. Overload Voltage for 5 sec.
measure resistance after 30 minutes
IEC 60115-1 / JIS C 5201-1,Clause 4.17
After immersing flux, dip in the 235±2℃ molten solder bath
for 2±0.5 sec.
IEC 60115-1 / JIS C 5201-1,Clause 4.18
With 260±5℃ for 10±1 sec.
IEC 60115-1 / JIS C 5201-1,Clause 4.8
Test temperature :
25℃ (T1)
-55℃ (T2)
25℃ (T1)
+155℃ (T2)
R2-R1
R1
1
T2-T1
△R ≦
± (2% + 0.1Ω)
Over 95% of termination
must be covered with solder
△R ≦
± (1% + 0.1Ω)
No mechanical damage
Temperature
Coefficient of
Resistance
(TCR)
±100 ppm/℃
TCR (ppm/℃) =
×
× 10
6
T1: 25℃ T2: Test temperature
R1: Resistance at reference temperature (T1)
R2: Resistance at test temperature (T2)
IEC 60115-1 / JIS C 5201-1,Clause 4.24
Maintain the temperature of the resistor at 40±2℃
and 90½95% R.H. with the rated voltage applied.
Cycle ON for 1.5 hours and OFF for 0.5 hour for 1000+48/-0
hours. After 1½4 hour, measure the
resistance value.
IEC 60115-1 / JIS C 5201-1,Clause 4.25
Permanent resistance change after 1000+48/-0 hours
(1.5 hours ON , 0.5 hour OFF) at RCWV or Max.
Keep the resistor at 70±2℃ ambient
JIS C 5202 5.8
4.0×Rated voltage (Max. Overload Voltage)
1 sec ON, 25 sec OFF, test 10,000 cycles
IEC 60115-1 / JIS C 5201-1,Clause 4.19
Repeat 5 cycles as follows
'-55℃(30 min.) + 25℃(2½3 min.)
½
+155℃(30 min.) + 25℃(2½3 min.)
½
IEC 60115-1 / JIS C 5201-1,Clause 4.6
Test voltage: 100±15V
IEC 60115-1 /JIS C 5201-1 Clause4.33
Resistance change after bended on the 90mm PCB.
Bend: 3mm for 0603、0805 , 2mm for 1206 ,2010,2512
Load Life
Humidity
△R ≦
± (3% + 0.1Ω)
Load Life
Intermittent
Overload
Temperature
Cycle
Insulation
Resistance
Bending
Strength
△R ≦
± (3% + 0.1Ω)
△R ≦
± (5% + 0.1Ω)
No mechanical damage
△R ≦
± (1% + 0.1Ω)
No mechanical damage
Between termination and coating
must be over 1000MΩ
△R ≦
± (1% + 0.1Ω)
No mechanical damage
All product specification and data are subject to change without notice
Prosperity Dielectrics Co.,Ltd.
4/4
F N F- R e v. 11.0
PDC
