信昌電子陶瓷股½有限公司
Prosperity Dielectrics Co., Ltd.
No. 148, Chang-An Road, Sec 1,Lu-Tsu Shiang, Taoyuan, Taiwan, ROC.
Tel.：886-3-3224471
Fax：886-3-3212216
SPECIFICATION FOR APPROVAL
DATE:
CUSTOMER:
PART NAME:
LIMITED COMPANY
Thick Film High Power &. Anti-Surge Chip Resistors
CUSTOMER'S DWG. NO.
CUSTOMER'S PART NO.
PDC PART NO.
FPS Series Approved
DESCRIPTION.
ACTION
RESULT
"
ˇ"
CUSTOMER'S
SIGNATURE
NOTE
FULL APPROVED
CONDITIONAL APPROVED
REJECTED
OUR ACTION
PREPARED BY
CHECKED BY
APPROVED BY
SIGNATURE
Angel Wu
Chou Tony
Byron Tsai
CUSTOMER SIGNATURE FOR ACCEPTANCE
Edition
:
FPS-REV 4.0
Serial Number
: J
PDC
FPS Series
Thick Film High Power &. Anti-Surge Chip Resistors

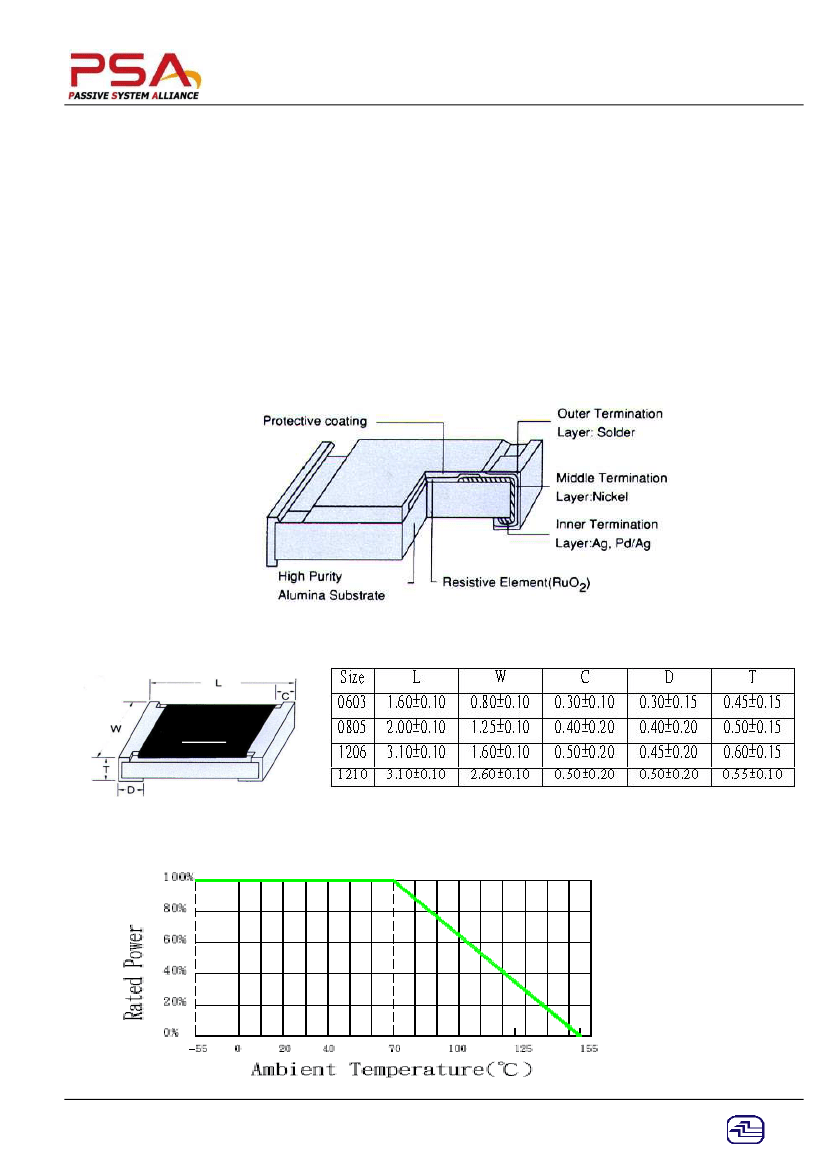

SPECIFICATION
■
Specification And Test Methods
ITEM
SPECIFICATION
DC Resistance
Short time
Overload
Solderability
Resistance to
Solder Heat
J : ±5% , F : ±1% , D : ±0.5%
TEST METHOD
IEC 60115-1 / JIS C 5201-1,Clause 4.5
Measure the resistance value.
IEC 60115-1 / JIS C 5201-1,Clause 4.13
2.5×Rated voltage or Max. Overload Voltage for 5 sec.
measure resistance after 30 minutes
IEC 60115-1 / JIS C 5201-1,Clause 4.17
After immersing flux, dip in the 235±2℃ molten solder bath
for 2±0.5 sec.
IEC 60115-1 / JIS C 5201-1,Clause 4.18
With 260±5℃ for 10±1 sec.
IEC 60115-1 / JIS C 5201-1,Clause 4.8
Test temperature :
25℃ (T1)
→
-55℃ (T2)
25℃ (T1)
→
+155℃ (T2)
R2-R1
R1
1
T2-T1
△R ≦
± (2% + 0.1Ω)
Over 95% of termination
must be covered with solder
△R ≦
± (1% + 0.1Ω)
No mechanical damage
Temperature
Coefficient of
Resistance
(TCR)
±100 ppm/℃
±200 ppm/℃
TCR (ppm/℃) =
×
× 10
6
T1: 25℃ T2: Test temperature
R1: Resistance at reference temperature (T1)
R2: Resistance at test temperature (T2)
IEC 60115-1 / JIS C 5201-1,Clause 4.24
Maintain the temperature of the resistor at 40±2℃
and 90½95% R.H. with the rated voltage applied.
Cycle ON for 1.5 hours and OFF for 0.5 hour for 1000+48/-0
hours. After 1½4 hour, measure the
resistance value.
IEC 60115-1 / JIS C 5201-1,Clause 4.25
Permanent resistance change after 1000+48/-0 hours
(1.5 hours ON , 0.5 hour OFF) at RCWV or Max.
Keep the resistor at 70±2℃ ambient
IEC 60115-1 / JIS C 5201-1,Clause 4.19
Repeat 5 cycles as follows
'-55℃(30 min.) + 25℃(2½3 min.)
½
+155℃(30 min.) + 25℃(2½3 min.)
½
IEC 60115-1 / JIS C 5201-1,Clause 4.6
Test voltage: 100±15V
IEC 60115-1 /JIS C 5201-1 Clause4.33
Resistance change after bended on the 90mm PCB.
Bend: 3mm for 0603、0805 , 2mm for 1206、1210
Load Life
Humidity
△R ≦
± (3% + 0.1Ω)
Load Life
△R ≦
± (3% + 0.1Ω)
Temperature
Cycle
Insulation
Resistance
Bending
Strength
△R ≦
± (1% + 0.1Ω)
No mechanical damage
Between termination and coating
must be over 1000MΩ
△R ≦
± (1% + 0.1Ω)
No mechanical damage

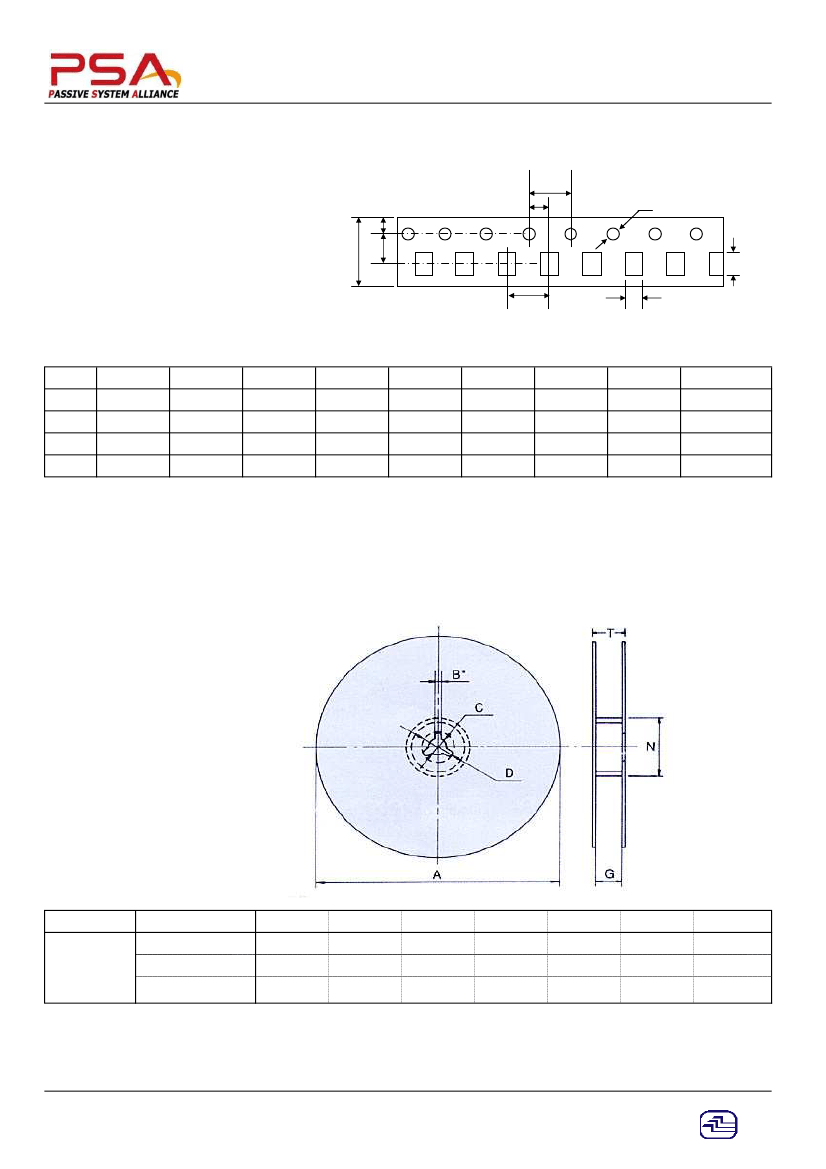

All product specification and data are subject to change without notice
Prosperity Dielectrics Co.,Ltd.
4/4
F P S- R e v. 4.0
