2301462-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2301462-8

2301462-8: DescriptionCombination Line Connector; CategoryThe connector The connector; File Size4MB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2301462-8 Overview

Combination Line Connector

2301462-8 Parametric

Parameter Name	Attribute value
Objectid	7292002699
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POALRIZED
body width	1.37 inch
subject depth	1.752 inch
body length	3.614 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
empty shell	NO
Filter function	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	3
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	14

Preview

Download Datasheet

View All

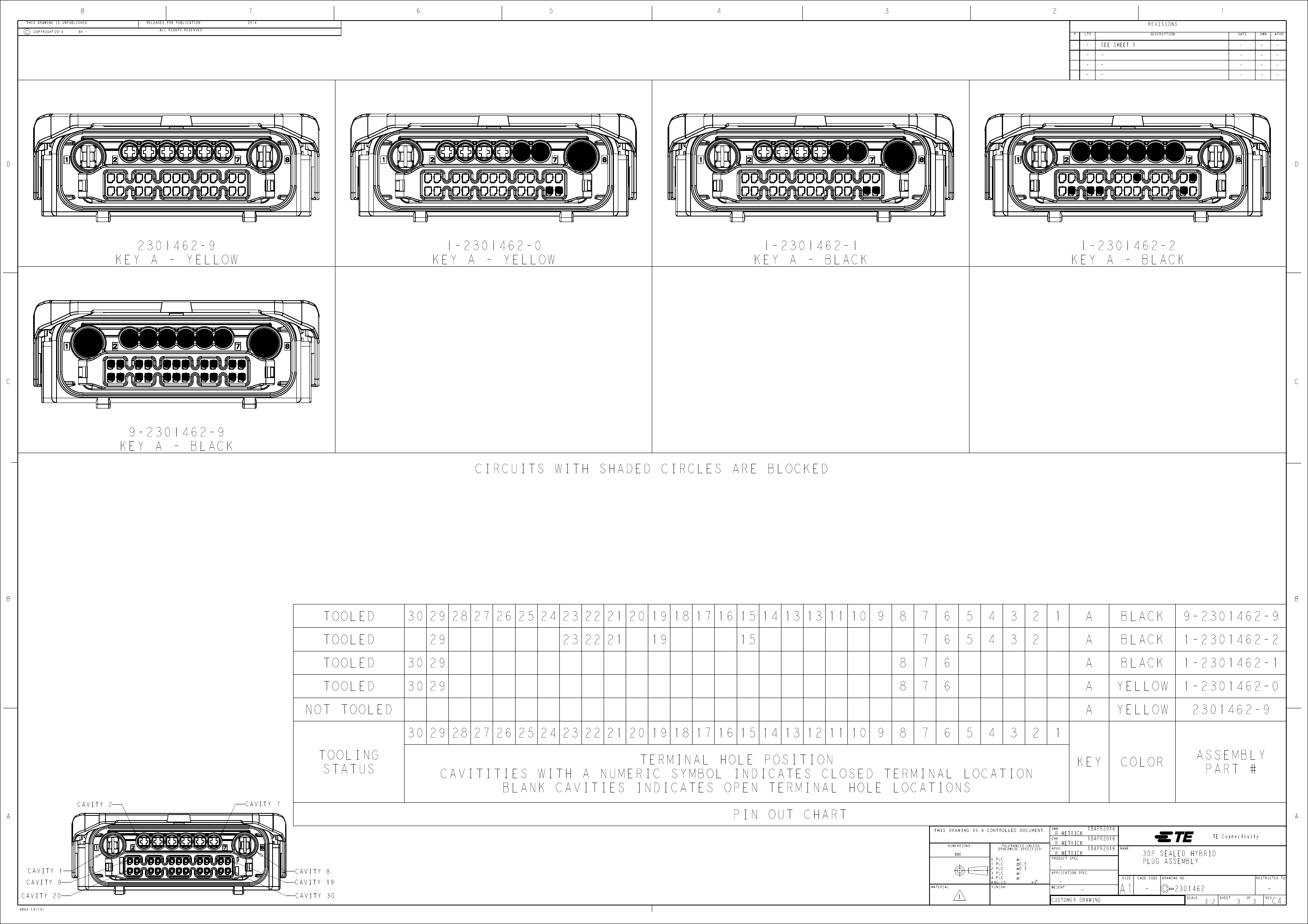

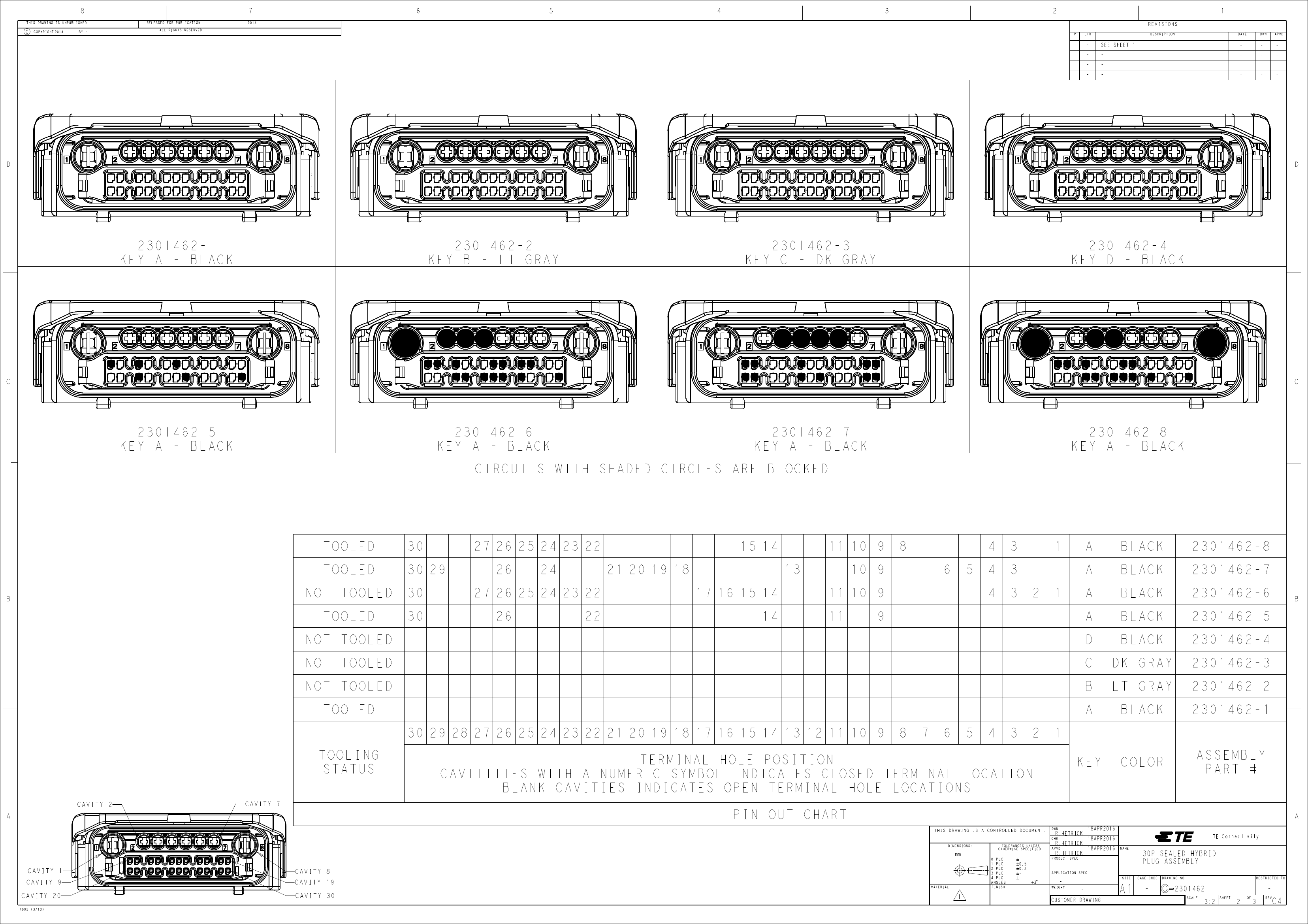

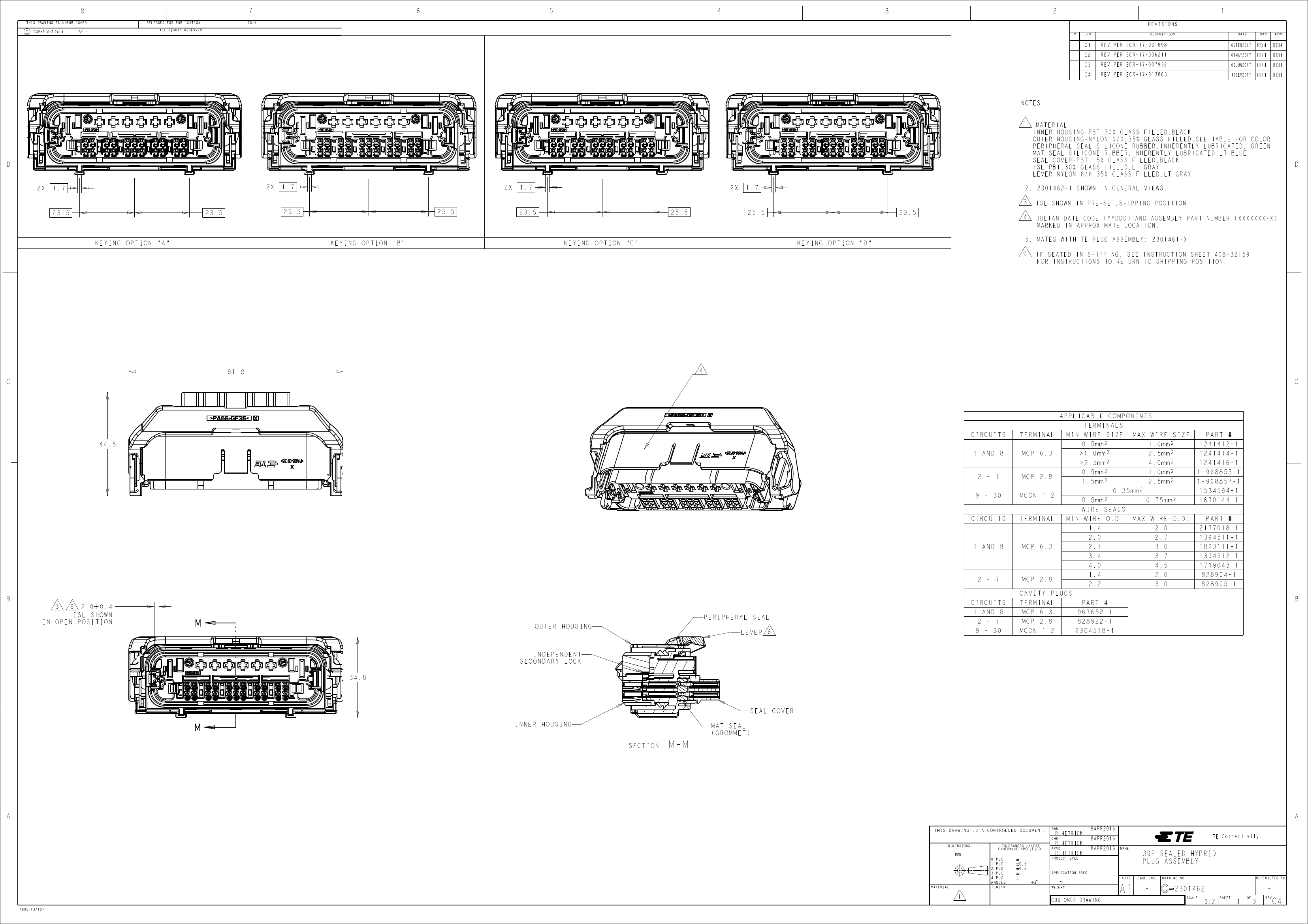

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

2014

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

2014

REV PER ECR-17-001698

REV PER ECR-17-006211

REV PER ECR-17-007932

REV PER ECR-17-013863

06FEB2017

01MAY2017

02JUN2017

19SEP2017

RDH

NOTES:

MATERIAL:

INNER HOUSING-PBT,30% GLASS FILLED,BLACK

OUTER HOUSING-NYLON 6/6,35% GLASS FILLED,SEE TABLE FOR COLOR

PERIPHERAL SEAL-SILICONE RUBBER,INHERENTLY LUBRICATED, GREEN

MAT SEAL-SILICONE RUBBER,INHERENTLY LUBRICATED,LT BLUE

SEAL COVER-PBT,15% GLASS FILLED,BLACK

ISL-PBT,30% GLASS FILLED,LT GRAY

LEVER-NYLON 6/6,35% GLASS FILLED,LT GRAY

1.7

23.5

1.7

25.5

1.7

23.5

25.5

1.7

25.5

23.5

2. 2301462-1 SHOWN IN GENERAL VIEWS.

ISL SHOWN IN PRE-SET,SHIPPING POSITION.

JULIAN DATE CODE (YYDDD) AND ASSEMBLY PART NUMBER (XXXXXXX-X)

MARKED IN APPROXIMATE LOCATION.

KEYING OPTION "A"

KEYING OPTION "B"

KEYING OPTION "C"

KEYING OPTION "D"

5. MATES WITH TE PLUG ASSEMBLY: 2301461-X

IF SEATED IN SHIPPING, SEE INSTRUCTION SHEET 408-32159

FOR INSTRUCTIONS TO RETURN TO SHIPPING POSITION.

91.8

APPLICABLE COMPONENTS

CIRCUITS

1 AND 8

2 - 7

9 - 30

CIRCUITS

TERMINAL

MCP 6.3

MCP 2.8

MCON 1.2

TERMINAL

MIN WIRE SIZE

>1.0mm²

>2.5mm²

0.5mm²

1.5mm²

0.5mm²

TERMINALS

MAX WIRE SIZE

1.0mm²

2.5mm²

4.0mm²

1.0mm²

PART #

44.5

1241412-1

1241414-1

1-968855-1

1-968857-1

1534594-1

1670144-1

PART #

1241416-1

0.5mm²

0.35mm²

2.5mm²

MIN WIRE O.D.

2.0

1.4

WIRE SEALS

0.75mm²

MAX WIRE O.D.

2.7

2.0

1 AND 8

MCP 6.3

2.7

4.0

3.4

3.0

4.5

2.0

3.0

3.7

1394512-1

1719043-1

828904-1

828905-1

1823111-1

1394511-1

2177018-1

2 - 7

MCP 2.8

TERMINAL

MCP 2.8

MCP 6.3

CAVITY PLUGS

1.4

2.2

PART #

6 2.0 0.4

ISL SHOWN

IN OPEN POSITION

CIRCUITS

OUTER HOUSING

PERIPHERAL SEAL

LEVER

1 AND 8

9 - 30

2 - 7

MCON 1.2

2304518-1

828922-1

967652-1

INDEPENDENT

SECONDARY LOCK

34.8

SEAL COVER

INNER HOUSING

SECTION

MAT SEAL

(GROMMET)

M-M

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

R.HETRICK

18APR2016

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.5

0.3

PRODUCT SPEC

30P SEALED HYBRID

PLUG ASSEMBLY

CAGE CODE

DRAWING NO

RESTRICTED TO

APPLICATION SPEC

3 $

WEIGHT

4805 (3/13)

CUSTOMER DRAWING

SIZE

2301462

SCALE

3:2

SHEET

REV
