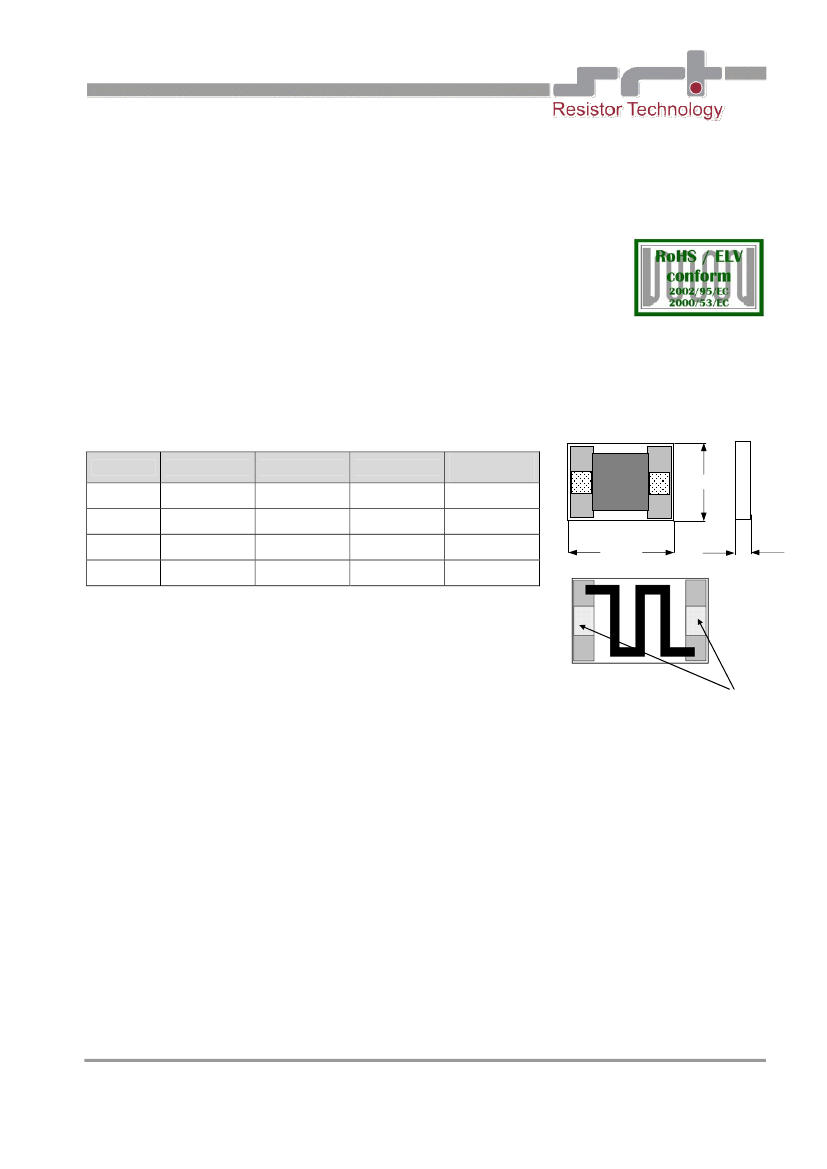

Datasheet
CBW-Series
Bondable Chip Resistors, non-magnetic
Sizes: 0402, 0603, 0805, 1206
Features:
Chip Resistors in thick film technology
AgPd termination for flip chip assembly
(face-down; for conductive epoxy assembly) or
Gold termination for wire bonding (US/TC; face-up) as well as flip chip
Bottom side completely insulated
No wrap-around
Non-magnetic
Dimensions:
Size
0402
0603
0805
1206
L
1.04
0.05
B
0.50
0.05
D
0.30
+0.15/-0.05
A (
Minimum
bondpad size)
B
0.15 x 0.15
0.20 x 0.20
0.25 x 0.40
0.30 x 0.50
L
D
1.50
+0.15/-0.05
2.00
+0.15/-0.05
3.20
+0.15/-0.05
0.80
+0.15/-0.05
1.25
+0.15/-0.05
1.50
+0.2/-0.05
0.40
+0.15/-0.05
0.40
+0.15/-0.05
0.40
+0.15/-0.05
L = Length, B = Width, D = Thickness (in mm)
Other sizes and layouts are available on request.
Packaging:
Bulk in plastic bags – minimum quantity 100 pcs/value
Waffle-Pack / Gel-Tray (JEDEC 2“) – minimum 100 pcs/value
Embossed carrier tape acc. to IEC 60286-3 – minimum 500 pcs/value (not 0402)
Reel diameter 180 mm or 330 mm
Orientation in tape:
face-up for wire bonding
face-down for flip-chip assembly
The orientation in the tape is to specify with order. If not specified face-up is used as standard.
A
Ordering Data:
Gold termination for face-up assembly (wire bonding)
Type – value – tolerance – TCR – termination
Example: CBW 0603 100K
5%
TCR100 Au
AgPd termination for face-down assembly (flip chip)
Type – value – tolerance – TCR
Example: CBW 0603 1G
20%
TCR1000
If no requirements for TCR and packaging are given, the highest value in table will be supplied and packaging
is bulk. Standard measuring voltage is 10V. Different voltages on request and agreement (specify explicitly).
Without specification the termination is AgPd for flip-chip application.
Specifications subject to change without notice
Issue 11-2012
Fon:
Fax:
E-mail:
Internet:
+49 (0)9103 / 7952-0
+49 (0)9103 / 5128
info@srt-restech.de
www.srt-restech.de
SRT Resistor Technology GmbH
Ostlandstr. 31
D-90556 Cadolzburg
Germany
Datasheet
CBW-Series
Bondable Chip Resistors, non-magnetic
Sizes: 0402, 0603, 0805, 1206
Technical data – depending on size:
Size
Power rating P
70
(mW)
(P
155
= 0 mW)
Working voltage
U_, U
eff
(V)
0402
50
60
0603
100
150
0805
125
200
1206
250
400
Value Ranges / Tolerances /
TCR
1)
/ VCR
2)
10R – 10M
5/10/20%
TCR100/250
5/10/20%
TCR100/250
500 ppm/V
10/20/30%
TCR500/1000
1000 ppm/V
10/20/30%
TCR2000
2000 ppm/V
10/20/30%
TCR2000
5000 ppm/V
-
5/10/20%
TCR50/100
5/10/20%
TCR50/100
500 ppm/V
5/10/20%
TCR250/500
1000 ppm/V
5/10/20%
TCR500/1000
2000 ppm/V
10/20/30%
TCR2000/3000
5000 ppm/V
20/30/50%
TCR3000
10000 ppm/V
5/10/20%
TCR50/100
5/10/20%
TCR50/100
500 ppm/V
5/10/20%
TCR250/500
1000 ppm/V
5/10/20%
TCR500/1000
2000 ppm/V
10/20/30%
TCR2000/3000
5000 ppm/V
10/20/30%
TCR3000
10000 ppm/V
5/10/20%
TCR50/100
5/10/20%
TCR50/100
250 ppm/V
5/10/20%
TCR100/250
250 ppm/V
5/10/20%
TCR250/500
500 ppm/V
5/10/20%
TCR500/1000
2000 ppm/V
10/20/30%
TCR2000
5000 ppm/V
>10M – 100M
>100M – 1G
>1G – 10G
>10G – 100G
>100G – 1T
1)
Other values, tolerances, TCR and VCR on request and agreement
TCR: in ppm/K; +25°C...+125°C; TCR below standard TCR (highest value) and values >100G: +25°C...+85°C
2)
VCR: typical values, all negative, not for all TCR values available
Technical data – general:
Operating temperature range
Climatic category acc. to EN 60068-1
Long term stability
Storage 125°C/1000h
Max. voltage /1000h
Short term overload (2,5x, 5s)
< 10M
< 0.5%
< 0.5%
< 0.25%
-55°C ... +155°C
55/155/56
10M - 1G
<1%
<0.5%
1G - 10G
<2%
<1%
10G
<5%
<2%
Data not specified according EN 140401-802 (CECC 40401-802)
Issue 11-2012
Fon:
Fax:
E-mail:
Internet:
+49 (0)9103 / 7952-0
+49 (0)9103 / 5128
info@srt-restech.de
www.srt-restech.de
Specifications subject to change without notice
SRT Resistor Technology GmbH
Ostlandstr. 31
D-90556 Cadolzburg
Germany
