M80-5T10000M3-08-000-00-000 datasheet, PDF

M80-5T10000M3-08-000-00-000: DescriptionBoard Connector, 8 Contact(s), Male, Straight, M2x0.4, Black Insulator; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

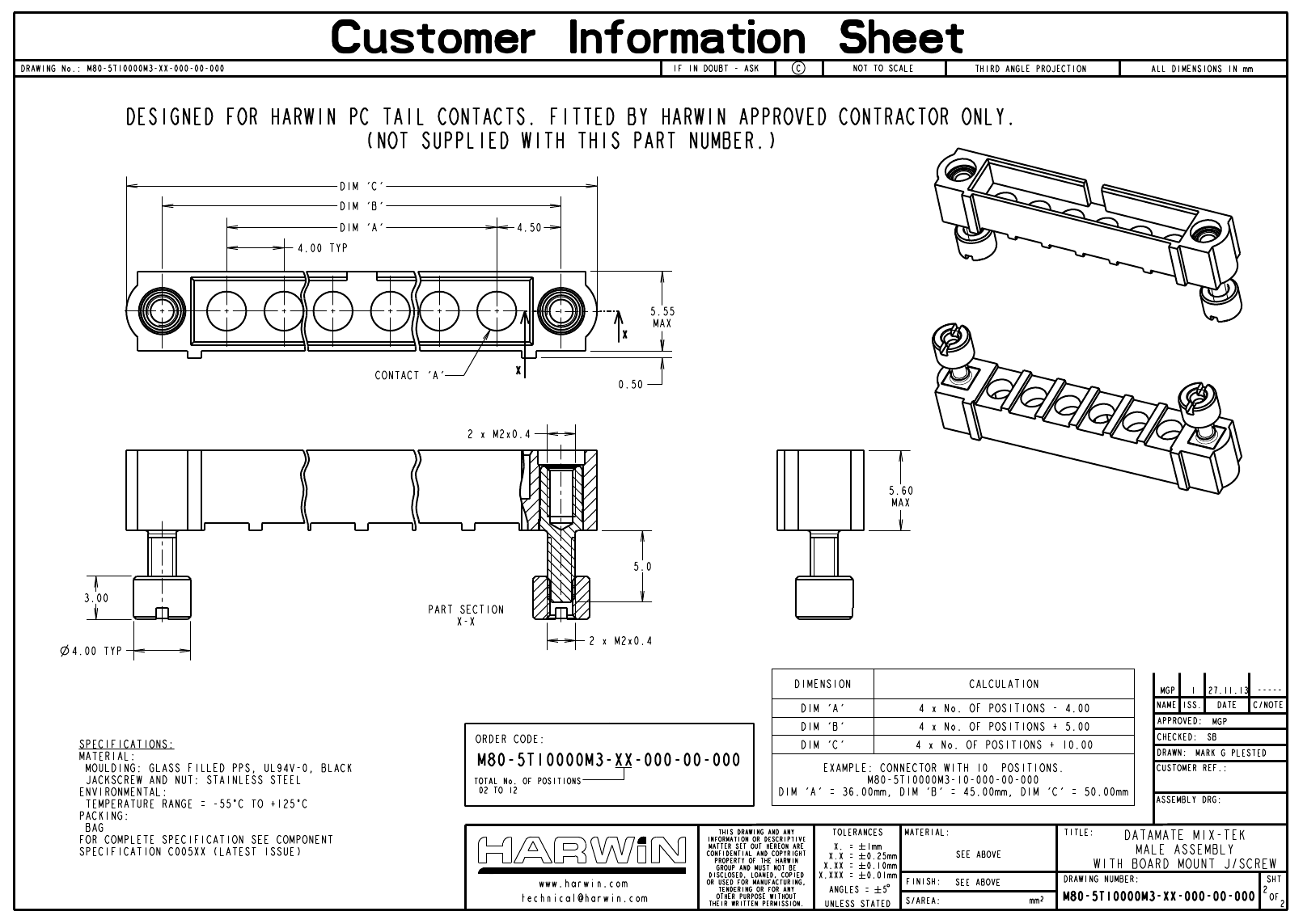

M80-5T10000M3-08-000-00-000 Overview

Board Connector, 8 Contact(s), Male, Straight, M2x0.4, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	HOLE .138-.163
body width	0.238 inch
subject depth	0.22 inch
body length	1.654 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Durability	500 Cycles
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Mixed contacts	YES
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	8
Base Number Matches	1

	M80-5T10000M3-08-000-00-000	M80-5T10000M3-03-000-00-000
Description	Board Connector, 8 Contact(s), Male, Straight, M2x0.4, Black Insulator	Board Connector, 3 Contact(s), Male, Straight, M2x0.4, Black Insulator
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Board mount options	HOLE .138-.163	HOLE .138-.163
body width	0.238 inch	0.238 inch
subject depth	0.22 inch	0.22 inch
body length	1.654 inch	0.866 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Durability	500 Cycles	500 Cycles
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
Mixed contacts	YES	YES
Installation option 1	M2X0.4	M2X0.4
Installation option 2	JACKSCREW	JACKSCREW
Installation method	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Total number of contacts	8	3
Base Number Matches	1	1
