93L21FC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 93L21FC

93L21FC: DescriptionDecoder/Driver, TTL, CDFP16,; Categorylogic logic; File Size50KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

93L21FC Overview

Decoder/Driver, TTL, CDFP16,

93L21FC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL16,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

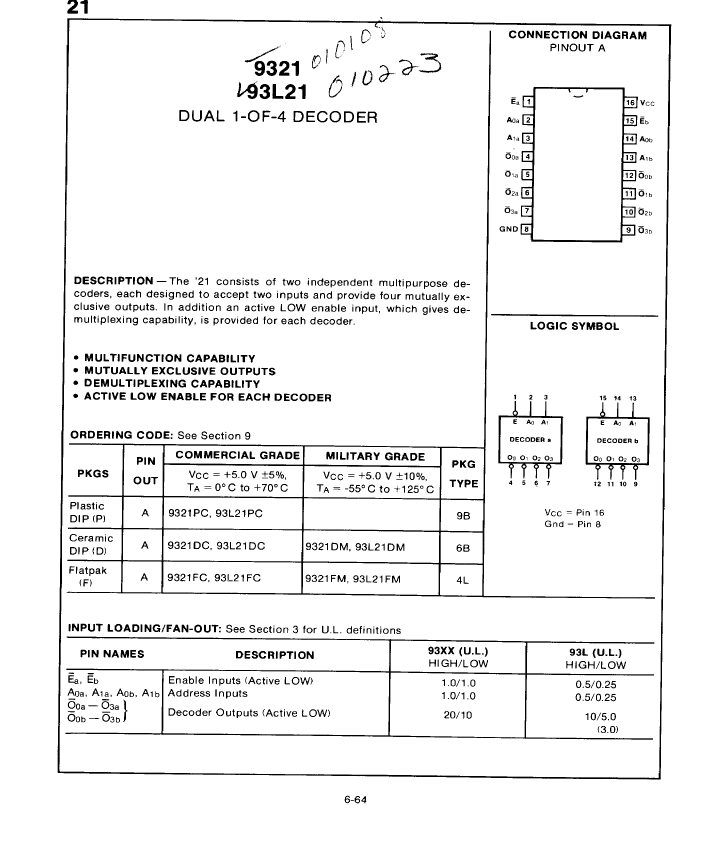

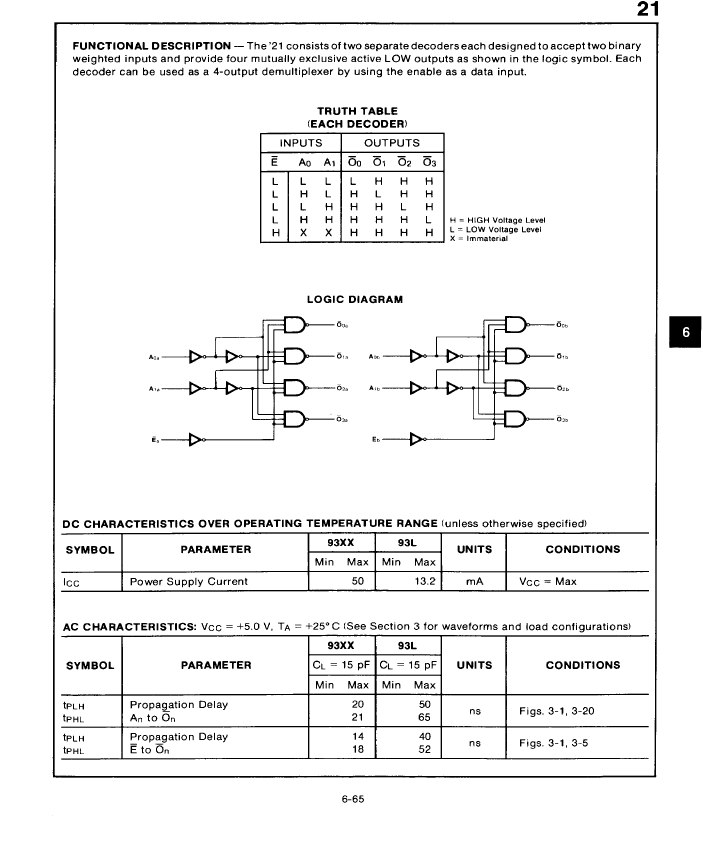

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

93L21FC Related Products

	93L21FC	93L21PC	93L21DM	93L21FM	93L21DC	9321FM	9321PC
Description	Decoder/Driver, TTL, CDFP16,	Decoder/Driver, TTL, PDIP16,	Decoder/Driver, TTL, CDIP16,	Decoder/Driver, TTL, CDFP16,	Decoder/Driver, TTL, CDIP16,	Decoder/Driver, TTL, CDFP16,	Decoder/Driver, TTL, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-XDFP-F16	R-PDIP-T16	R-XDIP-T16	R-XDFP-F16	R-XDIP-T16	R-XDFP-F16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	125 °C	125 °C	70 °C	125 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DIP	DFP	DIP	DFP	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	-	-
