050-205 PRODUCT BRIEF
DVI Copper to Fiber Media Converter
D38999 (Signal, Power, BIT), D38999 (Fiber Optic)

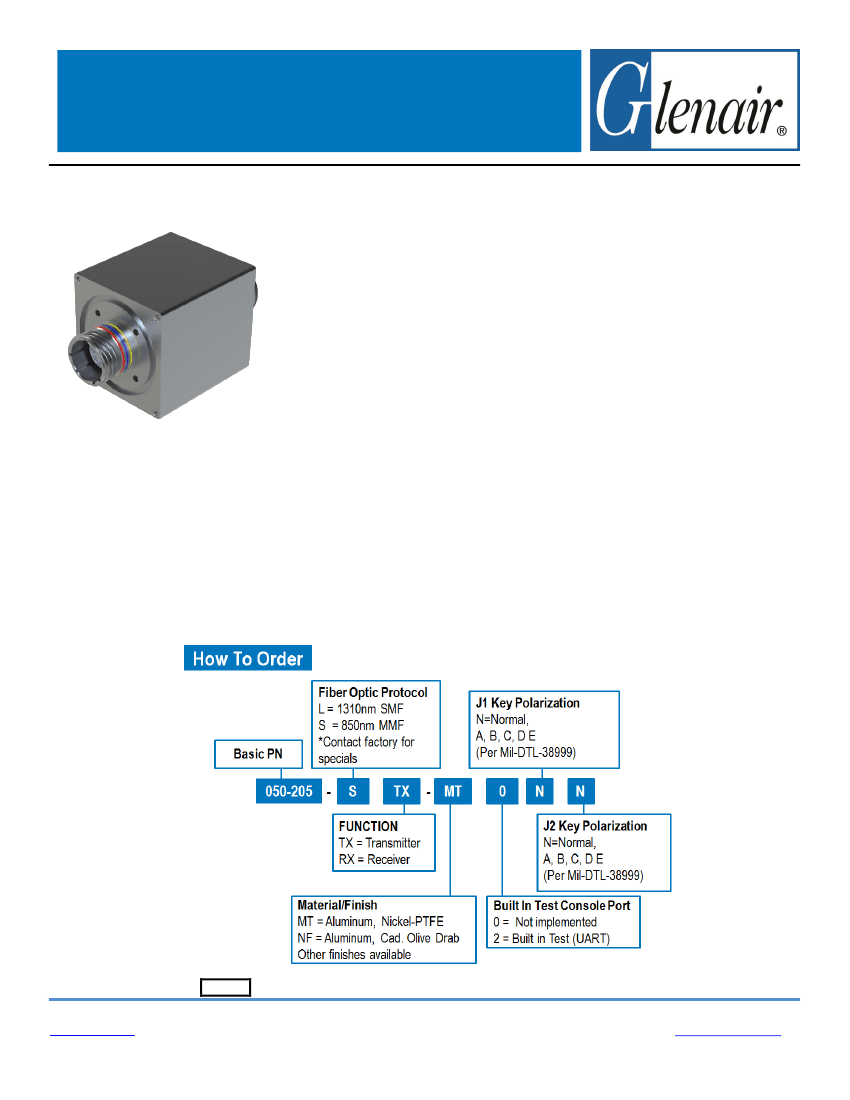

DVI Inline Copper to Fiber Media Converter
The Glenair 050-205 Digital Visual Interface (DVI) Copper to Fiber Optic Media
Converter increases DVI operational link distance in harsh environments. It allows
both longer distance and more reliable communication on optical fibers in
ruggedized systems using DVI protocol between graphics cards and remote
displays. This media converter is configured as either transmitter, converting
electrical DVI signals to fiber, or as a receiver, converting fiber optic signals into
the electrical DVI signals. The media converter incorporates a power supply which
has been designed to accept a wide DC input voltage range, 18V to 36V. The 050-
205 is designed for harsh environments and incorporates electronics in an
environmentally sealed enclosure that incorporates three environmental D38999
connectors. Power, Signal I/O and BIT functionality is supplied through D38999
with a combination of Quadrax and #22D contacts. The Fiber Optics passes
through D38999 using ARINC 801 contact which can be configured to support
either single mode or multi-mode fiber applications.
KEY FEATURES/BENEFITS
1310nm FP Lasers for SMF 10km links
InGaAs PIN PD for SMF 10km links
850nm Lasers for MMF up to 500m links
GaAs PIN PD for MMF up to 500m Links
Wide Input Voltage Range: 18-36V
IP67 in mated condition
D38999 with Quadrax and #22 Pin contacts
for Power, Signal and BIT I/O
38999 ARINC 801 for Fiber Optic I/O
OPTIONAL FEATURES
Built in Test Console Port accessible via UART
(RS422)
APPLICATIONS
Harsh Environment such as: Airborne, Tactical,
Railway, Industrial, Oil and Gas and Shipboard
applications
©2014 Glenair, Inc.
REV: 6
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 2 of 9
050-205 PRODUCT BRIEF
DVI Copper to Fiber Media Converter
D38999 (Signal, Power, BIT), D38999 (Fiber Optic)

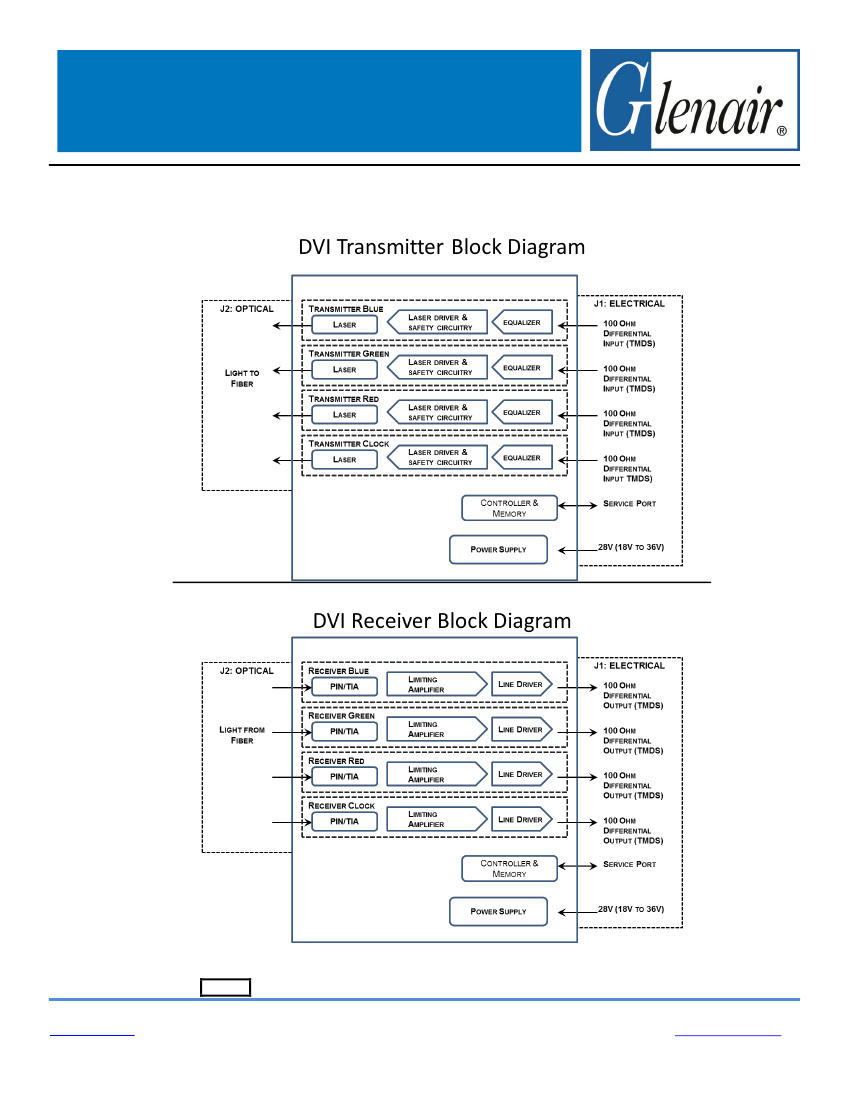

Functional Block Diagram
Other Fiber Optic connections are possible – Contact Factory
©2014 Glenair, Inc.
REV: 6
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 3 of 9
050-205 PRODUCT BRIEF
DVI Copper to Fiber Media Converter
D38999 (Signal, Power, BIT), D38999 (Fiber Optic)

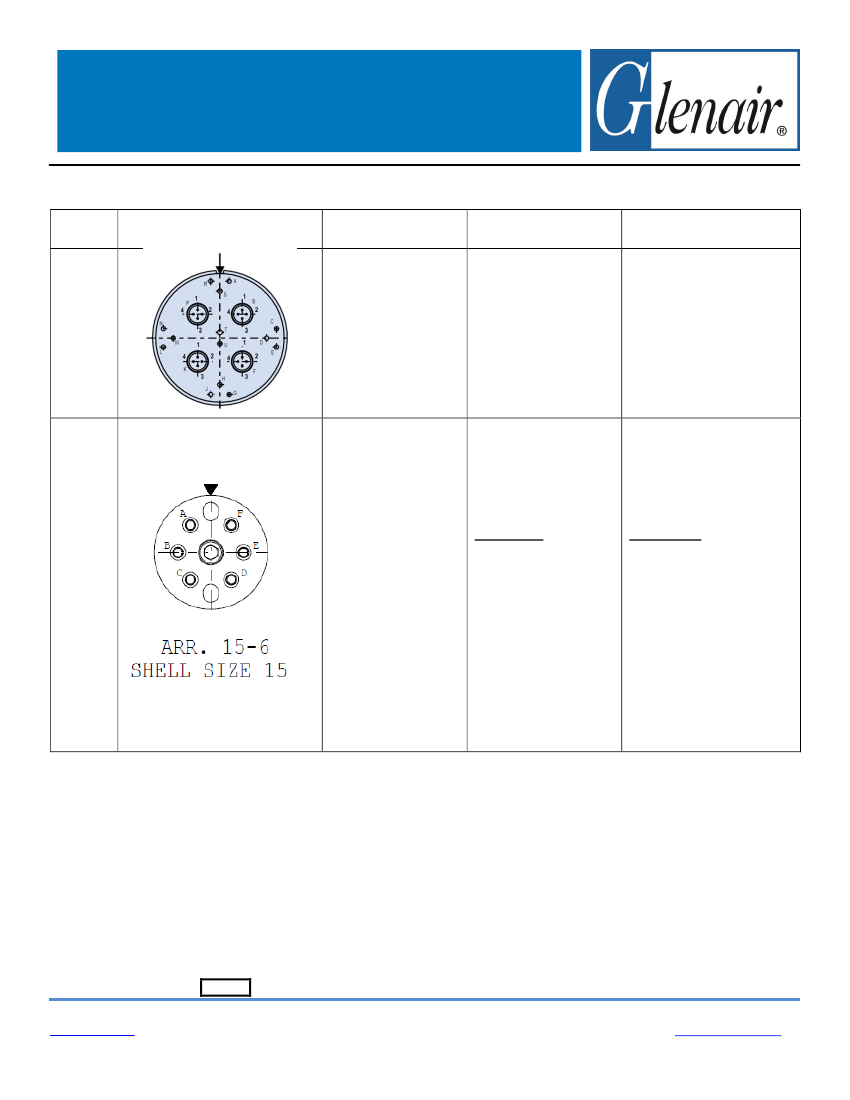

Connectors
NAME
J1
Insert
Arrangement
Function
Electrical Signal,
Power, and Built In
Test (BIT)
Media Converter
D38999 Series III type,
19Q-18
14X SIZE 22D Pins
4X SIZE 8 QUADRAX
Pins (AS39029/119)
Mating PLUG
Connector
Generic PN
D38999/26#F18SN type
with Quadrax polarization
**Glenair PN
257-606##G6-19Q-18BN
J2
Fiber Optic Signal
D38999 Series III
Insert Arrangement per
ARINC 801
CONTACTS
ARINC 801
L Configuration
Glenair PN
180-159##06-15-6N-R
(D38999 Style Plug, ARINC
801 15-6 arrangement)
CONTACTS:
L CONFIGURATION (SMF)
Glenair PN
181-076-P-126S
126.0 micron, pull proof
design, SMF
S CONFIGURATION (MMF)
Glenair PN
181-076-P-126
126.0 micron, pull proof
design, MMF
S CONFIGURATION:
Note: # = Environmental Class (Material/Finish)
**Connector is supplied less contacts. Optional mode code 557 can be added to the end of the part number to include contacts (including
spares), insertion/removal tool, and sealing plugs. Contact manufacturer for additional options.
©2014 Glenair, Inc.
REV: 6
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 4 of 9
050-205 PRODUCT BRIEF
DVI Copper to Fiber Media Converter
D38999 (Signal, Power, BIT), D38999 (Fiber Optic)
Built In Test (BIT) Functionality – UART

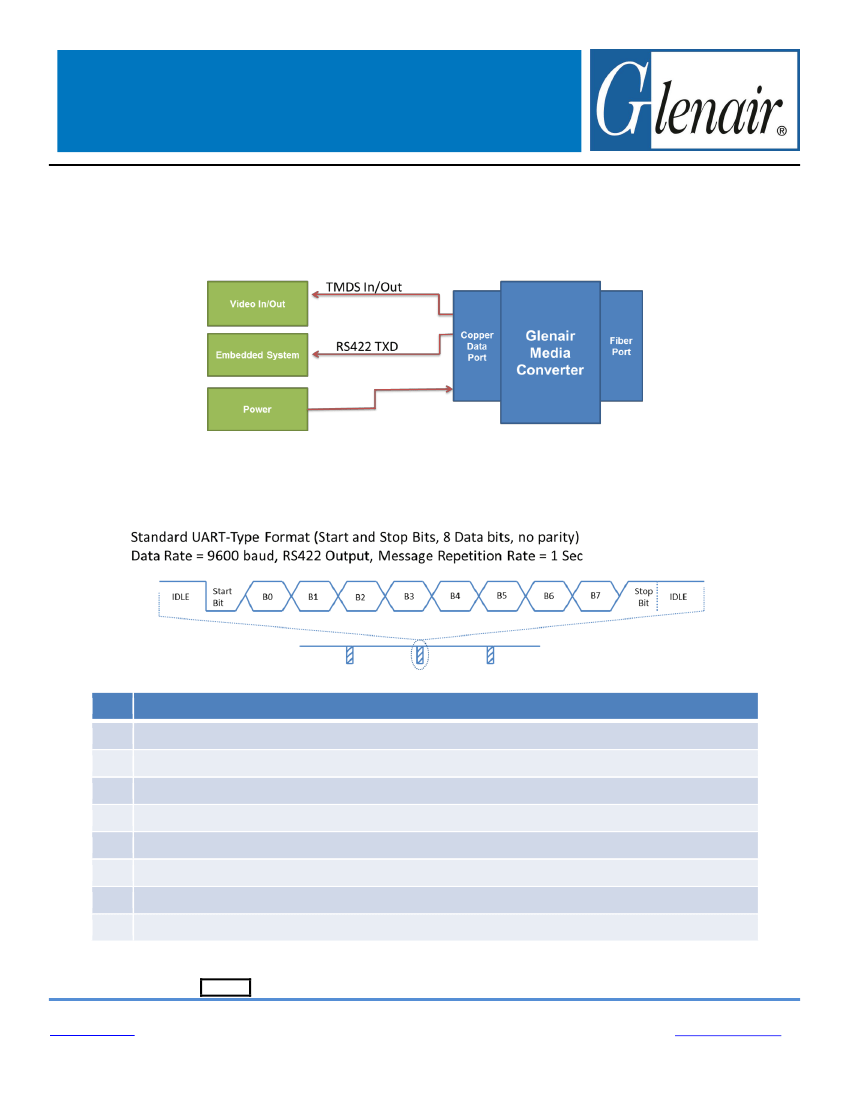

This media converter can be offered with built in test functionality accessible via an RS-422 Port. Functional block
diagram for this function is illustrated in the figure below. The UART Bit message is a 10 bit message with an update rate
of 1 Hz. The message format is illustrated be seen below.
ALARM STATUS MESSAGES
Fiber Transmitter Fault Status
Fiber Receiver Los of Signal (LOS) Status
SERIAL STATUS MESSAGE BIT MAPPING
Bit
0
1
2
3
4
5
6
7
Description
TMDS0, Blue, Fiber Optic TX Fault (1 = Fault, 0 = No Fault)
TMDS1, Green, Fiber Optic TX Fault (1 = Fault, 0 = No Fault)
TMDS2, Red, Fiber Optic TX Fault (1 = Fault, 0 = No Fault)
TMDS3, Clock, Fiber Optic TX Fault (1 = Fault, 0 = No Fault)
TMDS0, Blue, Fiber Optic RX LOS (1 = Fault, 0 = No Fault)
TMDS1, Green, Fiber Optic RX LOS (1 = Fault, 0 = No Fault)
TMDS2, Red, Fiber Optic RX LOS (1 = Fault, 0 = No Fault)
TMDS3, Clock, Fiber Optic RX LOS (1 = Fault, 0 = No Fault)
