PRODUCT BRIEF
DVI Copper to Fiber Media Converter,
28VDC
D38999 (ARINC801 for Fiber Optic),
D38999 (Quadrax & Pin contacts for Signal and Service Port),
D38999 (Pin contacts for Power)
REV
1
2
DESCRIPTION
Released
Update the pin assignment for the J2 port
DATE
02/11/2019
03/14/2019
APPROVED
BF/YA/RAS
YA/JLL/TA
BF19U2-5401
THIS COPYRIGHTED DOCUMENT IS THE PROPERTY OF GLENAIR, INC. AND IS FURNISHED ON THE CONDITION THAT IT IS NOT TO
BE DISCLOSED, REPRODUCED IN WHOLE OR IN PART, OR USED TO SOLICIT QUOTATIONS FROM COMPETITIVE SOURCES, OR USED
FOR MANUFACTURE BY ANYONE OTHER THAN GLENAIR, INC. WITHOUT WRITTEN PERMISSION FROM GLENAIR, INC. THE INFORMATION
HEREIN HAS BEEN DEVELOPED AT GLENAIR'S EXPENSE AND MAY BE USED FOR ENGINEERING EVALUATION AND INCORPORATION
INTO TECHNICAL SPECIFICATIONS AND OTHER DOCUMENTS WHICH SPECIFY PROCUREMENT OF PRODUCTS FROM GLENAIR, INC.
050-214 PRODUCT BRIEF
DVI Copper to Fiber Media Converter
D38999 (Signal, BIT), D38999 (Power), D38999 (Fiber Optic)
DVI Copper to Fiber Media Converter

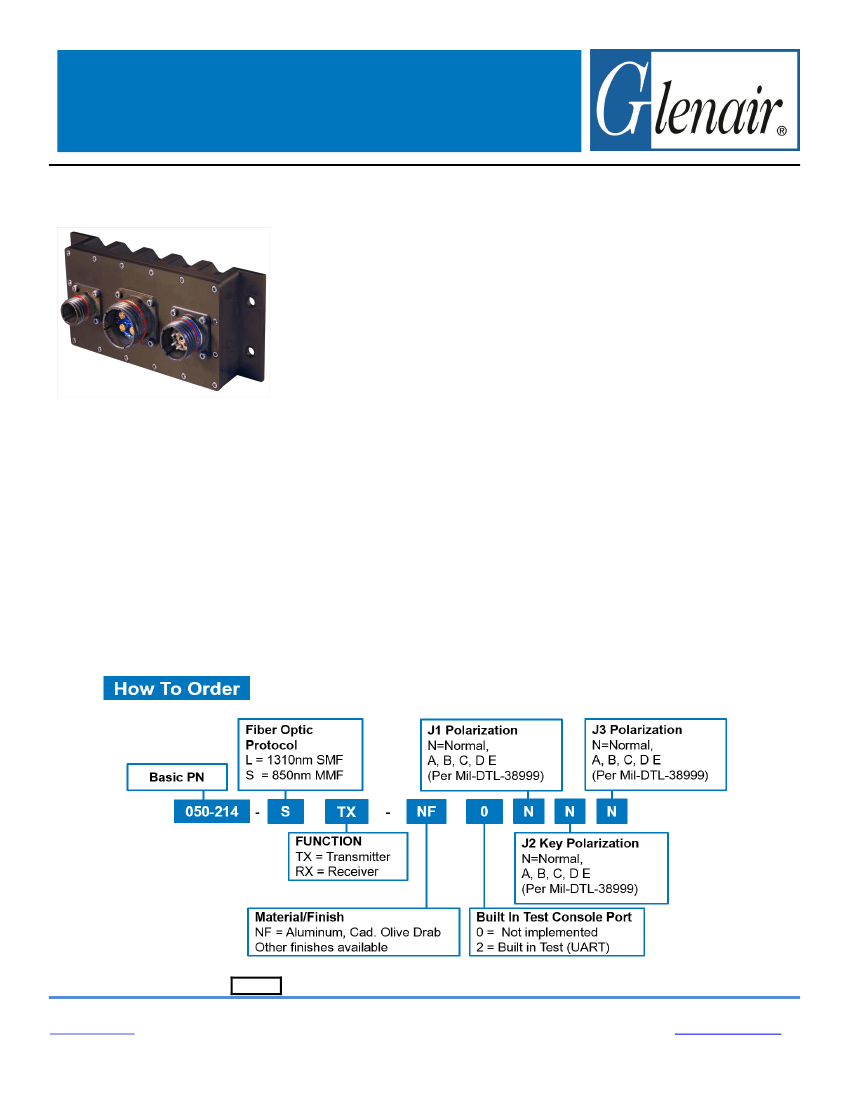

The Glenair 050-214 Flange Mount Digital Visual Interface (DVI) Copper to Fiber
Optic Media Converter increases DVI operational link distance in harsh
environments. It allows both longer distance and more reliable communication on
optical fibers in ruggedized systems using DVI protocol between graphics cards
and remote displays. This media converter is configured as either transmitter,
converting electrical DVI signals to fiber, or as a receiver, converting fiber optic
signals into the electrical DVI signals. The media converter incorporates a power
supply which has been designed to accept a wide DC input voltage range, 18V to
36V. The 050-214 is designed for harsh environments and incorporates
electronics in an environmentally sealed enclosure that incorporates three
environmental D38999 connectors. Signal I/O and BIT functionality is supplied
through one D38999 connector and power is provide through its own dedicated
D38999 connector. The Fiber Optics passes through D38999 using ARINC 801
contact which can be configured to support either single mode or multi-mode fiber
applications.
KEY FEATURES/BENEFITS
1310nm FP Lasers for SMF 10km links
InGaAs PIN PD for SMF 10km links
850nm Lasers for MMF up to 500m links
GaAs PIN PD for MMF up to 500m Links
Wide Input Voltage Range: 18-36V
IP67 in mated condition
D38999 with Quadrax and #22 Pin contacts for
Signal and BIT I/O
D38999 with #22 Pin contacts for Power
D38999 ARINC 801 for Fiber Optic I/O
OPTIONAL FEATURES
Built In Test Console Port accessible via USB2.0
Built in Test Console Port accessible via UART
(RS422)
APPLICATIONS
Harsh Environment such as: Airborne, Tactical,
Railway, Industrial, Oil and Gas and Shipboard
applications
DVI EDID and hot-plug detection are not supported
©2019 Glenair, Inc.
REV: 2
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
∙
PAGE 2 of 15
Glenair Proprietary
050-214 PRODUCT BRIEF
DVI Copper to Fiber Media Converter
D38999 (Signal, BIT), D38999 (Power), D38999 (Fiber Optic)

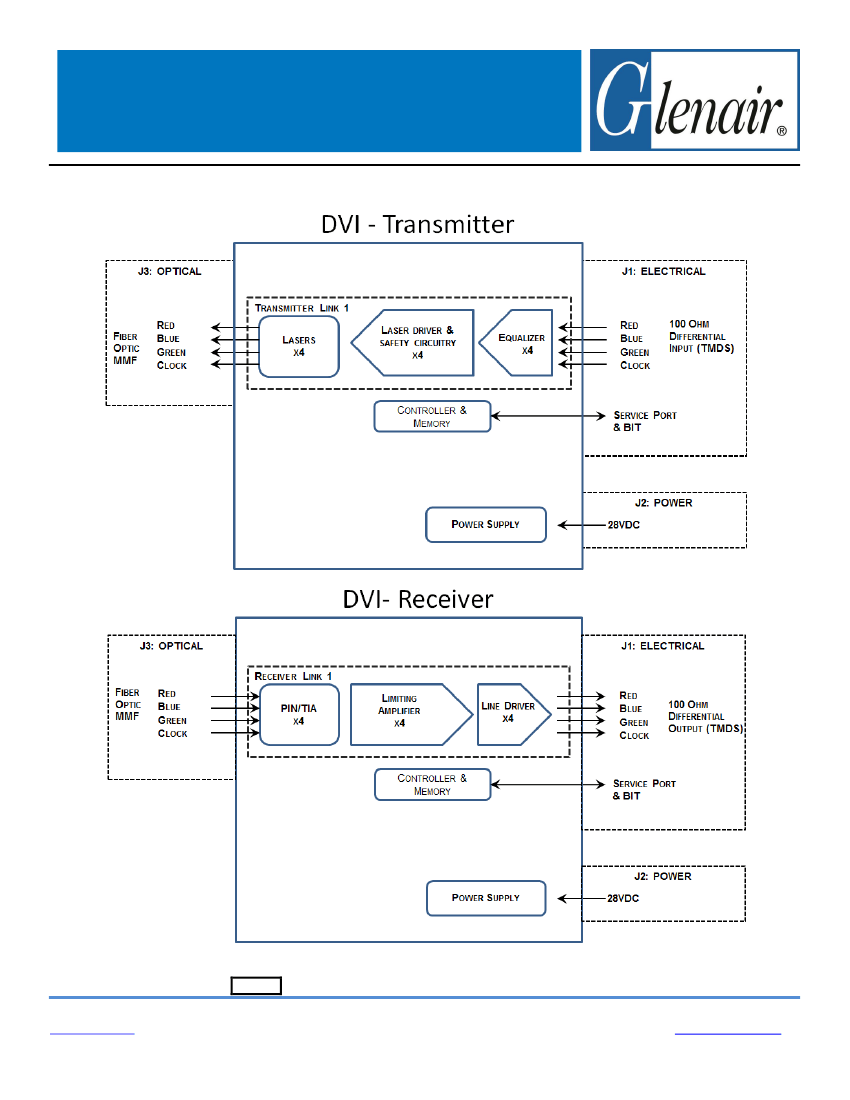

Functional Block Diagram
©2019 Glenair, Inc.
REV: 2
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
∙
PAGE 3 of 15
Glenair Proprietary
050-214 PRODUCT BRIEF
DVI Copper to Fiber Media Converter
D38999 (Signal, BIT), D38999 (Power), D38999 (Fiber Optic)

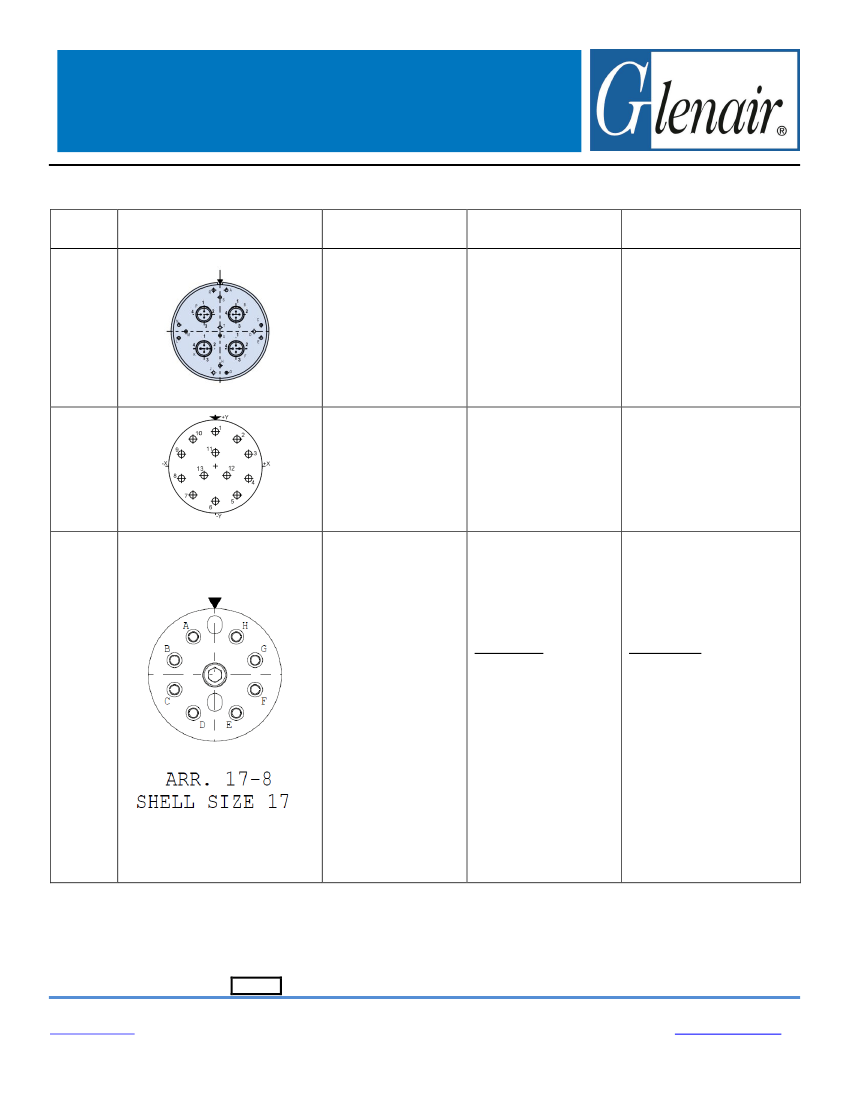

Connectors
NAME
J1
Insert
Arrangement
Function
Electrical Signal,
Status and Built In Test
(BIT)
Media Converter
D38999 Series III type,
19Q-18
14X SIZE 22D Pins
4X SIZE 8 QUADRAX
Pins (AS39029/119)
Mating PLUG
Connector
Generic PN
D38999/26#F18SN type
with Quadrax polarization
**Glenair PN
257-606##G6-19Q-18BN
J2
Power
D38999 Series III type,
11-35
13X SIZE 22D Pins
Generic PN
D38999/26#B35SN
Glenair PN
233-105-G6##11-35SN
J3
Fiber Optic Signal
D38999 Series III
Insert Arrangement per
ARINC 801
CONTACTS
ARINC 801
LX CONFIGURATION:
Glenair PN
181-076-P-126S
126.0 micron, pull proof
design, SMF
SX CONFIGURATION:
Contacts:
Glenair PN
181-076-P-126
126.0 micron, pull proof
design, MMF
Glenair PN
180-159##06-15-6N-R
(D38999 Style Plug, ARINC
801 15-6 arrangement)
CONTACTS:
LX10 CONFIGURATION
Glenair PN
181-076-P-126S
126.0 micron, pull proof
design, SMF
SX or FX CONFIGURATION
Glenair PN
181-076-P-126
126.0 micron, pull proof
design, MMF
Note: # = Environmental Class (Material/Finish)
**Connector is supplied less contacts. Optional mode code 557 can be added to the end of the part number to include contacts (including
spares), insertion/removal tool, and sealing plugs. Contact manufacturer for additional options.
©2019 Glenair, Inc.
REV: 2
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
∙
PAGE 4 of 15
Glenair Proprietary
050-214 PRODUCT BRIEF
DVI Copper to Fiber Media Converter
D38999 (Signal, BIT), D38999 (Power), D38999 (Fiber Optic)
Built In Test (BIT) Functionality – USB 2.0
This media converter can be offered with built in test functionality accessible through a Console Port via Universal Serial

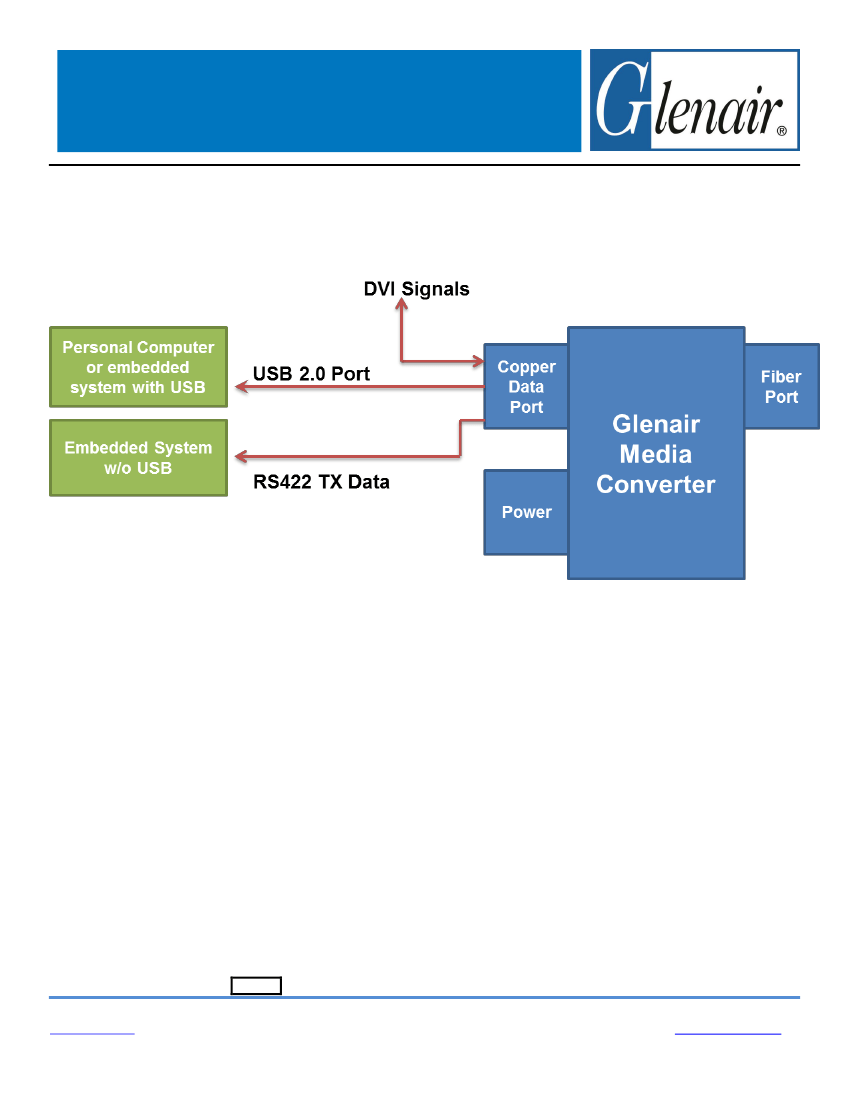

Bus 2.0 (USB 2.0), via an RS422 output or both options can be made available. Functional block diagram for the BIT
interface is illustrated shown below.
Universal Serial Bus (2.0) BIT
Presents itself as a “Virtual” Communications Port
Compatible with Microsoft Windows, Mac, and Linux OS’s.
On the computer side, open any terminal application (PuTTY, HyperTERM, TeraTERM, etc.) to communicate with
the media converter hardware.
Simple “Human Readable” status messages.
ALARM STATUS MESSAGES
Unit Identification Information
Unit Serial Number
Unit Product Code
Fiber Side Alarm/Status
Temperature
Transmitter TX Fault
Transmitter Disable Status
Receiver loss of signal (LOS) or signal Detect (SD) Status
©2019 Glenair, Inc.
REV: 2
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
∙
PAGE 5 of 15
Glenair Proprietary
