M85049/114N24TZ10-6 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> M85049/114N24TZ10-6

M85049/114N24TZ10-6: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size114KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/114N24TZ10-6 Overview

Connector Accessory

M85049/114N24TZ10-6 Parametric

Parameter Name	Attribute value
Objectid	1970226862
Reach Compliance Code	compliant
Related military specifications	MIL-DTL-38999 SERIES I, II
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Material	ALUMINUM ALLOY
Military connector accessories name	BOOT ADAPTER
Housing size	24

Preview

Download Datasheet

View All

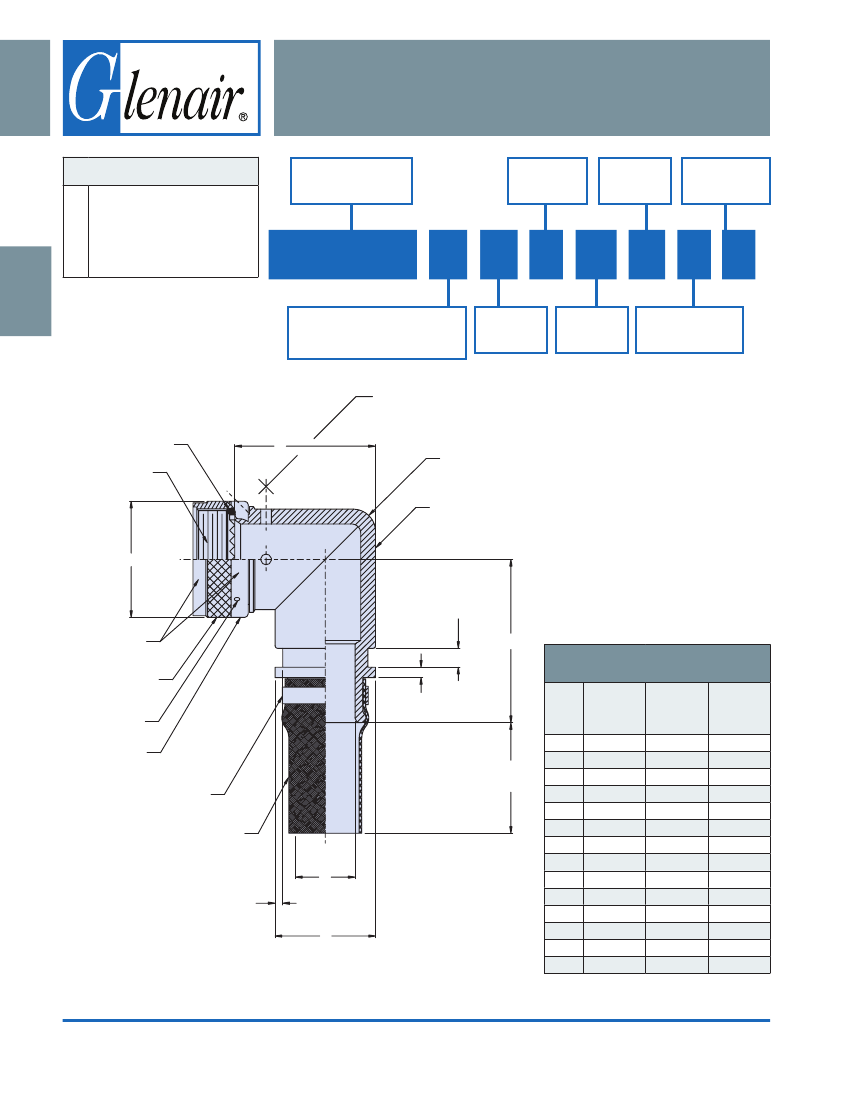

AS85049/114

90° RFI/EMI Shield-Sock Shrink Boot Adapter

with Detented or Non-Detented Self-Locking

or Non Self-Locking Coupling Nut

Shield Finish

(Table IV)

Entry Size

(Table II)

AS85049

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series I & II

40M38277, PAN 6433-1

PATT 614, PATT 616

NFC93422 Series HE308 &

HE309

Product Series and

Specification Sheet

Drain Hole

(Omit for None)

M85049/114

Shell Size

(Table I)

Finish

(Table III)

= Detented, Self-Locking

–

= Non-Self-Locking (Use Dash)

= Non-Detented, Self-Locking

Braid Length

1 Inch Increments,

6” Min., 18” Max

See Note 9

O-Ring

A Thread

Configuration

Optional

Elbow Body

.140 (3.56)

.130 (3.30)

arking Location

Optional

Knurl Style Mfr

Option - Typ

See Note 8

Coupling Nut

See Note 5

Single Layer Shield

TABLE II: Entry Size

and Dimensions

Entry

+.008 (.20)

Size ± .020 (.51)

-.000 (.00)

.250 (6.4)

.312 (7.9)

.375 (9.5)

.438 (11.1)

.500 (12.7)

.562 (14.3)

.625 (15.9)

.688 (17.5)

.750 (19.1)

.812 (20.6)

.875 (22.2)

.938 (23.8)

1.000 (25.4)

1.125 (28.6)

.044 (1.12)

.069 (1.75)

Max

.560 (14.2)

.630 (16.0)

.690 (17.5)

.750 (19.1)

.820 (20.8)

.890 (22.6)

.950 (24.1)

1.020 (25.9)

1.120 (28.4)

1.200 (30.5)

1.270 (32.3)

1.260 (32.0)

1.370 (34.8)

1.470 (37.3)

.075 (1.9)

(Ref

)

Length

±.50 (12.7

)

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-120
